Fan, AC 90~265

Fan — power supply AC 90~265, material Anti-flammable PC +ABS. The complete factory specification follows. Made by Shenzhen Bandary Technology Co., Ltd. (10 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fan

• Model Number: FC221 W
• Power Supply: AC 90~265
• Output Voltage: relay or analog output
• Material: Anti-flammable PC +ABS
• Warranty: 3 Years
• Certifications: RoHS CE

Technical Specifications

Product Details

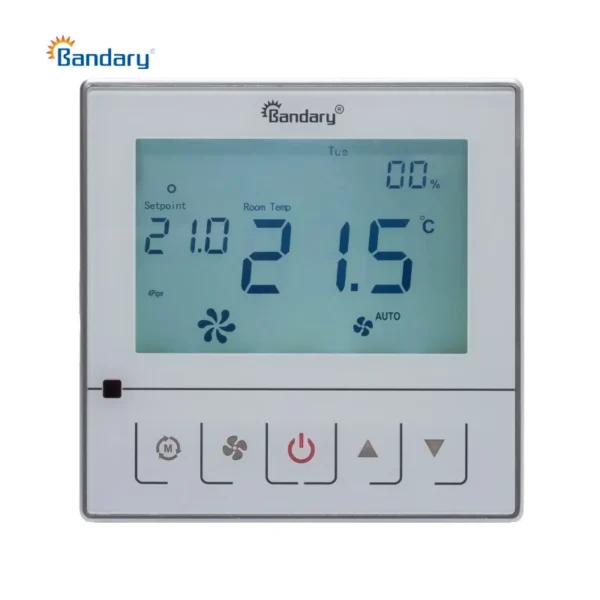

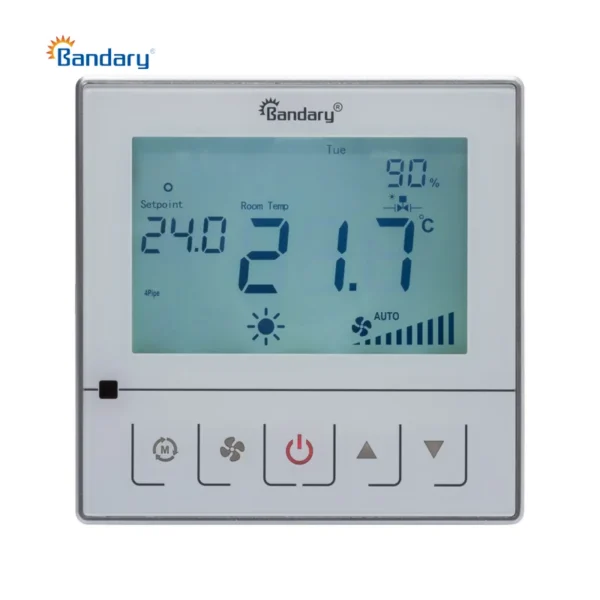

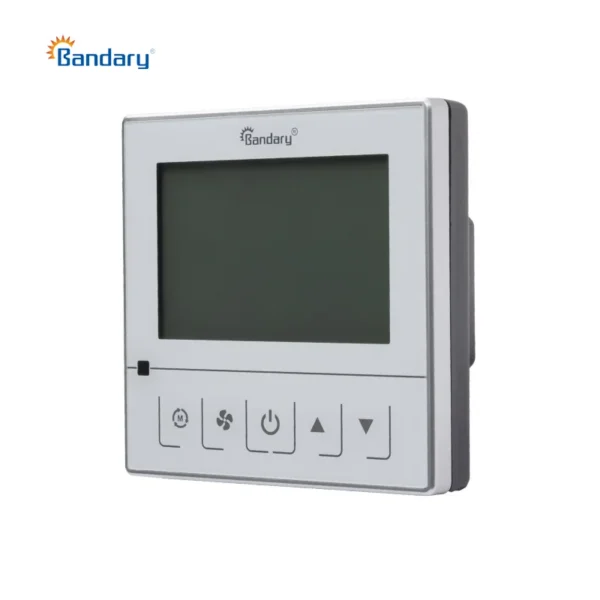

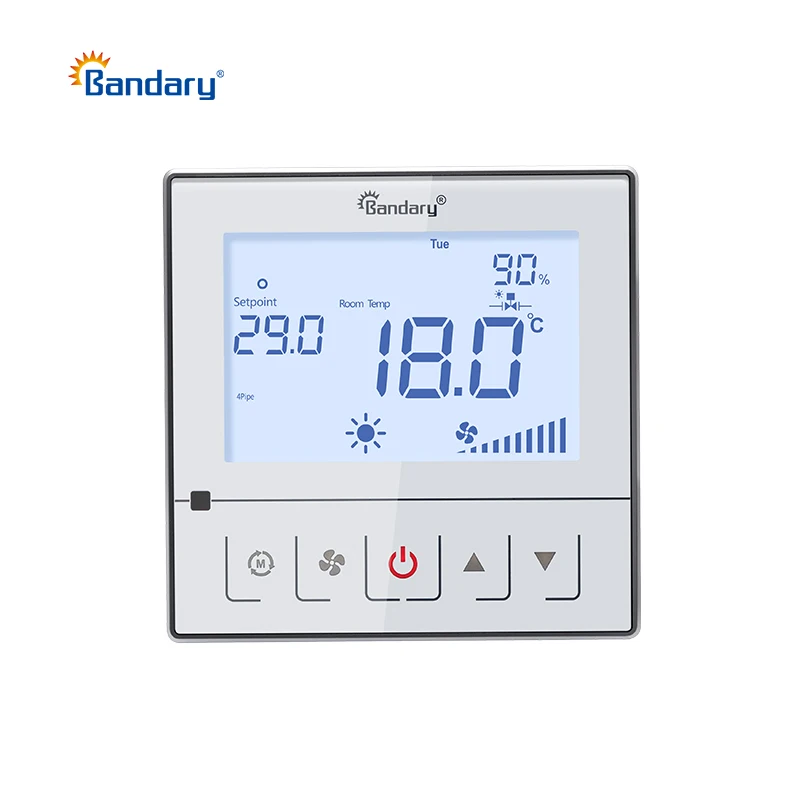

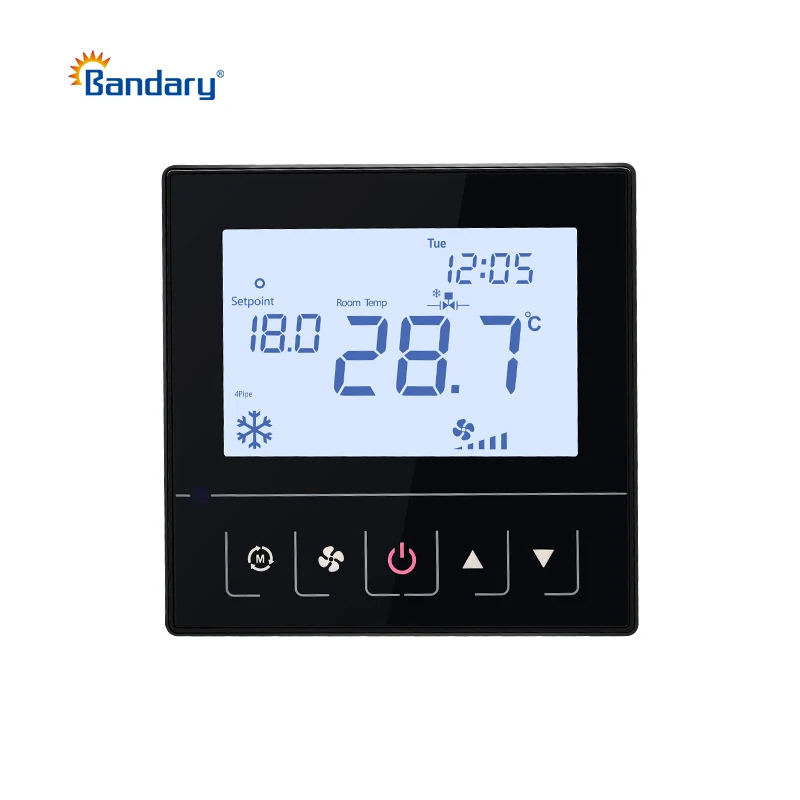

FC221W RS485 Modbus Thermostat

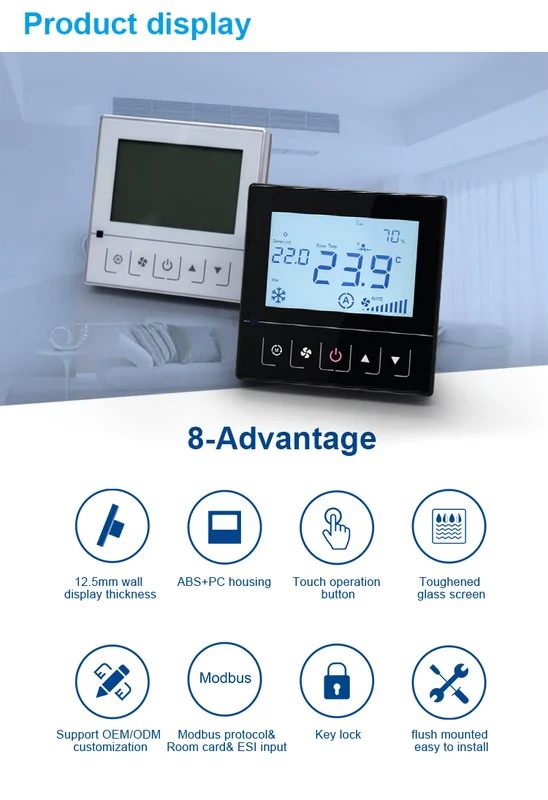

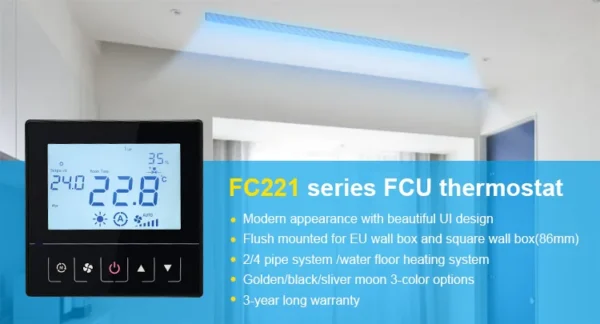

The fan coil room thermostat has been designed for individual control of temperature in commercial, industrial and residential buildings. It is tailored for two-pipe fan coil with two-wire electric valves. With its flush mounted modern design the device combines digital technology with a large LCD display and additional buttons, which enables the single room controller to be used intuitively. Integrated 7 days time clock with 4 time programs

FC 221W
Measuring Values	Temperature

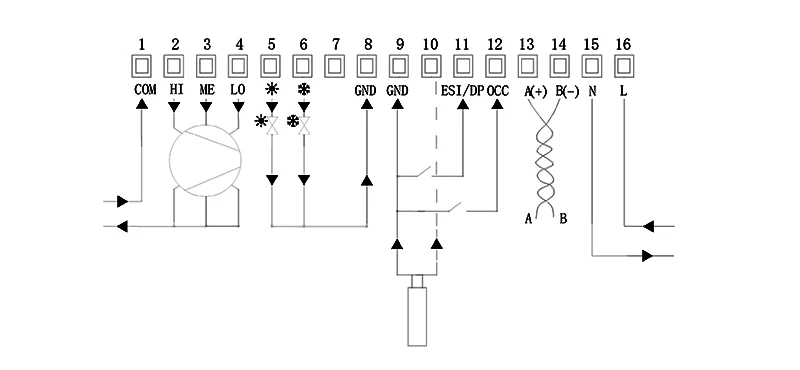

Output Switch Contact	5* Normally open contact, 240V Last max, 3A, 2* Heating / Cooling, 3* Fan coil
Network Technology	RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400,  Parity: non (2 stopbits), even or odd ( 1 stopbit )  OR wifi communication
Power Supply	90..265V~
Power Consumption	0,9 VA ( 265V~）
Measuring Range Temperature	+1..+50℃
Accuracy Temperature	±0.1℃ （ typ.at 21℃ )
Inputs	inputs for change-over sensor ( NTC 10K )
Control Functions	setpoint  adjustment +1..+50℃ （ Default +16..+30℃ )
Display	LCD-moudule with Touch and LED- illumination
Enclosure	ABS,  Scratch- resistant acrylic glass
Protection	IP20 according to EN 60529

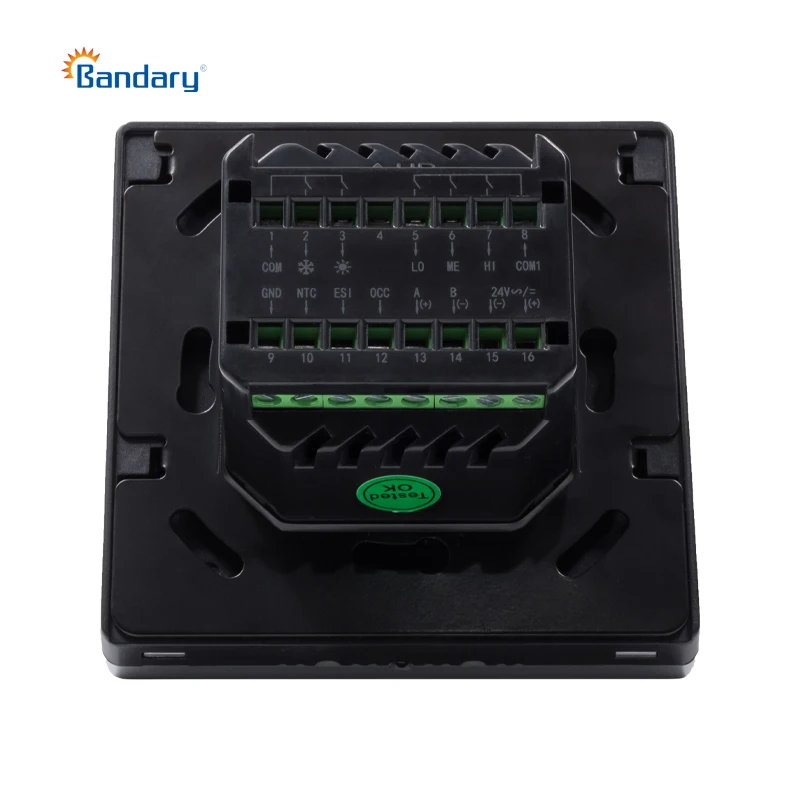

Connection Electrical	terminal block max. 1.5 square millimeter
Ambient Condition	+1..+50℃, max, 95% rH non condensing
Weight	160g
Mounting	flush mounted with standard EU box ( Diameter 55mm )

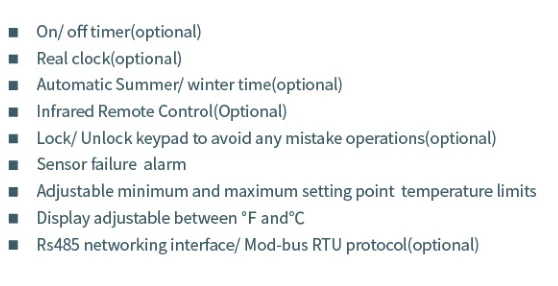

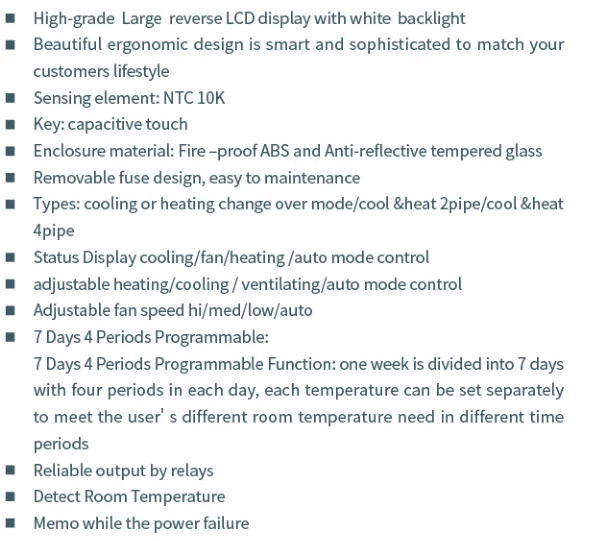

FEATURE

Shenzhen Bandary Technology., ltd

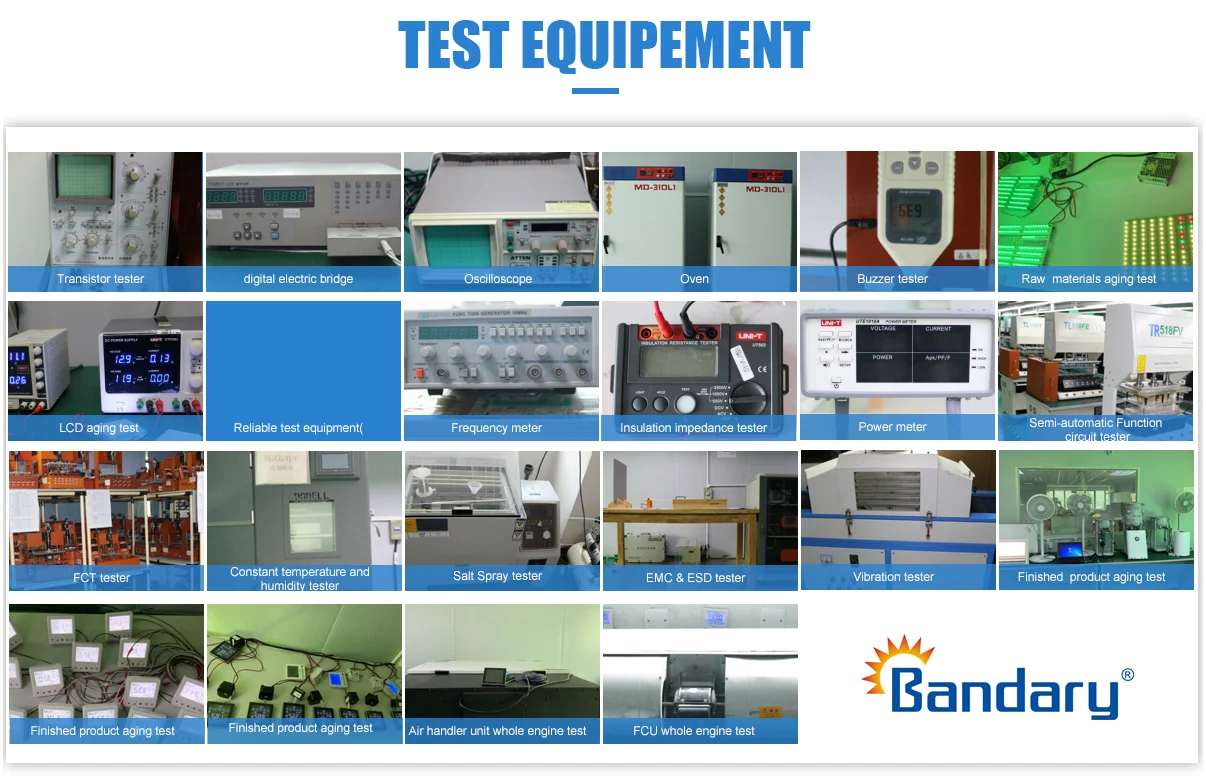

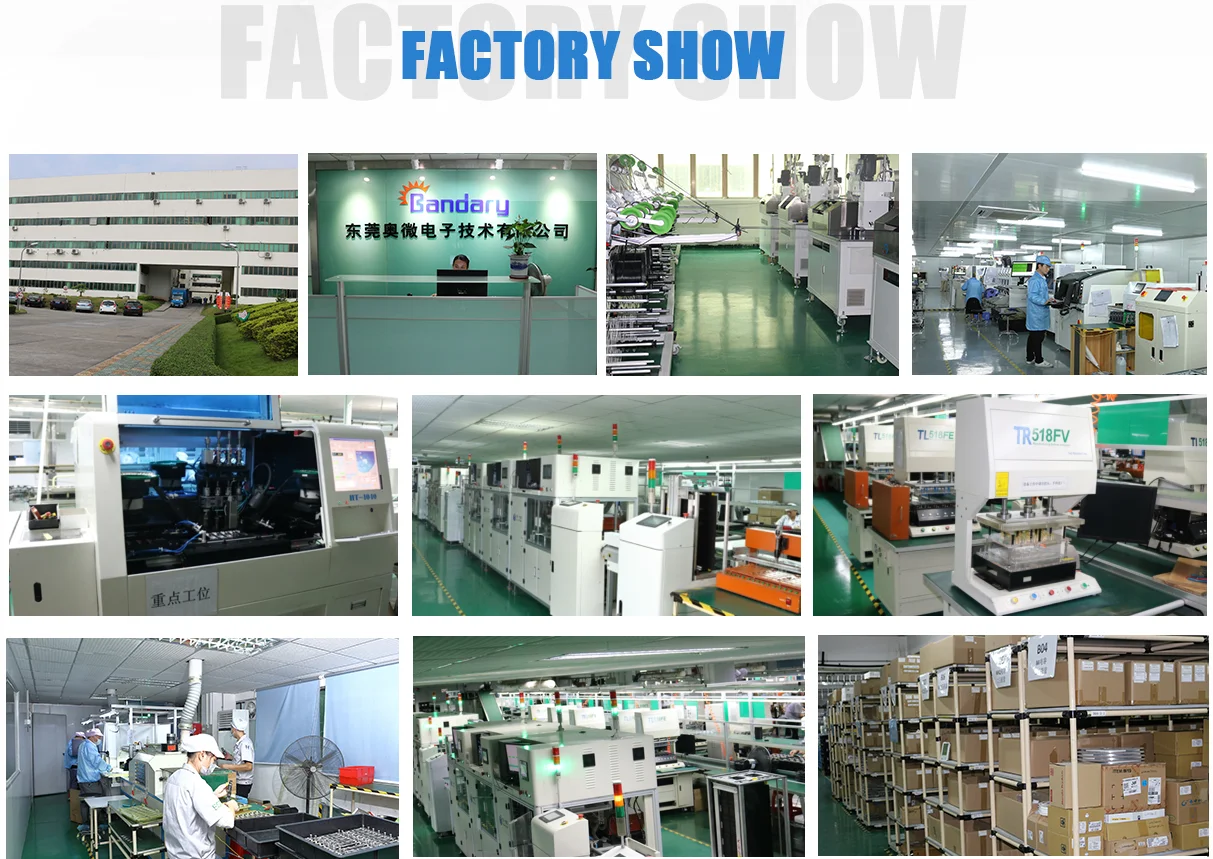

Established in 2010 , Bandary is a professional Electronic Manufacturing Services (EMS) Provider , has more than 5000 square meters plant, can provide OEM /ODM /JDM services to our customers.Bandary is a Hi-tech enterprise has 3 R&D Centers in Shenzhen ,Dongguan and Suzhou, over 20 years experience in software, PCB layout, ICT&FCT developing, more than 30 patents. Our operations have been accredited ISO 9001:2015, we have a facility equipment lab to provide reliable test in our factory .We have professional automatic production lines to meet low-medium-high volume builds requirements of customers, with STM,DIP, ICT&FCT, Coating ,Assembly services. Our pre-sales in-sales and after-sales team cooperates closely with customers to fully understand and exceed your requirements.Our products cover home application ,industry control ,power tools, automotive and HVAC product etc.Bandary keeps with innovation "Happy striving for the enterprise ,contribute to social progress" business philosophy focusing on intelligent manufacturing ,our service concept is to continue to support customers to win more markets .

Ordering and Pricing

• Minimum order quantity: 1000 piece
• Volume pricing:
  • 1000+ piece: US $21.8 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan?

The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this fan carry?

It is supplied with RoHS CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the fan be supplied for my local voltage?

The standard configuration is relay or analog output. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Bandary Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Bandary Technology Co., Ltd. range on HVACR Nexus.
