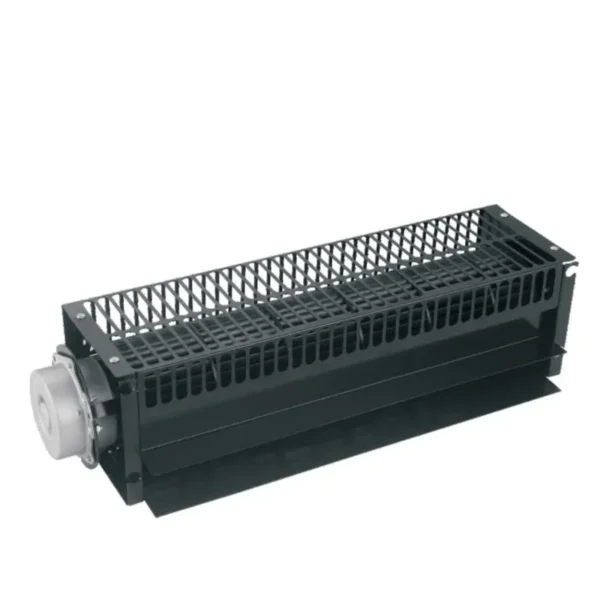

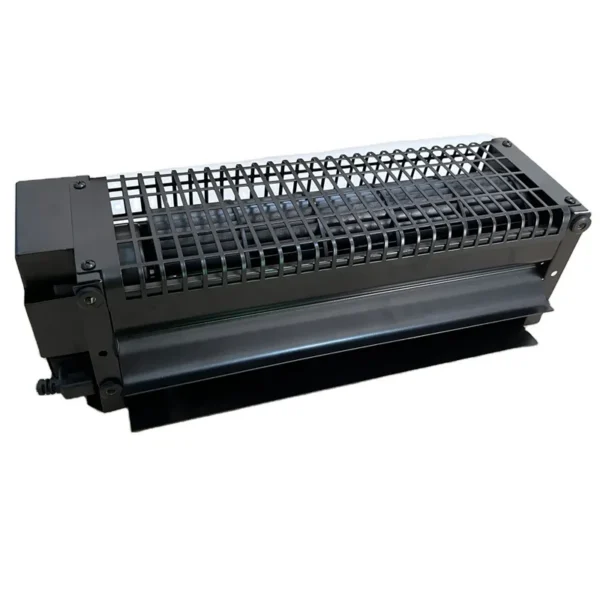

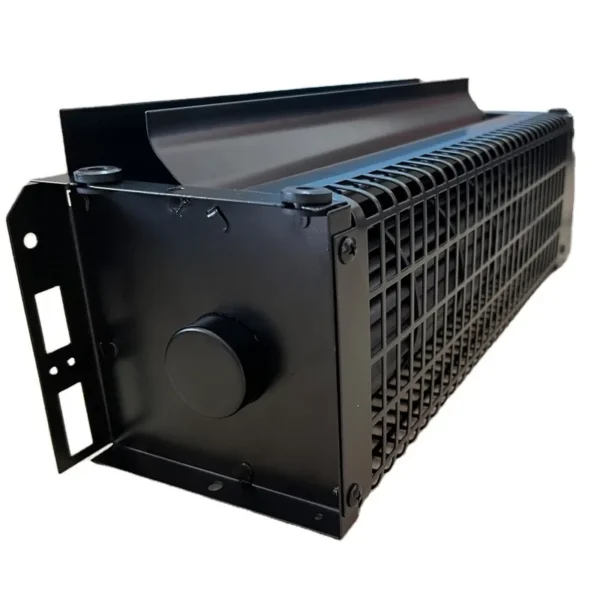

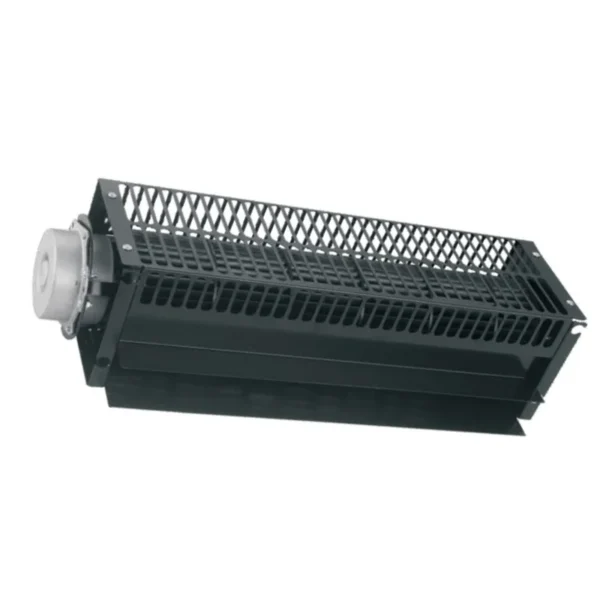

Cross flow blower — voltage 220/240V, blade material Aluminum Alloy. The complete factory specification follows. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cross Flow Blower
- Model Number: FH90500CFH22
- Voltage: 220/240V
- Blade Material: Aluminum Alloy
- Material: Aluminum Alloy Impeller &Cast Iron Frame
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220/240V |
|---|---|
| Electric Current Type | DC |
| Mounting | Free Standing |
| Blade Material | Aluminum Alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Video Technical Support |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | FH |
| Model Number | FH90500CFH22 |
| Product Name | AC Cross Flow Fan |
| Bearing Type | Dual Ball Bearing |
| Material | Aluminum Alloy Impeller &Cast Iron Frame |
| Application | Floor Heating,Ventilation, Cooling System, Air Conditioner, |
| Expected Life | 50,000 hours |
| Feature | High Efficiency,Low Noise Power Saving |
| Size | Customer’s Request |
| Keyword | Centrifugal Blower Ventilation Fan Industrial Exhaust Fan |
| Motor Type | AC Motor |
| Selling Units | Single item |
| Single Package Size | 35X20X15 cm |
| Single Gross Weight | 2.5 kg |
Product Details
Product Name | AC Cross Flow Fan/AC tangential fan |
Diameter (Series) | 90 MM Impeller diameter series |
Model no. | FH90270CFH22 |
Material | Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy |
Rated Voltage | 220/240V (110/120V Optional) |
Frequency | 50/60 Hz |
Max Speed | 1200RPM |
Max Airflow | 264.86CFM |
Max.ambient Temp | -25℃～ +60℃ |
Electronic Protection | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m | |
Floor Heating,Air Curtain,Server Cooling & Ventilation, Bus / Caravan Heater, Food Warmer / Hot Cupboad, Cooling System, Air Conditioner, Data Center Load Banks, Air Purifier,Grow Tent, Equipments Cooling,,etc. |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $58 / piece
- 500–4999 piece: US $55 / piece
- 5000+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow blower be supplied for my local voltage?
The standard configuration is 220/240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
