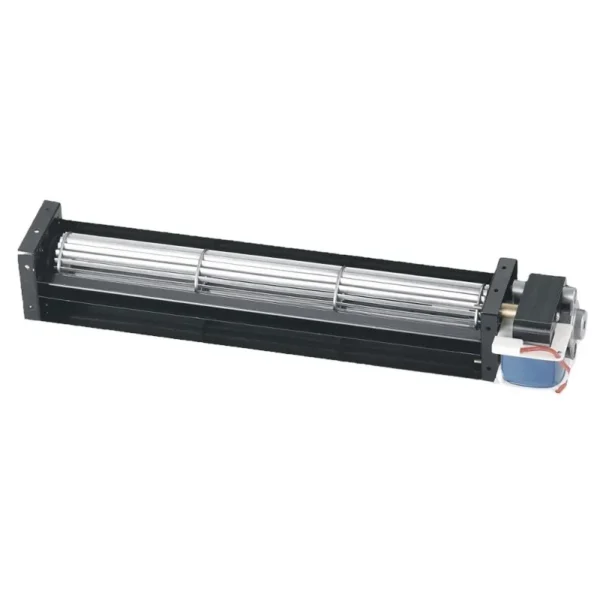

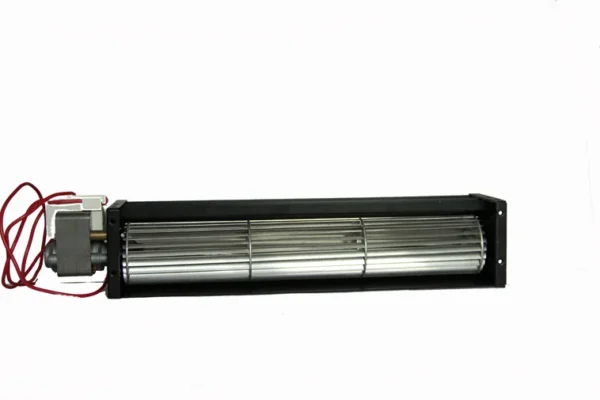

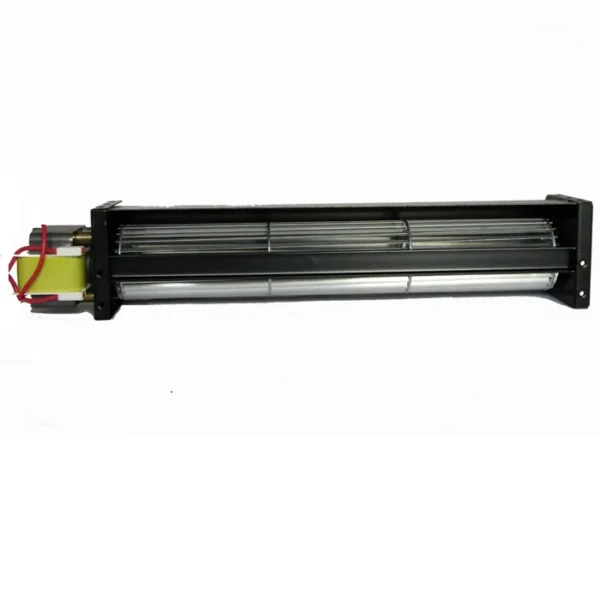

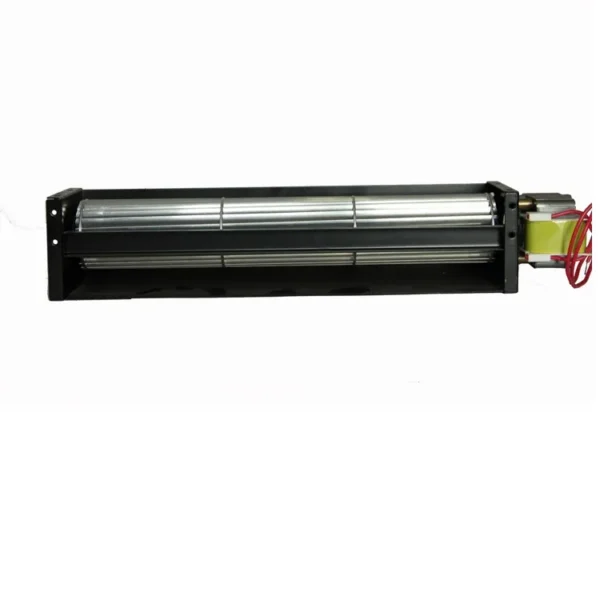

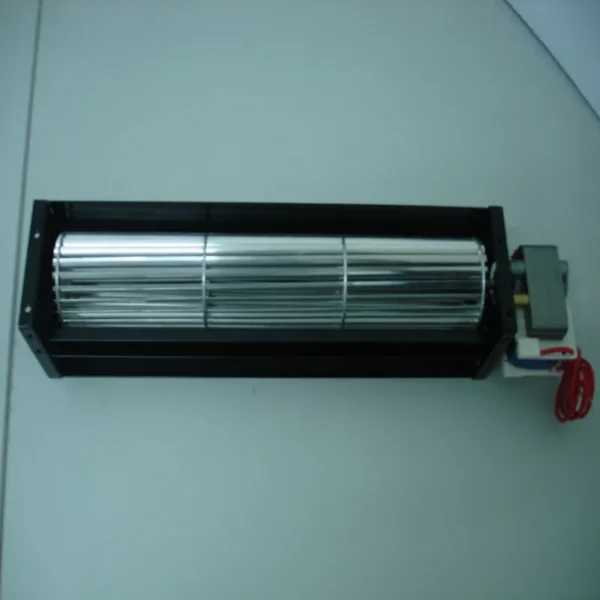

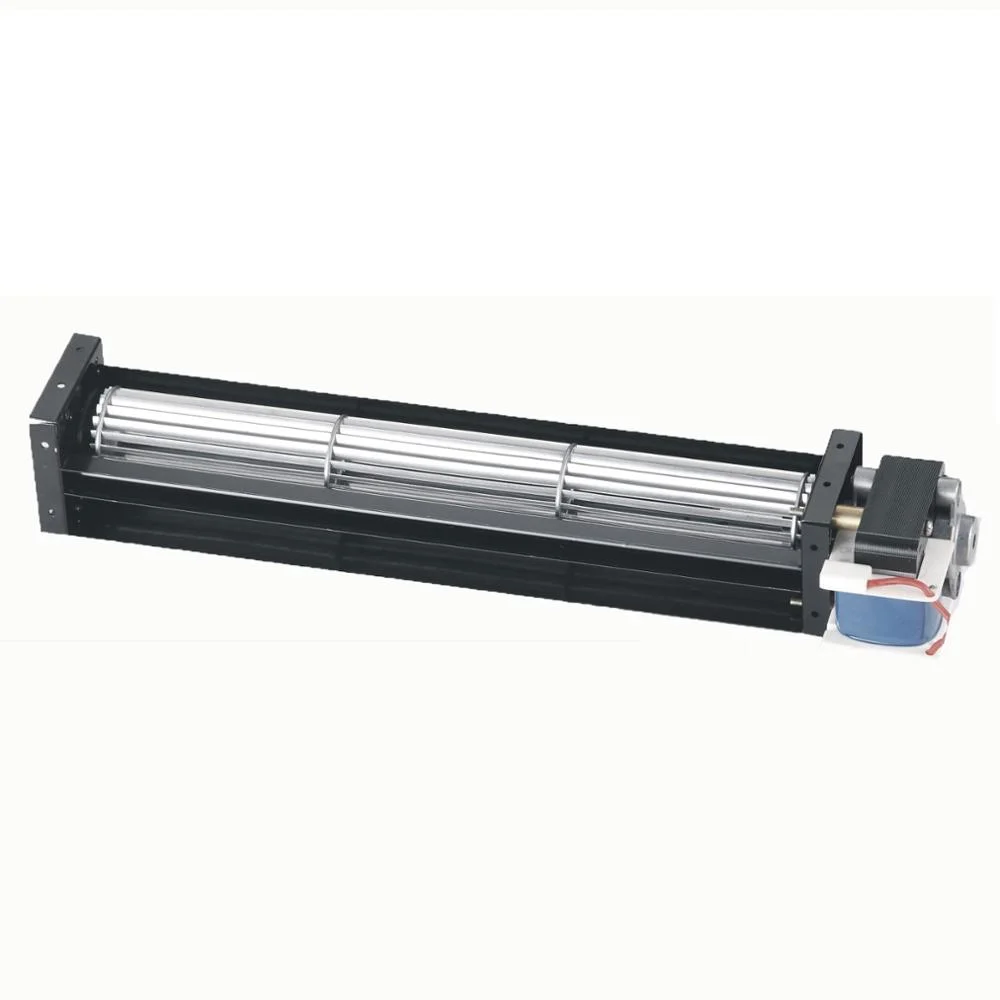

Cross Flow Fan, 50mm, 220v, Tangential

The cross flow fan listed here carries 120V/60HZ,230V/60HZ, blade material Aluminum Alloy, documented exactly as the manufacturer publishes it. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cross Flow Fan

• Model Number: FH50250CFH22
• Voltage: 120V/60HZ,230V/60HZ
• Blade Material: Aluminum Alloy
• Material: Aluminum Alloy Impeller &Cast Iron Frame
• Speed: 1600/1800RPM
• Warranty: 1 Year

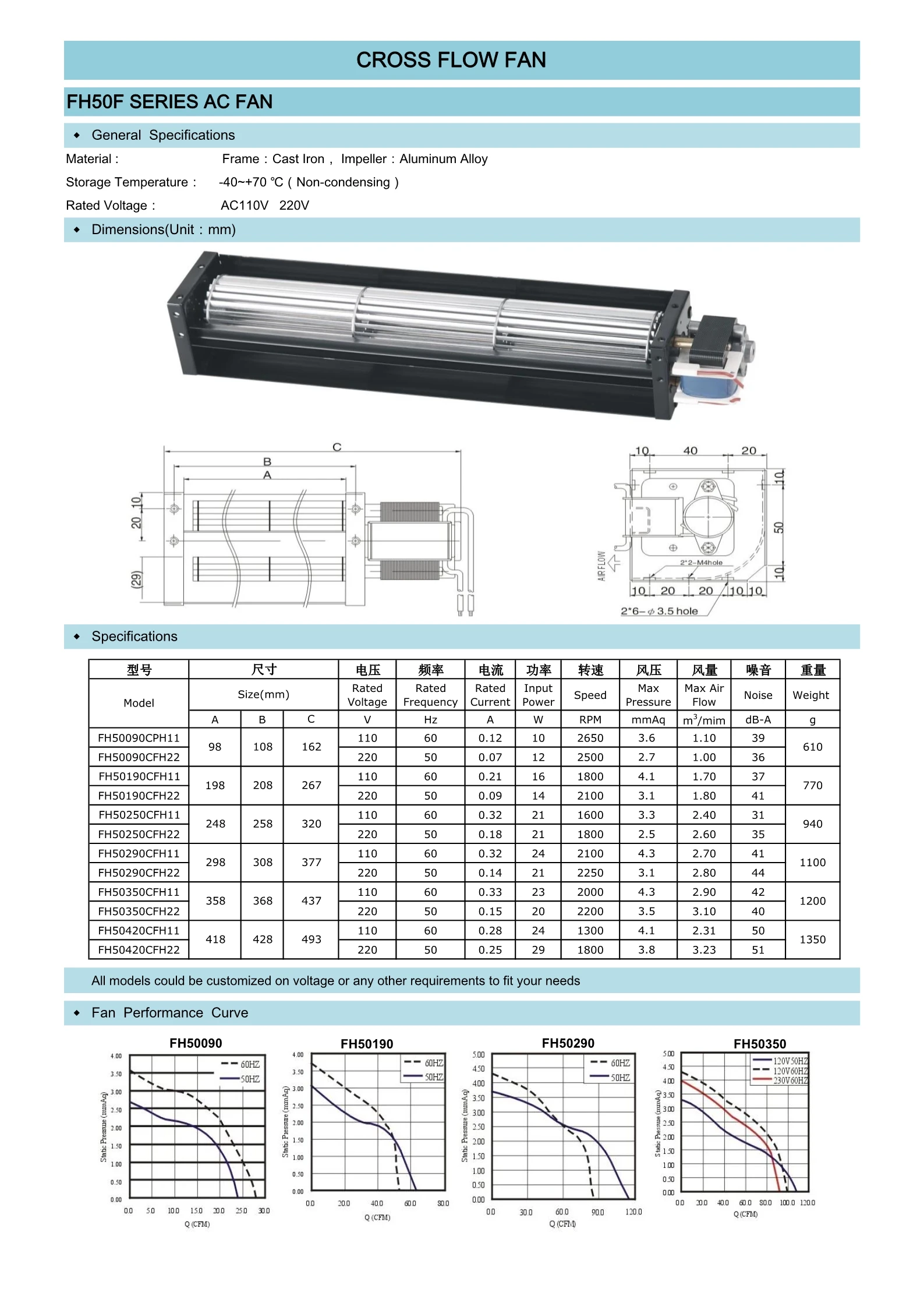

Technical Specifications

Product Details

Product Description

Product Name	AC Cross Flow Fan/AC tangential fan
Series	50 MM Impeller diameter series
Bearing type	Ball bearing
Material	Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy
Voltage	110V/60Hz, 220/50Hz
Package	Carton box,we can also according to the requirements of customers.

• Product  description:

Product dimension: 320 x 70 x 70 mm
Fan voltage: 110V/60Hz, 220/50Hz
Fan speed: 2100 /2250RPM
Fan air flow rate: 84/92CFM
Rated current: 0.18/0.32A
Fan air pressure: 2.53/.3mmAq
Noise level: 31/35 dB-A
Storage temperature range : -40~+80 C°
Operating temperature range : -40~ +70 C°
Life time : above 50000 hours for ball bearing

Details Images

Product Usage

Company Introduction

Shenzhen Feng Huishun Technology Development Co., Ltd. (Funfan) is a professional manufacturer of brushless cooling fans, including dc axial-flow fans, blower fans, centrifugal fans, cross flow fans, AC/EC fans etc.The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.

The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages. Feel free to contact us for any customized fans solutions. Thank you!

Factory

Sales department

Workshop Quality control

Assembly line 1

Assembly line 2

Product test

Warehousing

Production Equipment

Wind Tunnel

Salt Spray Machine

Automatic Welding Machine

Fully Automatic Winding Machine

Fan Aging Test Bench

Injection Molding Machine

Salt Spray Test

Vibration Tester

Wave Soldering

Certification

Customer Photos

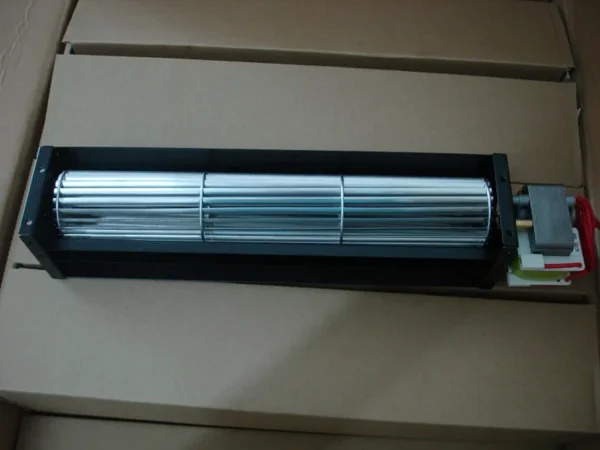

Packing&Shipping

1. Standard Packaging, inside single package, out carton package.

2. Upon customers' request, but the price is different with neutral packing.

FAQ

1. What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.

2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.

3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.

4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.

5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.

6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.

7. Can you produce according to the samples? Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $29 / piece
  • 500–4999 piece: US $27 / piece
  • 5000+ piece: US $24 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cross flow fan be supplied for my local voltage?

The standard configuration is 120V/60HZ,230V/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
