This cross flow fan is published with the manufacturer’s full specification — 3200W, 4200W. Made by Shenzhen Hanshu Tech Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cross Flow Fan
- Power (Kw): 3200W, 4200W
- Ultrasonic Power: 3200W, 4200W
- Voltage: 110 V, 230 V, 120 V, 220v/380v/440v, Or Customized
- Welding Material: PVC, ABS, Acrylic, PET, Nylon, Polyethylene, Polycarbonate, Polypropylene
- Warranty: 1 year warranty, life-timer technical support
- Place Of Origin: Guangdong, China
Technical Specifications
| Welding Material | PVC, ABS, Acrylic, PET, Nylon, Polyethylene, Polycarbonate, Polypropylene |
|---|---|
| Voltage | 110 V, 230 V, 120 V, 220v/380v/440v, Or Customized |
| Power (Kw) | 3200W, 4200W |
| Condition | New |
| Frequency | 15Khz |
| Welding Area | 85mm,135mm, 150mm |
| Place Of Origin | Guangdong, China |
| Brand Name | Hanshu |
| Plastic Welder Features | Digital Display, Variable Speed Control |
| Dimensions | 105*85*225cm |
| Usage | Air Conditioner Cross Flow Fan Welding |
| Weight (Kg) | 500 |
| Product Name | Automatic Ultrasonic Cross Flow Fan Welding Machine |
| Application | Air Conditioner Cross Flow Fan & Blower Welding |
| Warranty | 1 year warranty, life-timer technical support |
| Frenquency | 15KHZ Frequency Auto Tunning |
| Packing | Fumigation-free Plywood case |
| Ultrasonic Power | 3200W, 4200W |
| Air Pressure: | 0.1~0.7Mpa |
| Selling Units | Single item |
| Single Package Size | 105X85X225 cm |
| Single Gross Weight | 500.000 kg |

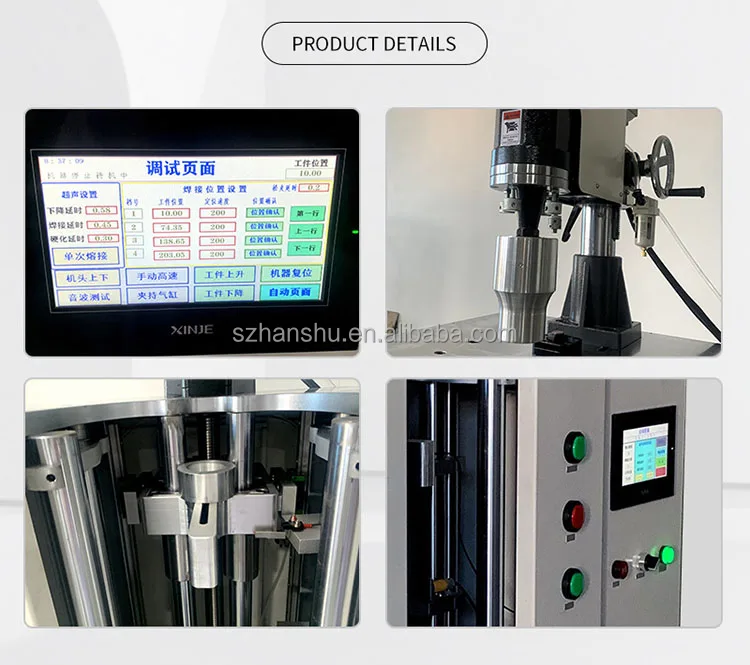

Product Details

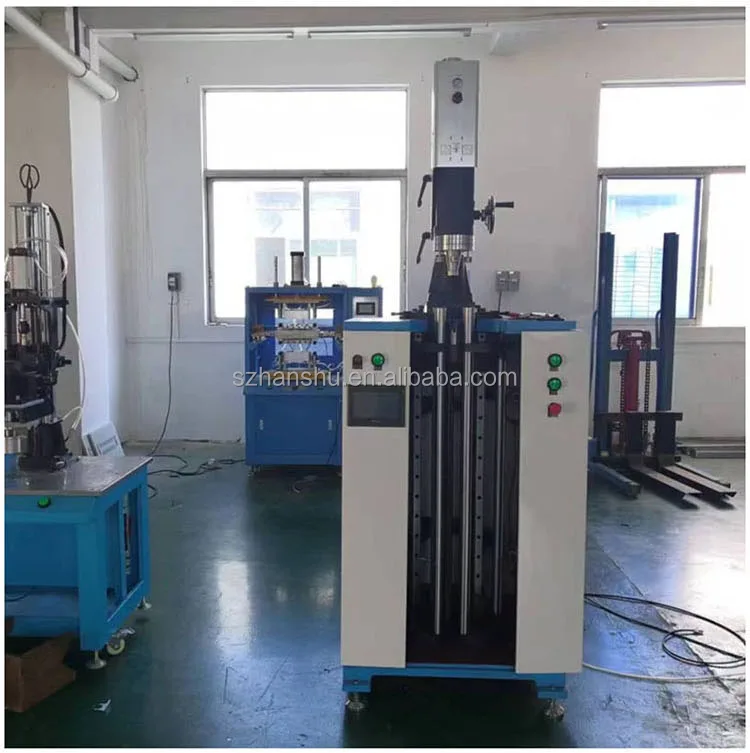

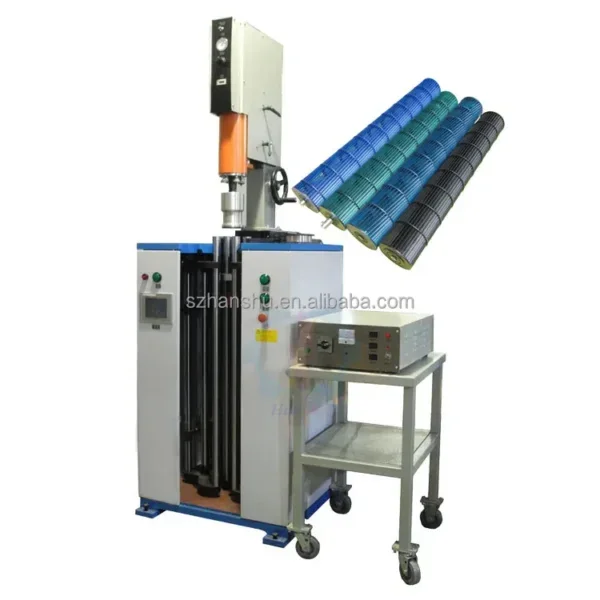

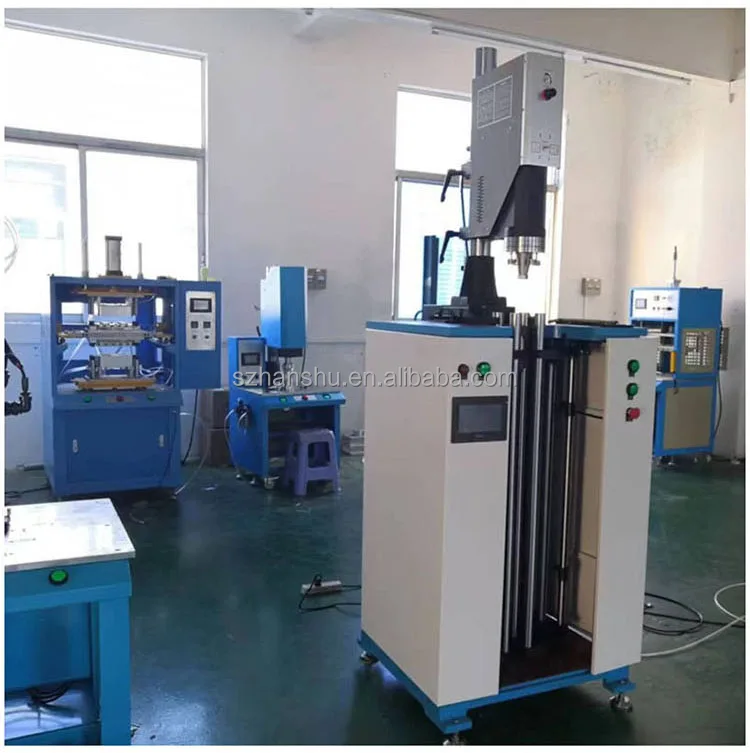

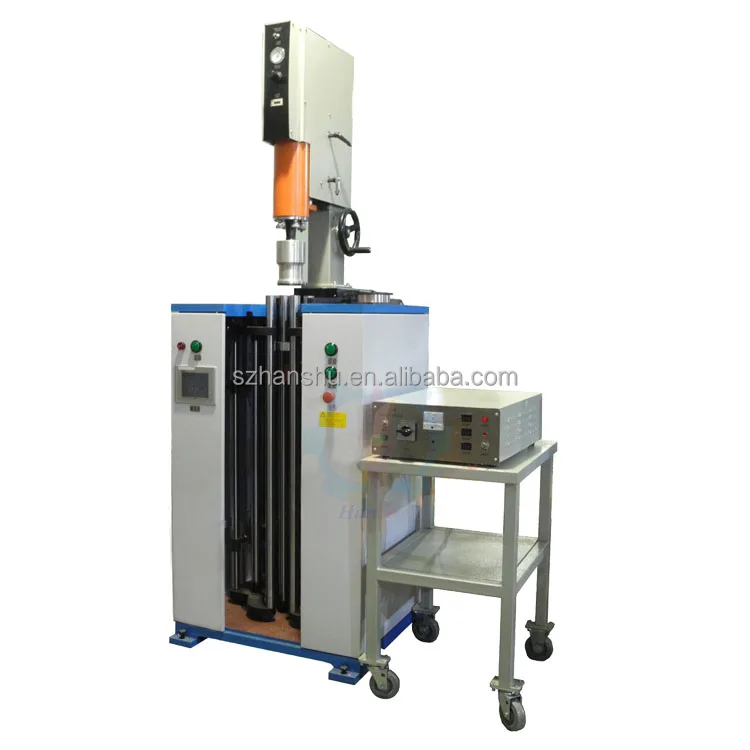

Hanshu Automatic Plastic Cross Flow Fan Ultrasonic Welding Machine Servo Motor Air Conditioner Fan Blade Impeller Welder CE
Cross Flow Fan Welding Introduce:
The cross-flow fan blade ultrasonic welding machine is a specialized industrial welding equipment designed for plastic cross-flow fan in industries such as air conditioning, fresh air systems, and fan coil units. It replaces traditional processes such as glue and screws to complete the segmented welding of fan blades.
Main Features and Advantages:
1.Frequency Auto-Tracing: Digital Intelligence Ultrasonic System
2.Intelligence Alarm Protection, Welding
3. Easy ChangeOver of Different Diameter Fan Mold
4. Harden Treatment Mold to Ensure Long Service
5. Easy to Set on HMI for Different Sections of Welding
6. Servo Motor + Ball Screw Drive to make sure Precise Welding & Guiding
7. Double-sided automatic clamping ensures that the coaxiality & Alignment of the Cross Flow Fan is ≤0.05mm.
8. PLC + HMI touch screen, capable of storing over 99 sets of welding parameters, with abnormal alarm function.
Main Specification:
| Model | HS-1532/FY | HS-1542/FY |
| Output | 3200W | 4200W |
| Pressure | 0.4~0.6Mpa | 0.4~0.6Mpa |
| Power Supply | 220VAC +/-10% 50/60HZ or Customized
| |
| Control | PLC + HMI | |
| Drive Way | Servo Motor + Pneumatic | |
| Welding Area | Max 135mm Cross Flow Fan | Max 150mm Cross Flow Fan |
| Ultrasonic System | Frequency Auto Tuning/Tracking | |
| Mechanical Guiding | Servo Motor + Ball Screw Drive | |
| Parameter Set | Amplitude + Time + Pressure adjustable, Section Easy Change by HMI | |
| Machine Size | 105*85*225cm | 105*85*225cm |
| Weight | 450kg | 500kg |

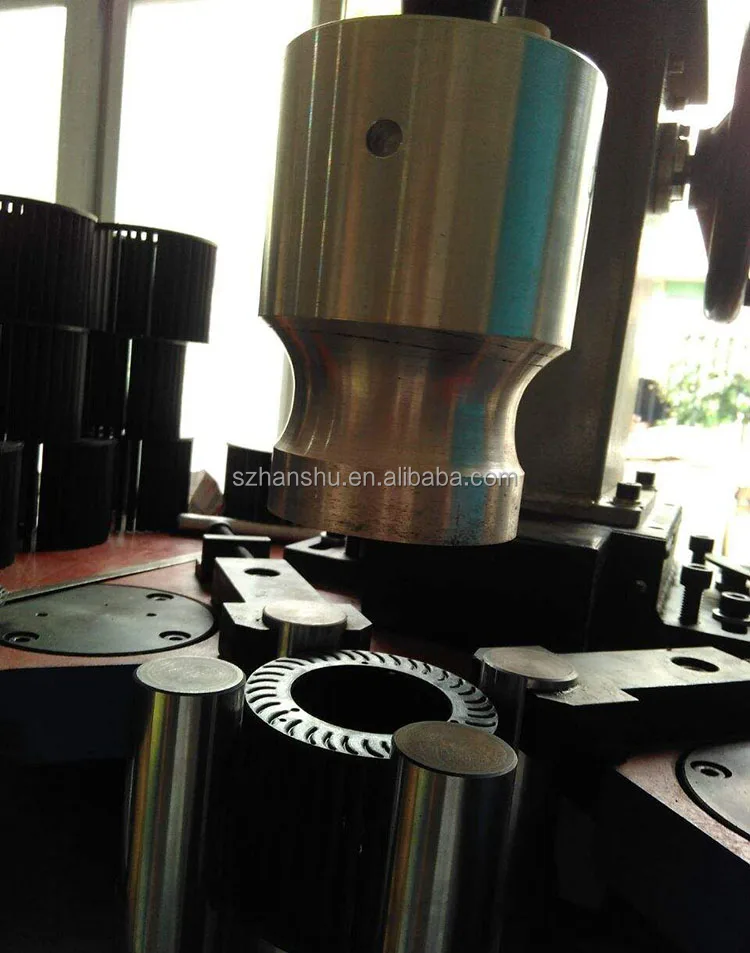

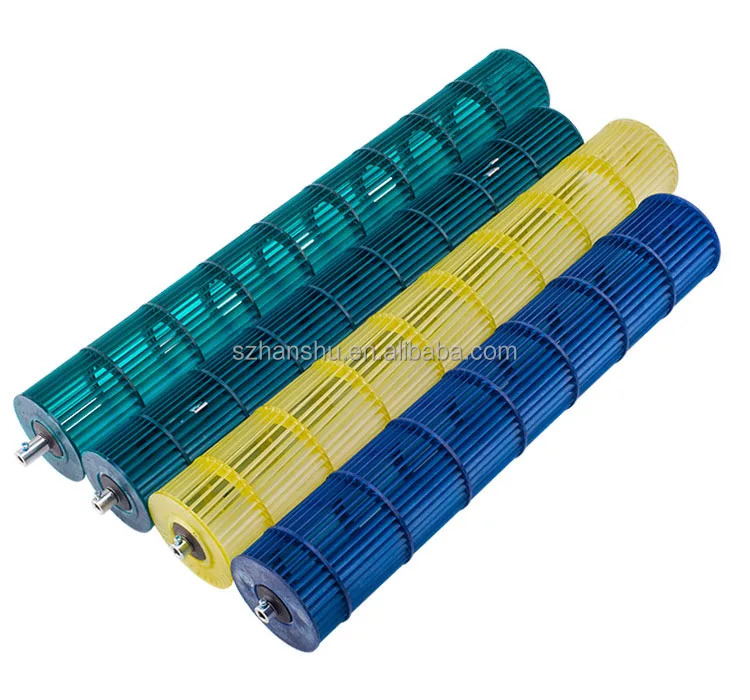

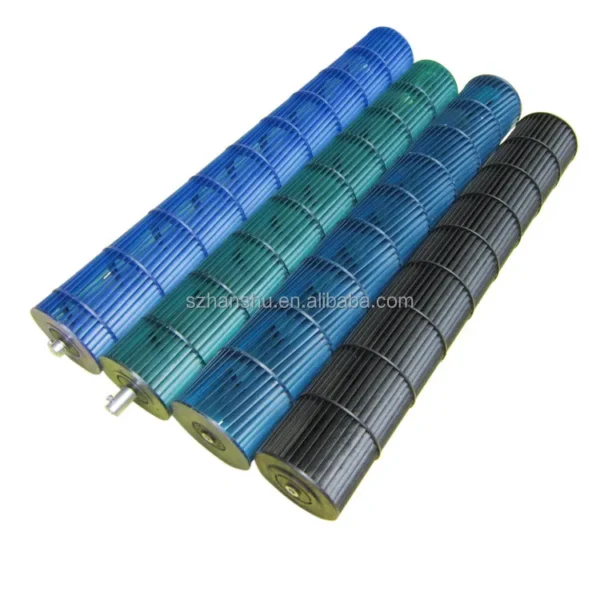

Moulds & Samples:
Application:
By utilizing high-frequency ultrasonic oscillations, electrical energy is converted into mechanical vibrations, which instantly generate heat through friction at the joints of the fan blades, melting the plastic. After being pressurized and cooled, a molecular-level bond is formed. The entire process is done without glue or flux, and a single weld can be completed in just 0.3-2 seconds

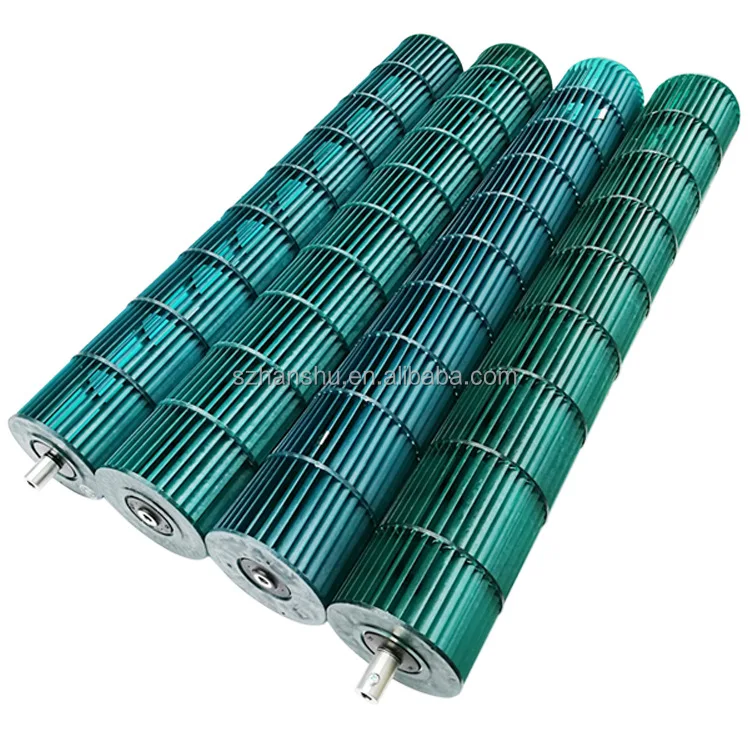

It is mainly used for welding small cross-flow fan blades such as air conditioner indoor unit cross-flow fan blades, fresh air system cross-flow fan wheels, and heaters. It can also be used for welding similar plastic parts such as water pump impellers.
Hanshu is an innovative machinery company based in Shenzhen, specializing in automatic solutions with high-frequency welding Equipment, ultrasonic welding Machine, heat welding Machinery, and thermoplastic packaging Equipment, Plastic welder Etc. Founded by seasoned engineers with extensive industry experience, Hanshu caters to diverse applications including auto parts, medical consumables, Inflatables, Consumable electronics and Outdoor Waterproof products . Customers choose Hanshu for its commitment to quality, integrity, and a customer-first approach. Hanshu aims to revolutionize automation in manufacturing, with a vision to become a leading supplier of automatic solutions in the industry.
Our Mission is to bring the automation to customer, Make the production easier.
Our Value is Integrity, Customer first
Our Vision is to be top automation solution supply in China.
1. who are we?
We are based in Guangdong, China, start from -,sell to Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(20.00%),South America(10.00%),Eastern Europe(10.00%),Northern Europe(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High frequency welding machine,Ultrasonic welding machine,Blister Machinery,Plastic welding Machine,Blister Folding Machine
4. why should you buy from us not from other suppliers?
Solutions Provider of High-frequency welder, ultrasonic welding Machine, Heat welding Machinery, and Thermoplastic Packaging Equipment, Plastic welder Etc. Founded by seasoned engineers with extensive industry experience.
5. what services can we provide?/
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $8350 / piece
- 5+ piece: US $7999 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty, life-timer technical support warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 110 V, 230 V, 120 V, 220v/380v/440v, Or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
