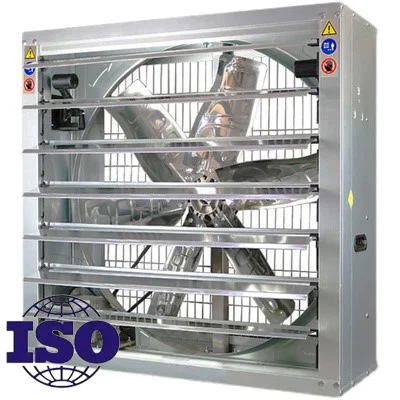

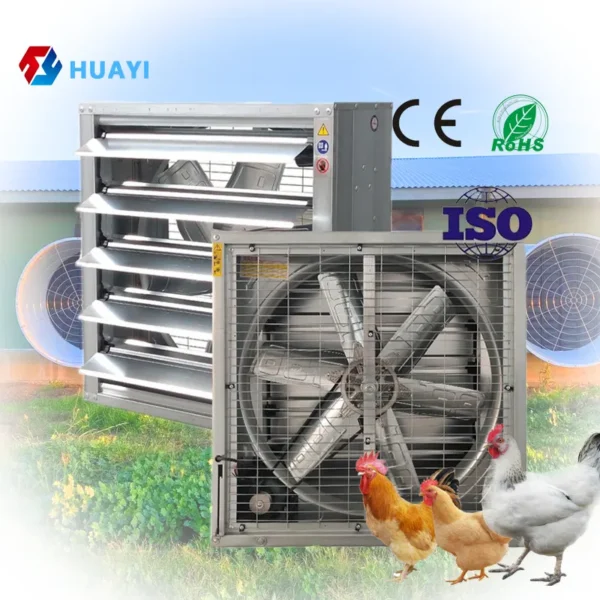

Cross Flow Fans, HUAYI

This cross flow fans comes from Qingzhou Huayi Temperature Control Equipment. The specification below is the factory’s own. Supplier profile: 5 years on the platform, factory-assessed. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of These Cross Flow Fans

• 刀片直径: 1250/1270mm
• 电压: 380V、220V、230V、415V 或根据您的要求
• 速度: 15米/秒
• 种类: 壁挂式轴流风机
• 材质: 不锈钢
• 刀片材质: 不锈钢

Technical Specifications

Product Details

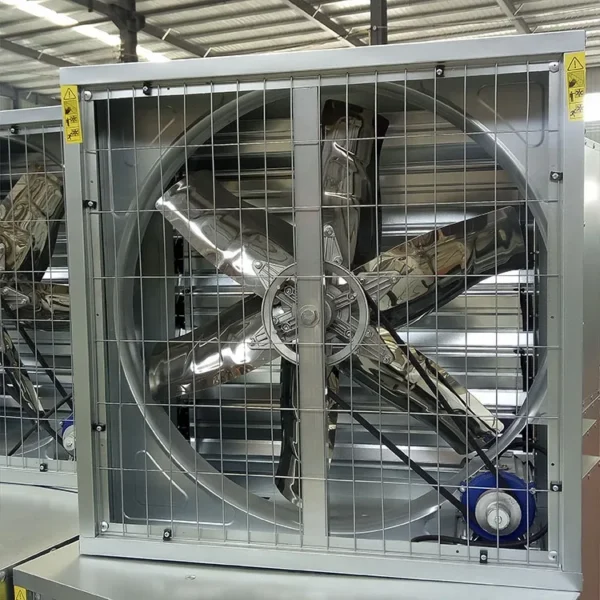

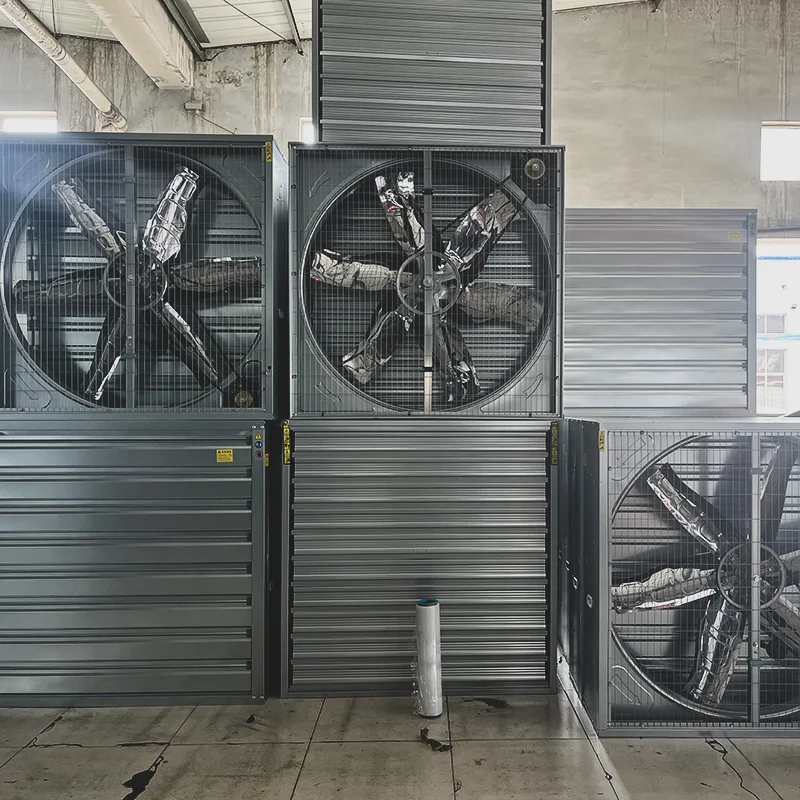

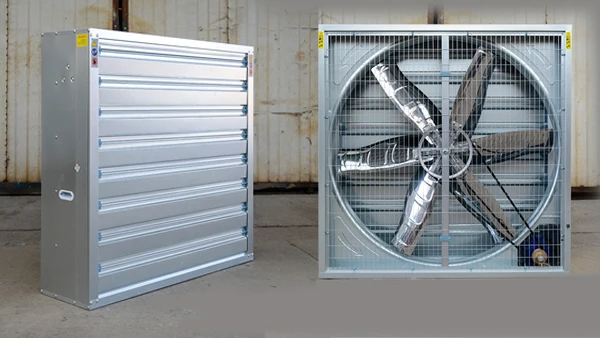

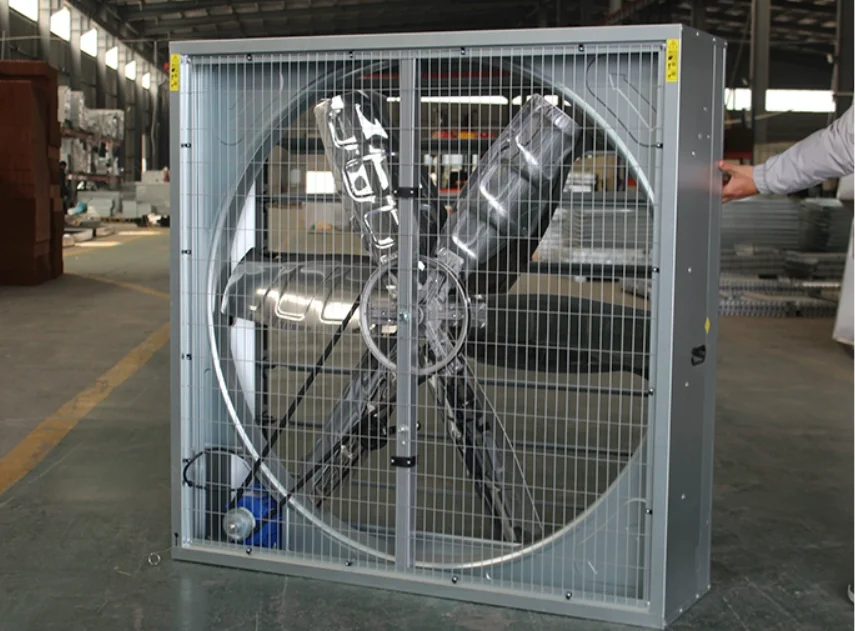

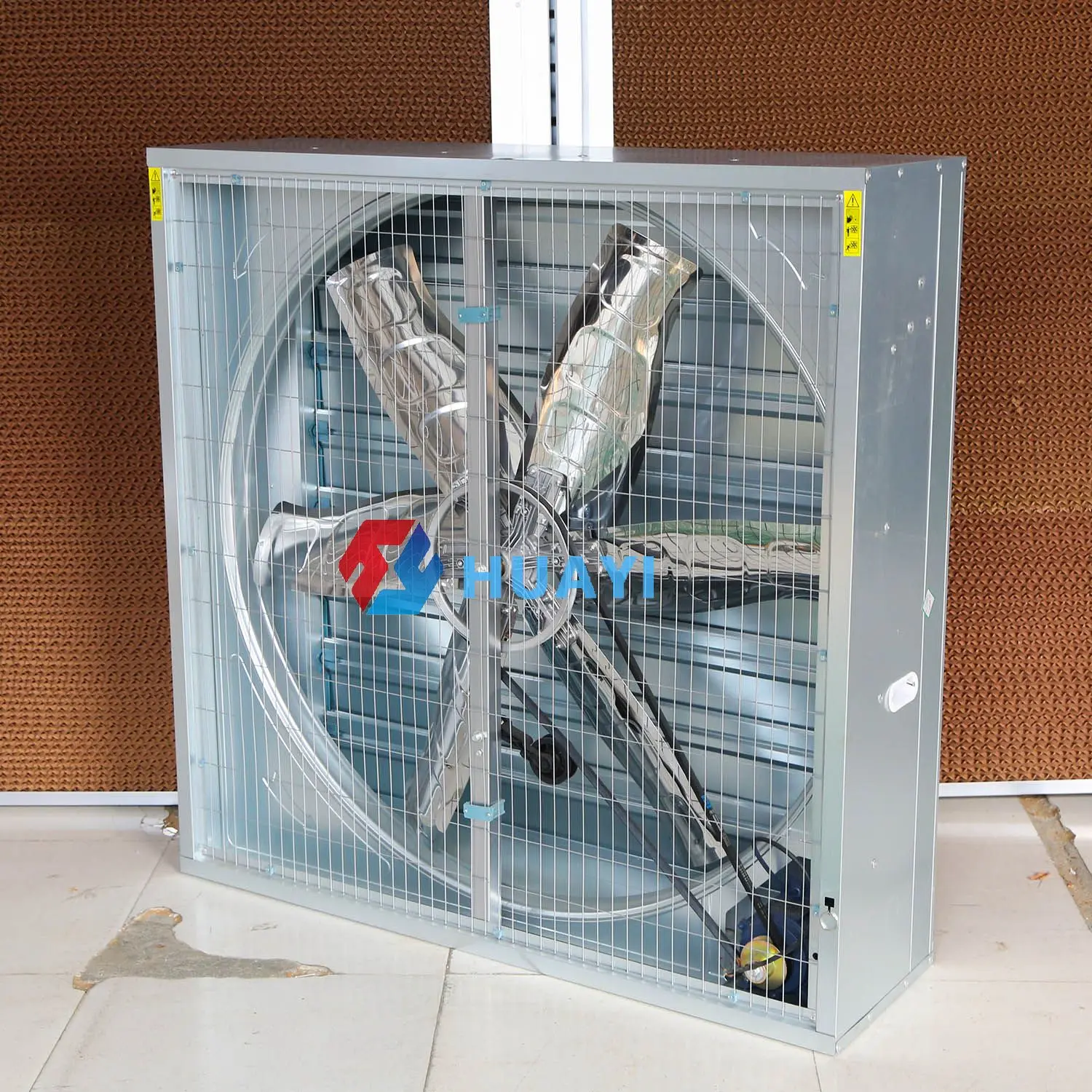

50 inch Heavy Duty Industrial warehouse workshop factory hammer exhaust fan wall Chicken farm cooling fan Poultry House Heat Extractor greenhouse fan

1)Special drop hammer mechanism can open and  close the shutter automatically. 2)The frame adopts 275g/㎡ galvanized layer, no rust. 3) Stainless steel blade adopts one punch forming technology. Big air flow, no broken, no dust, attractive and durable. 4) Wall-Mounting fan , easy installation and maintenance 5) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured. 6) Installed efficient and energy-saving motor with CCC certification. Protection level：IP55. Insulation F grade.

Model	Blade Diameter (mm)	Blade Rotationnal Speed (rpm）	Motor Rotational （rpm）	Airflow （M3/h）	Noise （db）	Import Power (KW)	LWH (mm)
HYZ-480	380	1400	1400	3000	≤70	0.18	480*480*380
HYZ-600	500/20''	1400	1400	5600	≤70	0.37	600*600*380
HYZ-800	710/28''	660	1400	17500	≤65	0.37	800*800*400
HYZ-900	750/30''	630	1400	20000	≤65	0.55	900*900*400
HYZ-1000	900/36''	610	1400	24800	≤65	0.55	1000*1000*400
HYZ-1100	1000/40''	600	1400	32000	≤65	0.75	1100*1100*400
HYZ-1220	1100/44''	460	1400	38000	≤63	0.75	1220*1220*400
HYZ-1380	1250/50''	457	1400	44000	≤63	1.1	1380*1380*400
HYZ-1530	1400/56''	320	1400	55000	≤63	1.5	1530*1530*400

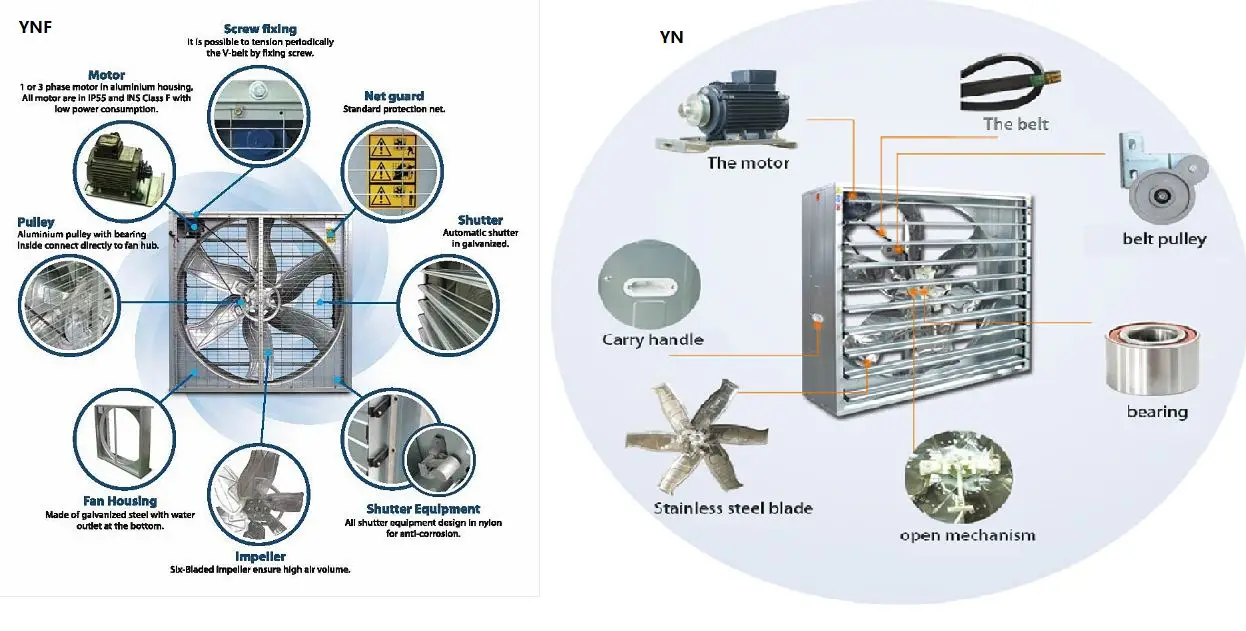

Details Images

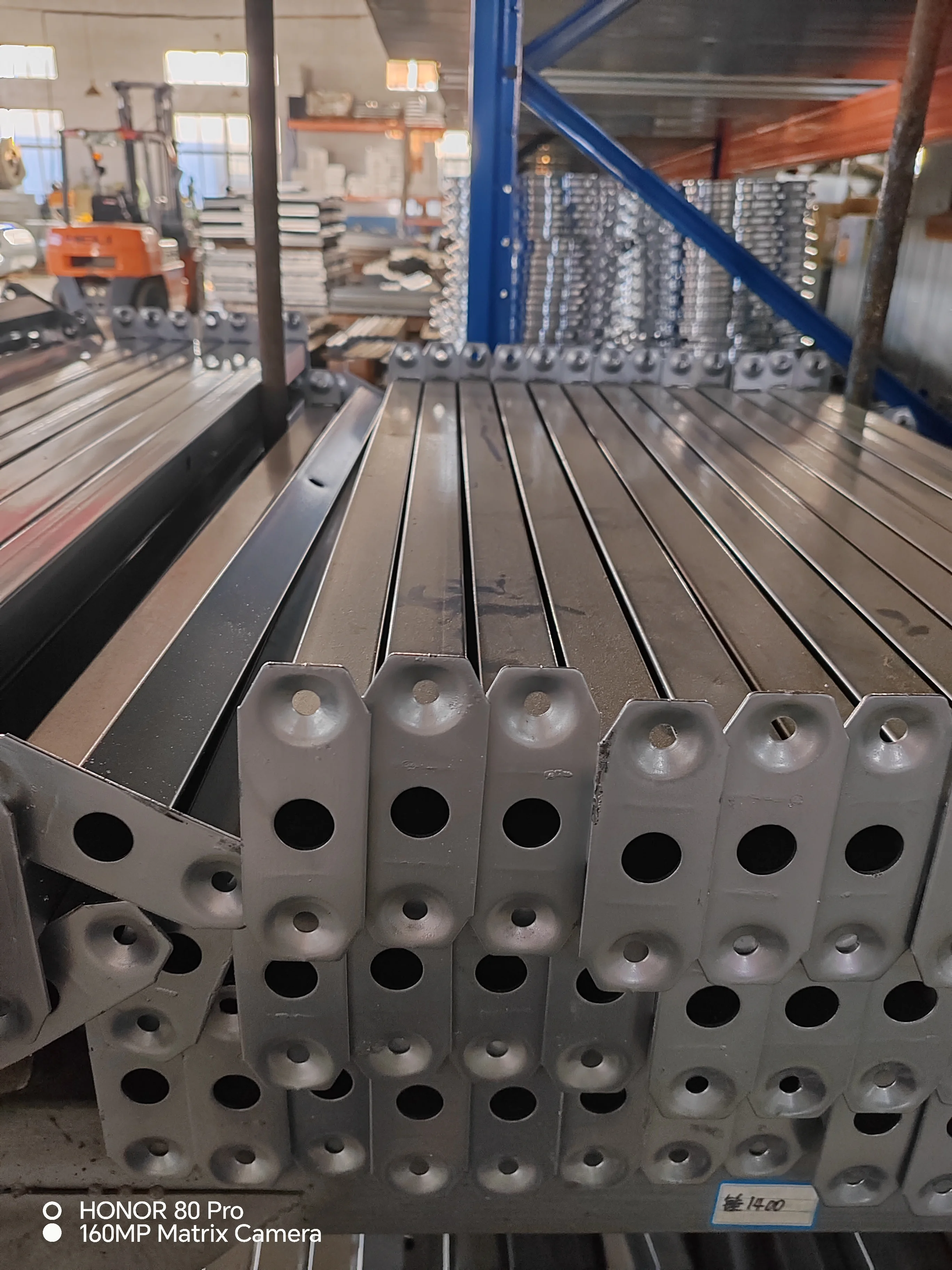

Frame 275g Thicken galvanized sheet

HUAYI has advanced production technology with automatic equipment. profeeional production line, NC-based professional equipment.Auto punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.

Greenhouse exhaust fan ,Poultry house farm fan, cooling fan industrial poultry extractor axial fans，greenhouse fan

Chicken fan

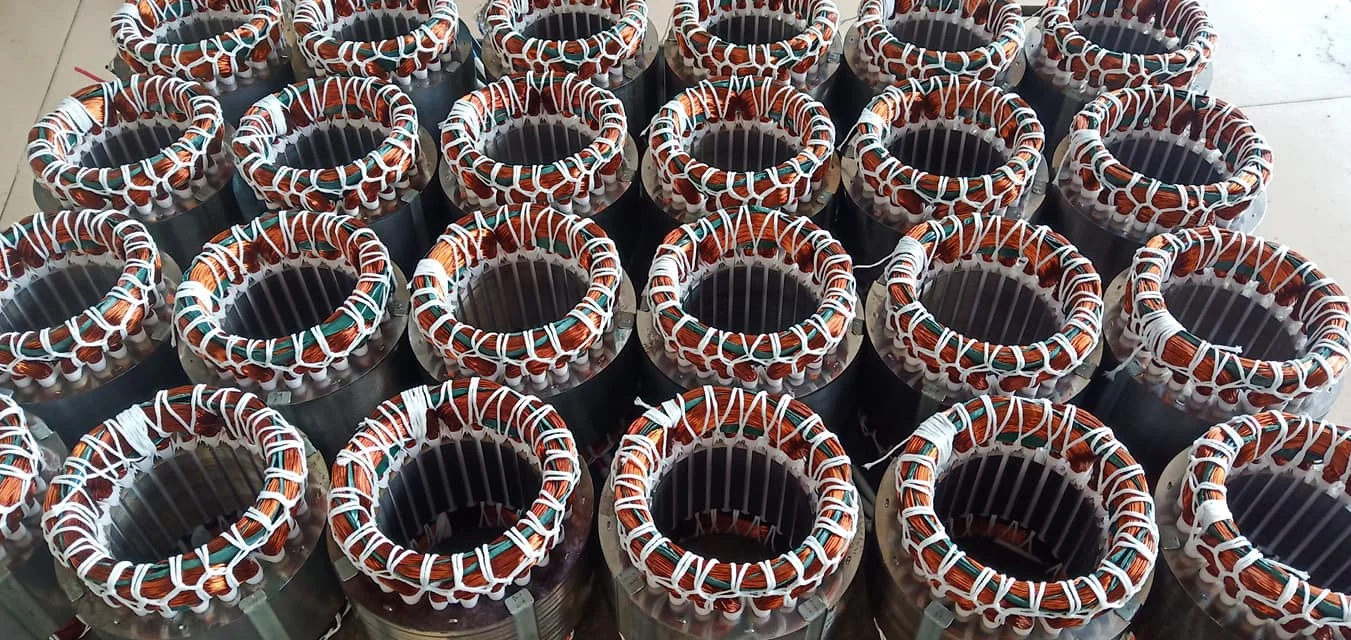

Motor

100% pure copper wire, high efficiency and energy saving .Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage
and frequency can be customized.Both Chinese famous motor and Siemens motor are available.
50 inch Heavy Duty Industrial warehouse workshop factory hammer exhaust fan wall Chicken farm cooling fan Poultry House Heat Extractor

Fan blade which punching formed

The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust,
attractive and durable. Note: Blade material also have galvanized sheet, aluminum alloy for option.

Greenhouse exhaust fan ,Poultry house farm fan, cooling fan industrial poultry extractor axial fans

Belt pulley +Angle+Hub

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Belt

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Shutters open/close automatically with push puller

Made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.

Fan safe protection net

Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.

Fan Pole

Fan pole is made of iron with galvanized electrostafic plastic spraying.It's no easy to get rusty. Attractive and durable
Stainless steel is optional

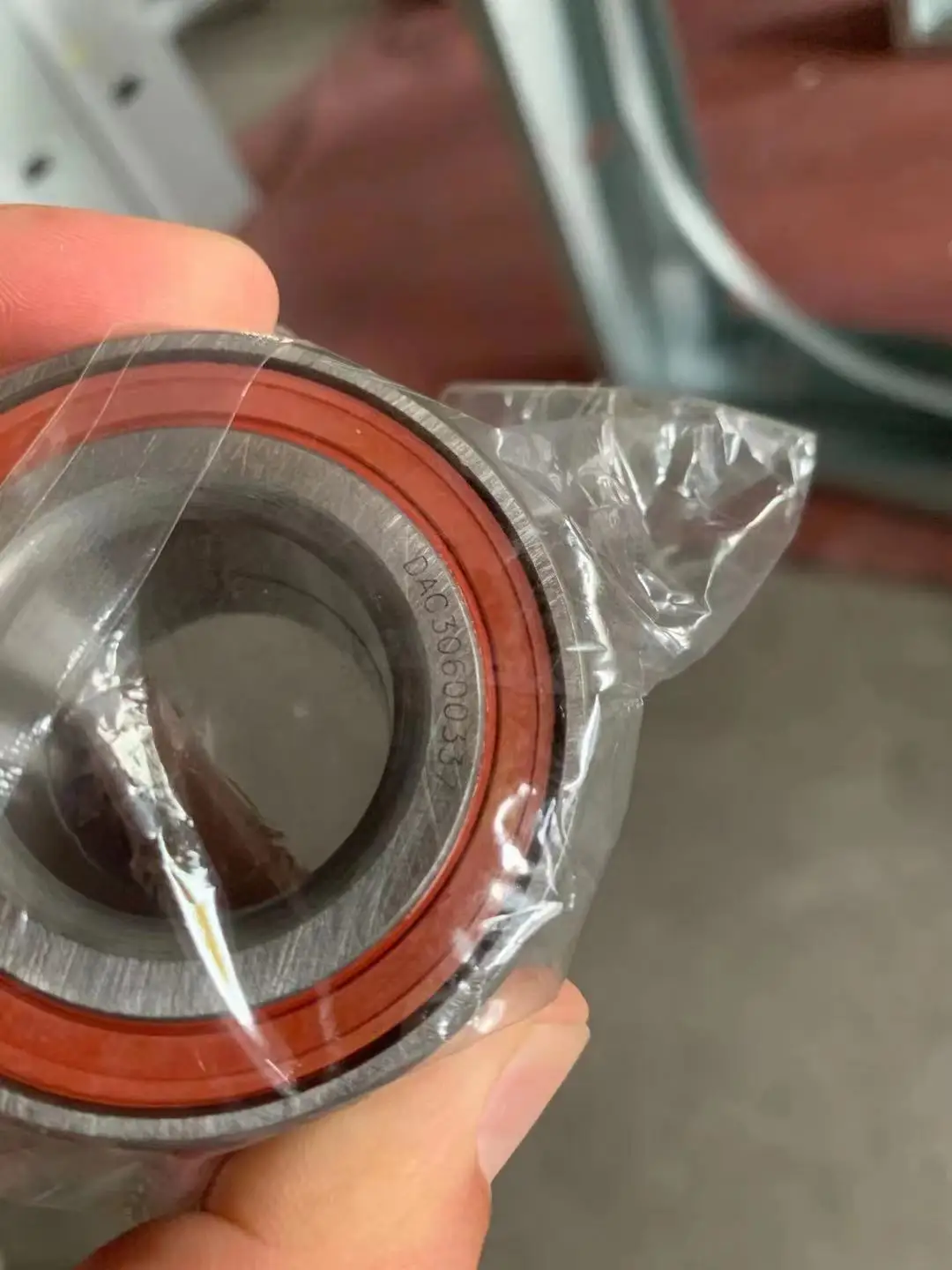

Fan Bearing

Imported double-row bearing with special waterproof design.Advantage: High strength, low noise, free maintenance and long service life.

Opening system

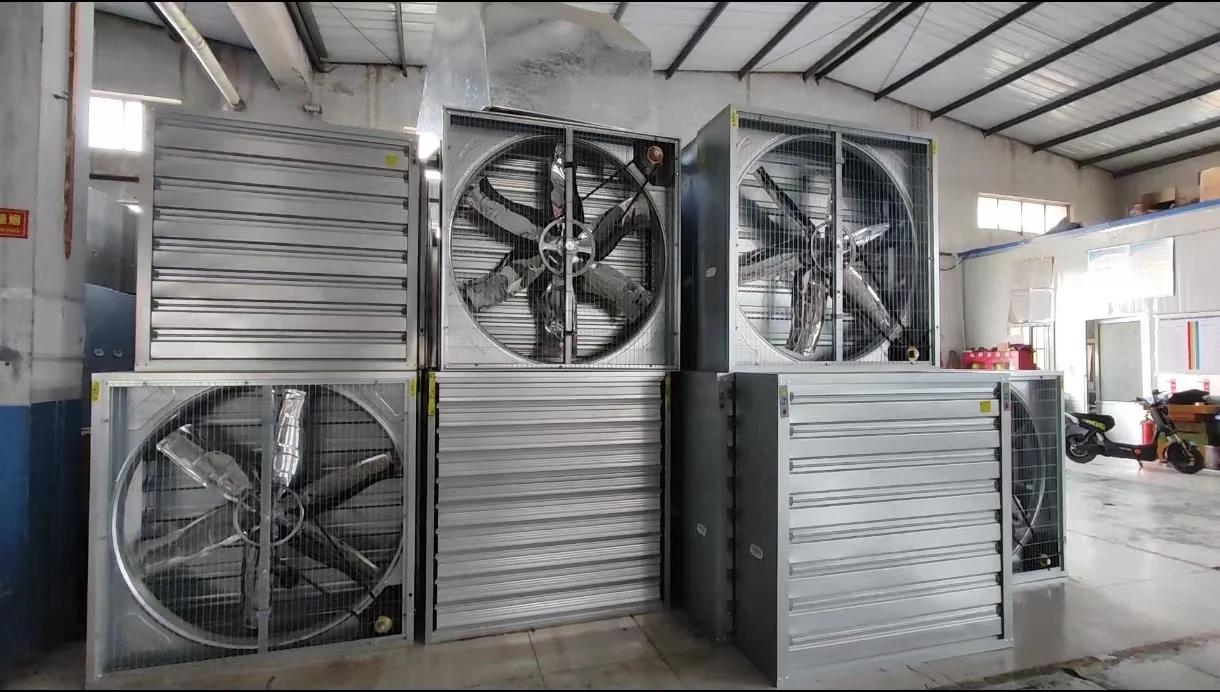

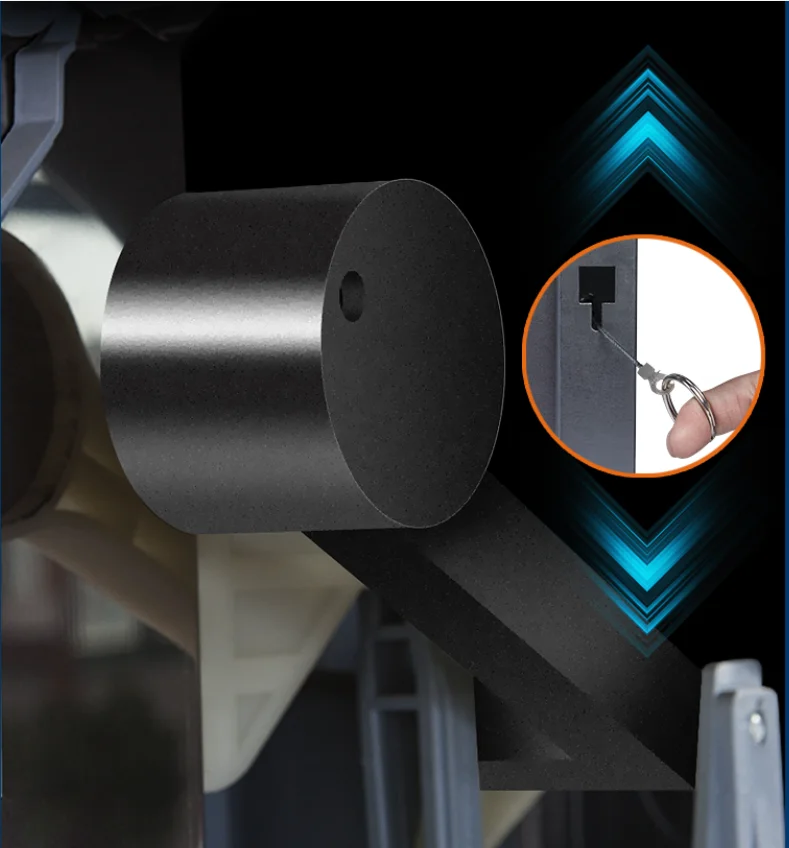

Heavy hammer exhaust fan

50 inch Heavy Duty Industrial warehouse workshop factory hammer exhaust fan wall Chicken farm cooling fan Poultry House Heat
Extractor greenhouse fan

Material: High quality Nylon PA66

Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.

Rivet: 304 stainless steel , wear-resisting,Advantage:It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

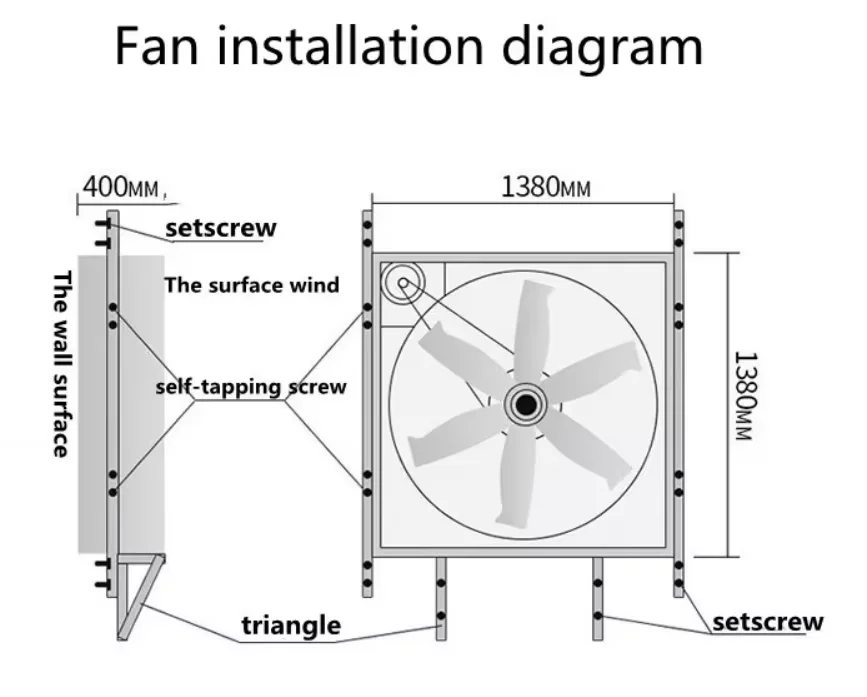

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .

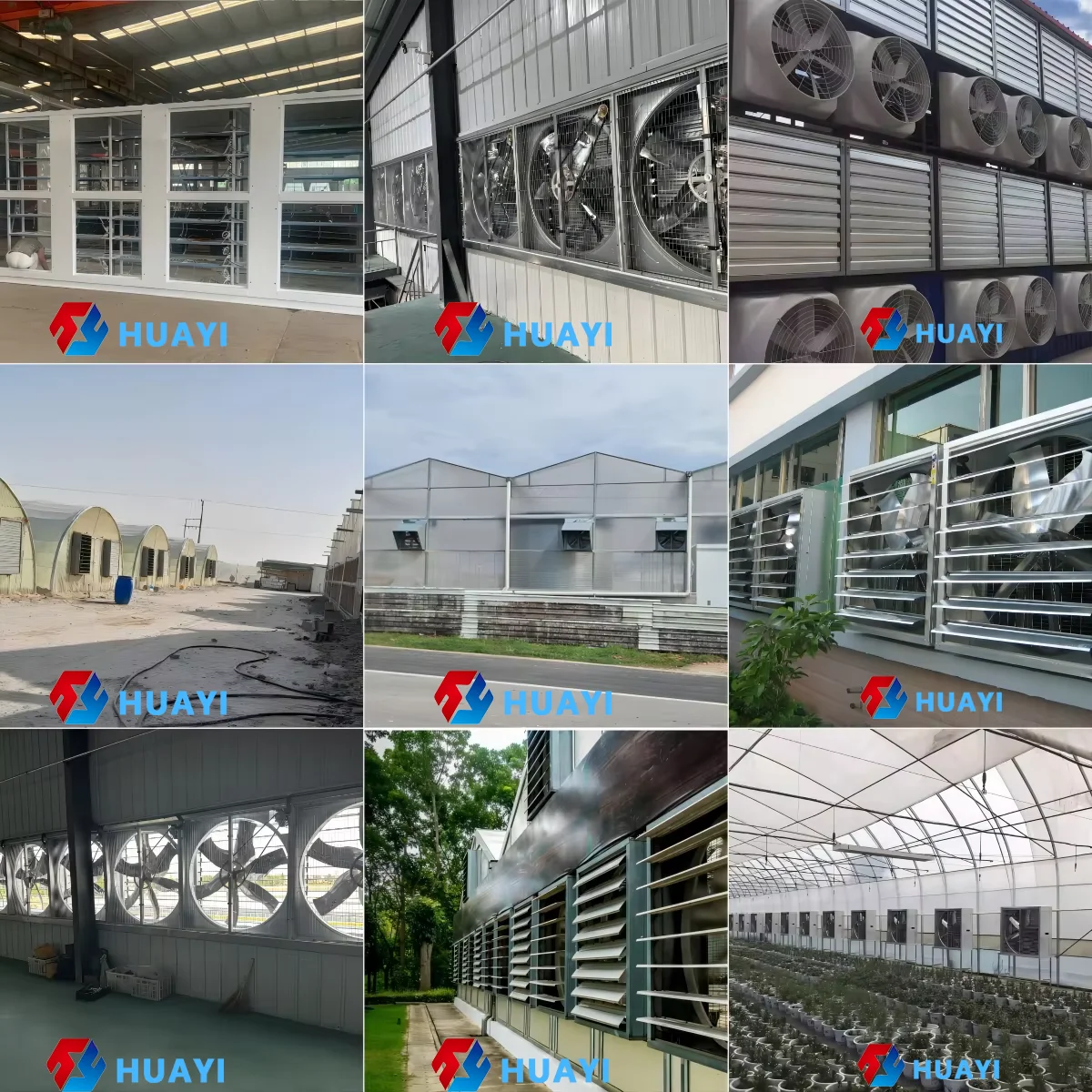

Case Display

exhaust fan are widely used in agriculture and industry's ventilation and cooling system. For example, animal husbandry ,poultry house , greenhouse ,factory workshop, textile, chemical and so on. 50 inch Heavy Duty Industrial warehouse workshop factory hammer exhaust fan wall Chicken farm cooling fan Poultry House Heat Extractor greenhouse fan

Company Profile

Qingzhou Huayi Temperature Control Equipment Co., Ltd is a professional company engaged in the research and design of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment,heating equipment and animal husbandry machinery, adopts advanced CAD software technology to design new products, and continuously builds energy saving.technologies.We are a new type of workshop ventilation and cooling equipment, standardized livestock House,gardening greenhouse ventilation and cooling, heating equipment, the production of "HUAYI" brand products six series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, negative pressure fan,gardening fan, circulation fan, roof exhaust fan, axial flow fan and so on, which can be widely used in agriculture, flowers,animal husbandry, plant,textile,coal mine, chemical industry, shopping malls and supermarkets, medicine, grain,vegetables, timber and other industries.Our products are exported to domestic and foreign markets.We strive to create products with good performance and excellent price.We do OEM or ODM service. No matter customize pattern, logo, package. All of our products have passed strict quality control and been issued certification of CE,ISO9001. Our products are exported all over the world and widely recognized and trusted by users.We welcome potential partners both at home and abroad contact and visit us for future business relationships and mutual success!

Professional Trustworthy

The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''

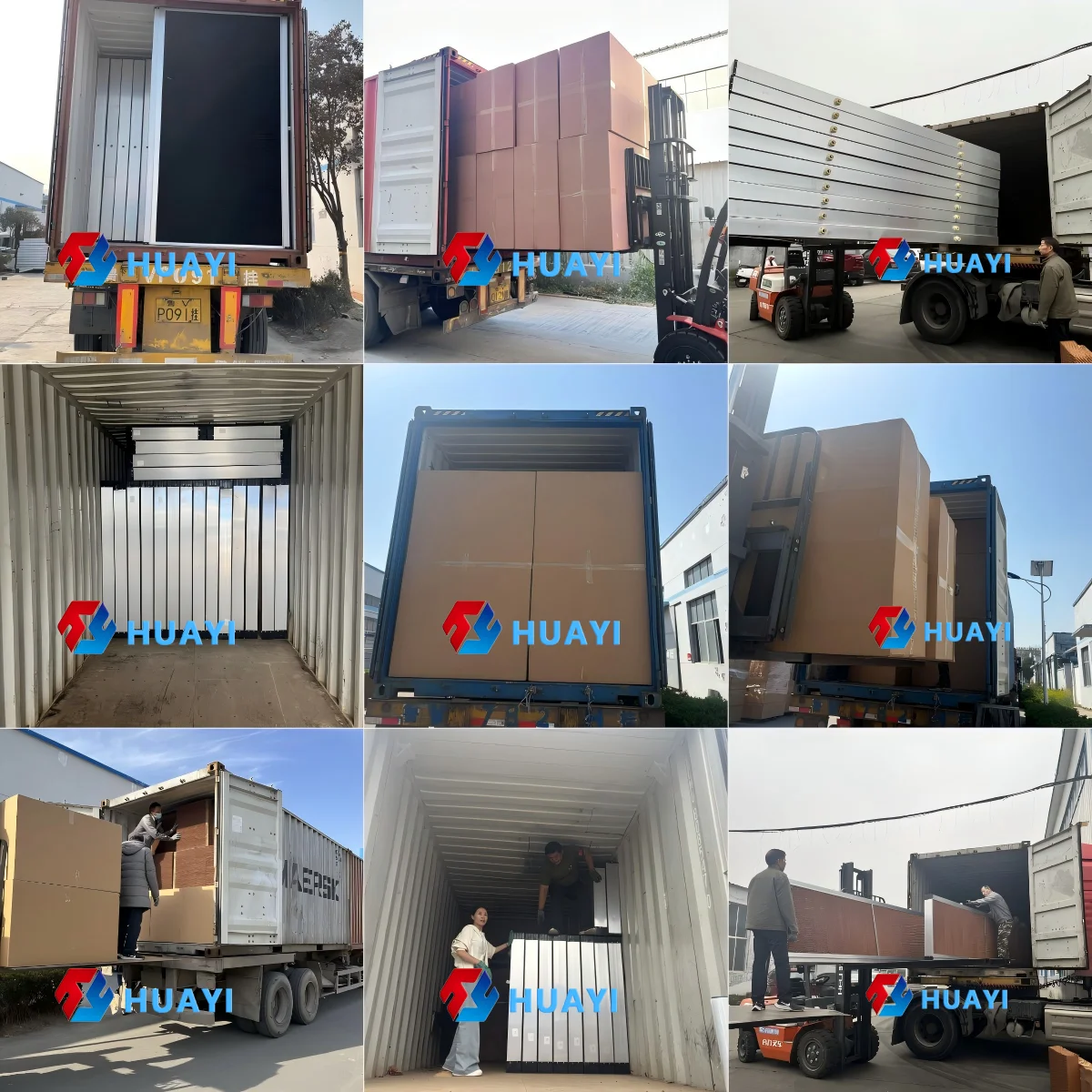

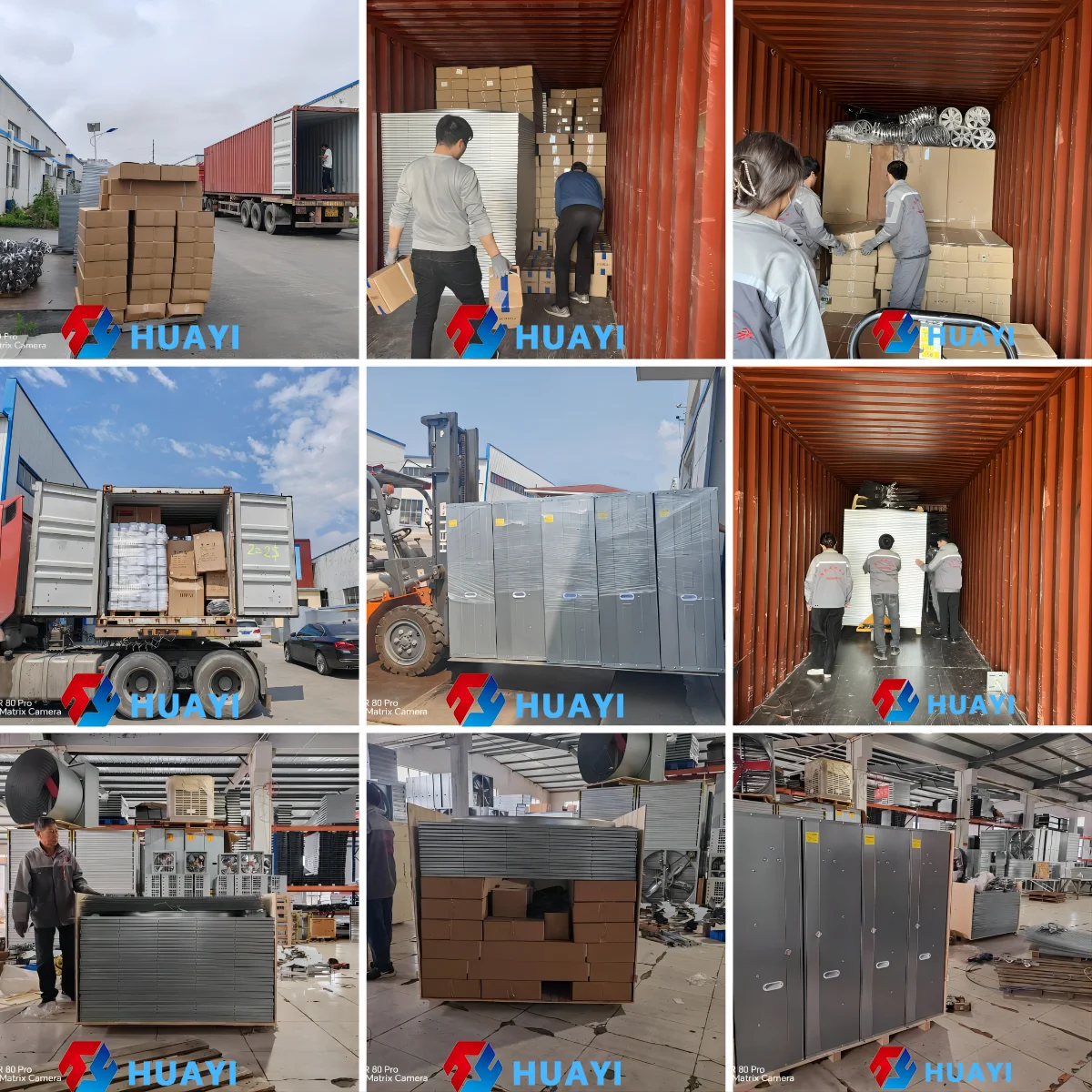

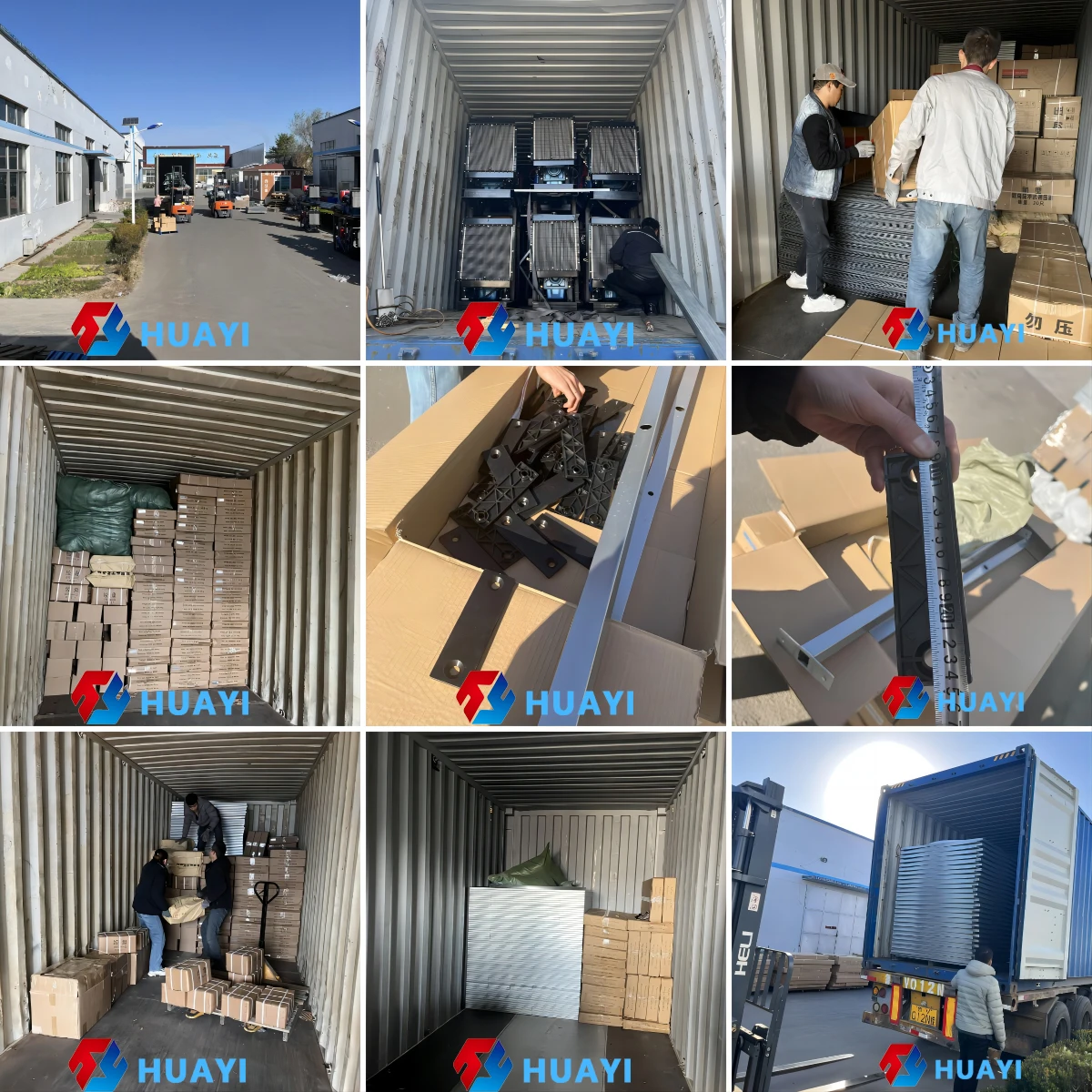

Transportation packaging

FAQ

Q1. Are you a factory or trading company?

A1:We are a professional and acomprehensive poultry farm equpment supplier integrating
R&D, production and sales founded on 2015. OEM and ODM are welcomed.

Q2. What payment methods do you accept?

A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.

Q3:What about the delivery time?

A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.

Q4:Do you provide free sample?

A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.

Q5.May I visit your factory?

A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.

Q6: Can you guarantee your quality?

A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.

Q7: How do you ensure my right if I’m going to place the order?

A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–199 set: US $100 / set
  • 200+ set: US $70 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cross flow fans?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
