Custom Bldc Motor: material Metal Steel, type Brushless Motor. Supplied direct from the factory with the complete specification. Speed Rpm: 1500-4 000 RPM. Model Number: BB series.
Key specification for this custom bldc motor: material Metal Steel, type Brushless Motor. Everything below is reproduced from the factory data sheet. Made by Shanghai Goldgun M&E Hi-Tech Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Custom Bldc Motor
Model Number: BB series
Rated Power: 0.15~2KW(0.20~2.68hp)
Material: Metal Steel
Speed Rpm: 1500-4 000 RPM
Speed(RPM): 3000rpm
Warranty: 12 months

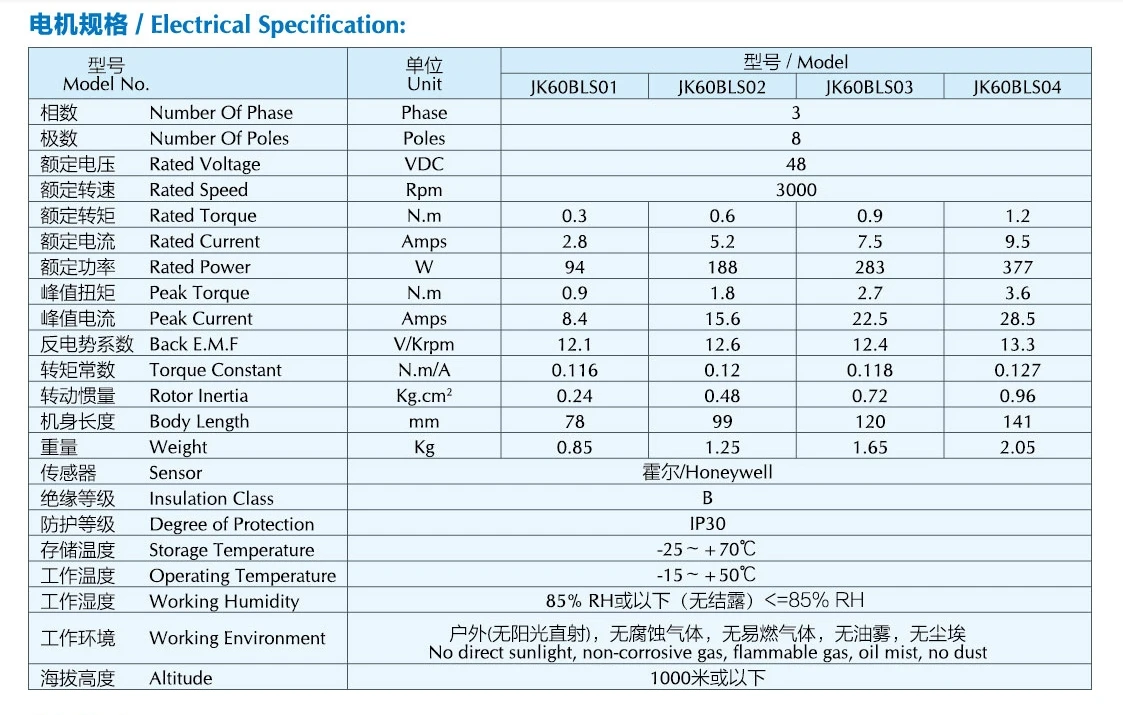

Technical Specifications
Commutation
Brushless
Rated Power
0.15~2KW(0.20~2.68hp)
Speed Rpm
1500-4 000 RPM
Speed(RPM)
3000rpm
IP Rating
IP40
Efficiency
IE 1
Type
Brushless Motor
Construction
Permanent Magnet
Frame
42 mm(1.65in)
Motor Mounting Type
Flange Mount
Protect Feature
Explosion-proof
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty
12 months
Continuous Current(A)
15A MAX
Model Number
BB series

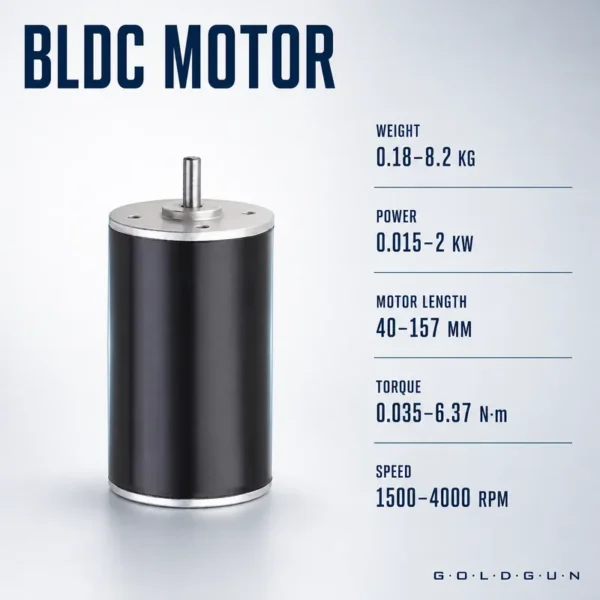

Torque
0.035-6.37N.m(0.03-4.70lb.ft)
Place Of Origin
Shanghai
Brand Name
GoldGun
Color
Black
Weight
550g/950g/1kg/3kg/5kg
Material
Metal Steel
Operating Temperature Range
32°~122° F (0~50° C)
Output Shaft Diameter
26-130 mm
Lnsulation Class
B
Selling Units
Single item
Single Package Size
12X8X8 cm
Single Gross Weight
0.5 kg
Product Details

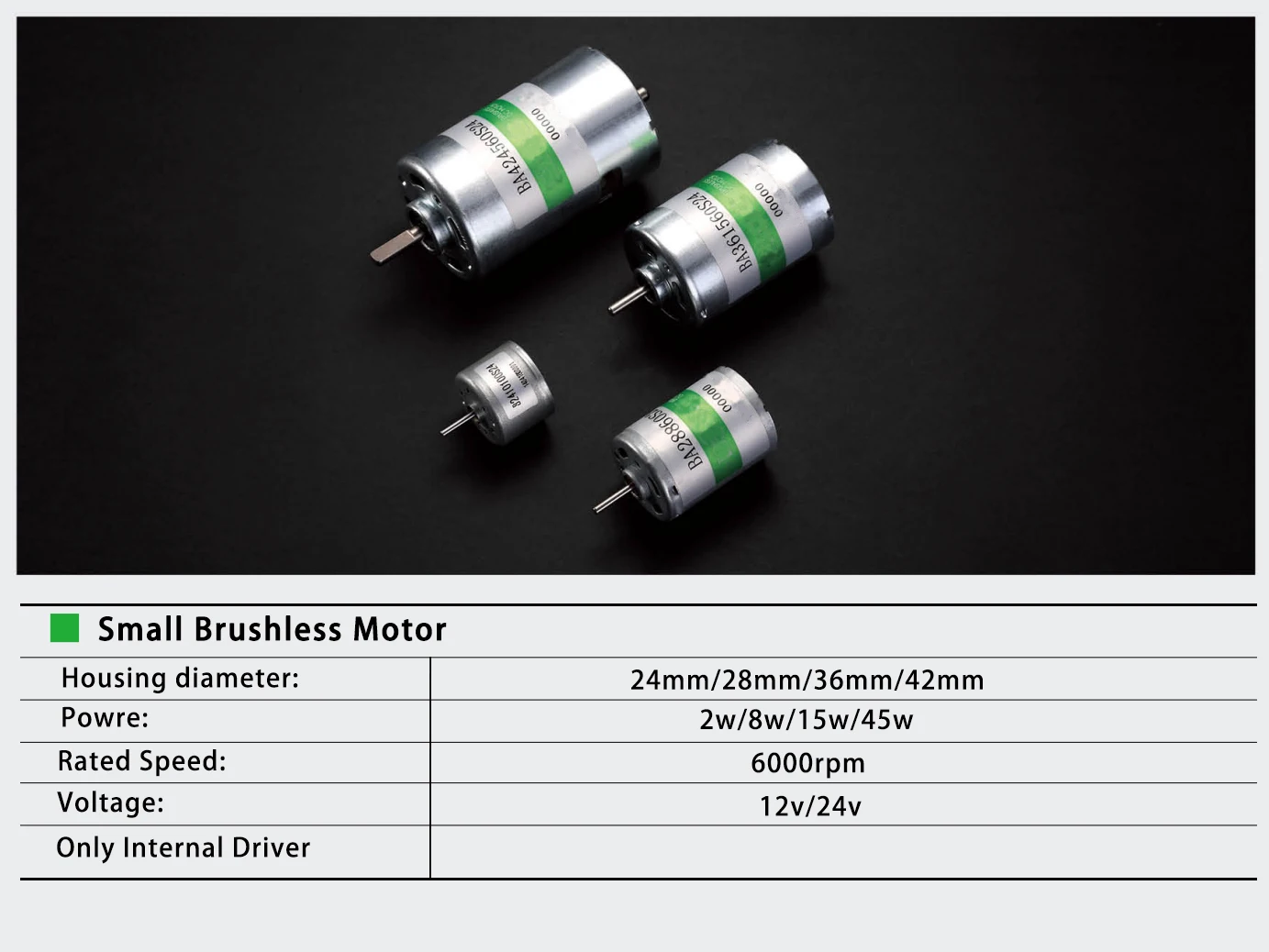

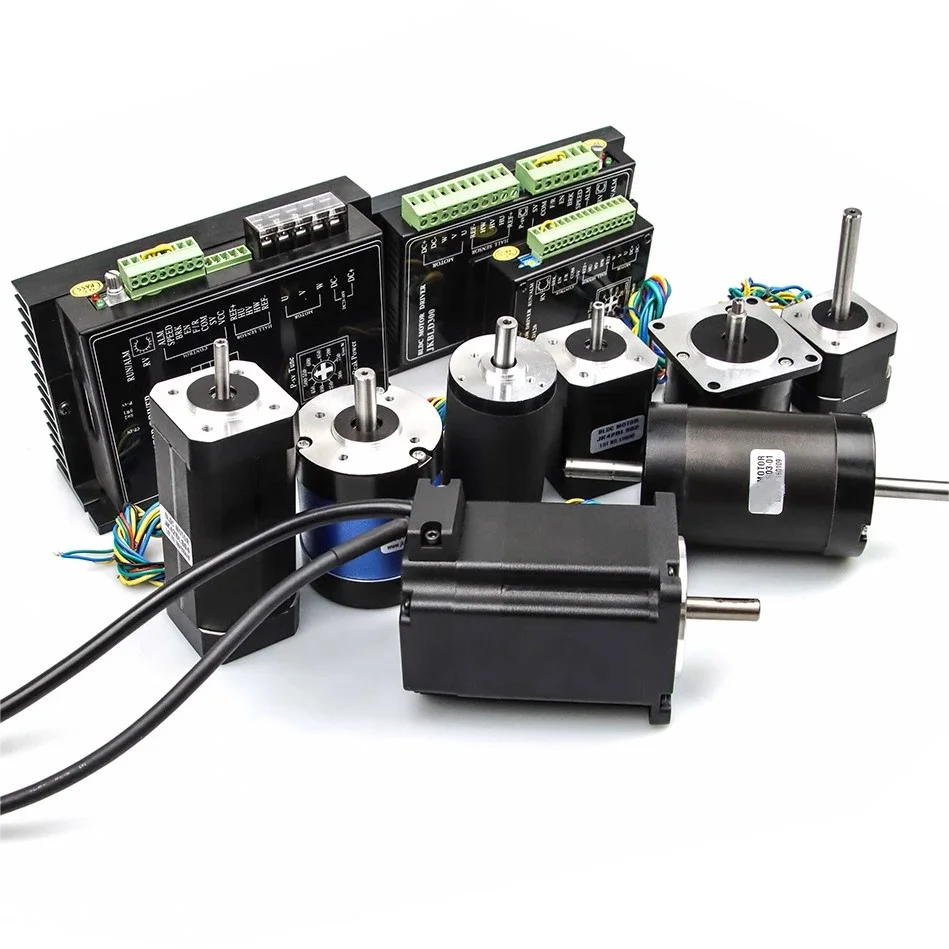

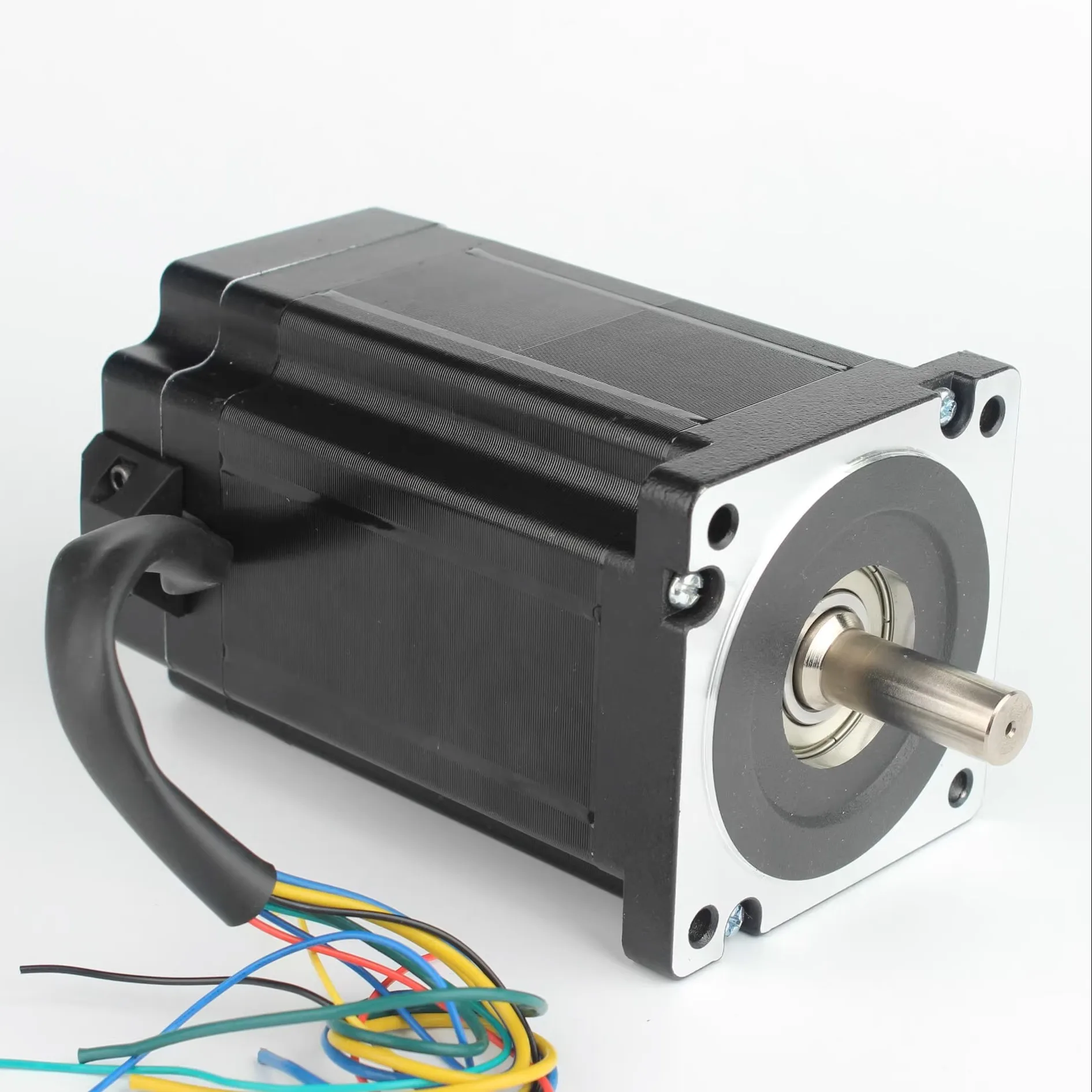

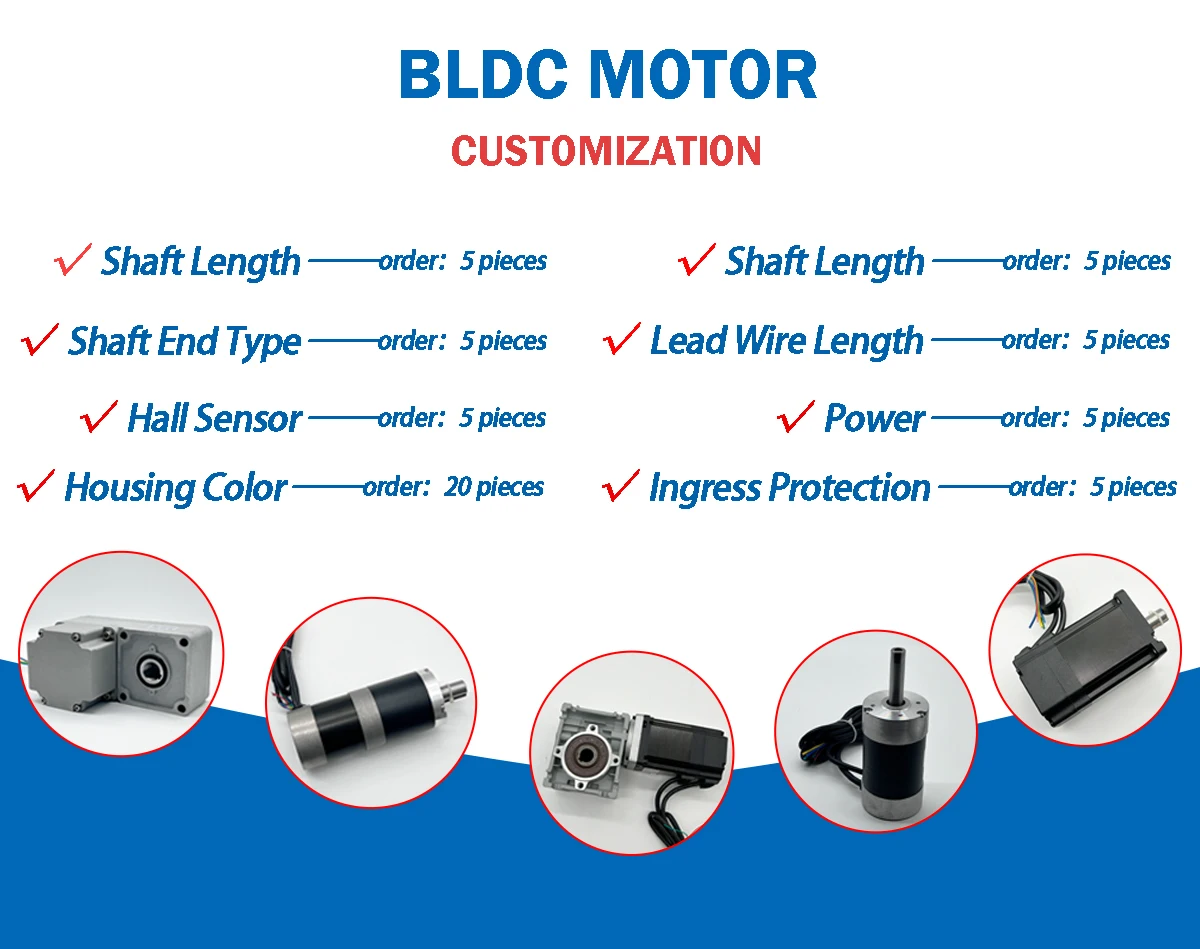

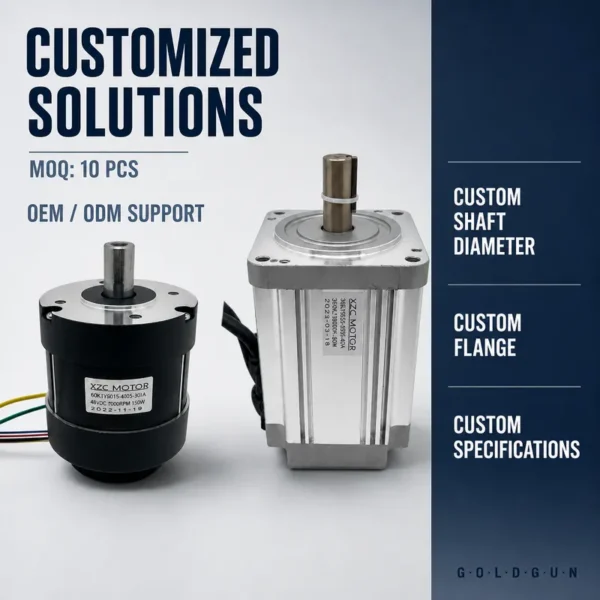

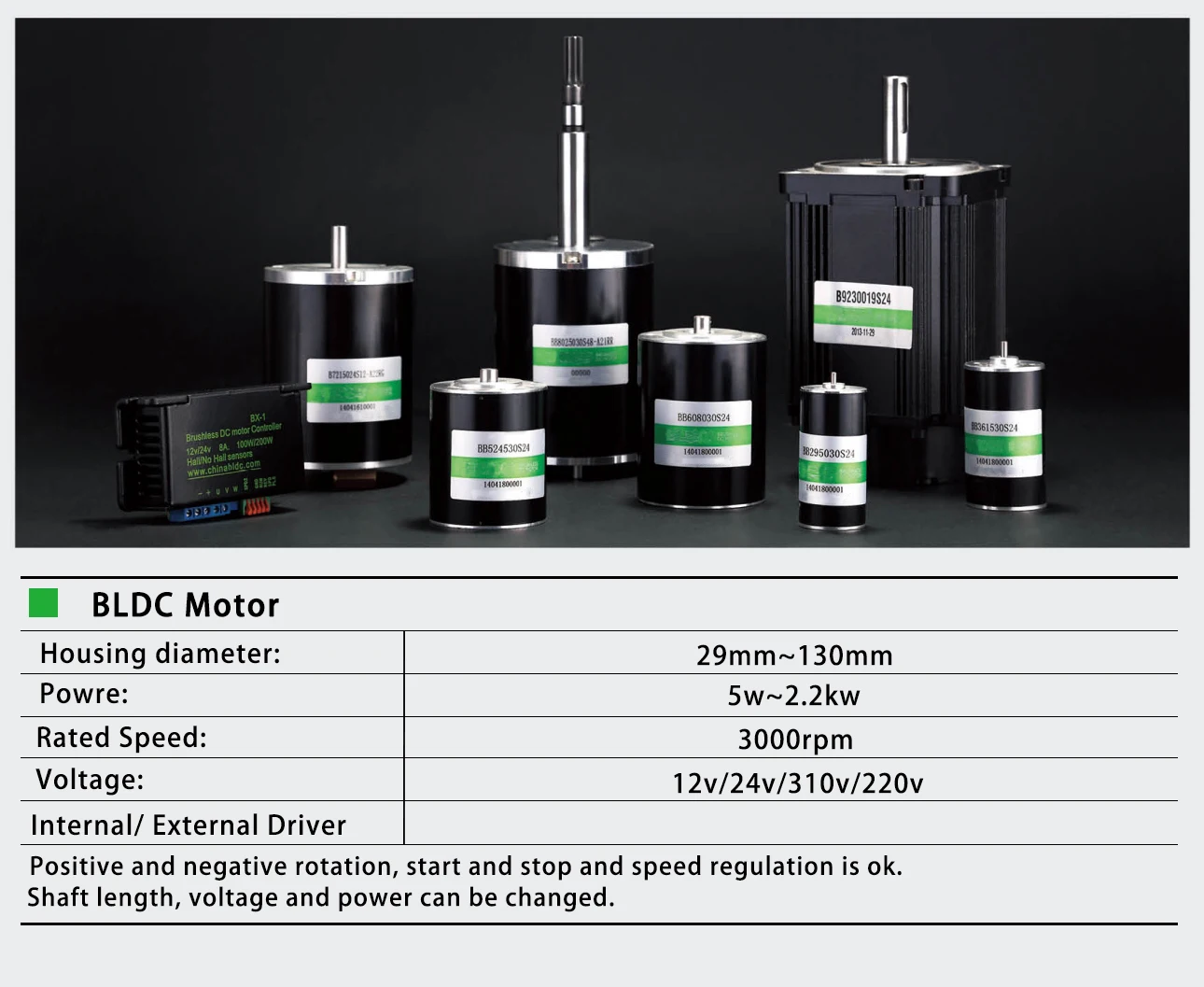

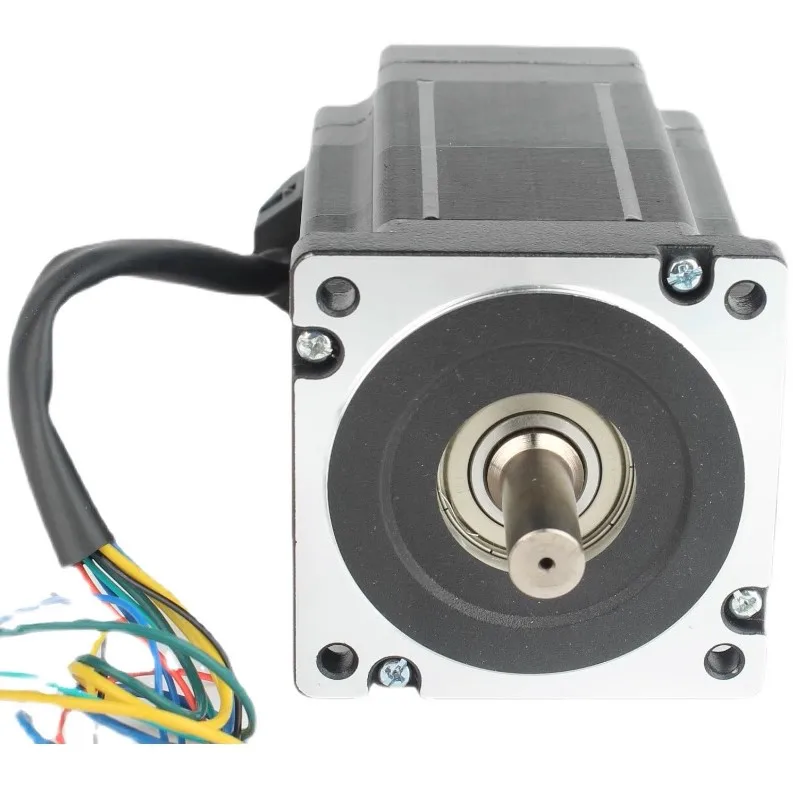

Customized Brushless DC Motor
Power: 1W~2.2KW
Voltage：3VDC~350VDC
Housing diameter：26mm~145mm
Speed: 100rpm~20000rpm

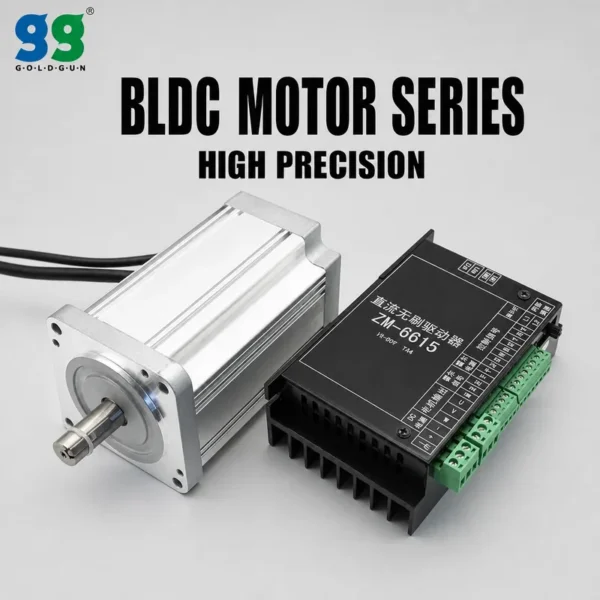

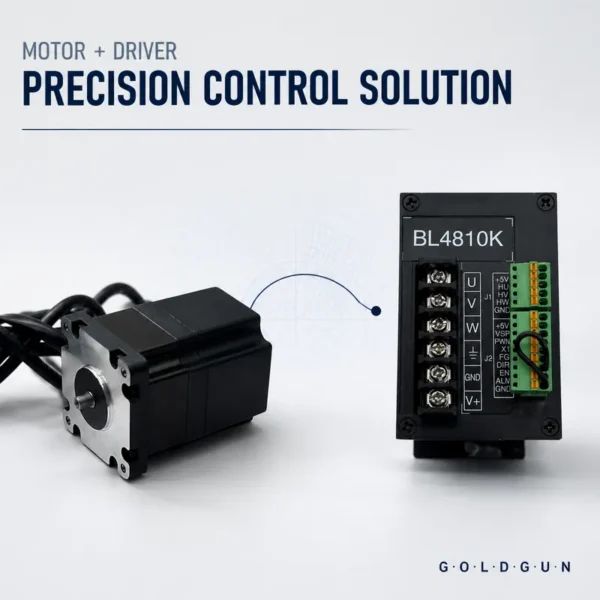

Driver: Internal driver/External driver
Hall/ No hall
Product Introduction
Product Introduction

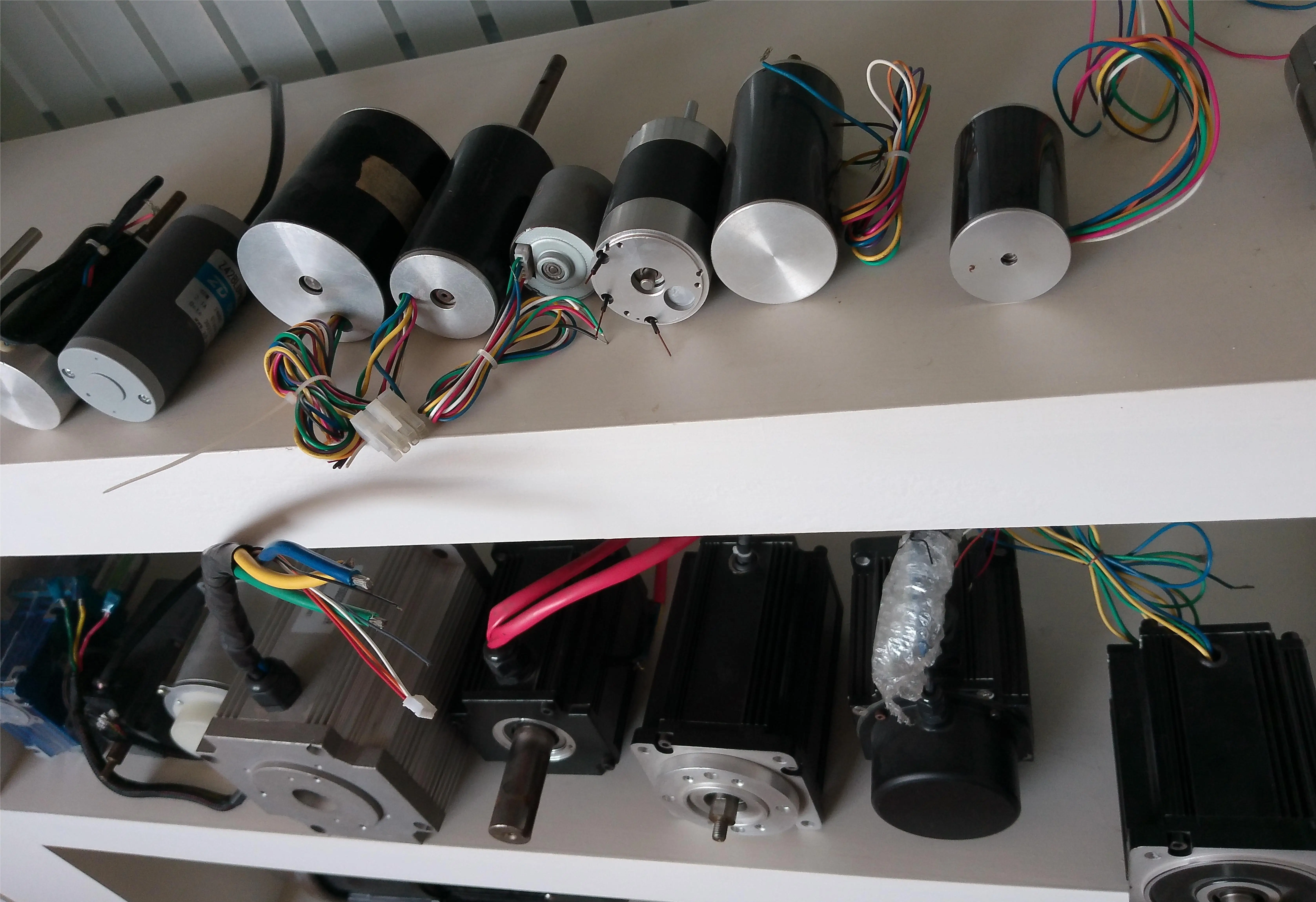

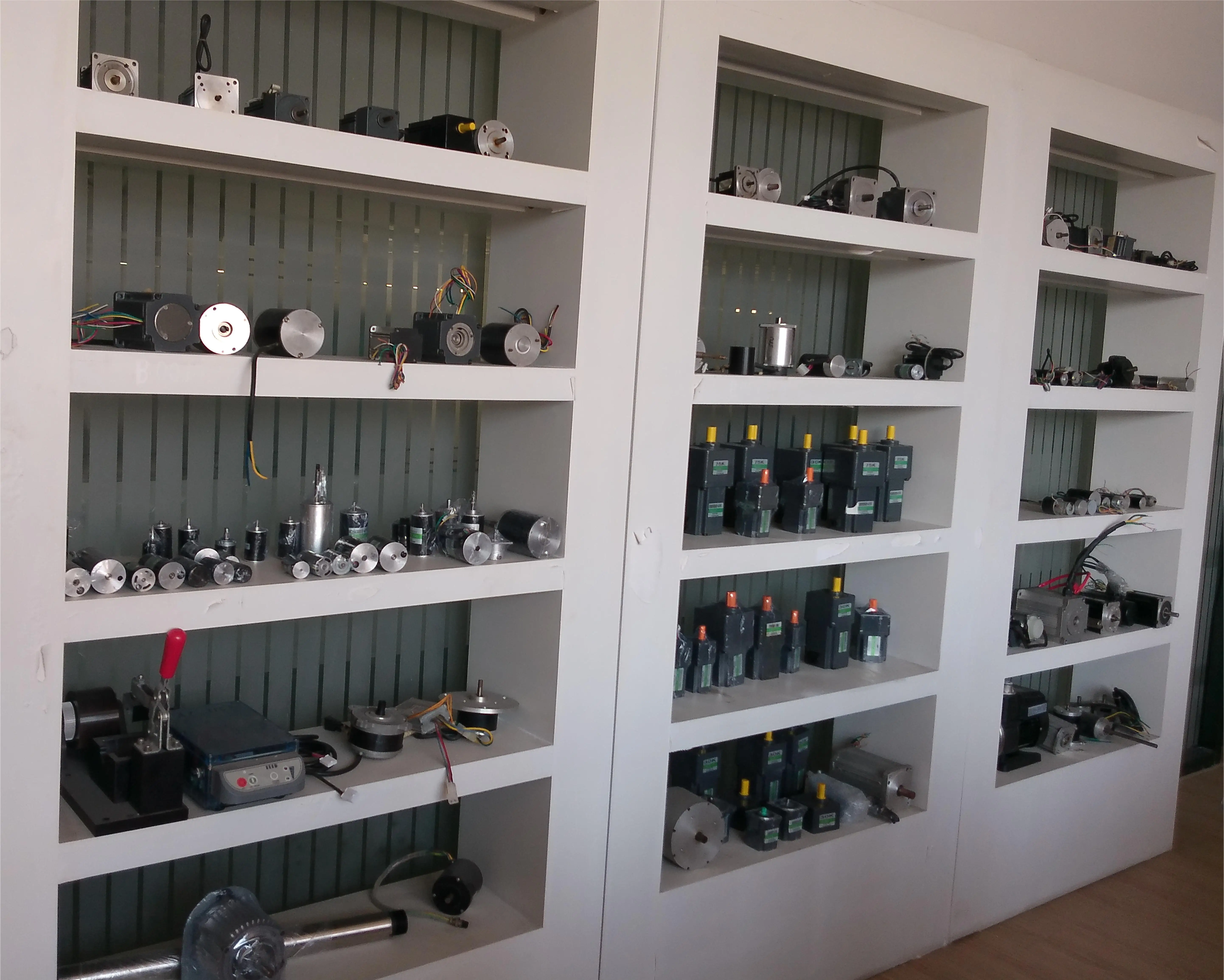

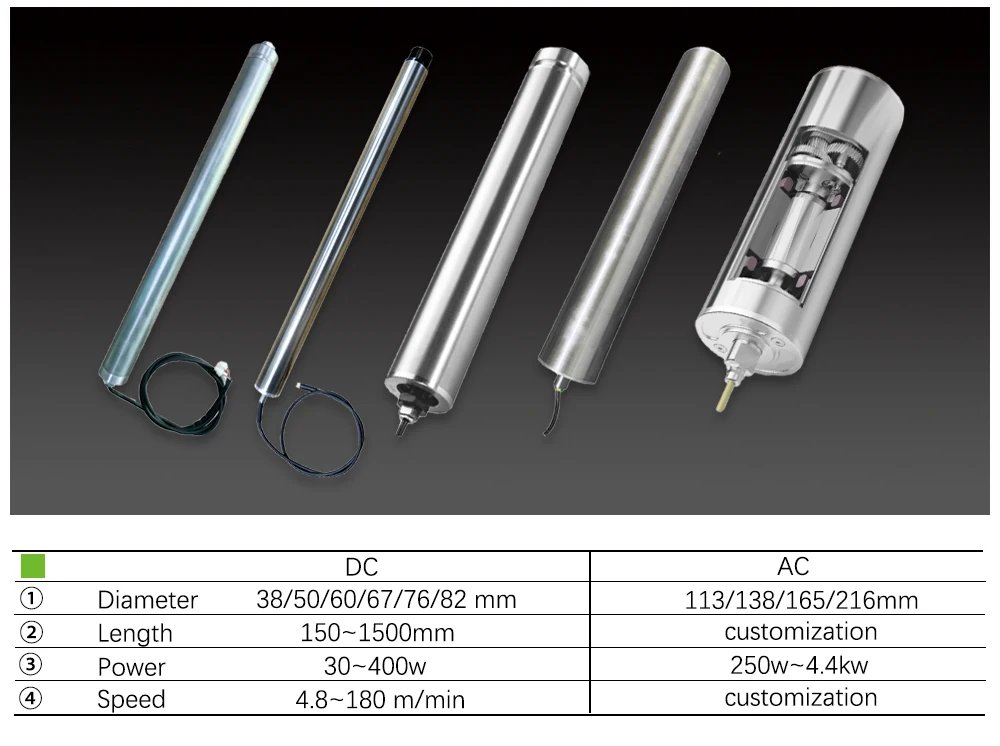

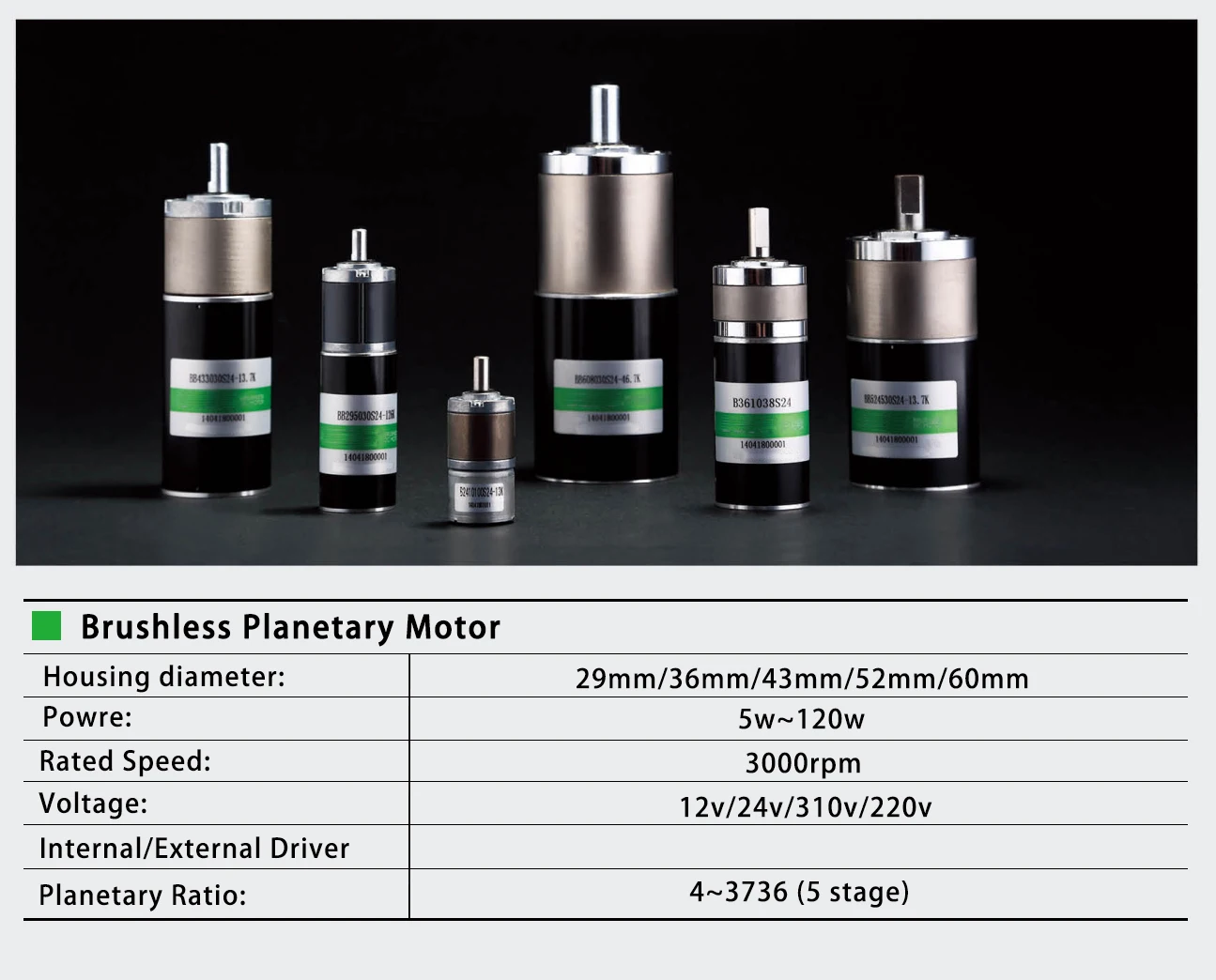

Other products

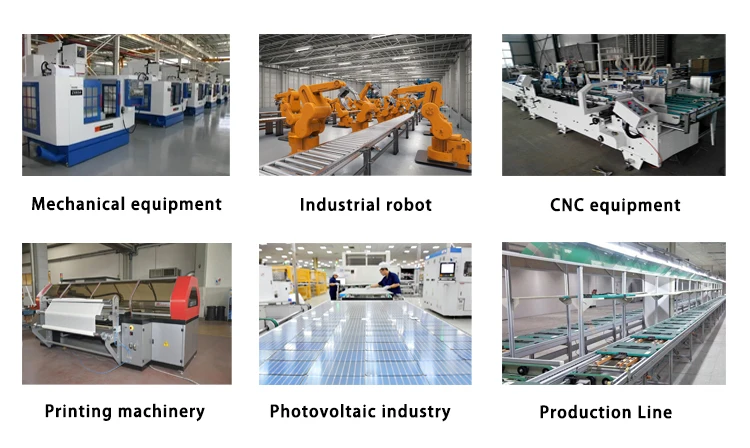

Product Advantages and Applications
Brushless DC motors have the advantages of small size, high power, high efficiency, controllable speed, long service life, and no spark generation. They can widely replace DC motors, variable frequency motors, AC asynchronous motors, and are perfect for planetary reducers. They can also be connected in conjunction with ordinary reducers. The products are widely used in industries such as automobiles, medical equipment, electric tools, automation instruments, automation equipment, household appliances, energy conservation and environmental protection, aerospace, etc. Brushless motors are the development direction of future motors and the best choice for green and energy-saving driving in the future.

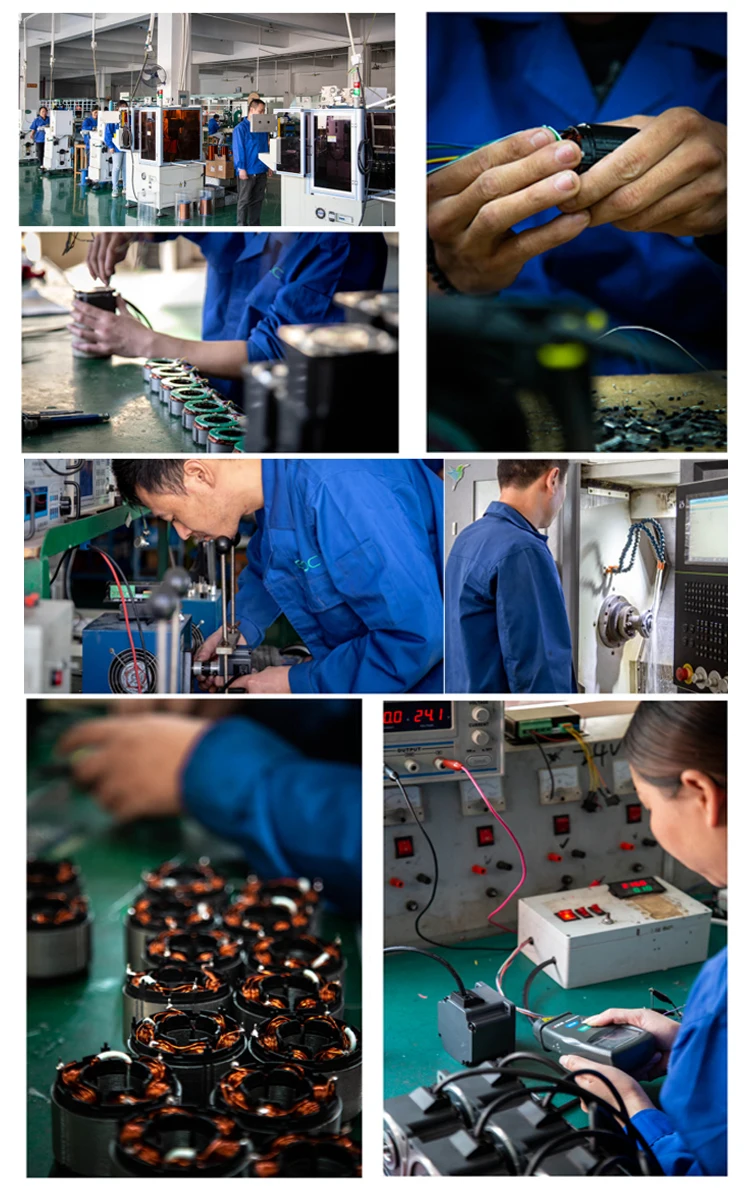

Company Profile
Shanghai Goldgun M & E Hi- Tech Co.,Ltd. established in 2003. was established in 2003 and is dedicated to producing low-cost brushless DC motors, brushless conventional series, brushless planetary series, brushless spur gear series, brushless controller series, and brushless non-standard customized product series. The enterprise has passed ISO9001 certification, and the products have passed high and low voltage CE certification. We are passionate about providing customers with innovative components and development services for motors, supporting the progress and development of modern motors, and enabling our customers to achieve their goals quickly and economically. This is our driving force.
We are committed to the field of brushless DC motors, responsible for customers, with perfect details and intelligent technology. We strive to integrate all knowledge and understanding into our work.
Certifications
Packing & Dalivery
FAQ
1. What kind of motor do you supply? Dedicated to producing low-cost brushless DC motors, brushless conventional series, brushless planetary series, brushless spur gear series, brushless controller series, and brushless non-standard customized product series. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3. What's the deliver/producing time for samples or mass production? Usually, it will take about 15-25 days to produce samples; about mass production, it will take about 35-40 days for DC motor production and about 45-60 days for gear motor production. 4. Could you please send me a quotation for reference? Our products basically need to be customized, as long as you send the specific parameters, or pictures, or drawings you need, we can immediately send you a quote after technical confirmation. 5. What services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,ItalianD
Ordering and Pricing
Minimum order quantity: 1 set
Volume pricing:
1–49 set: US $48 / set
50+ set: US $42 / set
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this custom bldc motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
