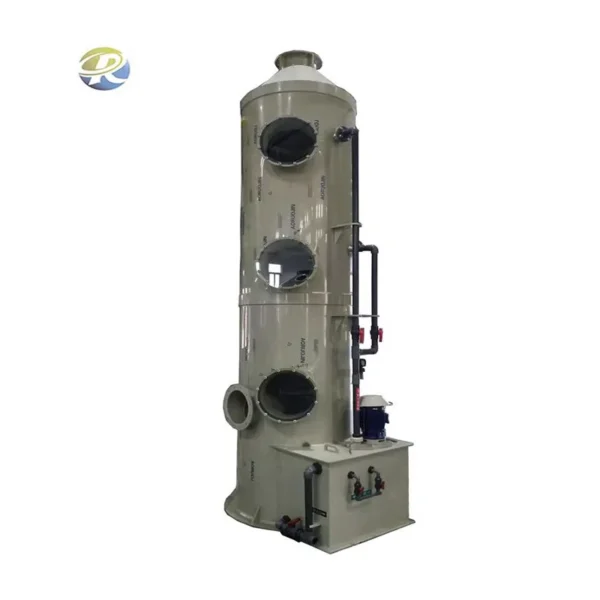

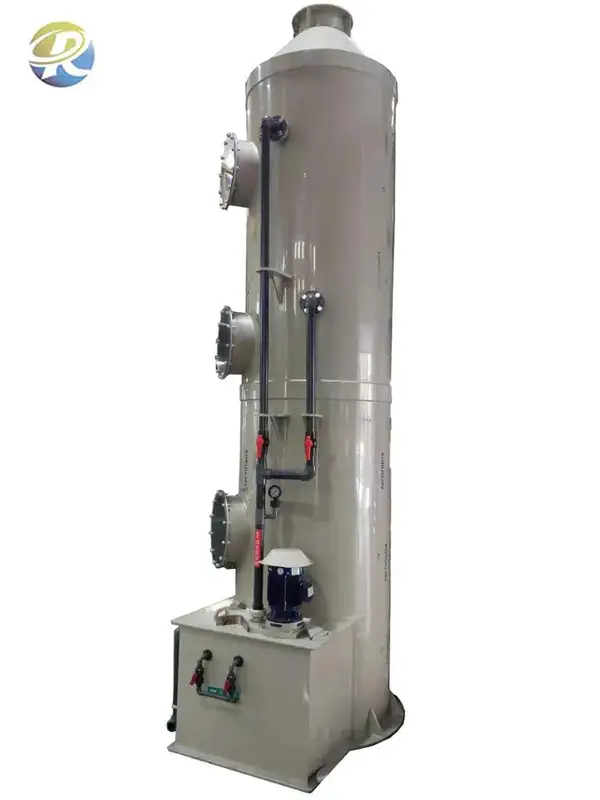

Desulfurization Dust Scrubber Tower, 3000cfm, Polypropylene

PP spray tower is a new type of industrial waste gas treatment equipment. It is improved on the basis of floating packing layer industrial waste gas purifier, widely used in industrial waste gas treatment, dust removal and other aspects of the pretreatment, purification effect is very good.

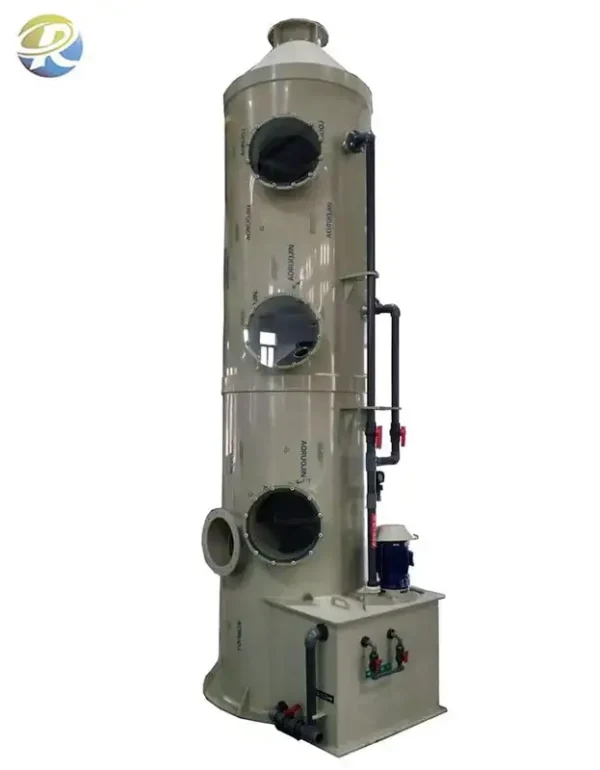

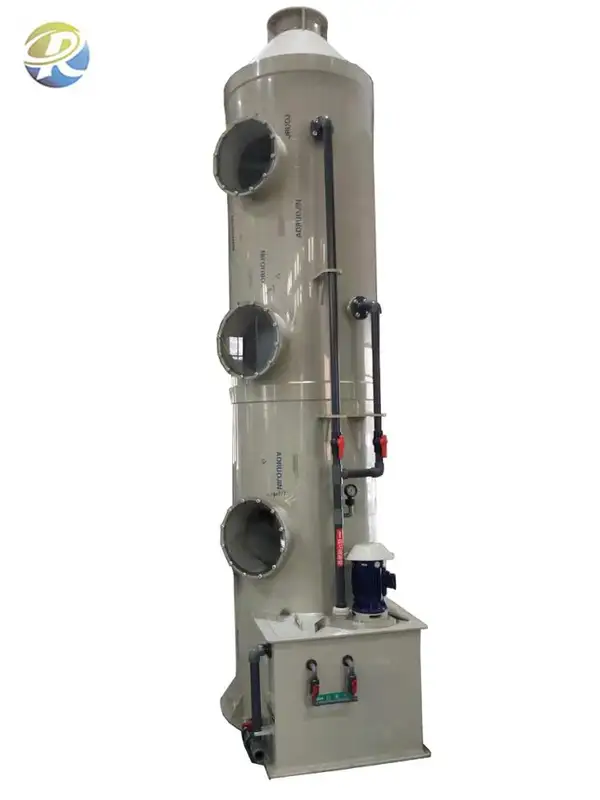

PP spray tower itself contains a body, filling layer, defroster layer, circulation sprinkler line, and circulation tank.

PP spray tower body includes exhaust gas inlet, outlet, window, maintenance hole and PP spray tower internal structure for support and fixed, to ensure the corrosion resistance of PP exhaust spray tower itself to increase its service life.
Principle and construction of PP spray tower:

PP spray tower is an advanced product of environmental protection technology, PP spray tower is used to remove impurities in the gas with solvent reaction, can be used for a variety of industries have to produce washing gas. The waste gas and waste liquid enter into the tower and make full contact with the washing liquid in the tower to remove impurities and purify the gas. The utility model includes a body, a filling layer, a defogging layer, a circulating sprinkler line and a circulating water tank, etc.

PP spray tower body includes exhaust gas inlet, outlet, window, maintenance hole and PP spray tower internal structure for support and fixed, to ensure the corrosion resistance of PP exhaust spray tower itself to increase its service life.
Features: PP spray tower low noise, smooth operation, simple operation, convenient; Professional for electroplating industry and more than five surface treatment produced by the acid and alkali gas neutralization treatment, the use of high quality PP board, air volume can be randomly adjusted.
Application:
The equipment itself includes a body, a filling layer, a demister layer, a circulating sprinkler line, a circulating water tank, etc.
Spray tower body:
The spray tower body includes the structure of exhaust gas inlet, outlet, window, maintenance inlet and the inner part of the spray tower for supporting and fixing, so as to ensure the corrosion resistance of the equipment and increase its service life.
Packed bed:
Less than Φ 75 ring is used for spray column filling material with PP. Φ 75 PP raschig ring has a large specific surface area, low pressure loss, and low material transfer characteristics, compared with the filler material choosing to use Φ 75 PP raschig ring have higher treatment efficiency and low operation cost.
In addition to the mist:
Using Φ 50 PP hollow ball as mist equipment for PP

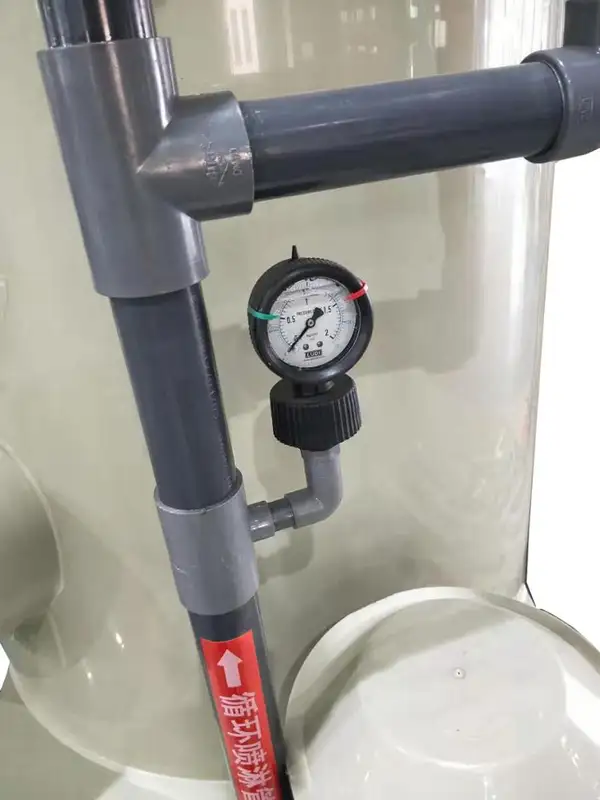

Circulating sprinkler line

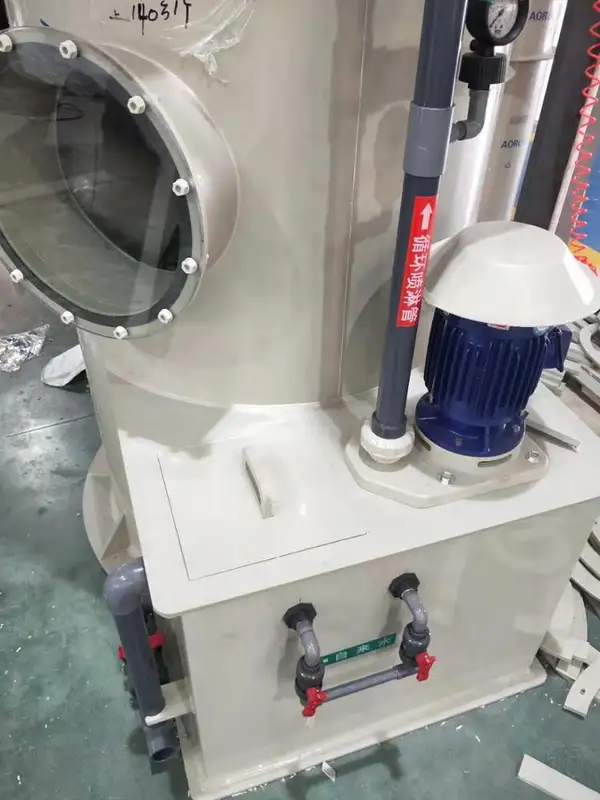

Circulating water tank
The circulating water tank is connected with the spray tower body, and the water tank has a capacity of 2-3 minutes of circulating water. The water tank is equipped with a float type liquid level controller, and a washing water inlet overflow port and a discharge port are reserved.
Applicable to: electronic industry, semiconductor manufacturing, PCB manufacturing, LCD manufacturing, steel and metal industry, electroplating and metal surface treatment industry, pickling process, dye/pharmaceutical/chemical industry, removal of burning gas SOx/NOx, other water-soluble air pollution.
Features:
The product is made of PP polypropylene, which has the advantages of corrosion resistance, frost crack resistance, wear resistance, high strength and good toughness. This product is easy to install, long service life, reliable connection performance.
Maintenance and maintenance:
Inspection and maintenance should be carried out 30 days after qualified commissioning.
Inspection and maintenance contents:
1: remove dust and dirt from the surface of the mechanism.
2: spray head, with or without blockage.
3: clean the water tank to see if there is any precipitation blockage, and clean the record to facilitate the customization of the next cleaning time.
4: observe whether there will be heavy stains on the surface of the ring. If necessary, take out and place it in a large area of the sink and remove the surface stains with neutralizing agent.
5: according to the exhaust odor or data to determine whether the activated carbon needs to be replaced, after the use of activated carbon can be exposed to the sun, regeneration.
6: check whether the pump has abnormal sound, looseness and blockage.

Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and trading company,  over 10 years production experience and sales experience.

Q: Where is your factory located? How can I visit there?

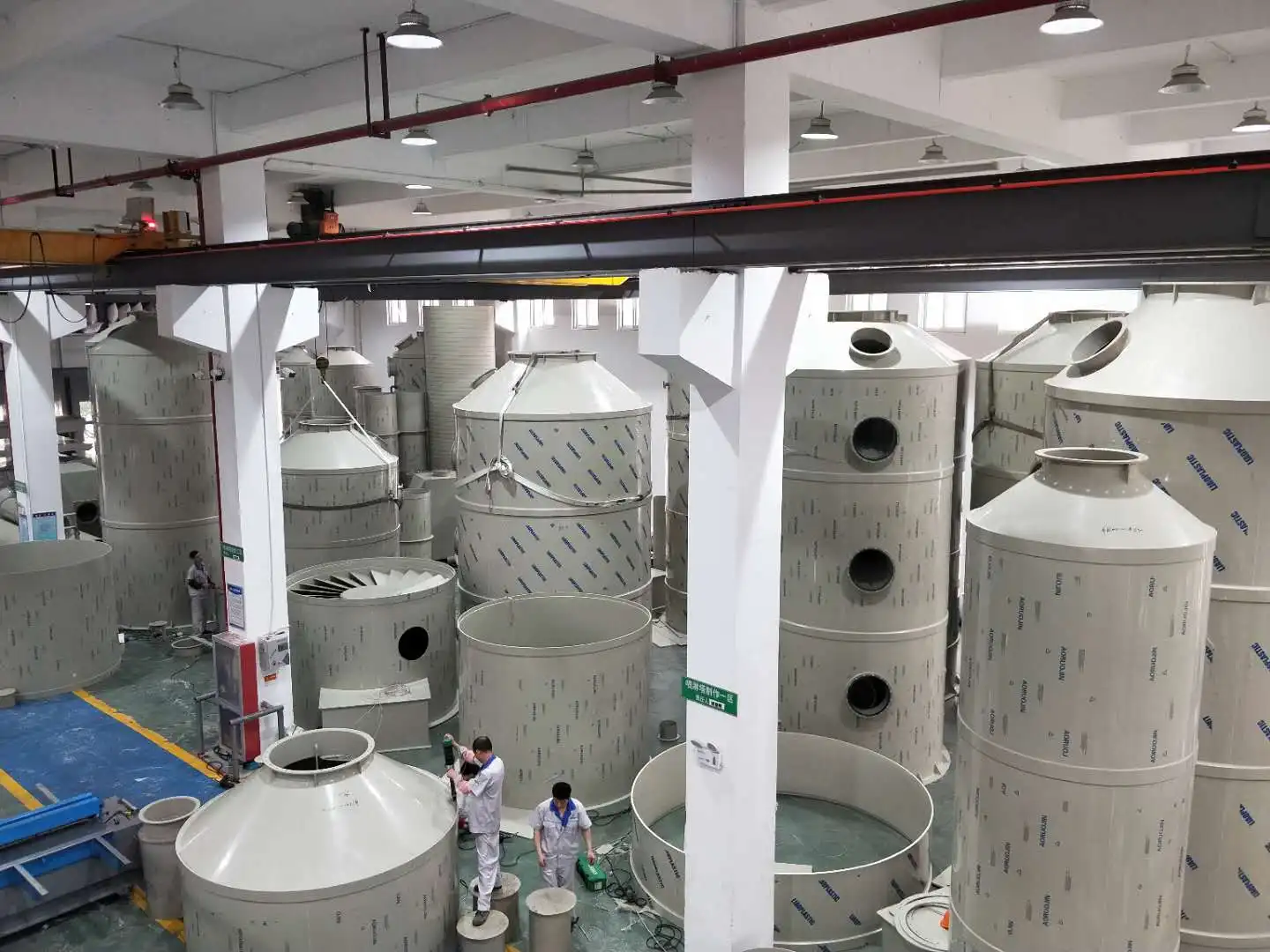

A: Our factory is located in Zhejiang Province, near Shanghai. Warmly welcome to visit us anytime

Q: How do you control the quality?

A: We insist "Protect The Environment, Benefit Mankind",  pay attention to quality control all the time. One year warranty period, ISO9001:2015, CE, Certificates.

Q: How can I get the quotation?
A: Tell us the specifications, such as working situation, dust or fume characteristics, air volume(CFM), filter area(M2), inlet temperature(℃), wind speed(M/min) etc. We will send the quotation within 24 hours.

Q: How to pay for the product?
A: T/T, L/C, D/P,D/A.

Q: How long is the delivery time?
A: According to the amount of purchase.
