Product Description
VR

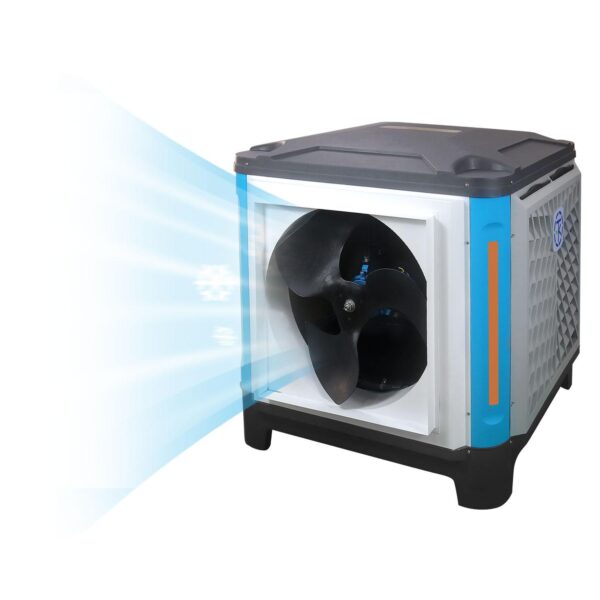

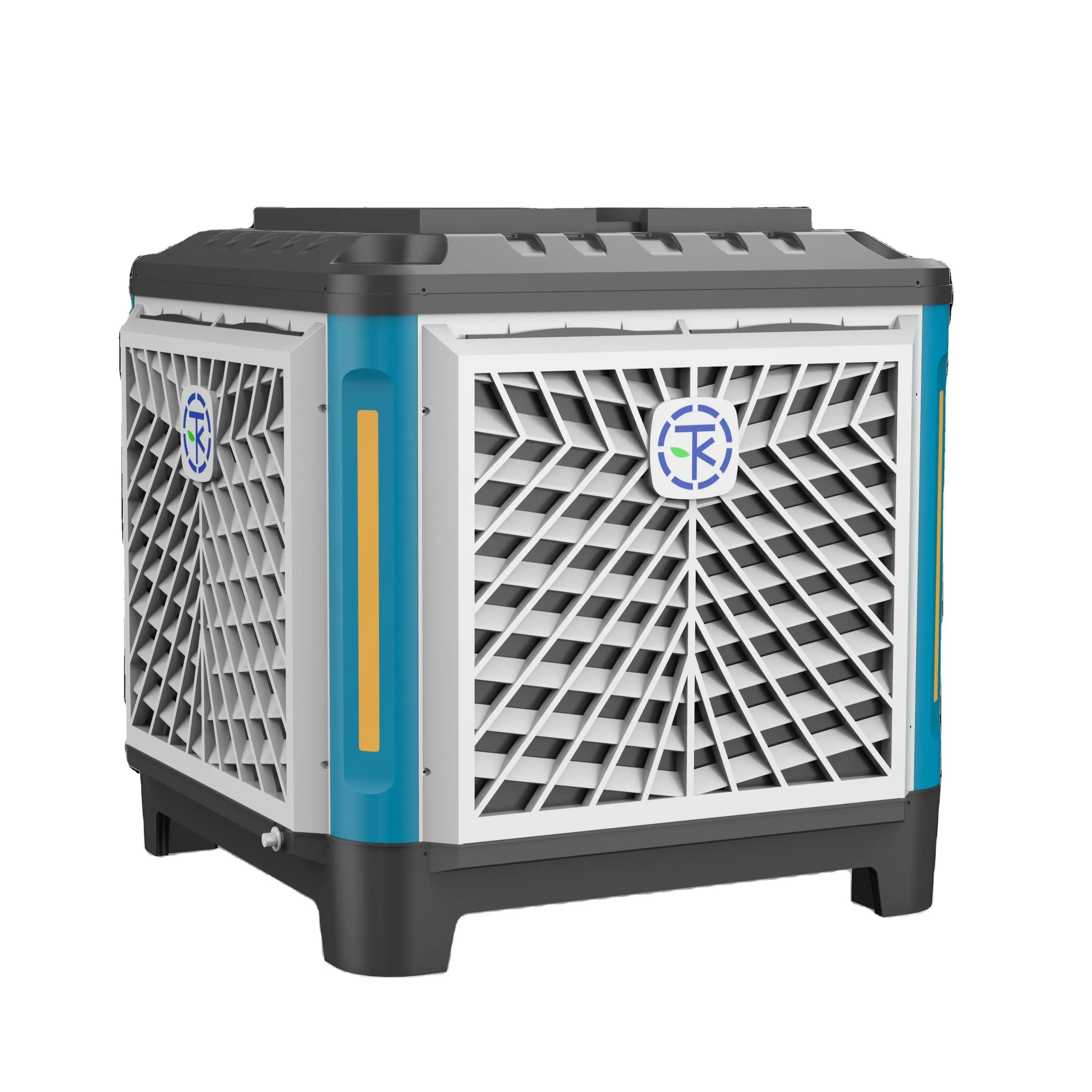

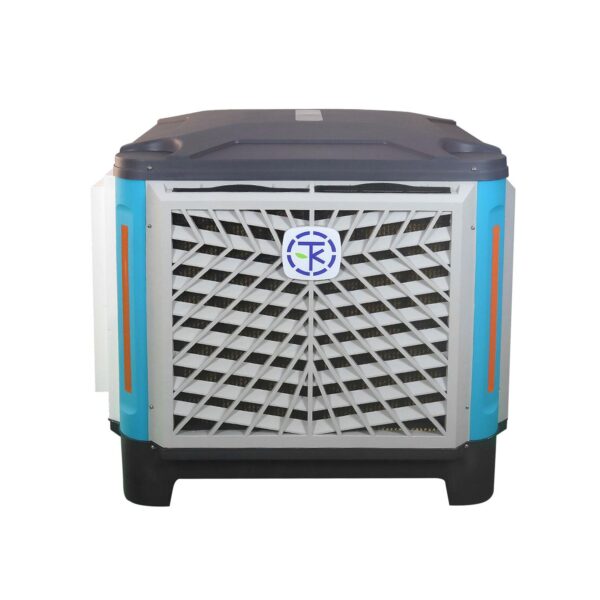

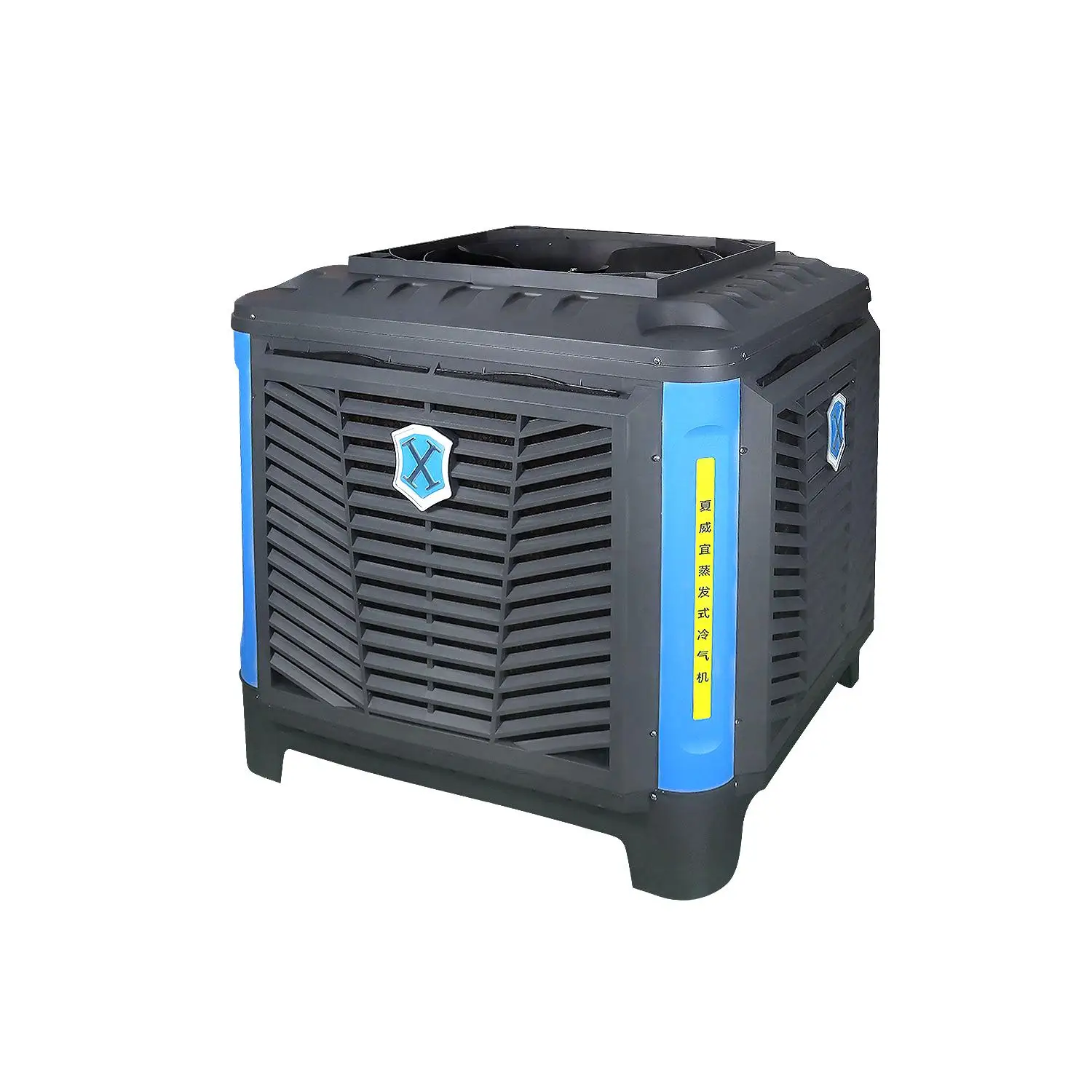

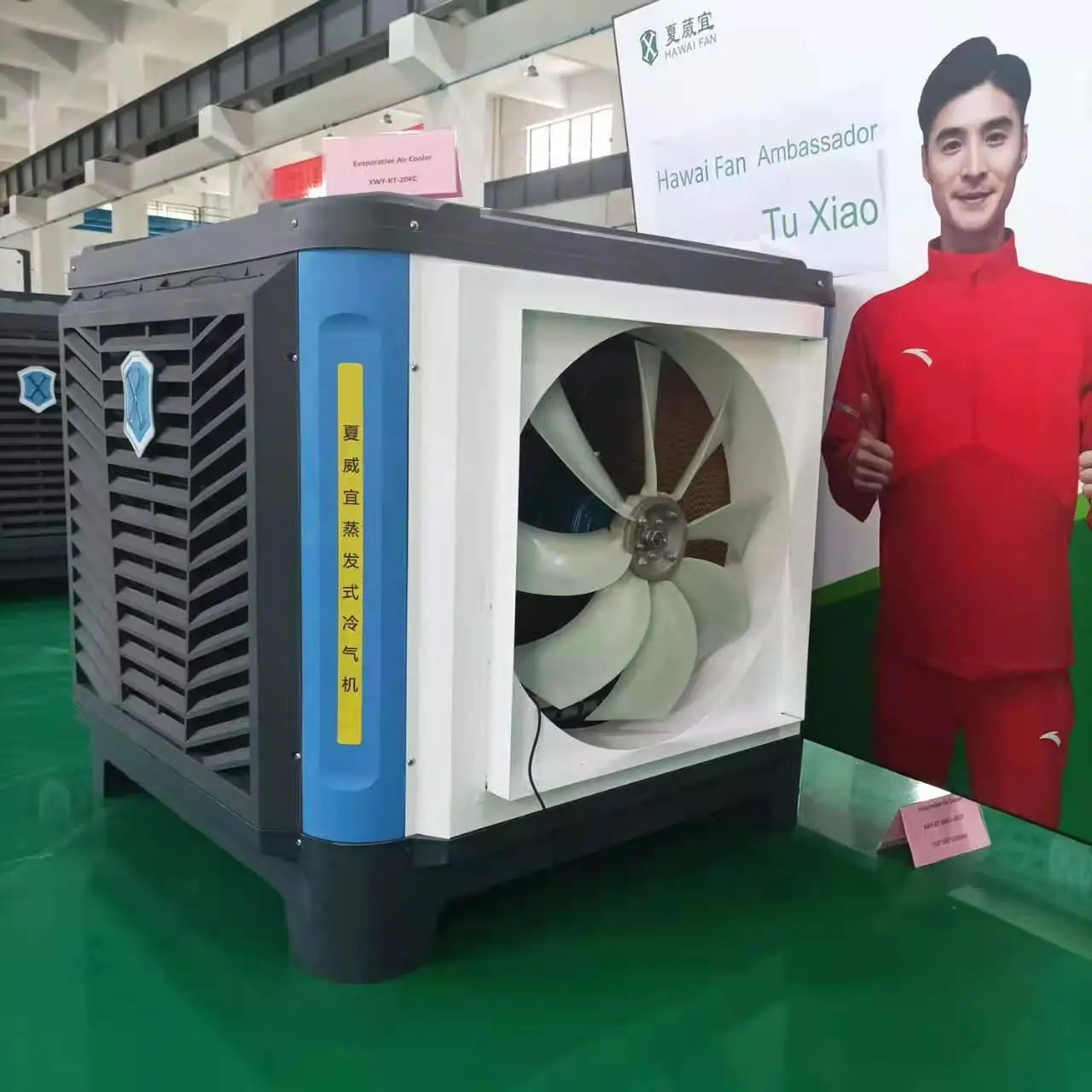

hot sale OEM ODM Wall Rooftop Mounted air water cooler fan large air flow 25K CMH Evaporative Air Cooler industrial

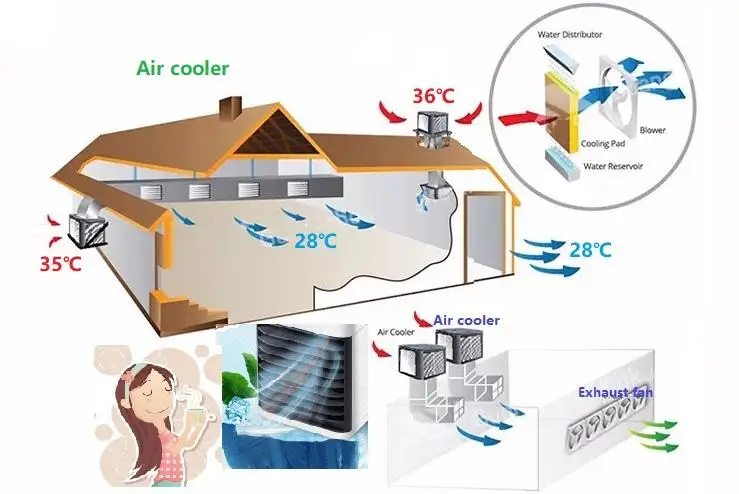

Cooling Principle
Water evaporation absorbs heat. According to this principle, when water flows down from the upper part of wet curtain under the action of gravity, a water film will form on the surface of corrugated fiber material. When the flowing air passes through the wet curtain, the water in the water film will absorb the heat in the air and then evaporate, so as to take away a large amount of latent heat and reduce the temperature of the air passing through the wet curtain, so as to achieve the purpose of cooling, refrigeration and humidification.
Shell fuselage features
The whole fuselage shell is made of new engineering materials with high strength and weatherability. Anti ultraviolet, anti aging, anti deformation, corrosion resistance, long service life and other characteristics, and has a dust filter screen template, evaporating wet curtain full edge, the frame fuselage adopts blue black color matching system, so that the equipment is more advanced. After installation, the overall image effect is more beautiful and texture, which is more in line with the requirements of high-end enterprises for the overall image of high quality.

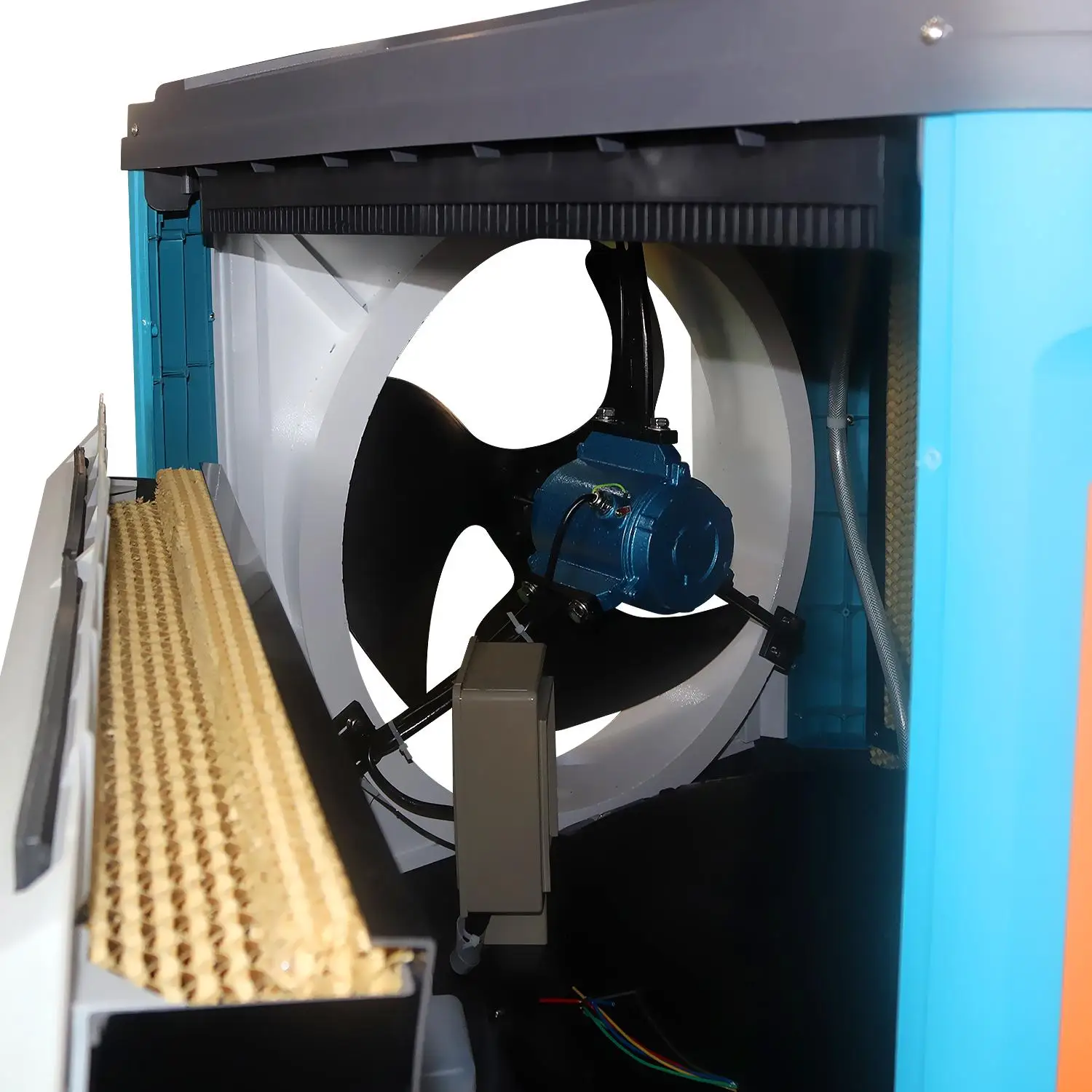

Power components
The core power component adopts cast iron / cast aluminum fully enclosed pure copper brand motor, with IP55 protection grade, waterproof and moisture-proof, F-class insulation protection, ensuring that the temperature rise of the motor is still stable under the continuous working state. Motor can be stepless frequency control (220 V / 380 V), to meet the needs of more working conditions.

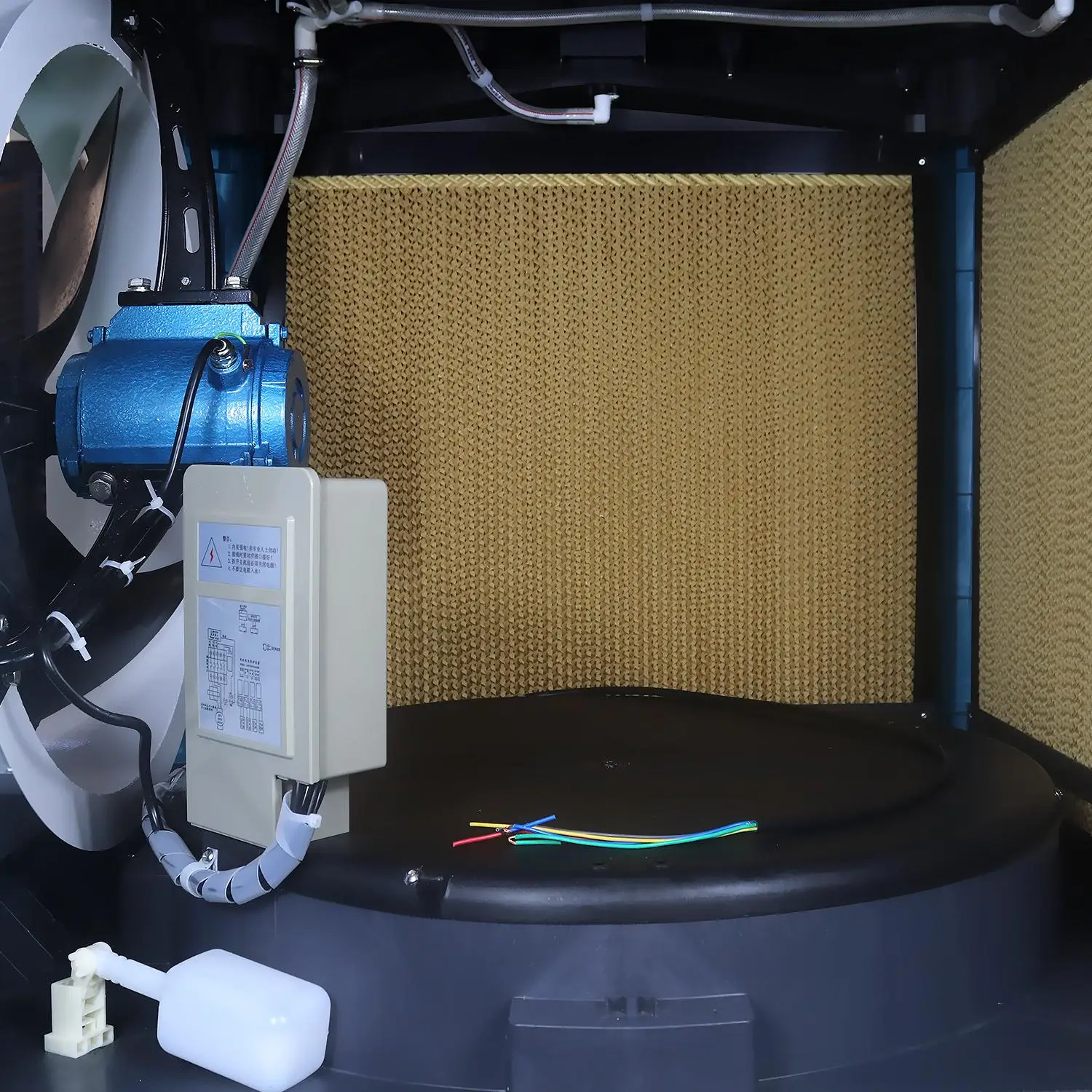

High efficiency evaporator
The environmental protection air conditioning evaporation wet curtain adopts high-quality base paper material, 5090 type has the characteristics of fine density, good water absorption, high wet stiffness, low shrinkage, no mildew and long service life. In the working process, it has the advantages of large evaporation area, more than 90% evaporation rate, high cooling efficiency and small pressure loss. It can also effectively remove dust particles in the air. The removal efficiency of PM10 is more than 90%, and that of PM25 is more than 40%
Specification
|
Product Number
|
KT-20K
|
|
Product Name
|

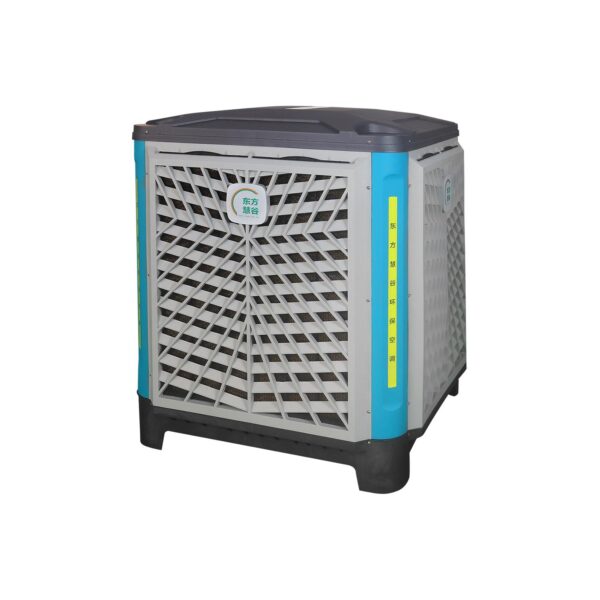

Hawai KT-20K Evaporative Air Cooler
|
|
Type
|
Axial Flow
|
|

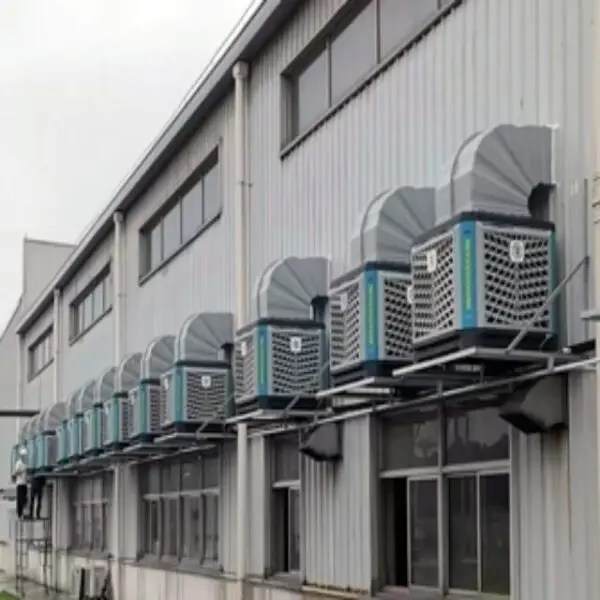

Mounting
|
Wall / Roof Mount
|
|
Dimension(L*W*H)
|
1140x1140x1100mm
|
|
Air Volume
|
20000m³/h
|
|
Function
|
Air Conditioning Ventilation
|
|
Voltage
|
220V/380V/50HZ
|
|
Noise
|
≤75dB
|
|
Outlet Size
|
670x670mm
|
|
Power
|
1.1KW
|
|
Horse power of motor
|
1.5HP
|
|
Water Consumption
|
75-90L/H
|
|
Cooling pad
|
5090 honeycomb
|
|
cooling pad size
|
（660+30+30）×775×100(mm)
|
|
Refrigerating capacity
|
24.82kW
|

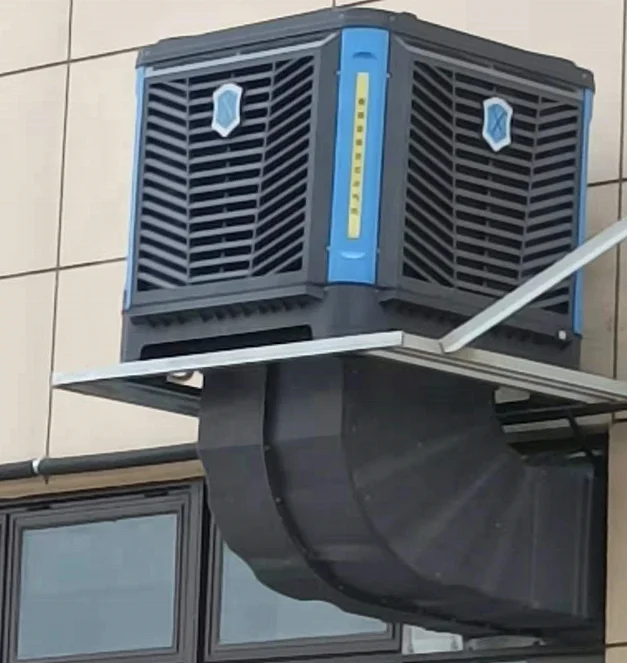

Hawai KT-25K Evaporative Air Cooler provides you with 3 different directions of air outlets, you can choose according to your needs.
Type1-Upper Air Outlet (top discharge)
Type 2–Side Air Outlet (side discharge)
Type 3-Lower Air Outlet (bottom discharge)
hot sale OEM ODM Wall Rooftop Mounted air water cooler fan large air flow 25K CMH Evaporative Air Cooler industrial
We also have the following other models to choose from：
|
Model
|
Shape Size
|
Power
|
Outlet Size
(cm)
|
Noise
|
Air Volume
m³/H
|
Water Consumption
|
Net.
weight
kgs
|
Water
Tank
(L)
|
|
KT-20K
|
1140*1140*1100mm
|
1.1kw
|
67×67
|
≤75dB
|
20000
|
75-85L/H
|
72
|
36
|
|
KT-25K
|
1140*1140*1358mm
|
1.5kw
|
67×67
|
≤80dB
|
25000
|
75-90L/H
|
82
|
36
|
|
KT-30K
|
1350*1350*1260mm
|
3kw
|
76×76
|
≤80dB
|
30000
|
80-100L/H
|
172
|
70
|
|
KT-40K
|
1350*1350*1260mm
|
4kw
|
76×76
|
≤80dB
|
40000
|
95-120L/H
|
176
|
70
|
Company Profile
hot sale OEM ODM Wall Rooftop Mounted air water cooler fan large air flow 25K CMH Evaporative Air Cooler industrial

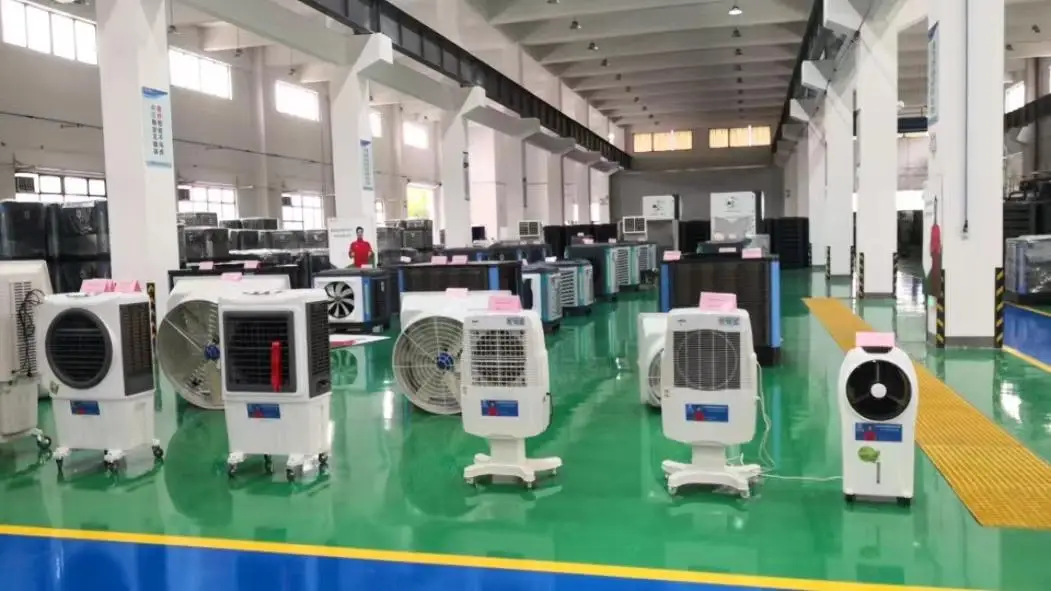

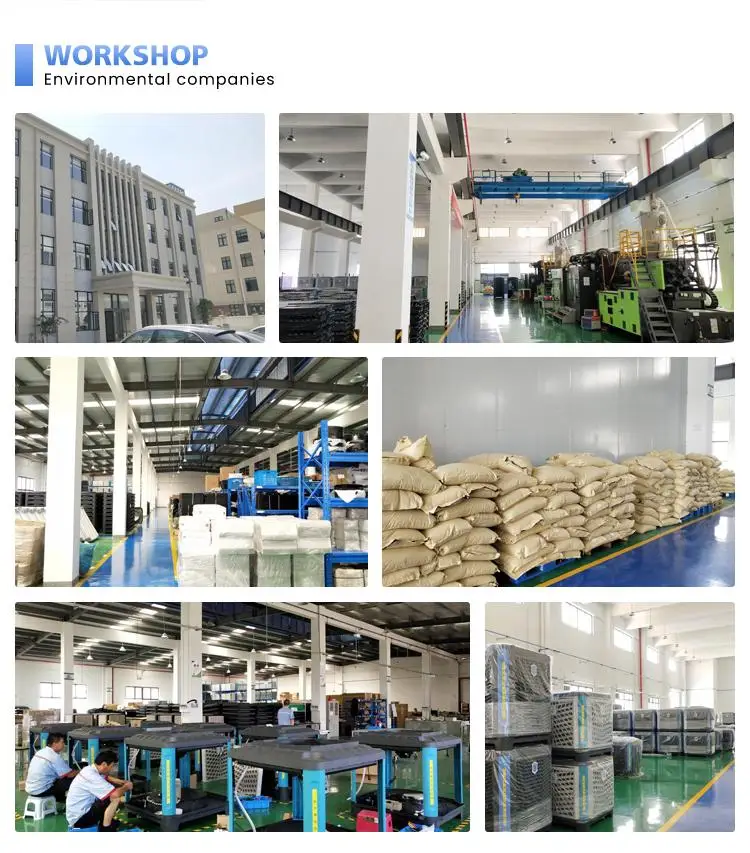

Workshop

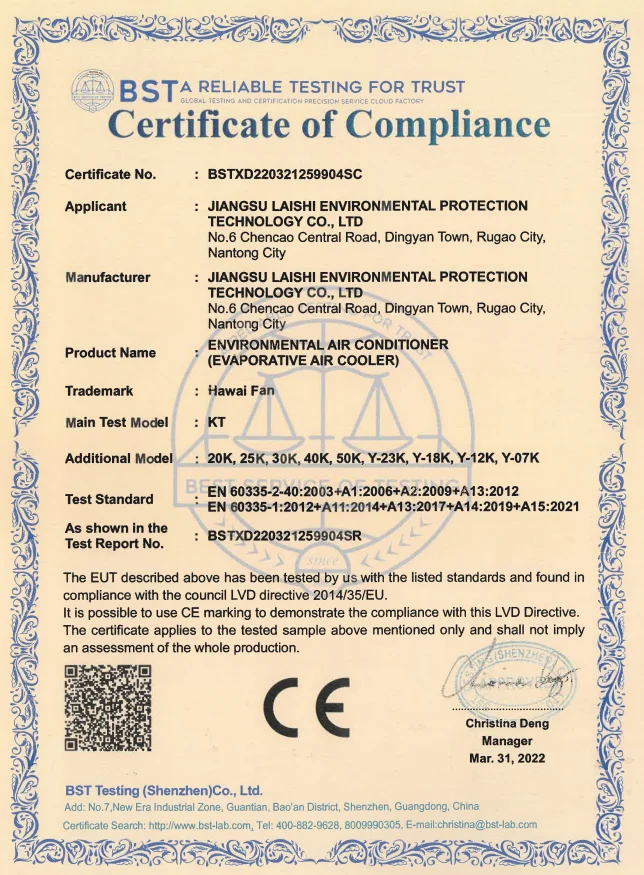

Certifications
Exhibition

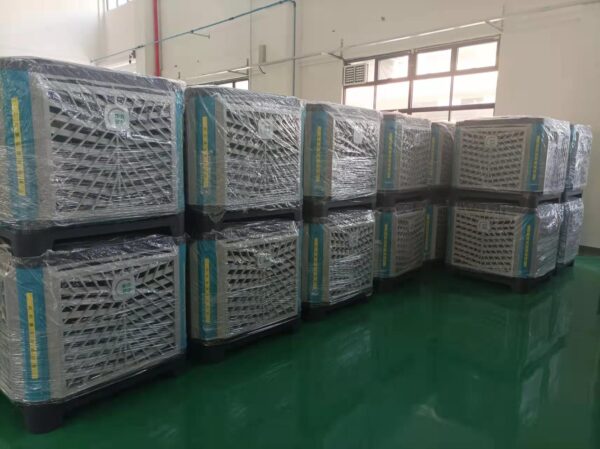

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
No.1 in China OEM ODM Wall or Rooftop Mounted large air flow 25K CMH Evaporative Air Cooler industrial For Confinement Farming
FAQ
Q1: Is your company a manufacturer or a trading company? A: We are manufacturers, we have own trade company, we also have our own factory and design, sales team. Q2: Can I be your agent? A: Yes, welcome to deep cooperation. We have big promotion of LAISHI brand in the market now. For the details please contact with our overseas manager. Q3: What is the minimum order quantity? A: Usually, MOQ of exhaust fan, industrial ceiling fan, environmental protection air conditioner and air cooler is 10 sets. Small quantity we also can do, but the cost will be high. Q4: How to get samples to check the quality? How long can I get the samples? A: After the price is confirmed, samples can be provided for your evaluation, after confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, then arrive within 5-7days. Q5: What’s your quality guarantee? A: We will offer client one year quality guarantee time. Q6: Do you have a discount? A: we will do our best to provide you with these services at the best price and quality service. Q7: What venue is suitable for installing industrial fans? A: Generally used in large workshops, warehouses, logistics transfer centers, livestock farms, etc. Q8: What are the benefits of installing industrial fans? A: The diameter of the ceiling fan in the industrial plant can reach 7.3m, and its unique streamlined fan blade can push a large amount of air to the ground at a low speed, thereby forming a breeze airflow. The human body feels a cooling of 3-5 degrees, which is as comfortable as natural wind. The traditional small fan will feel dizzy after blowing it for a long time. The energy-saving industrial fan solves this problem well.
