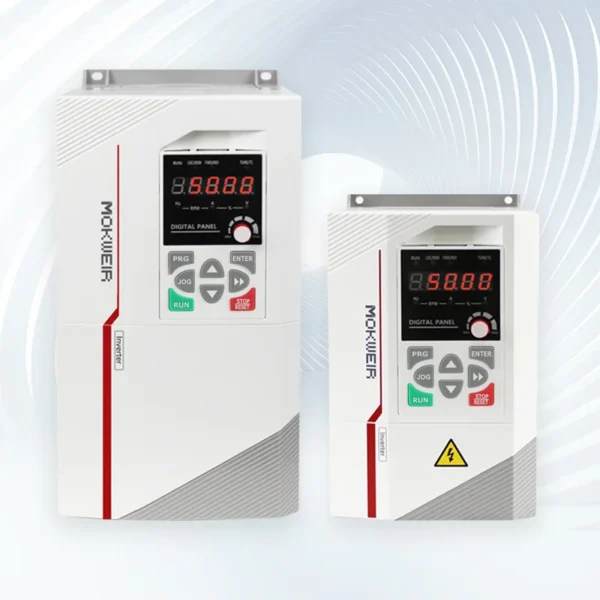

Drive Vfd Speed Controller, 220V, Inverter, 5.5kw, 7.5kw

Key specification for this drive vfd speed controller: power phase number Single Phase, material PC+ABS. Everything below is reproduced from the factory data sheet. Made by Mokweir Transmission Technology (suzhou) Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Drive Vfd Speed Controller

• Model Number: MK500-2S 5.5kw 7.5kw-S
• Power Phase Number: Single Phase
• Rated Power: 5.5kw-7.5kw
• Nominal Voltage: 0-240v
• Material: PC+ABS
• Warranty: 24 months

Technical Specifications

Product Details

Products Description

Name	MK500 Single Phase 220v
Brand	Mokweir
Material	PC+ABS
Color	White-Grey
Shape	Rectangular
Power Range	0.75kw-1000kw
Input Voltage	220V 380V

MOKWEIR

Product iteration is endless

Comprehensive upgrade of software and hardware

Owns CE, ISO, as well as some software copyrights and patents.

Direct sales from VFD manufacturers with quality assurance.

Welcome major manufacturers to represent our products.

MK500 series

High performance vector frequency converter

Our Strengths

1. Current vector technology

2. Industrial grade products

3. Constant torque

4. G/P integration

5. Optional PG card closed-loop control

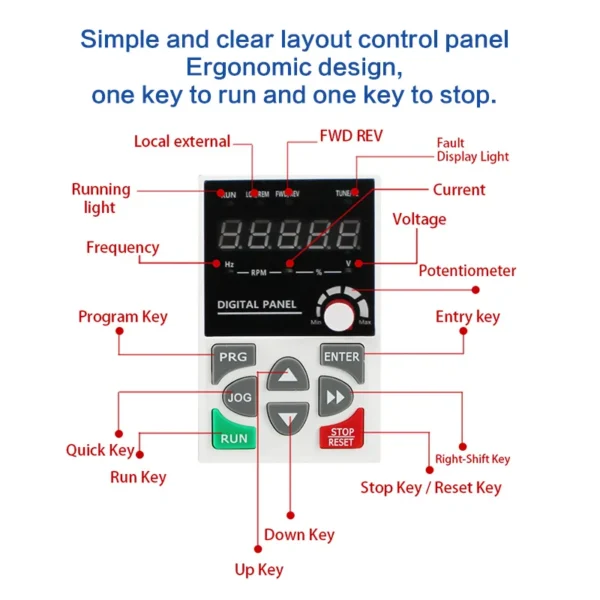

Operation panel instructions Intelligent control silicone keyboard

Wiring diagram

Please read the instruction manual carefully before wiring.

Be careful! Prevent the occurrence of danger and damage caused by improper equipment operation

Product Paramenters

	MK500 Series High Performance Vector AC Inverter VFD							MK500 Series High Performance Vector AC Inverter VFD
No.	Model No.	Rated Power	Input Current	Output Current	Outline Dimensions	Package Dimensions	Gross Weight
				(KW)	（A)	（A)	(H*W*D) (mm)	(H*W*D) (cm)	(KG)
Single phase input: Rated 220V (Adapted operating range 208-240 ± 15%), 50/60Hz (± 5%)
1	MK500-2S0.4GB	0.4	5.1	2.5	206*122*164	24*17*21	2.3
2	MK500-2S0.75GB	0.75	8.2	4					2.3
3	MK500-2S1.5GB	1.5	14	7.5					2.3
4	MK500-2S2.2GB	2.2	23	10					2.4
5	MK500-2S4.0GB	4	38	17					2.5

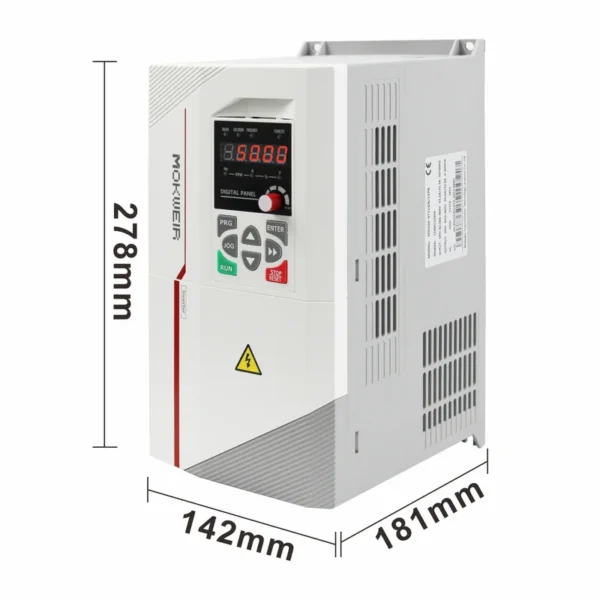

6	MK500-2S5.5GB	5.5	55	25	278*142*181	31*20*24	3.6
7	MK500-2S7.5PB-S	7.5	61	30					3.7
8	MK500-2S7.5GB	7.5	64	32	348*208*208	39*27*27	6.2
9	MK500-2S11GB	11	80	45					6.6
Three phase input: Rated 220V (Adapted operating range 208-240V ± 15%), 50/60Hz (± 5%)
1	MK500-2T0.4GB	0.4	2.4	2.1	206*122*164	24*17*21	2.3
2	MK500-2T0.75GB	0.75	4.6	3.8					2.3
3	MK500-2T1.5GB	1.5	9.0	7.5					2.3
4	MK500-2T2.2GB	2.2	11.4	10.0					2.4
5	MK500-2T4.0GB	4.0	21.2	17					2.5
6	MK500-2T5.5GB	5.5	32.2	25	278*142*181	31*20*24	3.6
7	MK500-2T7.5GB	7.5	41.3	32					3.7
8	MK500-2T11GB	11	46.5	45	348*208*208	39*27*27	6.6
9	MK500-2T15GB	15	57	57					7.1
10	MK500-2T18.5G	18.5	69	75	430*283*230	51*36*32	17
11	MK500-2T22G	22	89	90					18
12	MK500-2T30G	30	106	110	510*340*280	64*45*39	30
13	MK500-2T37G	37	141	152					31
14	MK500-2T45G	45	164	176	602*474*298	69.5*55*52	54
15	MK500-2T55G	55	196	210					55
16	MK500-2T75G	75	240	253					57
17	MK500-2T90G	90	326	350	870*400*350	104*53*56	88
18	MK500-2T110G	110	410	426					90
19	MK500-2T132G	132	446	470	966*569*375	112*67*60	123
Three phase input: Rated 380V (Adapted operating range of 380-460 ± 15%), 50/60Hz (± 5%)
1	MK500-4T0.75GB/1.5PB	0.75	2.4	2.1	206*122*164	24*17*21	2.3
2	MK500-4T1.5GB/2.2PB	1.5	4.6	3.8					2.3
3	MK500-4T2.2GB/4.0PB	2.2	6.3	5.1					2.3
4	MK500-4T4.0GB/5.5PB	4.0	11.5	9					2.4
5	MK500-4T5.5GB-S	5.5	16.7	13					2.5
6	MK500-4T5.5GB/7.5PB	5.5	16.7	13	278*142*181	31*20*24	3.6
7	MK500-4T7.5GB/11PB	7.5	21.5	17					3.7
8	MK500-4T11GB/15PB	11	32.2	25					4
9	MK500-4T15GB-S	15	41.3	32					4.5
10	MK500-4T15GB/18.5PB	15	41.3	32	348*208*208	39*27*27	6.4
11	MK500-4T18.5GB/22PB	18.5	49.5	37					6.5
12	MK500-4T22GB/30PB	22	59	45					6.8
13	MK500-4T30GB-S	30	56	57					7.3
14	MK500-4T30G/37P	30	57	63	430*283*230	51*36*32	16
15	MK500-4T37G/45P	37	69	75					17
16	MK500-4T45G-S	45	88	90					18
17	MK500-4T45G/55P	45	88	90	510*340*280	64*45*39	29
18	MK500-4T55G/75P	55	105	110					30
19	MK500-4T75G/90P	75	141	152					31
20	MK500-4T90G/110P	90	164	178	602*474*298	69.5*55*52	54
21	MK500-4T110G/132P	110	196	210					55
22	MK500-4T132G/160P	132	240	253					57
23	MK500-4T160G-S	160	287	304					59
24	MK500-4T160G/185P	160	287	304	870*400*350	104*53*56	85
25	MK500-4T185G/200P	185	331	350					88
26	MK500-4T200G/220P	200	368	380					88
27	MK500-4T220G/250P	220	410	426					90
28	MK500-4T250G/280P	250	446	470	966*569*375	112*67*60	123
29	MK500-4T280G/315P	280	495	520					125
30	MK500-4T315G/355P	315	570	590					130
31	MK500-4T355G/400P	355	617	650	1160*720*380	128*83*58	167
32	MK500-4T400G/450P	400	687	725					175
33	MK500-4T450G/500P	450	782	820	1620*720*380	174*83*58	245
34	MK500-4T500G/560P	500	830	860					250

Why choose us

Mokweir Transmission Technology (suzhou) Co., Ltd.

The company was founded in 2017 and is located in Suzhou, Jiangsu Province, China, which is known for its beautiful scenery, developed industry, and transportation. It is a high-tech enterprise specializing in the research and development, production, sales, and service of low-voltage inverters. At present, we have obtained ISO9001, ISO14001, ISO50001 quality management system and energy management system certificates; Has multiple utility model patents and invention patents. Since its establishment, the company has been committed to providing customers with high-quality and high stability low-voltage frequency converter products, as well as professional system solutions. The company has one low-power frequency converter (0.75-22KW) production line, one medium power (30-160KW) production line, a high-power production zone (200-500KW), one product packaging line, and two scattered processing parts production lines. Every step from raw material procurement to product production is strictly controlled in accordance with industry standards to ensure the reliability and stability of product quality. At present, the company has successfully launched multiple series of frequency converter products, including general frequency converters, vector frequency converters, permanent magnet synchronous frequency converters, and some industry-specific frequency converters. The power range covers 0.75kW-500kW, with voltage levels of single-phase AC110V, single-phase AC220V, three-phase AC220V, and three-phase AC380V, which can meet the diverse needs of different customers in industrial automation, energy conservation and environmental protection, new energy and other fields. The MK series frequency converter is positioned as a mid to high end product and is a unique creation of our company. It has won high recognition in the market for its high cost-effectiveness and has been highly praised for many years. Actively adapting to the needs of users, we have customized and completed multiple series of non-standard variable frequency drive products. The company hopes to continue to move forward in the direction of non-standard customization and wholeheartedly create value for users. In the future, the company will continue to adhere to the business philosophy of "survival through quality, development through innovation", deeply practice the national strategy of energy conservation, emission reduction, and green environmental protection, continuously enhance its core competitiveness, and strive to build the company into a first-class brand in the international frequency converter field, creating greater value for global customers.

Quality inspection

Sufficient stock

Professional service

Certifications

Innovation Research and Development

All materials are selected industrial grade.

Powerful configuration, the main electrical components are selected from imported high-quality brands.

Quality Assurance

Strictly follow the entire process of production and testing.
Complete testing equipment with quality control conditions.
Strong quality awareness, with separate control by the quality department.

Diversified Services OEM

Own R&D post complete,with the development ability.
Pure R&D technology genre.
Experienced R&D personnel.

Production capacity scale

Annual production and sales of over 150000 units of various products.
Number of export countries 37+.

Production Process

Raw material warehouse

Single board testing

Production line production

High temperature aging

Full load test

Finished product packaging

Application

Non woven fabric machinery

CNC machine tool

Air compressor

Fan water pump

Engraving machine

Industrial fan

Latex glove machinery

Melt blown fabric machine

Telegraph pole machinery

Product Packaging

Contact Us

WhatsApp：

+86 18963681536 —Mark Wang

+86 13823545490—Daniel Deng

FAQ

Q1: Are you the manufacturer? A: Yes,we are manufacturer have more than 15 years' experience in this industrial-driver field.

Q2: How to choose suitable VFD for my machine? A: Please send us your machine details, we will provide you most suitable model type.

Q3: what kind of certificate you have ? A: We have CE、ISO9001、ISO14001、ISO50001.

Q4: What kind of product quality your factory offer? A: We offer most competitive prices with best quality.

Q5: Do you accept ODM/OEM business? A: Yes,include User-manual,up-cover,labels,outer box.Please email us that what you want to print.

Q6: What's the standard of package? A: Below 90KW, it's carton package; 90KW and above, it's wooden package.

Q7: Which market do you already sell? A:We already ship to Europ, Middle East, South America, Asia, Afria etc.

Q8: What is your delivery date? A:We have ready stocks,the delivery date is under 3 days after

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this drive vfd speed controller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 24 months warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this drive vfd speed controller carry?

It is supplied with CE,ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the drive vfd speed controller be supplied for my local voltage?

The standard configuration is 0-240v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
