The duct axial fan listed here carries 5v/12v/24v, air flow 1.9 – 3.6 CFM, documented exactly as the manufacturer publishes it. Made by Shenzhen Yirongchuan Electronic Technology Co., Ltd. (10 years on the platform, typical reply ≤9h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Duct Axial Fan
- Model Number: YRD7010
- Power Source: Electric
- Voltage: 5v/12v/24v
- Air Flow: 1.9 – 3.6 CFM
- Blade Material: Plastic
- Frame Material: Thermoplastic
Technical Specifications
| Voltage | 5v/12v/24v |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YRC |
| Model Number | YRD7010 |
| Color | Black |
| Size | 70*70*10 mm |
| Function | High Temperature Resistance |
| Certification | CE ROHS |
| Motor Type | High Performance DC Brushless |
| Frame Material | Thermoplastic |
| Speed | 2500 – 4500 RPM |
| Air Flow | 1.9 – 3.6 CFM |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

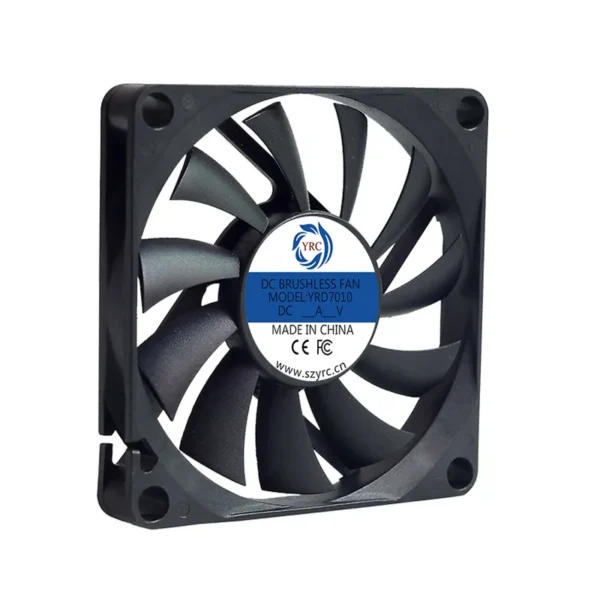

Factory Price 7010 3 inch dc cooling fan 70x70x10mm 12v 24v Welding Machine Cooling Fan
1.Mini DC Axial fan 5/12/24v available.
2.FG & RD function can be customized as customers required.
3.OEM & ODM service acceptable.

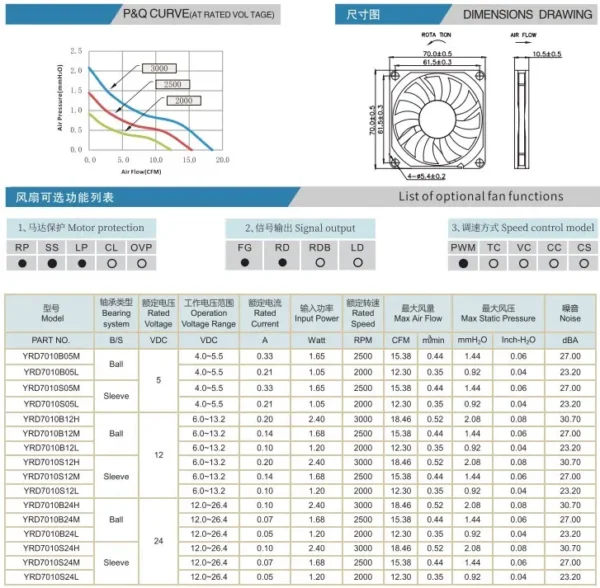

Specification
| Size | Air Volume | Size | Air Volume |
| 20*20*6mm | 0.77-1.41CFM | 60*60*25mm | 18.2-29.6CFM |
| 20*20*10mm | 0.62-1.24CFM | 60*60*38mm | 5.8-11.3CFM |
| 25*25*7mm | 1.3-2.3CFM | 70*70*10mm | 12-23.1CFM |
| 25*25*10mm | 1.5–3.1CFM | 70*70*15mm | 20.6-30.5CFM |
| 30*30*7mm | 2.16-3.41CFM | 70*70*20mm | 17.29-25.54CFM |
| 30*30*10mm | 3.2-5.2CFM | 70*70*25mm | 24.8-39.6CFM |
| 35*35*10mm | 3.1-6.1CFM | 80*80*10mm | 17.5-29.3CFM |
| 40*40*7mm | 3.2-5.4CFM | 80*80*15mm | 29.5-41.2CFM |
| 40*40*10mm | 5.1-7.9CFM | 80*80*20mm | 29-48.9CFM |
| 40*40*15mm | 3.7-5.6CFM | 80*80*25mm | 29.3-50.1CFM |
| 40*40*20mm | 4.9-8.4CFM | 90*90*25mm | 28.3-58.1CFM |
| 40*40*28mm | 9.8-15.7CFM | 92*92*25mm | 35.5-90.9CFM |
| 45*45*10mm | 4.5-7.22CFM | 120*120*25mm | 54.6-84.6CFM |
| 50*50*10mm | 5.5-10.9CFM | 120*120*32mm | 80.35-112.82CFM |
| 50*50*15mm | 7.1-10.1CFM | 120*120*38mm | 80.4-128.8CFM |
| 50*50*20mm | 12.6-18.9CFM | 120*120*38mm | 82.4-130.8 CFM |
| 50*50*25mm | 8.6-16.1CFM | 172*152*51mm | 116.1-166.5CFM |
| 60*60*10mm | 10.7-18.6CFM | ||
| 60*60*15mm | 13.7-26.6CFM | ||
| 60*60*20mm | 14.1-26.3CFM |
Production Process
Test Equipment
CERTIFICATE
Company Team
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–9999 piece: US $2.6 / piece
- 10000+ piece: US $0.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this duct axial fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this duct axial fan carry?
It is supplied with CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the duct axial fan be supplied for my local voltage?
The standard configuration is 5v/12v/24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yirongchuan Electronic Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yirongchuan Electronic Technology Co., Ltd. range on HVACR Nexus.
