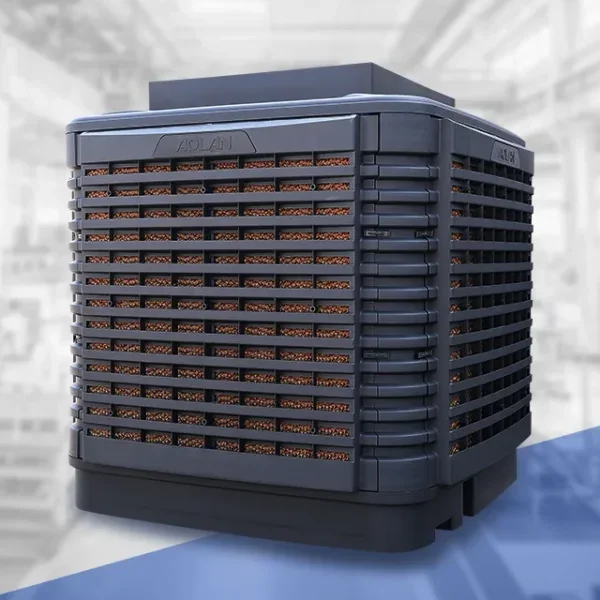

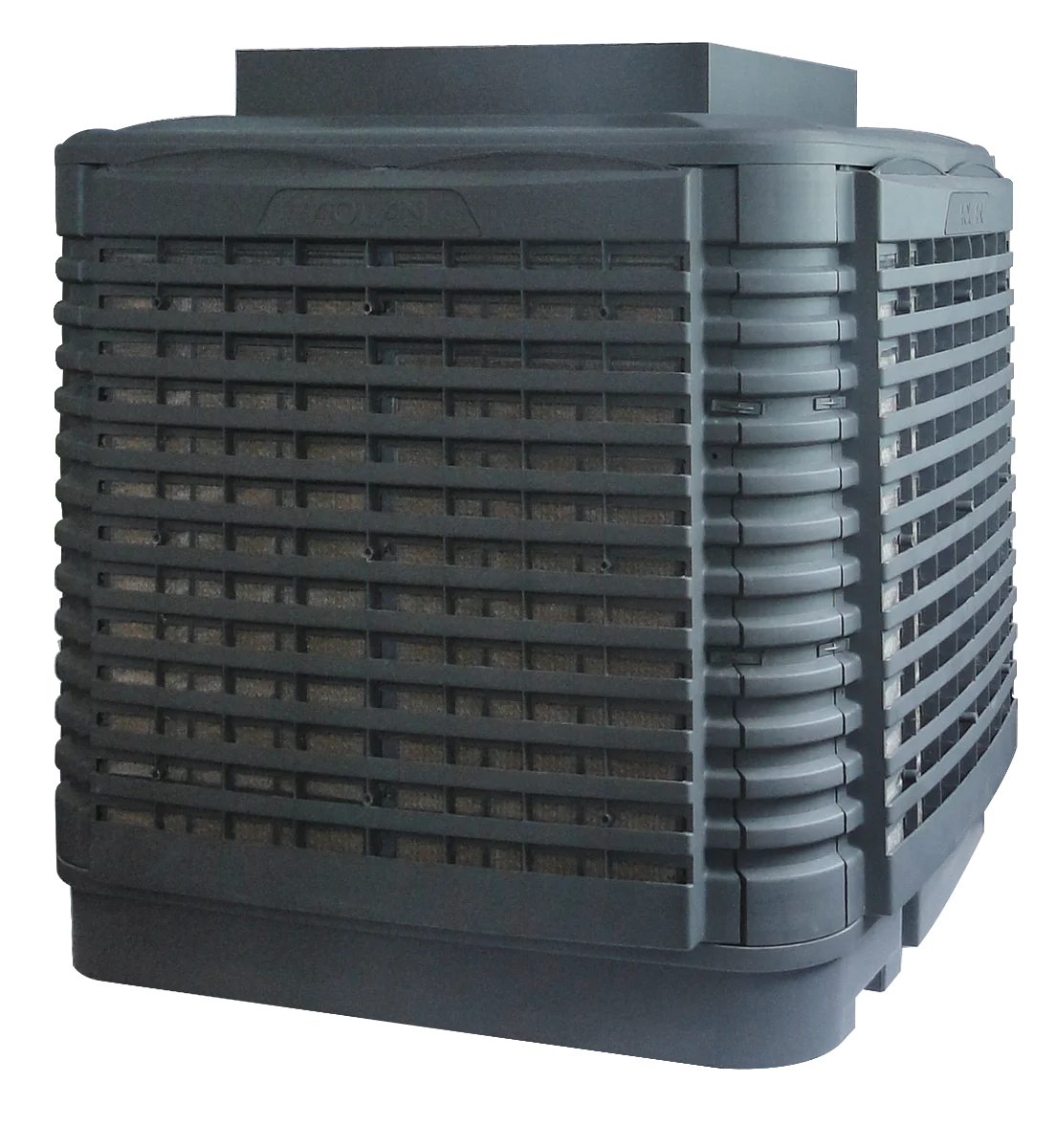

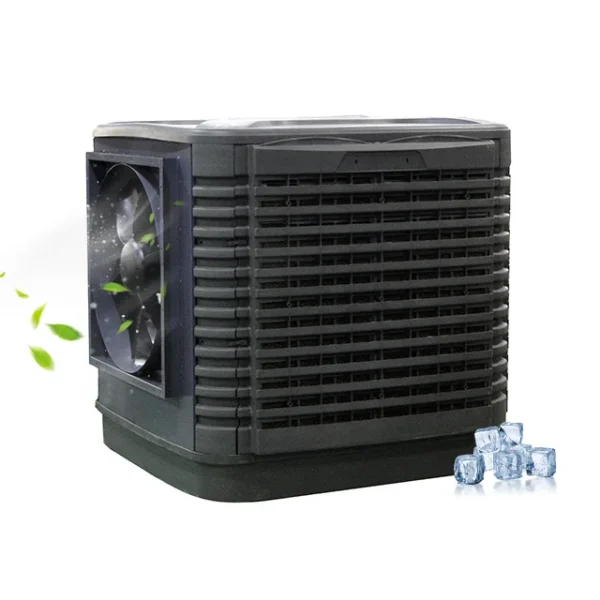

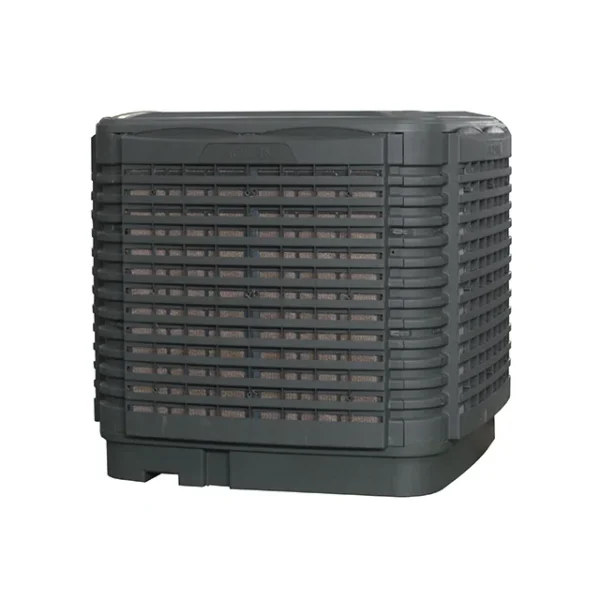

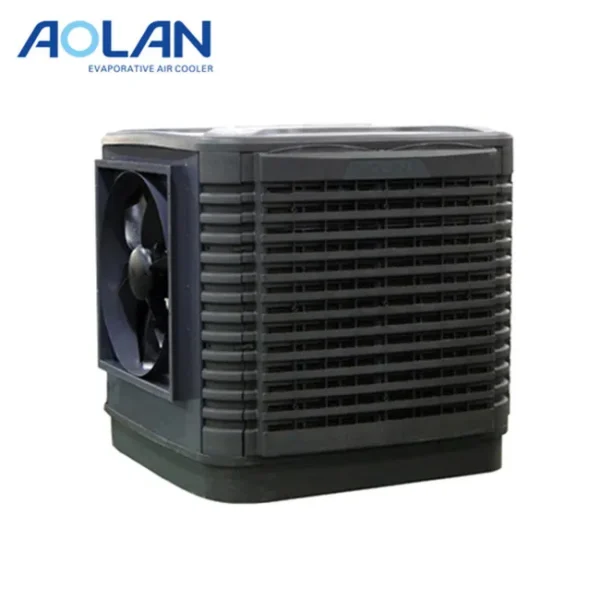

Key specification for this ducted evaporative cooler: 30000m3/h, type EVAPORATIVE AIR COOLER. Everything below is reproduced from the factory data sheet. Made by Aolan (Fujian) Industry Co., Ltd. (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ducted Evaporative Cooler
- Airflow: 30000m3/h
- Warranty: 2 Years
- Place Of Origin: Fujian, China
- Application: Restaurant Hospital Hotel
- Type: EVAPORATIVE AIR COOLER
- Mounting Type: DUCT
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | DUCT |
| Compressor Brand | aolan |
| Fan Motors Type | AC |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 125 |
| Brand Name | AOLAN |
| Dimension(L*W*H) | 1350*1350*1310mm |
| Airflow | 30000m3/h |
| Electrial Source | 3.0kw |
| Fan Type | Axial Fan |
| Pressure | 320Pa |
| Noise | 80dBA |
| Pad Size | 970*881*100 |
| Weight | 152kg |
| Controller | LCD Control |
| QTY/SKD(40HQ) | 40 |
| Application | Restaurant Hospital Hotel |
| Selling Units | Single item |
| Single Package Size | 135X135X1 cm |
| Single Gross Weight | 135.000 kg |
Product Details
Electrial Source | 380-415V / 50-60HZ |
Power（kw） | 2.5 |
Rated Current(A) | 7.1 |
Airflow(m3/h) | 30000 |
Fan Type | Axial |
Fan Speed | Multi-speed |
Pressure(Pa) | 320/136 |
Vent Size(L*W*H)(mm) | 765*765 |
Noise(dBA) | ≤80 |
Dimension(L*W*H)(mm) | 1350*1350*1426 |
Pad Size(L*W*H) | 970*881*100 |
Net Weight | 152 |
Water Capacity(L) | 216 |
Controller | LCD Control |
QTY/SKD(40HQ) | 39 |

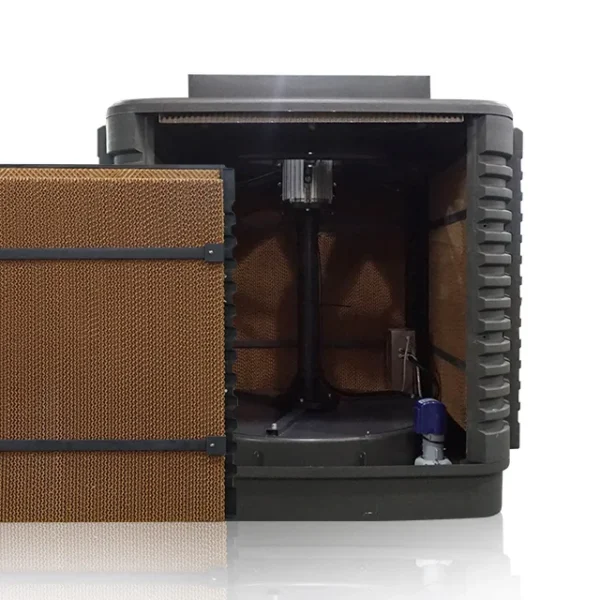

cooling pad
3500m3/h movable cooler

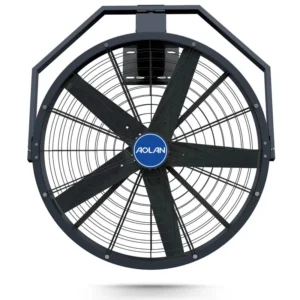

HVLS FAN
field of international evaporative air cooler industry, so far, Aolan has developed 11 series and more than 80 kinds of air
coolers, with airflow from 800m3/h to 80,000m3/h. And they have been used in different fields, including domestic, commercial,
industrial areas. Aolan holds the belief of Being Scientific, Strict and Extending, and led by board directors, Aolan has been
exporting products to more than 50 countries and regions, including countries from Europe, America, Korea, Japan, South America,
Africa, etc. What's more, Aolan drafted and made the National Standards of Evaporative Air Cooler. By building the only national
lab for evaporative air coolers, Aolan is becoming an important training place for advanced talents in the field.
We are based in Fujian, China, start from 2006,sell to Domestic Market(48.00%),Southeast Asia(15.00%),South
America(10.00%),Africa(10.00%),Mid East(8.00%),North America(5.00%),Western Europe(4.00%),South Asia(0.00%),Eastern
Asia(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%). There are
total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Evaporative Air Cooler, Air Cooler, Evaporative Cooling Pad, Portable Air Cooler, Swamp Cooler
4. why should you buy from us not from other suppliers?
AOLAN is chosen as the drafting unit of the national standards for evaporative air cooler (desert cooler or swamp cooler) and the
first national comprehensive laboratory for testing standard performance is under construction by AOLAN..
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
Ordering and Pricing
- Minimum order quantity: 5 unit
- Volume pricing:
- 5–9 unit: US $1400 / unit
- 10+ unit: US $1100 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ducted evaporative cooler?
The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Aolan (Fujian) Industry Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Aolan (Fujian) Industry Co., Ltd. range on HVACR Nexus.
