Key specification for this ceiling fan: airflow 600000, 0.75kw. Everything below is reproduced from the factory data sheet. Made by Aolan (Fujian) Industry Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Model Number: ADS-G50AS/AM
- Power (W): 0.75kw
- Power Source: Electric
- Power(Kw): 0.75
- Voltage (V)&Phase: 120V-1phase 220V-1phase/3phase 380V/460V-3phase
- Airflow(M3/H): 600000
Technical Specifications
| Application | Commercial, Garage, Hotel, Household, Outdoor |
|---|---|
| Type | Industrial Ceiling Fan |
| Dimensions | 5m |
| Motor | AC Motor |
| Wind Speed | 100 |
| Energy Efficiency Rating | Class A |
| Control Type | Remote Control |
| Feature | Energy Saving, Quiet Design, Remote Control |
| Material | Metal |
| Noise Level | 35–39 dB |
| Number Of Blades | 5 |
| Power (W) | 0.75kw |
| App-Controlled | Yes |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Power Source | Electric |
| Operating Language | English |
| Private Mold | Yes |
| Place Of Origin | Fujian, China |
| Brand Name | AOLAN |
| Model Number | ADS-G50AS/AM |
| Diameter(M) | 5 |
| Power(Kw) | 0.75 |
| Controller | IP54 |
| Voltage (V)&Phase | 120V-1phase 220V-1phase/3phase 380V/460V-3phase |
| Frequency (Hz) | 50/60 |
| Airflow(M3/H) | 600000 |
| Rotating Speed(Rpm) | 80 |
| Number Of Blades (Pcs) | 5 |
| Covering Area (M2) | 500 |
| Inverter Controller | Standard IP54 Controller |
| Selling Units | Single item |
Product Details

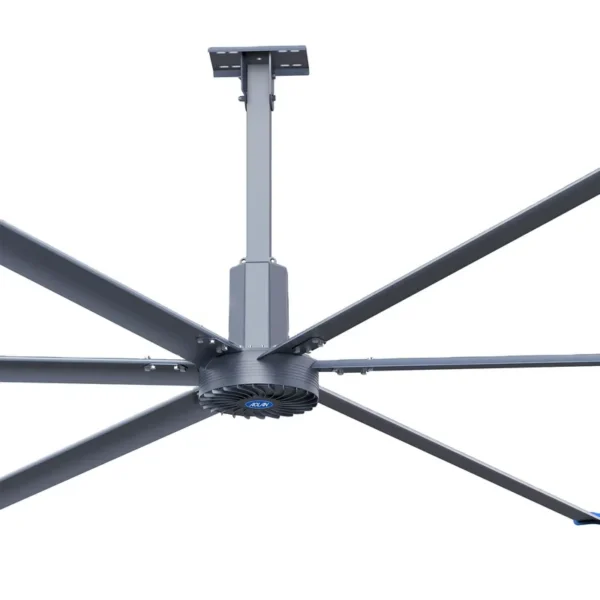

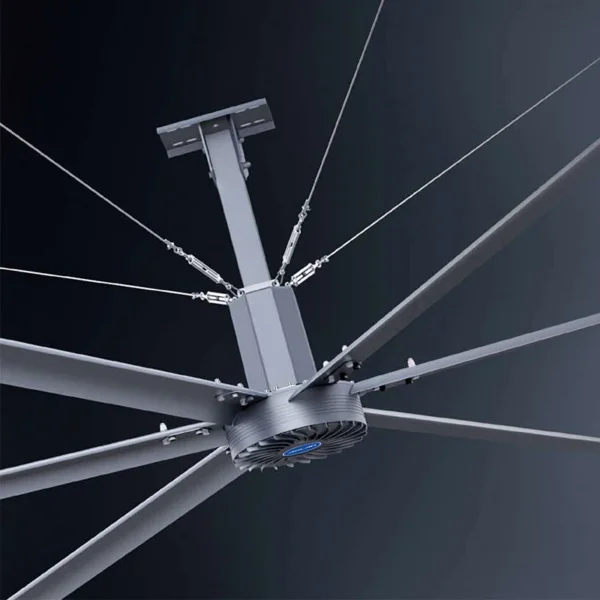

AOLAN HVLS Large Industrial Ceiling Fans with Permanent Magnet Gearless Motor with ETL
2. Large size, 10 feet to 24 feet, 3 meter to 7.3 meter.

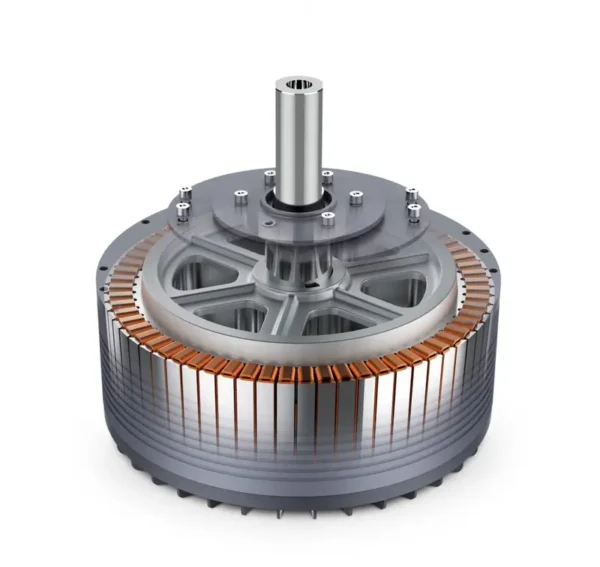

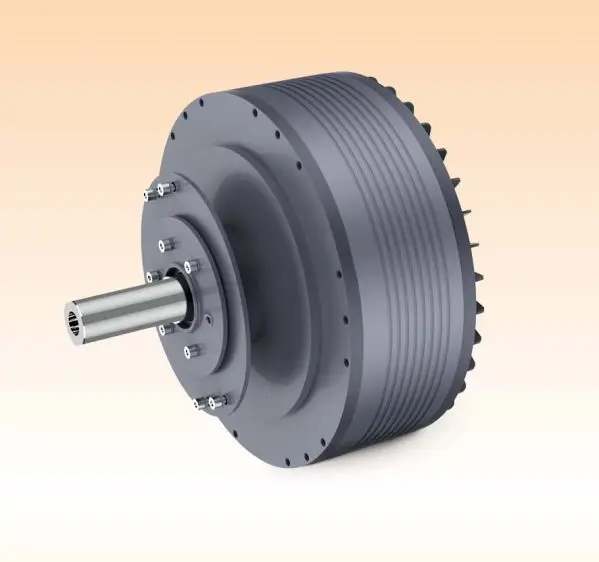

3. Gearless permanent magnet motor.
4. Less maintaining.
5. 20 years long sevice life design.
6. Low speed, 0 to 120 rpm, infinitely variable speed.
7. High safety factor, advanced design, ensure that the process is safe and stable.
8. Intelligent control system.
9. No frequent maintenance required.
10. Only 38dB noise level.
Model/Specs | ADS-G37AS/AM | ADS-G50AS/AM | ADS-G73AS/AM | ADS-G373BS/BM | |||
Diameter(m) | 3.7 | 5 | 7.3 | 7.3 | |||
Voltage(V) | 220/380/460 | 220/380/460 | |||||
Frequency(Hz) | 50/60 | 50/60 | |||||
Power(Kw) | 0.37 | 0.75 | 1.1 | 1.5 | |||
Airflow(m3/min) | 5000 | 11000 | 13000 | 15500 | |||
Speeds(rpm) | 100 | 80 | 55 | 60 | |||
Number of Blades(Pcs) | 5 | 5 | 6 | 6 | |||
Noise(dBA) | ≤38 | ||||||
Motor Weight(kg) | 18 | 22 | 36 | 42 | |||
Blade weight(kg) | 55 | 62 | 107 | 113 | |||
Cover Area(m2) | 380 | 500 | 1500 | 1700 | |||
Controller | S/M/H series | ||||||

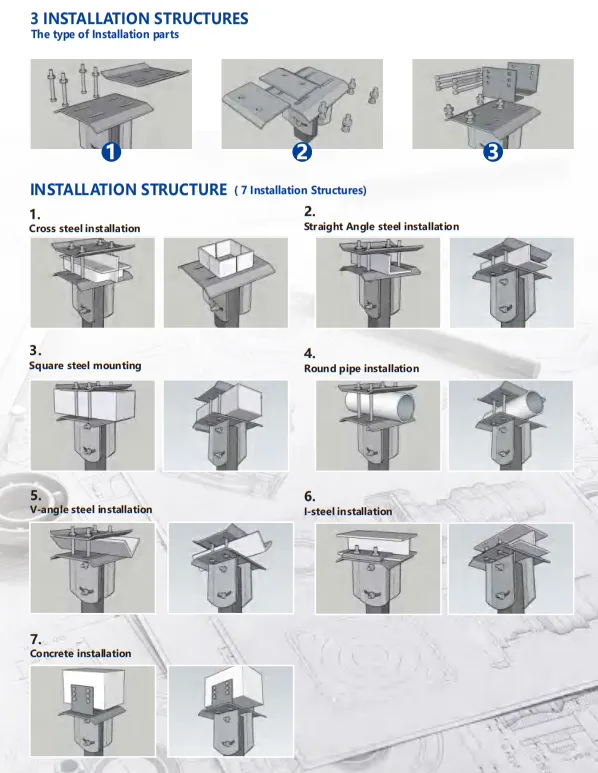

Mounting Frame | I-steel/Square steel/Concrete | ||||||
We are based in Fujian, China, start from 2006,sell to Domestic Market(48.00%),Southeast Asia(15.00%),South America(10.00%),Africa(10.00%),Mid East(8.00%),North America(5.00%),Western Europe(4.00%),South Asia(0.00%),Eastern Asia(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Evaporative Air Cooler, Air Cooler, Evaporative Cooling Pad, Portable Air Cooler, Swamp Cooler
4. why should you buy from us not from other suppliers?
AOLAN is chosen as the drafting unit of the national standards for evaporative air cooler (desert cooler or swamp cooler) and the first national comprehensive laboratory for testing standard performance is under construction by AOLAN..
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
Ordering and Pricing
- Minimum order quantity: 20 unit
- Volume pricing:
- 20–39 unit: US $750 / unit
- 40+ unit: US $690 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 20 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 120V-1phase 220V-1phase/3phase 380V/460V-3phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Aolan (Fujian) Industry Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Aolan (Fujian) Industry Co., Ltd. range on HVACR Nexus.
