Key specification for this electric circulation process heater: 380 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Yangzhong Xianglong Electrical Equipment Co., Ltd. (9 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Circulation Process Heater
- Power Source: Electric
- Voltage: 380 V
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: JIA
- Application: Industry Heating Process
Technical Specifications
| Type | circulation heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V |
| Material | Stainless Steel |
| Core Components | Motor |
| Key Selling Points | Long Service Life |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Place Of Origin | JIA |
| Weight (Kg) | 60 |
| Brand Name | xianglong |
| Dimension(L*W*H) | 5200*1500*1500 |
| Working Temperature Range | 1 – 200 ℃ |
| Product Name | Circulation Heater |
| Application | Industry Heating Process |
| Color | Customized Color |
| Advantage | Long Use-Life |
| Usage | Industry Usage |
| Selling Units | Single item |

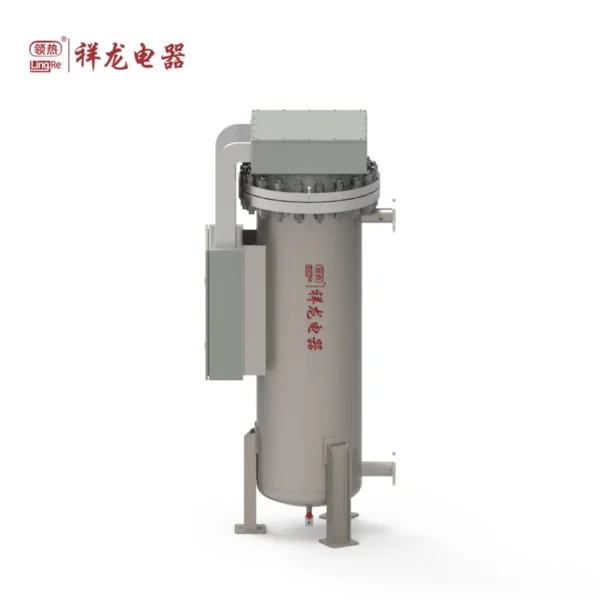

Product Details

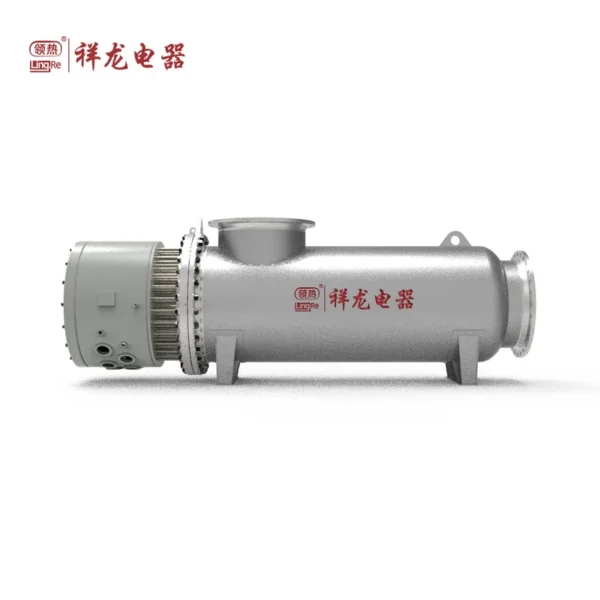

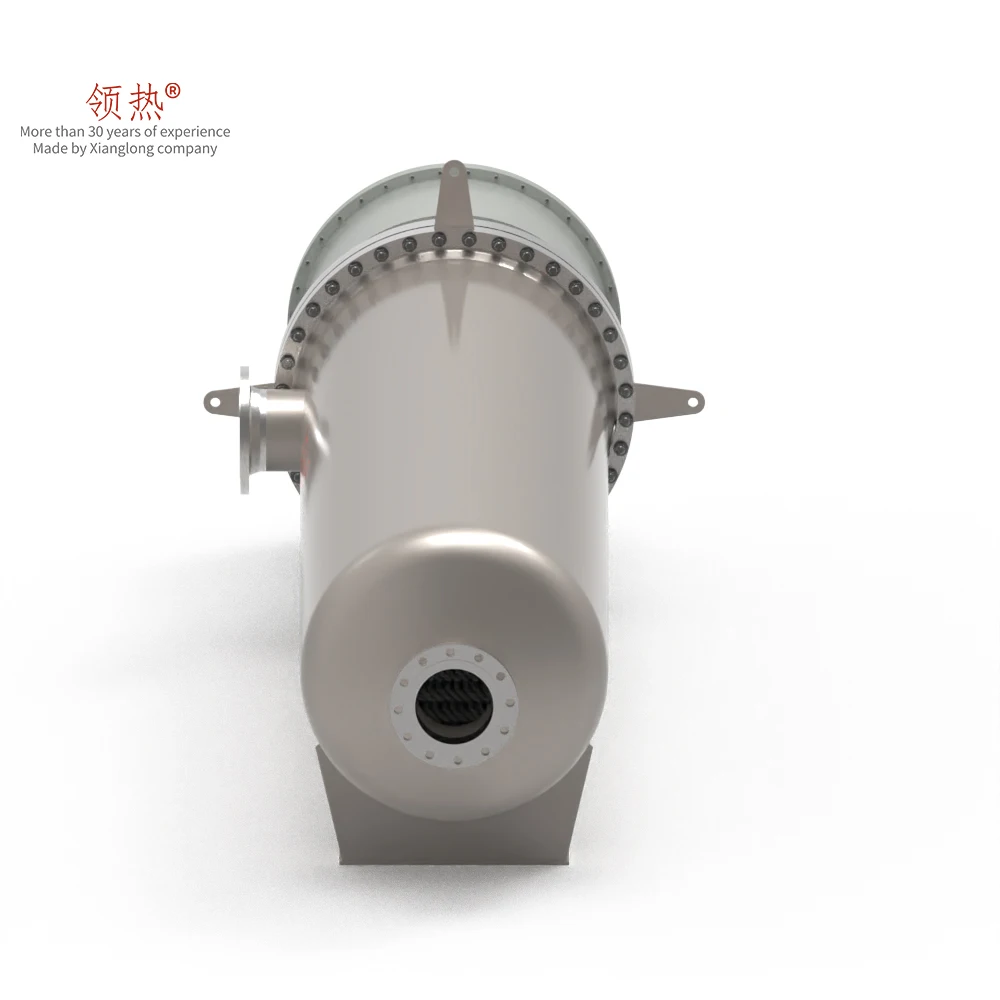

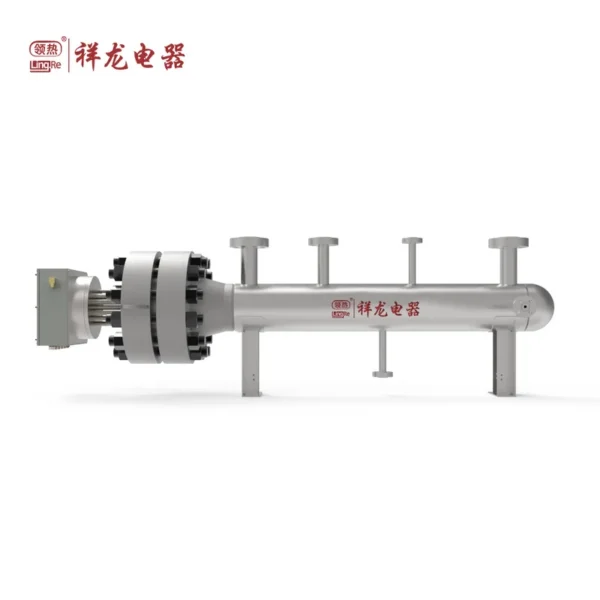

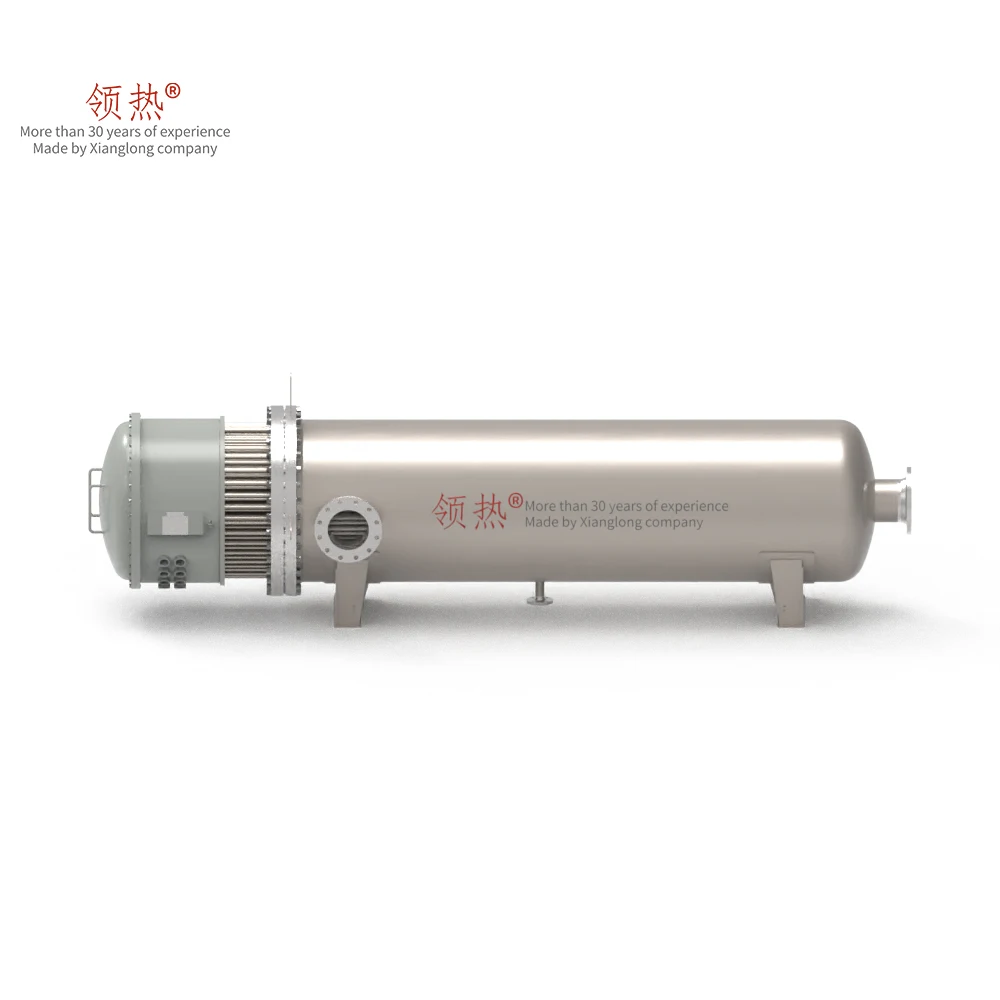

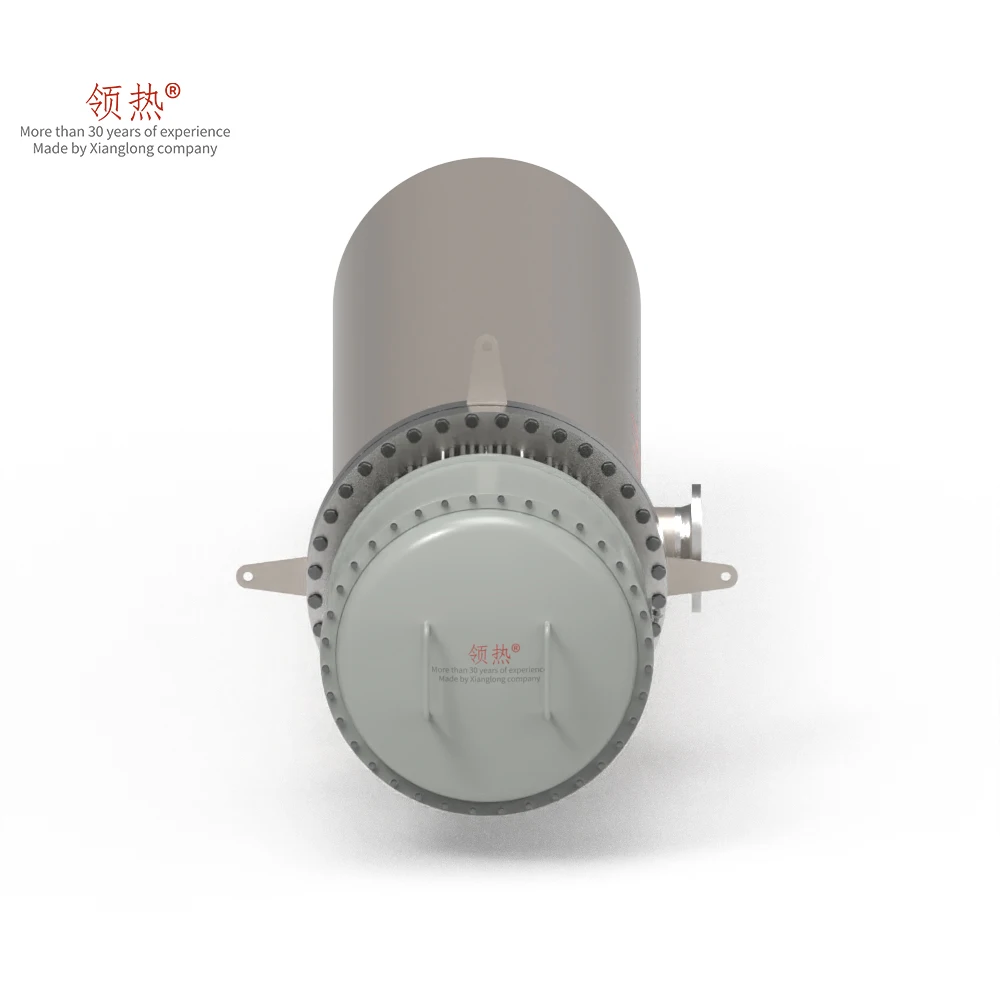

Factory Price stainless steel S304 industrial hydrogen gas or nitrogen gas circulation gas heater Manufacturer
| PRODUCT DETAILS |
| Model | FB-1000-00-2000 | Power(KW) | 2000 |
| Voltage(V) | 380 | Wiring Form | / |
| Frequency(Hz) | 50/60 | Cold Insulation Resistance(Ω) | ≥5 |
| Wiring Group | 26 | Over-temperature Protection Switch (yes/no) | Thermocouple |
| Total Current(A) | 3038.77 | Per Group Current(A) | 116.88 |
| Interphase Resistance(Ω) | 3.75 | Surface Load(W/cm²) | 2.50 |
| Heating Medium | air | Material of Heating Tube | S316 |
| Standard of Flange | HG/T 20592-2009 DN1000 PN16 | Material of Flange | Q345 |
| Design Pressure(Mpa) | 1.6 | Operating Pressure(Mpa) | 0.008 |
| Design Tempreture(℃) | 250 | Operating temperature(℃) | 200 |
| Protection Grade | IP65 | Explosion-proof Grade | ExdⅡCT4 |
| Design Standards | JB/T 2379-2016 | Heating Tube Diameter(mm) | 16 |
| Length of Heating Tubes Under The Flange(mm) | 3500 | Cold Zone Length of Heating Tubes Under The Flange(mm) | 200 |
| Center Distance of Heating Tube(mm) | 50 | Quantity of Heating Tubes(piece) | 240 |
| Product Dimensions For Reference(mm) | 5200*1500*1500 | Weight For Reference(KG) | 5200 |
|
 |  |
| ADVANTAGES-1 | ADVANTAGES-2 |
| Circulation heaters are the perfect solution for generating heat and enhancing normal immersion heaters performance. They are designed to heat pressurized circulating fluids to provide effective, controlled heating to water, oil, steam and other gases. | Smaller size, same power rating, faster heating rate,long service life and high efficiency compared to conventional heaters. |
 |  |
| ADVANTAGES-3 | ADVANTAGES-4 |
| There are many options for the electrical protection device of the heater, they are respectively ( outdoor, explosion-proof area, Acidic and basic capacity environment, etc.). | Tacity environment, etc.).Special sizes, power and materials are available upon request. |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $210 / piece
- 10–19 piece: US $200 / piece
- 20+ piece: US $190 / piece
- Ships from: China

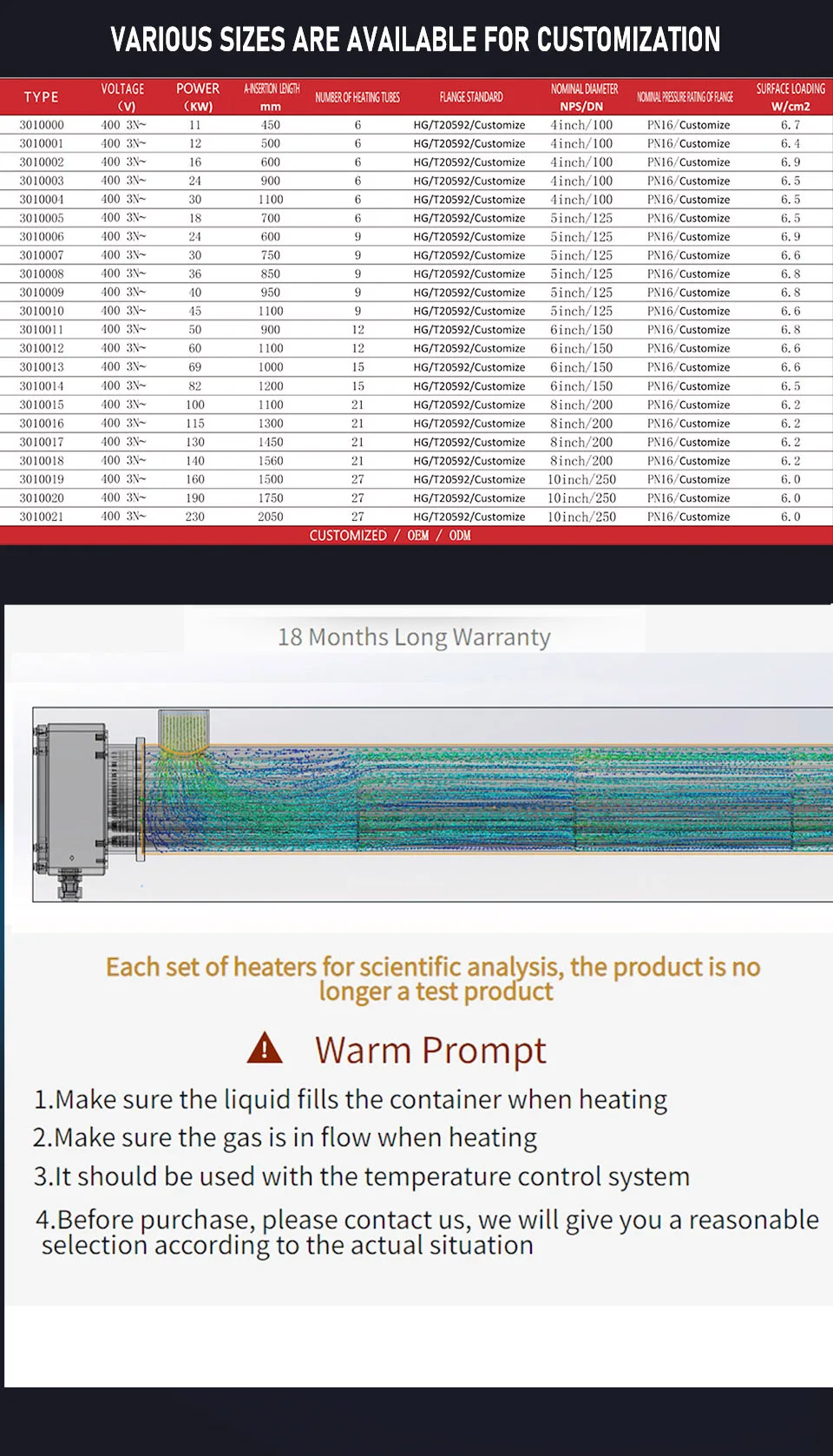

- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric circulation process heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric circulation process heater be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

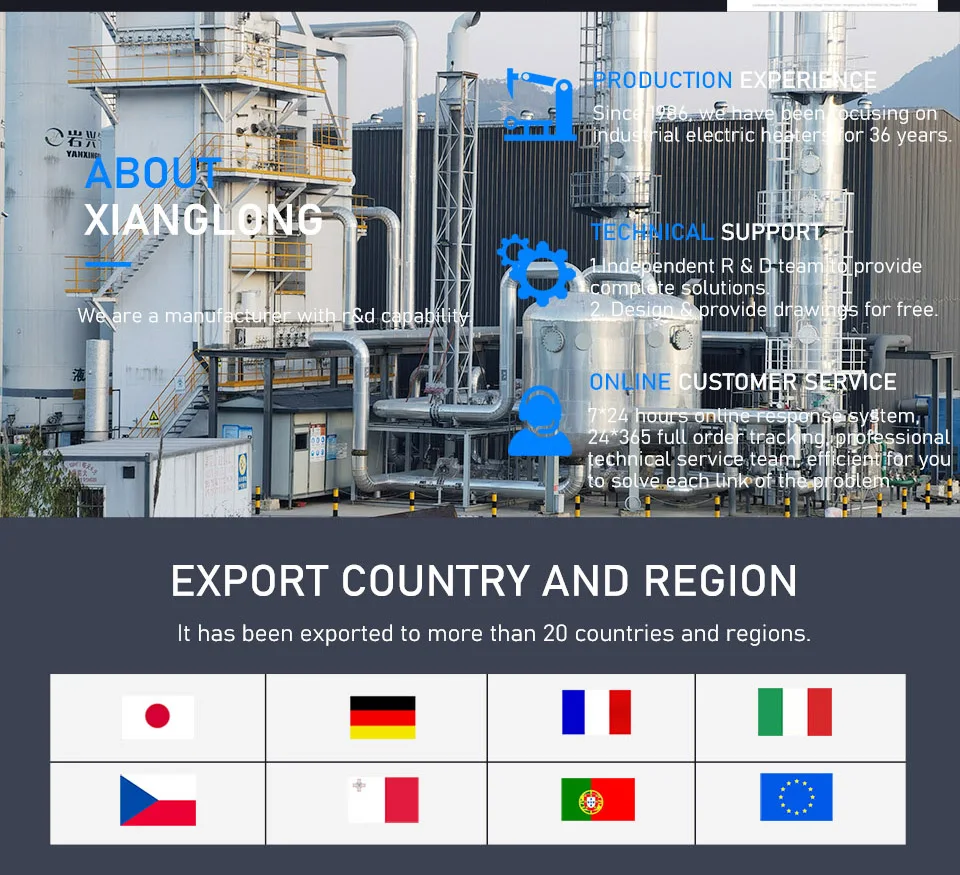

About the Manufacturer

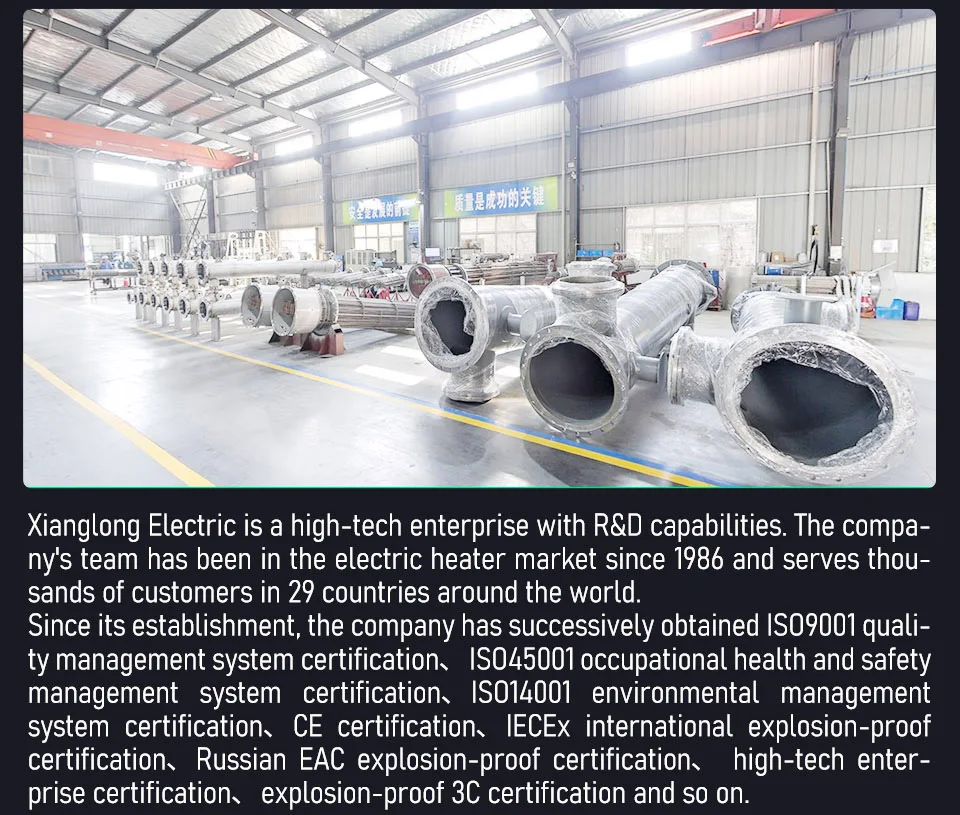

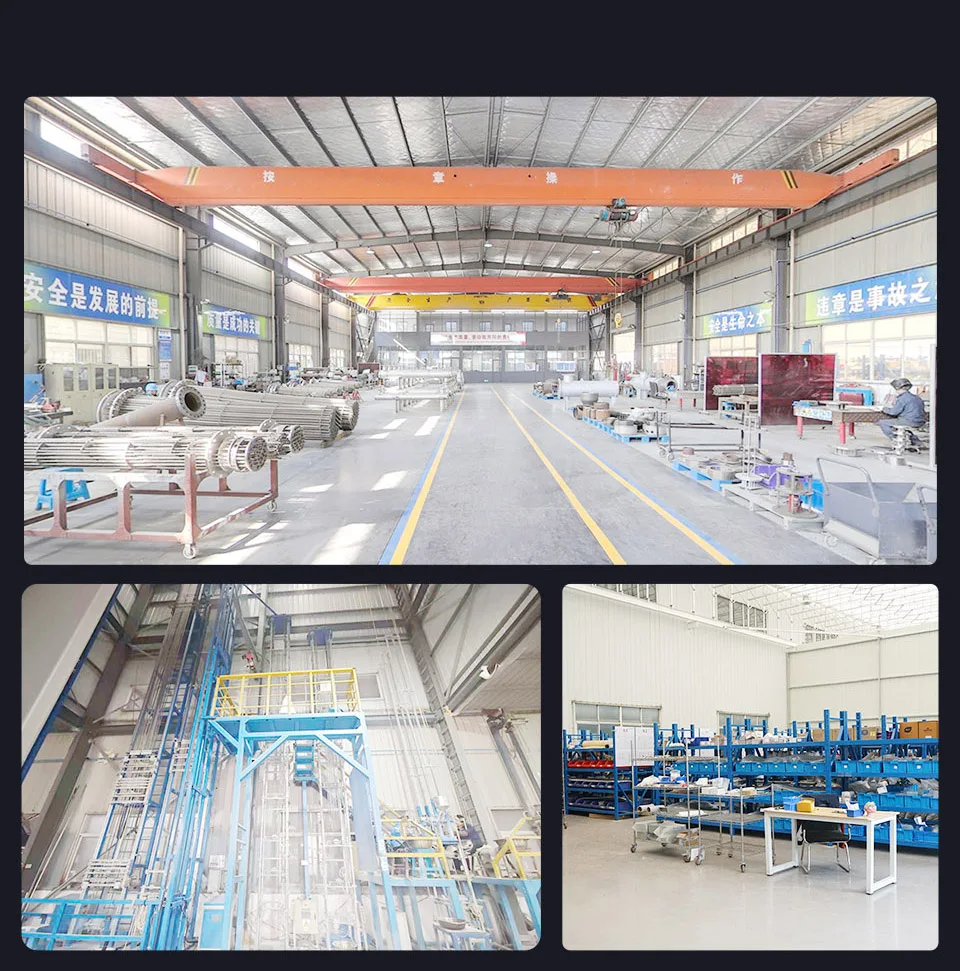

This product is produced by Yangzhong Xianglong Electrical Equipment Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yangzhong Xianglong Electrical Equipment Co., Ltd. range on HVACR Nexus.
