Key specification for this industrial horizontal circulation heater: 380 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Yangzhong Xianglong Electrical Equipment Co., Ltd. (9 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Industrial Horizontal Circulation Heater
- Power Source: Electric
- Voltage: 380 V
- Voltage(V): 380
- Material: Stainless Steel
- Material Of Heating Tube: S30408
- Material Of Flange: S30408
Technical Specifications
| Type | Immersion Heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V |
| Material | Stainless Steel |
| Core Components | Pressure Vessel, Engine |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 280 |
| Brand Name | xianglong |
| Dimension(L*W*H) | 4230*1670*1485 |
| Material Of Heating Tube | S30408 |
| Material Of Flange | S30408 |
| Heating Medium | Air |
| Operating Temperature | 200℃ |
| Voltage(V) | 380 |
| Cold Insulation Resistance(Ω) | ≥5 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

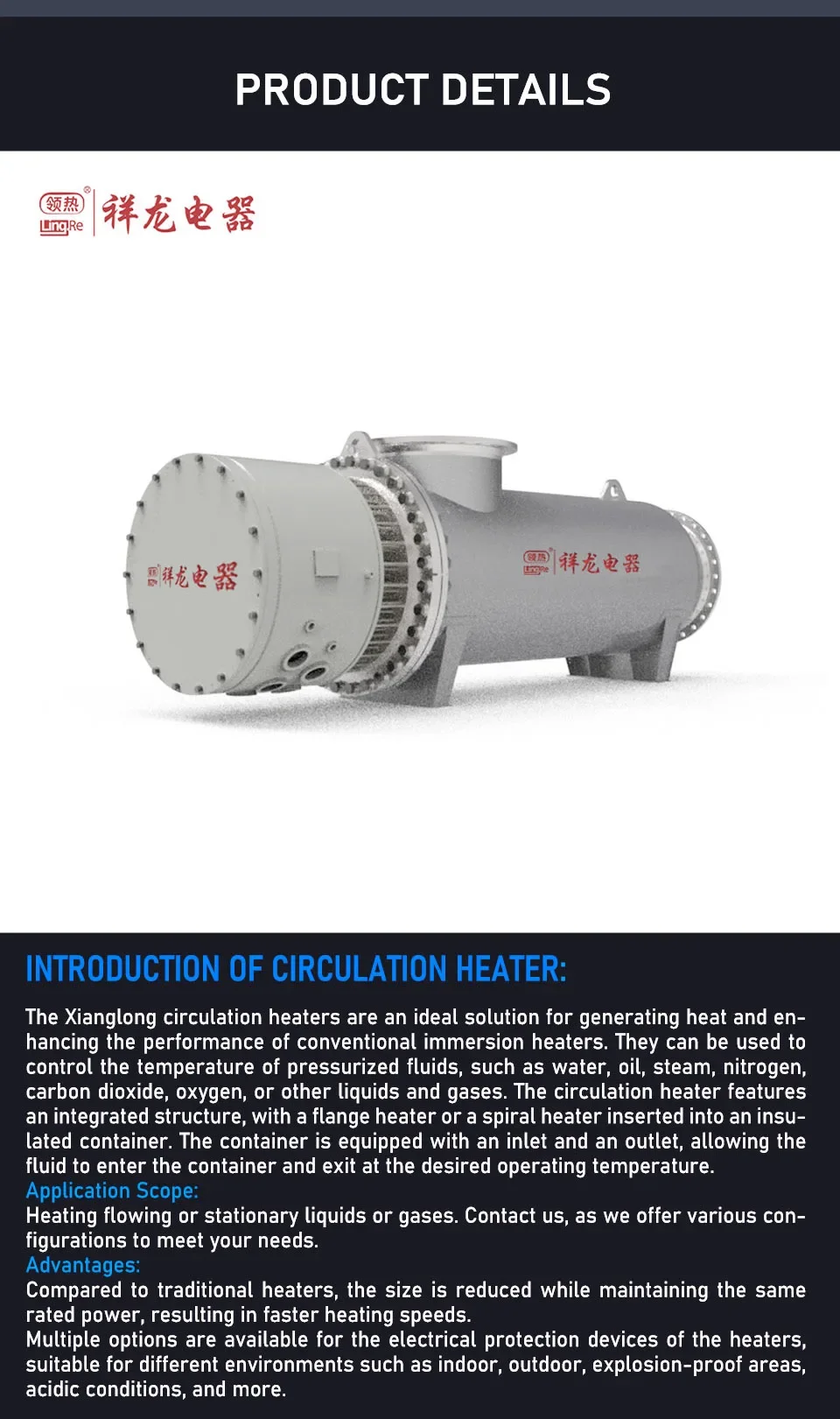

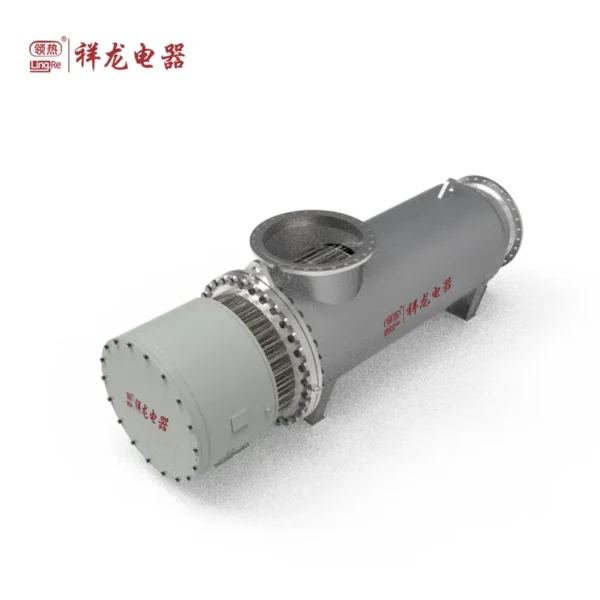

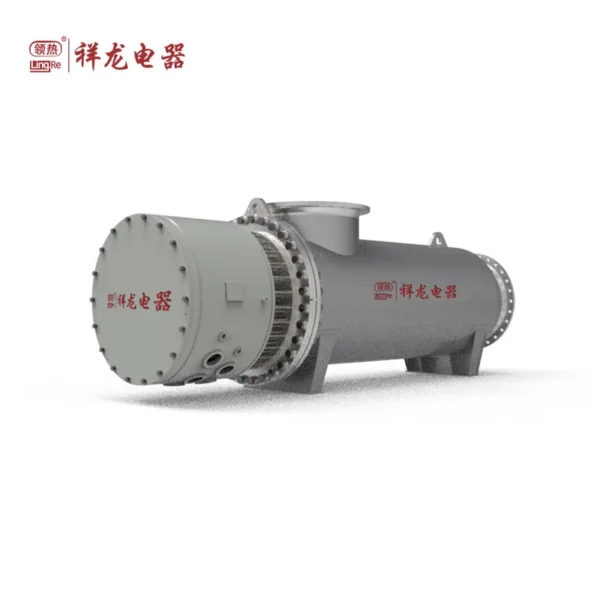

380V 2000kw or Customized Explosion-proof Industrial Horizontal Flanged Heaters for Air
| Flange Heater | |||
| Model | FB-1000-00-2000 | Power(KW) | 2000 |
| Voltage(V) | 380 | Wiring Form | |
| Frequency(Hz) | 50/60 | Cold Insulation Resistance(Ω) | ≥5 |
| Wiring Group | 26 | Over-temperature Protection Switch (yes/no) | yes |
| Total Current(A) | 3038.77 | Per Group Current(A) | 116.88 |
| Interphase Resistance(Ω) | 3.75 | Surface Load(W/cm²) | 2.50 |
| Heating Medium | Air | Material of Heating Tube | S316 |
| Standard of Flange | HG/T 20592-2009 DN1000 PN16 | Material of Flange | Q345 |
| Design Pressure(Mpa) | 1.6 | Operating Pressure(Mpa) | 0.008 |
| Design Tempreture(ºC) | 250 | Operating temperature(ºC) | 200 |
| Protection Grade | IP65 | Explosion-proof Grade | ExdIICT4 |
| Design Standards | JB/T 2379-2016 | Heating Tube Diameter(mm) | 16 |
| Length of Heating Tubes Under The Flange(mm) | 3500 | Cold Zone Length of Heating Tubes Under The Flange(mm) | 200 |
| Center Distance of Heating Tube(mm) | 50 | Quantity of Heating Tubes(Pieces) | 240 |
| Product Dimensions For Reference(mm) | 5200*1500*1500 | Weight For Reference(KG) | 5200 |
Introducing the 380V 2000kw or Customized Explosion-Proof Industrial Horizontal Flanged Heaters for Air, a cutting-edge solution for industrial heating needs. Designed with utmost precision and expertise, this product is specifically engineered to provide efficient and safe heating for air in industrial settings. With its explosion-proof feature, it ensures utmost safety and reliability, making it an ideal choice for hazardous environments. The horizontal flanged design allows for easy installation and maintenance. Crafted with high-quality materials, this heater guarantees long-lasting performance and durability.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $40150 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial horizontal circulation heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial horizontal circulation heater be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

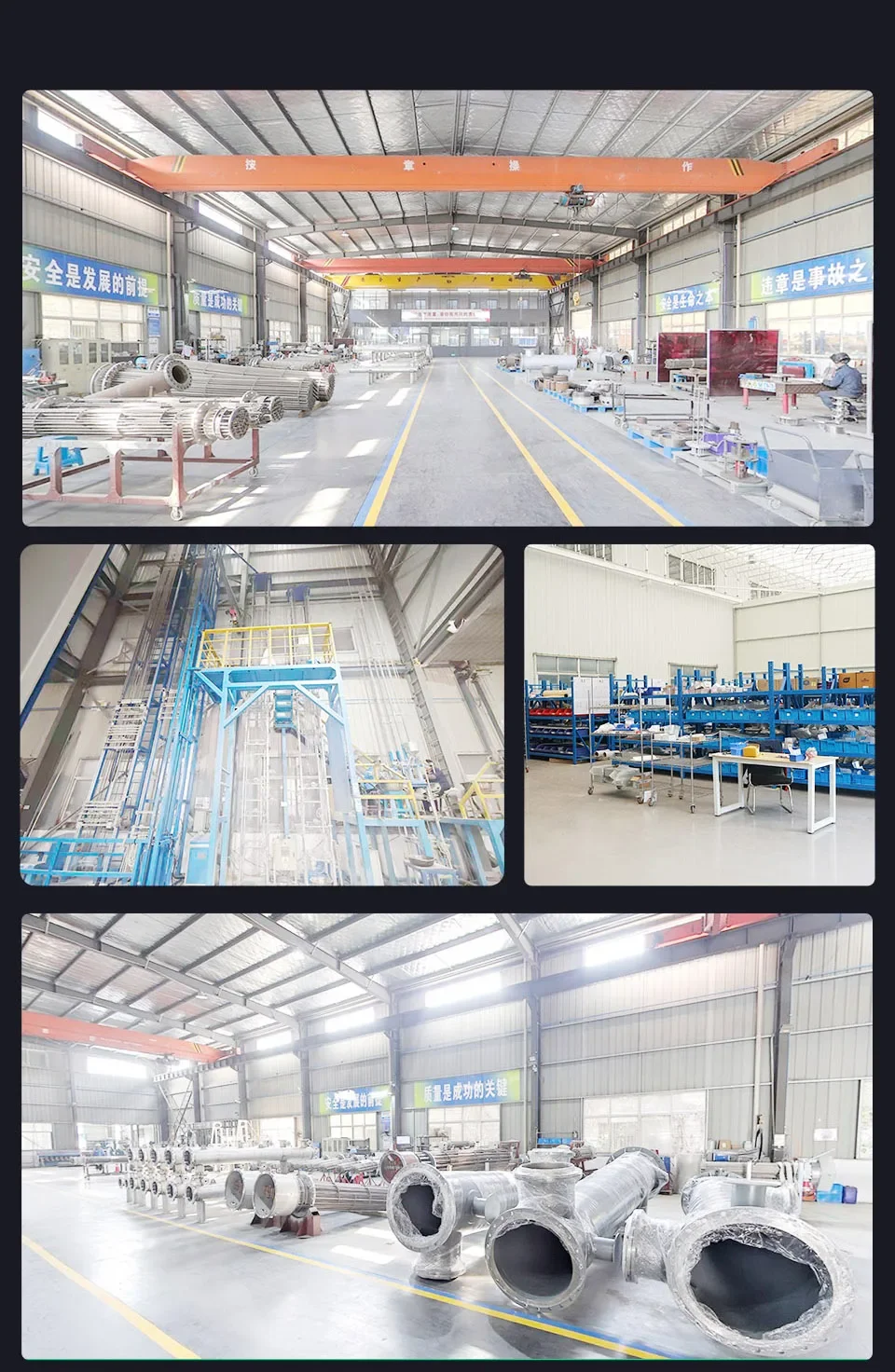

About the Manufacturer
This product is produced by Yangzhong Xianglong Electrical Equipment Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yangzhong Xianglong Electrical Equipment Co., Ltd. range on HVACR Nexus.
