Electric heater — 380V or Customized, power source Electric. The complete factory specification follows. Made by Yangzhong Xianglong Electrical Equipment Co., Ltd. (9 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Heater
- Power Source: Electric
- Power: 2KW or Customized
- Voltage: 380V or Customized
- Material: Stainless Steel
- Material Of The Flange: SUS304 or Customized
- Material Of Heating Tubes: S30408 or Customized
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 380V or Customized |
| Material | Stainless Steel |
| Core Components | Heating Tube |
| Key Selling Points | Easy To Operate |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 80 |
| Brand Name | xianglong |
| Dimension(L*W*H) | Custom |
| Heating Medium | Hydrogen |
| Power | 2KW or Customized |
| Material Of The Flange | SUS304 or Customized |
| Explosion-Proof Grade | CT4 or Customized |
| Material Of Heating Tubes | S30408 or Customized |
| Wiring Group | 1 |
| Delivery Time | About shipped in 10 days after payment |
| Design Tempreture(℃) | 400℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

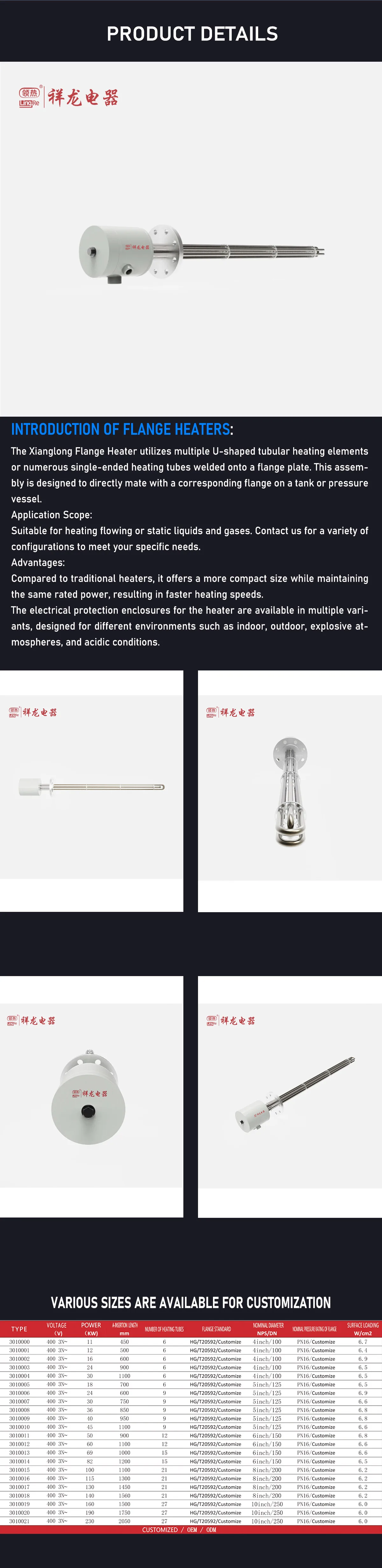

2KW Or Customized Explosion-proof Industrial Immersion Flange Electric Heater For Hydrogen
| Model | XL-Ex-65-380/2(013702) | Power(KW) | 2 |
| Voltage(V) | 380 | Wiring Form | |
| Frequency(Hz) | 50/60 | Cold Insulation Resistance(Ω) | ≥5 |
| Wiring Group | 1 | Over-temperature Protection Switch (yes/no) | NO |
| Total Current(A) | 3.04 | Per Group Current(A) | 3.04 |
| Interphase Resistance(Ω) | 144.40 | Surface Load(W/cm²) | 0.97 |
| Heating Medium | Hydrogen | Material of Heating Tube | S30408 |
| Standard of Flange | HG/T 20592-2009 DN65 PN25 | Material of Flange | 304 |
| Design Pressure(Mpa) | 1.32 | Operating Pressure(Mpa) | 1.32 |
| Design Tempreture(℃) | 400 | Operating temperature(℃) | 350 |
| Protection Grade | IP65 | Explosion-proof Grade | CT4 |
| Design Standards | JB/T 2379-2016 | Heating Tube Diameter(mm) | 12 |
| Length of Heating Tubes Under The Flange(mm) | 1000 | Cold Zone Length of Heating Tubes Under The Flange(mm) | 100 |
| Center Distance of Heating Tube(mm) | 40 | Quantity of Heating Tubes(Piece) | 3 |
| Product Dimensions For Reference(mm) | 1309*185*193 | Weight For Reference(KG) | 19 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $639 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric heater be supplied for my local voltage?
The standard configuration is 380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yangzhong Xianglong Electrical Equipment Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yangzhong Xianglong Electrical Equipment Co., Ltd. range on HVACR Nexus.
