Electric Heater, 80kw, 160KW, 380V

 High capacity adjustable temperature industrial hot air blower for drying equipment



1. Technical Paramater





Model: 30~80KW
Voltage	380V~480V 3ph	Max outlet temperature	350℃ (reducing air volume)
Heater power	30KW~80KW	Max inlet temperature	230℃
Fan power	2.2KW or 3KW	Max Airflow	49m3/min or 80m3/min
Heater material	2080 Nickel chromium wire	Maximum pressure	1523Pa or 1500Pa
Environment temperature	0~45 ℃	Dimension	below attached picture
Environment humidity	80% R.H.	Net Weight	150KG
Note:	If you want to change outlet diameter,please contact us,conventional 219mm







Model: 80~160KW
Voltage	380V~480V three phase	Max outlet temperature	350℃ (reducing air volume)
Heater power	80KW~160KW	Max inlet temperature	230℃
Fan power	4KW or 5.5KW	Max Airflow	116m3/min or 166m3/min
Heater material	2080 Nickel chromium wire	Maximum pressure	1678Pa or 2123Pa
Environment temperature	0~45 ℃	Dimension	below attached picture
Environment humidity	80% R.H.	Net Weight	50KG
Note:	If you want to change outlet diameter,please contact us,conventional 219mm







 2. Product Introduce





Hot air blower are generally composed of four parts: a heater, a fan, a temperature control system, and a cabinet.

The heater part is made of pure 2080 nickel-chromium high-efficiency heating wire, high-quality high-temperature stainless steel casing, lightweight crystal insulation fiber blanket, 95 porcelain wiring board and other components. It has the characteristics of fast heating, small thermal inertia, precise temperature control and long service life. (Our heater core components use imported pure 2080 nickel-chromium alloy materials, some industrial enterprises have selected iron-chromium-aluminum heating materials, nickel-chromium materials, reclaimed silk, or inferior nickel-chromium wire to impersonate 2080 pure nickel-chromium wire, thereby reducing production. Cost. In application, generally used in three months or six months, the durability, stability, heat generation, accuracy and other aspects of the two products will have essential differences, which may lead to the loss of maintenance value of the product. Causes a production safety incident.)

The fan part is uniquely designed with low noise, can recycle hot air, and is energy efficient. Different wind pressure fans can be configured according to the actual needs of the user, which is flexible and practical. The fan air volume can be adjusted according to production needs.

The hot air blower is suitable for heating and drying of the plant, heat source equipment in the drying room and heating in a small air flow area. Various industrial plants, workshops, steelmaking, coal mine heating and heating, preheating heating and drying of various construction sites, drying of pipeline anti-corrosion inner walls, speeding up the drying of paints, heating and warming in winter construction sites, preheating of machines Warm up. Chemicals, plastics and other products are dry, food is dried after cleaning, and heat shrinkable packaging has examples of use.

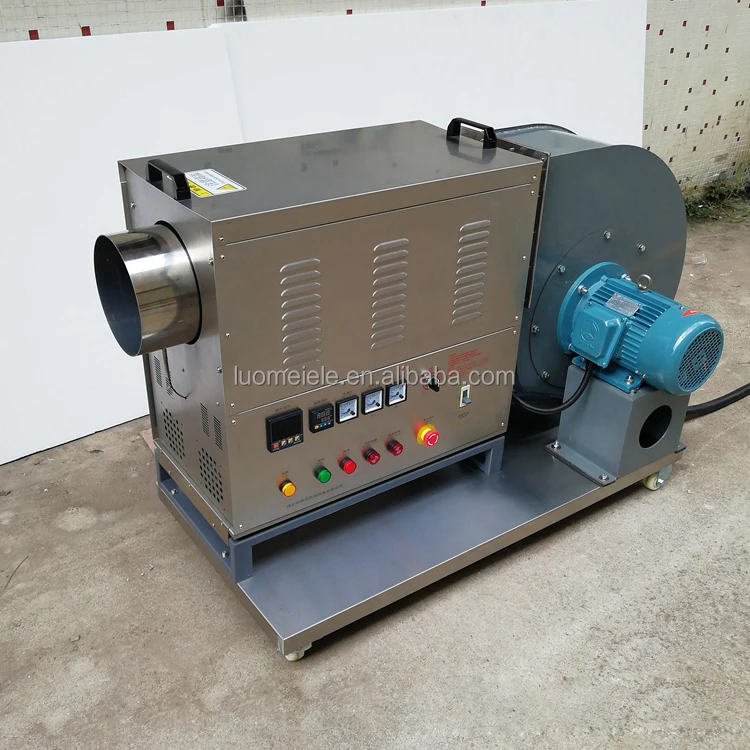

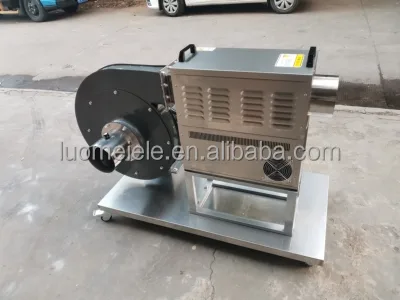

3. Product display



4. Dimension

Customize product, according to real product



5. Applications



1. Assembly to cleaning equipment
2. Drying and heat sterilization of glass containers
3. Defrost before freezing food labeling
4. The inner wall of the tank and gas tank is dry
5. Drying of the centrifuge
6. Heating and drying of electronic components
7. Drying after cleaning such as copper wire
8. Drying in the hopper
9. Drying of the transformer box before painting
10.FRP resin drying
11. Heat drying of gas cylinders
12. Internal drying heating of vinyl resin
13. Copper ball heating
14. Drying of the sorbent
15. Drying of food
16. Shrinking and packaging drying in the tunnel furnace
17. Solidification and drying of plasticizer
18. Drying of small objects
19. Transformer dipped in insulating paint and dried
20. Drying after carton printing













1. Are you manufacturer or trading company?

Re: We are manufacturer,professional for produce ring blower,centrifugal fan, aerator, air pump,hot air blower etc.

2. What is the highest temperature it can reach?

Re: Maximum temperature is 350℃

3. The airflow and temperature can be adjusted?

Re: Yes of course.

4. What transport you use? can send to my door?

Re: Our transportation is ship by air to airport, ship by sea to seaport, and ship by express to door, please note that, by air to airport and by sea to seaport, need you are company not private, by express can be company or private.

5. This is the first time to use Alibaba, how i can make purchase?

Re: Don't worry, you just only need contact us, confirm with us the product you need and your request, then we will choose model for you, and we will help you make alibaba order, then you can pay.

6. What is the payment method?

Re: We accept T/T(bank wire transfer), Visa(include credit card),mastercard,e-checking,western union,CNY,cash etc.talk with us will let you know.

Any other question welcome to communicate with us.
