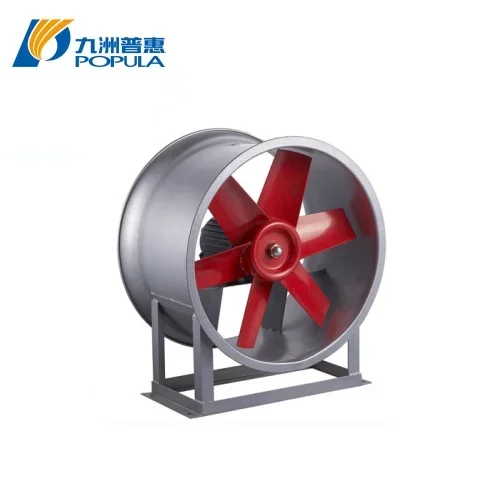

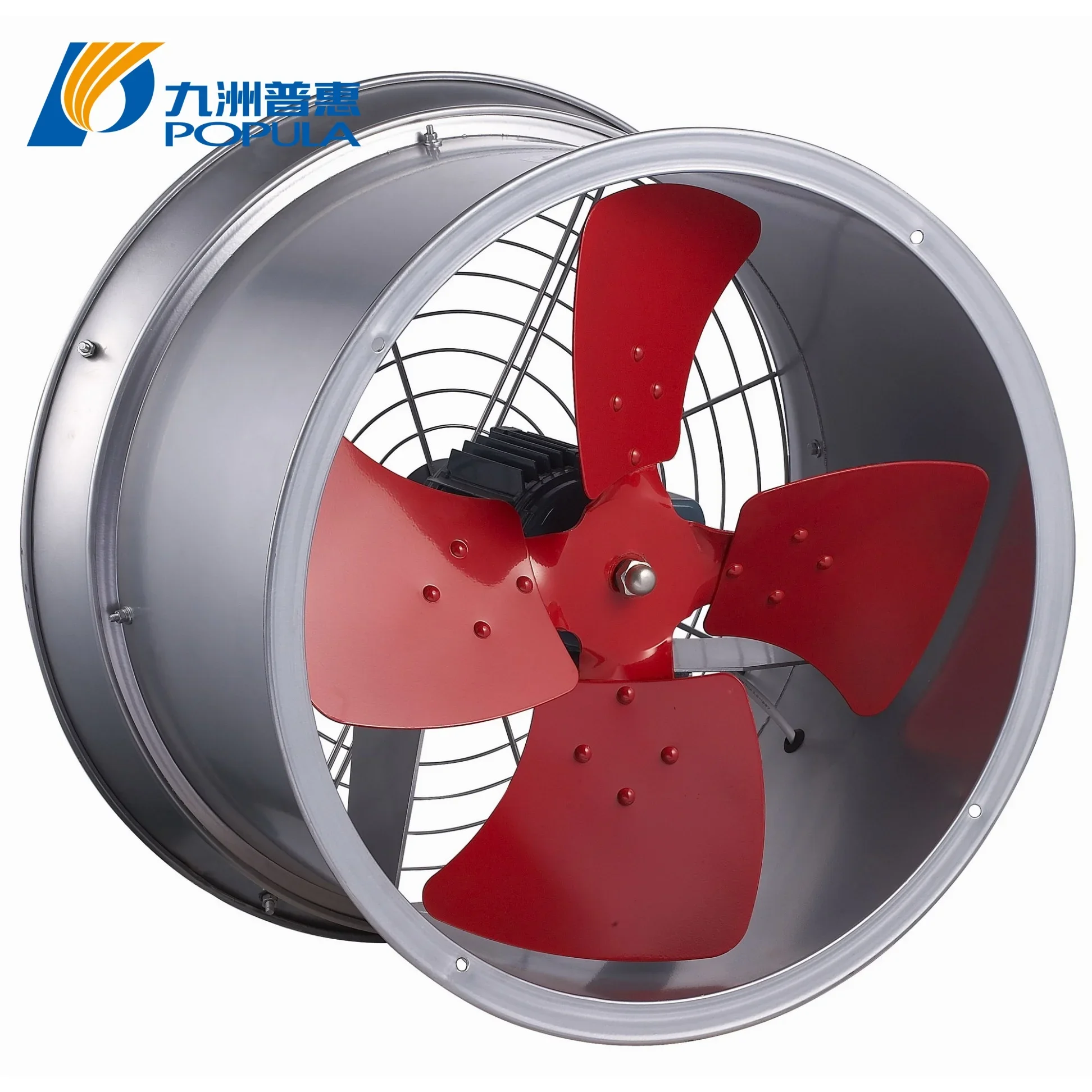

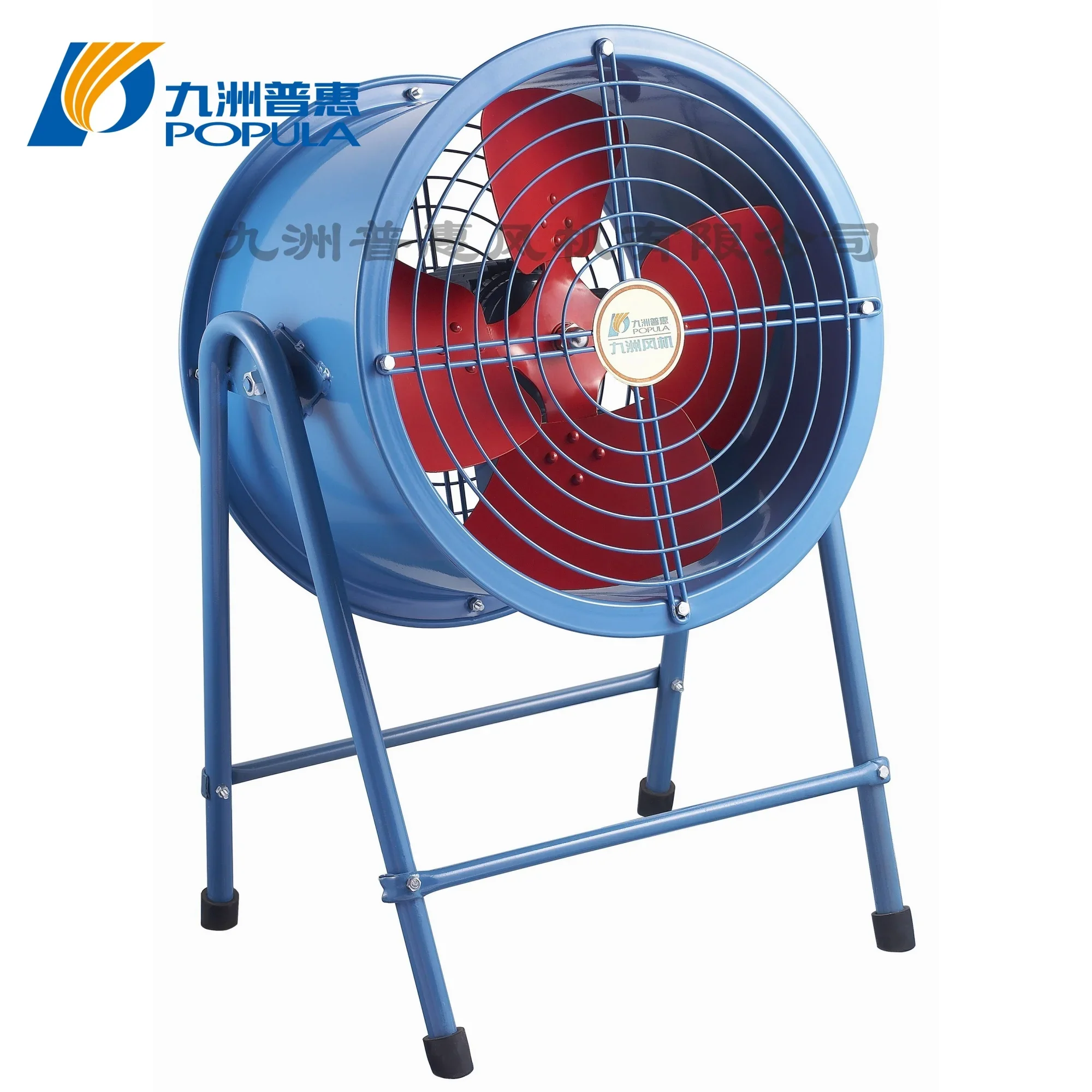

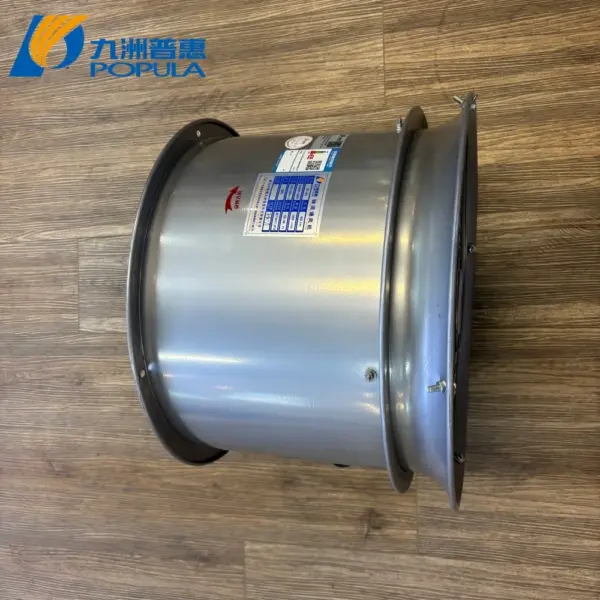

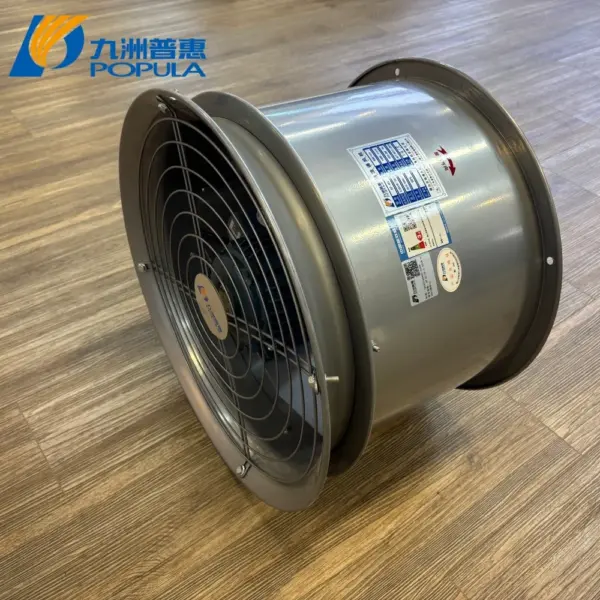

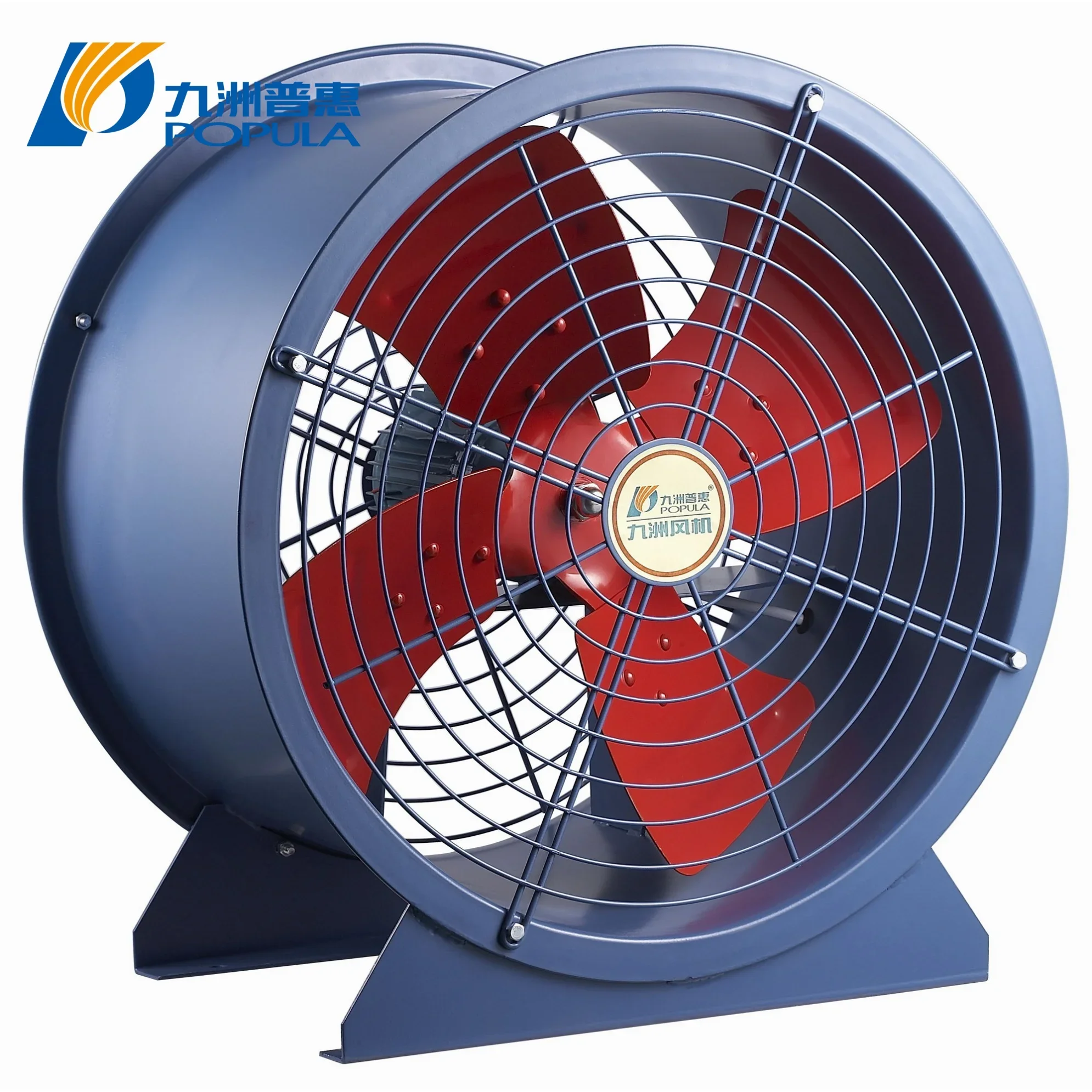

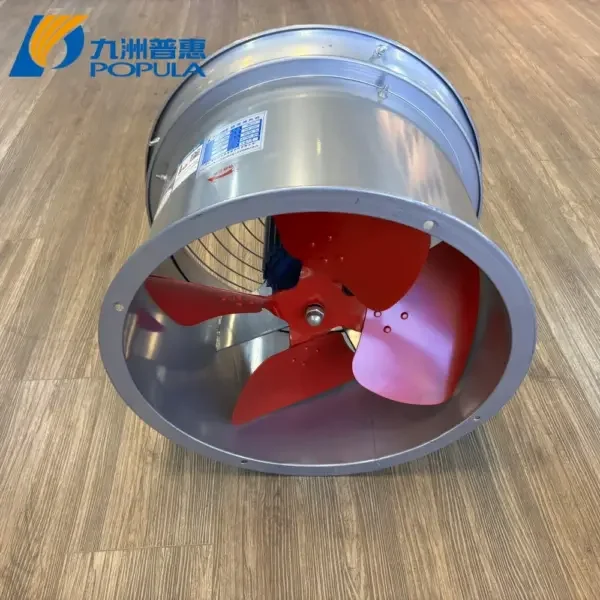

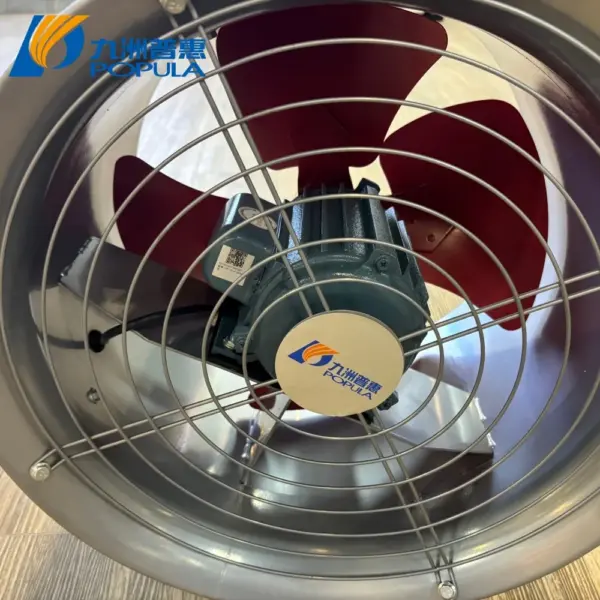

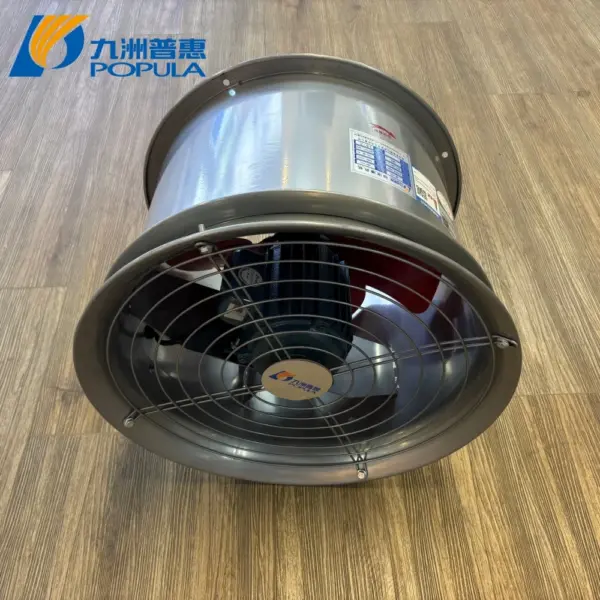

Axial flow fans — voltage 220/380V, power source Electric. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
This axial flow fans is listed with the manufacturer’s full published specification — voltage 220/380V, power source Electric, blade material Carbon Steel. It is produced by Foshan City Nanhai Popula Fan Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of These Axial Flow Fans
- Power Source: Electric
- Voltage: 220/380V
- Blade Material: Carbon Steel
- Speed: 730-2800rpm
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220/380V |
|---|---|
| Speed | 730-2800rpm |
| Mounting Type | Wall Fan |
| Type | Wall-Mounted Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Carbon Steel |
| Bearing Type | Ball Bearing |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Popula |
| Selling Units | Single item |
| Single Package Size | 31X22X31 cm |
| Single Gross Weight | 10.000 kg |
Vol/Fre: 220v/380v/50hz, special 400v/415v/60hz is negotiable
Material: Q235A carbon steel with powder coating
Motor: AC motor,100% copper winding
Insulation grade: B/F/H
Protection grade: IP44/54/55
Warranty: 1 Year
After-sales Service Provided: Free spare parts
|
Model(№)
|
Power(kW)
|
Voltage(V)
|
Rotation(r/min)
|
Volume(m³/h)
|
Pressure(Pa)
|
Noise dB(A)
|
|
2G-2
|
0.18
|
220
|
2800
|
600~940
|
80~60
|
≤68
|
|
2.5G-2
|
0.25
|
220
|
2800
|
1200-1740
|
168-126
|
≤71
|
|
2.5G-4
|
0.18
|
220/380
|
1400
|
790~1460
|
45~24
|
≤60
|
|
3G-2
|
0.37
|
380
|
2800
|
2025~3552
|
208~144
|
≤79
|
|
3G-4
|
0.25
|
220/380
|
1400
|
1000-2000
|
73-42
|
≤63
|
|
3.5G-2
|
0.55
|
380
|
2800
|
3740-5029
|
271-175
|
≤85
|
|
3.5G-4
|
0.37
|
220/380
|
1400
|
2000~3000
|
100~57
|
≤70
|
|
4G-2
|
0.9
|
380
|
2800
|
5000-8000
|
370-131
|
≤88
|
|
4G-4
|
0.55
|
220/380
|
1400
|
2675-5000
|
150-98
|
≤71
|
|
5G-2
|
1.5
|
380
|
2800
|
5191-9346
|
413~218
|
≤92
|
|
2.2
|
380
|
2800
|
7428~11053
|
417~306
|
≤94
|
|
|
5G-4
|
0.75
|
220/380
|
1400
|
3835-8001
|
236~106
|
≤75
|
|
1.5
|
380
|
1400
|
3694~8001
|
248~152
|
≤75
|
|
|
5G-6
|
0.55
|
380
|
910
|
1722~5090
|
110~46
|
≤70
|
|
0.37
|
380
|
910
|
2449~5090
|
97~46
|
≤70
|
|
|
5.6G-4
|
1.5
|
380
|
1400
|
7000~12700
|
284~199
|
≤80
|
|
6G-2
|
3
|
380
|
2900
|
10791~15851
|
531~278
|
≤98
|
|
4
|
380
|
2900
|
13259~18409
|
573-374
|
≤99
|
|
|
6G-4
|
2.2
|
220/380
|
1420
|
8291-15640
|
322-208
|
≤81
|
|
6G-6
|
1.1
|
380
|
910
|
3000~10635
|
177-119
|
≤71
|
|
7G-4
|
3
|
380
|
1420
|
14000~22000
|
374~137
|
≤84
|
|
7G-6
|
1.5
|
380
|
960
|
7023-13068
|
186-95
|
≤75
|
|
7G-8
|
1.1
|
380
|
720
|
5529-9618
|
94-54
|
≤78
|
|
8G-4
|
4
|
380
|
1450
|
15666-25000
|
482-175
|
≤89
|
|
8G-6
|
2.2
|
380
|
960
|
5875~16319
|
283~75
|
≤79
|
|
9G-4
|
5.5
|
380
|
1450
|
24828-34759
|
400-255
|
≤90
|
|
9G-6
|
3
|
380
|
960
|
13738-28130
|
230-167
|
≤87
|
|
10G-6
|
4
|
380
|
960
|
28937~39601
|
300~196
|
≤84
|
|
12G-6
|
5.5
|
380
|
960
|
36146-49322
|
320~186
|
≤90
|
|
13G-6
|
7.5
|
380
|
960
|
45984~60811
|
381-221
|
≤94
|
|
15G-8
|
11
|
380
|
720
|
58275~82842
|
404~286
|
≤87
|
|
16G-8
|
18.5
|
380
|
730
|
78946-103218
|
548~382
|
≤90
|
|
18G-8
|
22
|
380
|
730
|
105425-125635
|
658-492
|
≤95
|
Frequently Asked Questions
What is the minimum order quantity for this axial flow fans?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fans?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220/380V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This axial flow fans is produced by Foshan City Nanhai Popula Fan Co., Ltd.. Browse the full Foshan City Nanhai Popula Fan Co., Ltd. range on HVACR Nexus.
