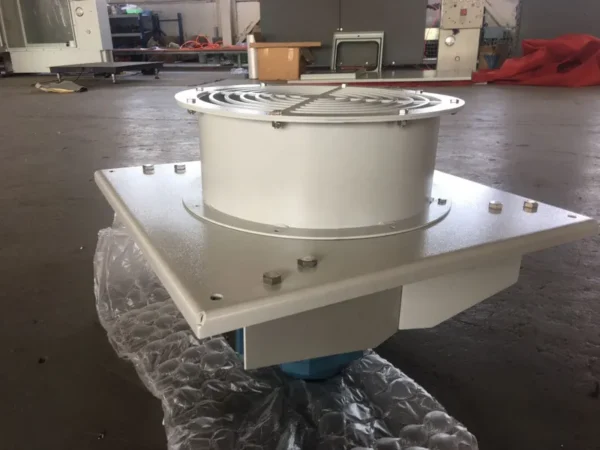

The elplosion proof axial fan listed here carries voltage AC 220-230V 50HZ, blade material aluminum alloy, documented exactly as the manufacturer publishes it. Made by Dewei Electric Jiangsu Co., Ltd. (8 years on the platform, typical reply ≤10h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Elplosion Proof Axial Fan
- Model Number: DWBFJ-AF
- Voltage: AC 220-230V 50HZ
- Blade Material: aluminum alloy
- Warranty: 1 Year
- Certification: ce
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | AC 220-230V 50HZ |
|---|---|
| Blade Material | aluminum alloy |
| Electric Current Type | AC |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Jiangsu, China |
| Brand Name | DEWEI |
| Model Number | DWBFJ-AF |
| Product Name | elplosion proof axial fan |
| Type | Axial Flow Fan, Fan |
| Product Type | Axial flow type |
| Usage | air cooling system |
| Applicable Industries | Building Material Shops,Manufacturing Plant etc |
| Certification | ce |
| Packaging Details | Wodden packing |
| Selling Units | Single item |
| Single Package Size | 55X55X45 cm |
| Single Gross Weight | 60.0 kg |
Product Details
Technical requirement
1. Axial fan DWBFJ-AF-P315 ,ATEx
2. Explosion-proof mark: II 2G IIB + H2 T4
3. Material: Q235, electrostatic powder spray:RAL7035,
impeller material: aluminum alloy
4. Air volume meets2000-2500m³/ h, static pressure: 200-500pa
5. ABB ATEx explosion-proof motor,
6. The weight is estimated to be 50-60kg, the weight is based on
the actual product
| TYPE | DWBFJ-AF-P315 |
| Material | electrostatic powder spray:RAL7035, impeller material: aluminum alloy |
Type DWBFJ-AF axial fan is designed according to EN 14986, EN13463-1 (for ATEX) and IEC 60079-0(for ATEX) standards. The product is certified for installation in Zone 1 and Zone 2 for gas environment, Zone 21 and Zone 22 for dust environment.

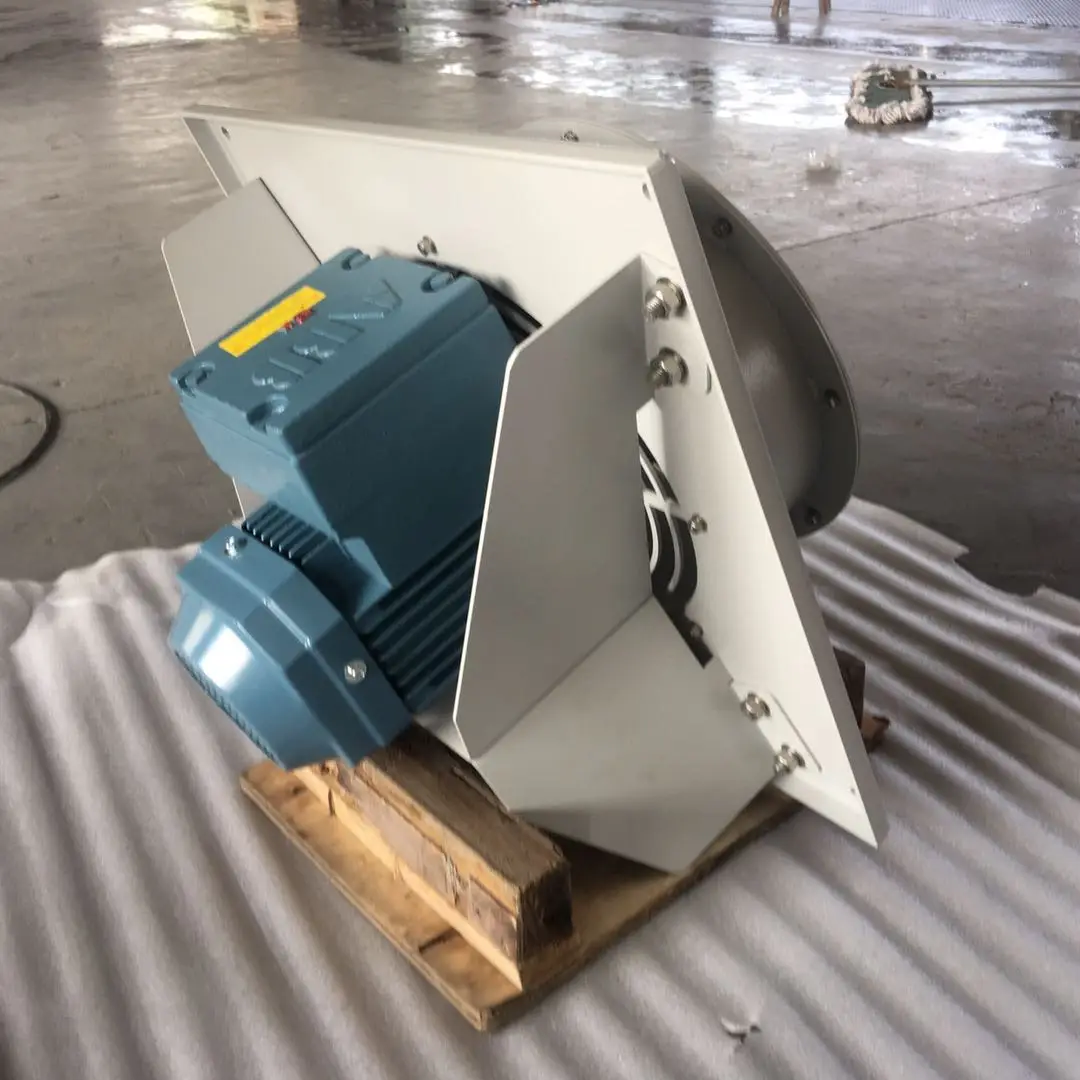

Type DWBFJ-AF axial fan has long or short stainless steel or carbon steel aterial case fitted with stainless steel, aluminum or sheet molding ompound (SMC) which is also alled glass-fiber reinforced polyester (GRP) aterial impeller. The fan s driven directly by an ATEX or IECEx certified motor.
The Ex d motors are equipped with PTC hermistors for optimum motor rotection. Three phase , IP55 or IP65, insulation class F, can befrequency conversion motor.
For motors provided with PTC posistor sensors that should be connected o the protection system, the type of sensor should be specified by the ustomer/electrician.
Type DWBFJ-AF axial fan is typically used for the purpose of industrial ventilation, cooling and exhausting etc.This product specially applies to Oil & Gas, Offshore Platform, Chemical, Petrochemical, Refinery and Marine Industries etc.

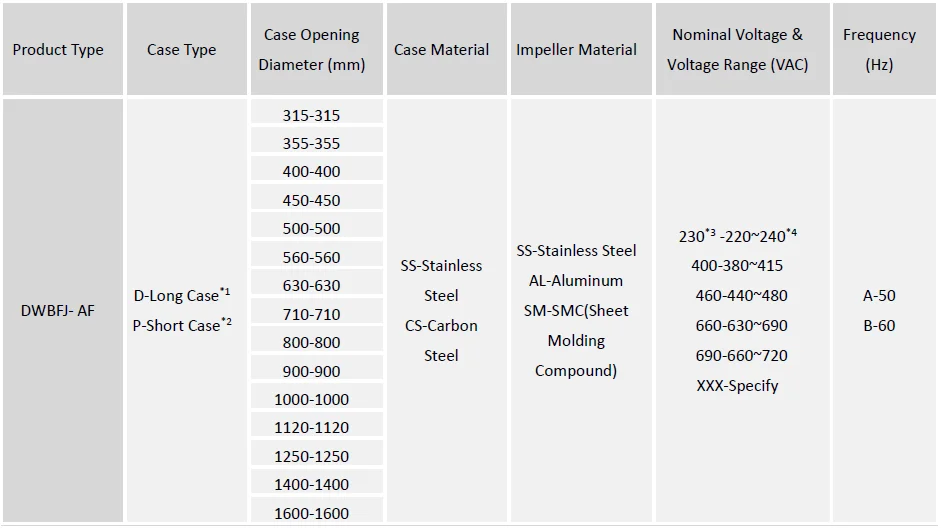

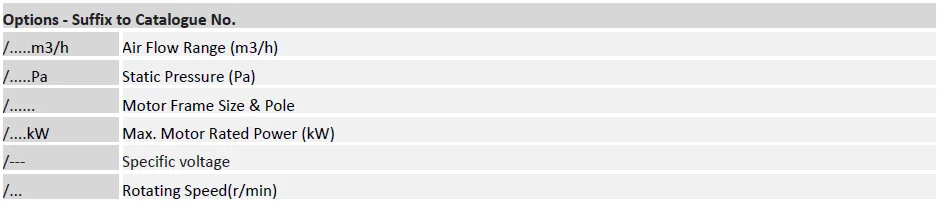

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
Note 2: Diameter range for long cases is from 315mm to 1600mm.
Note 3: Diameter range for short cases is from 315mm to 1000mm.
Note 4: The data before the dash represents the nominal voltage.
Note 5: The data after the dash represents the voltage range.

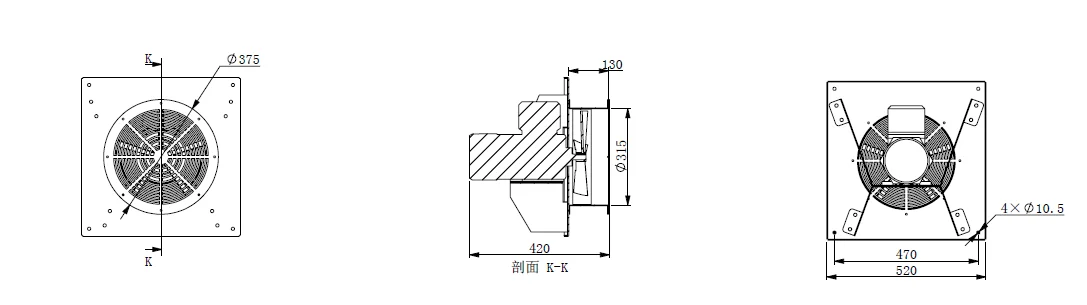

Installation Dimension
Q1: Can I add my logo on the boxes/cartons?
A: Yes, OEM and ODM are available from us.
Q2: Waht are the benefits of being a distributor?
A: Special discount Marketing protection.
Q3: Can I have a visit to your factory before the order?
A: Sure, welcome your visit of factory.
Q4: What is your payment terms?
A: ♦ The First payment of 30% deposit, the end of the 70% should be paid by the customer upon seeing the copy of B/L.
♦ Pay first 100% T/T.
♦ The first payment of 30% deposit, the end of the 70% will be paid after the customer receive the picture of the complete goods of you order.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $2500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this elplosion proof axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this elplosion proof axial fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the elplosion proof axial fan be supplied for my local voltage?
The standard configuration is AC 220-230V 50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dewei Electric Jiangsu Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dewei Electric Jiangsu Co., Ltd. range on HVACR Nexus.
