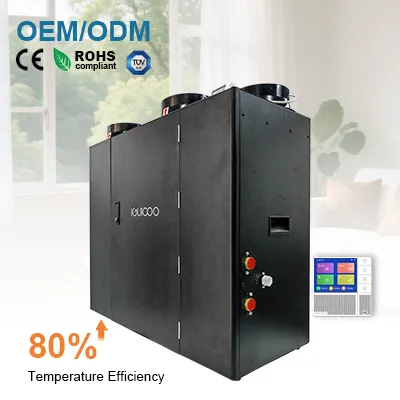

Energy-efficient flexible mvhr ventilator — 110V-240V/50-60HZ, 350m3/h. The complete factory specification follows. Made by Sichuan Guigu Renju Technology Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Energy-Efficient Flexible Mvhr Ventilator
- Model Number: TFWPW-050(C1-1D2)
- Voltage: 110V-240V/50-60HZ
- Airflow: 350m3/h
- Material: Galvanized Steel
- Warranty: 1 Year
- Place Of Origin: Sichuan, China
Technical Specifications
| Application | Villa, Hotel, Apartment, Office Building, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Courtyard, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Outdoor, Storage and Closet, Exterior, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage and Shed, Gym |
|---|---|
| Material | Galvanized Steel |
| Feature | Flexible, Energy Saving, Anti-Corrosion, Easy Install |
| Design Style | Modern, Mediterranean, European |
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts, Online Technical Support, Other |
| Project Solution Capability | graphic design |
| Model Number | TFWPW-050(C1-1D2) |
| Place Of Origin | Sichuan, China |
| Brand Name | IGUICOO |
| Function | ventilation and heat recovery |
| Voltage | 110V-240V/50-60HZ |
| Filter | Hepa 12 +G4 |
| Size | 850*400*750mm |
| APP | Tuya App |
| Sensor | Co2, PM2.5, humidity, temperature |
| Airflow | 350m3/h |
| Color | Black |
| Installation | Stand or Wall Mounted Installation |
| MOQ | 1set |
| Selling Units | Single item |
| Single Package Size | 95X95X65 cm |
| Single Gross Weight | 100.0 kg |
Product Details
Features & Benefits
G4+H12 Hepa filters IFD module ( optional）
Making the air entering the room more healthy, fresh and pure

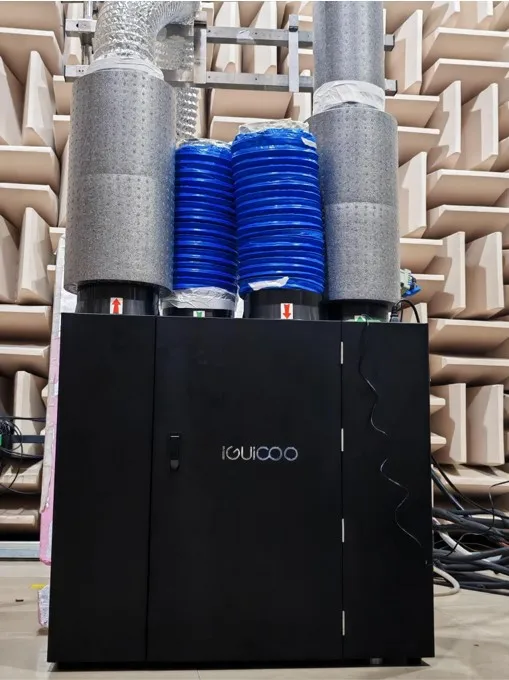

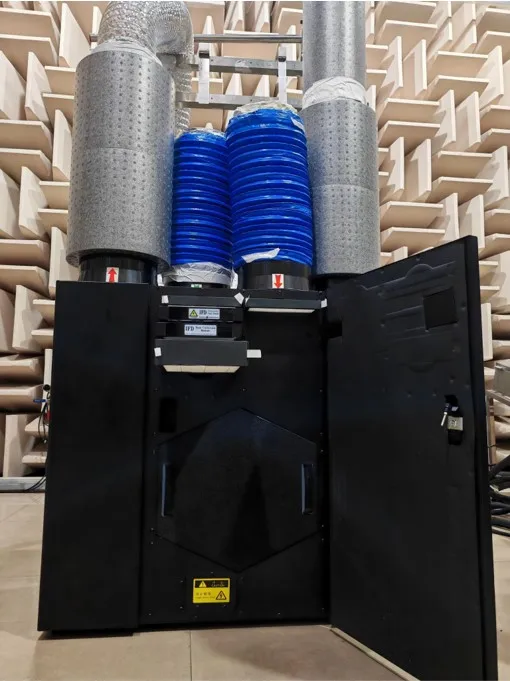

Noise test physical shot
Noise test physical shot
This Vertical ERV is suitable for house unit with insufficient headspace
* The system uses air energy recovery technology.
* It integrates balanced ventilation, pre- heating of fresh air in winter.
* It provides healthy and comfortable fresh air while achieving maximum energy savings,heat recovery efficiency is up to 90%.
* Reserve positions for custom function modules.
* Bypass function is standard.
* PTC heating,ensure operation in low temperature environment in winter
* It integrates balanced ventilation, pre- heating of fresh air in winter.
* It provides healthy and comfortable fresh air while achieving maximum energy savings,heat recovery efficiency is up to 90%.
* Reserve positions for custom function modules.
* Bypass function is standard.
* PTC heating,ensure operation in low temperature environment in winter

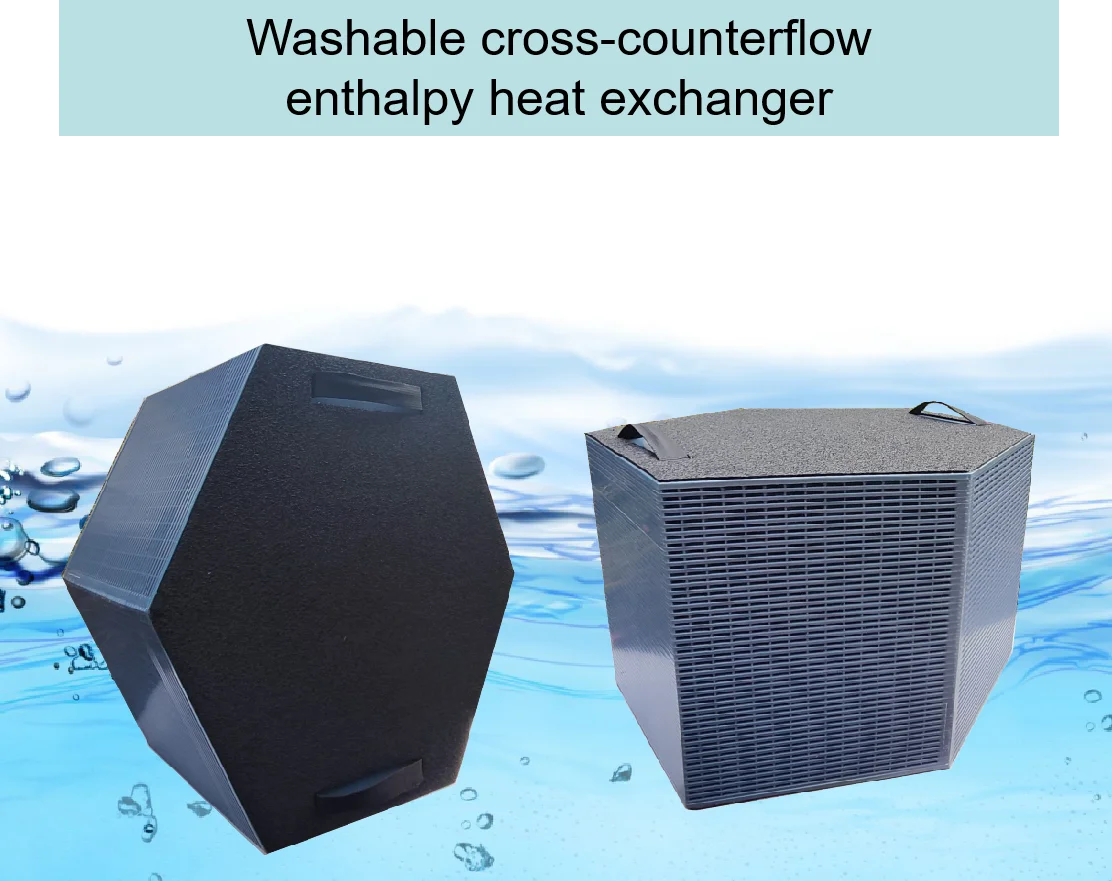

Washable cross-counterflow enthalpy heat exchanger
1.High efficiency cross-counterflow enthalpy heat exchanger 2.Easy to maintain 3.5~10 years life 4.Up to 93% heat exchange efficiency

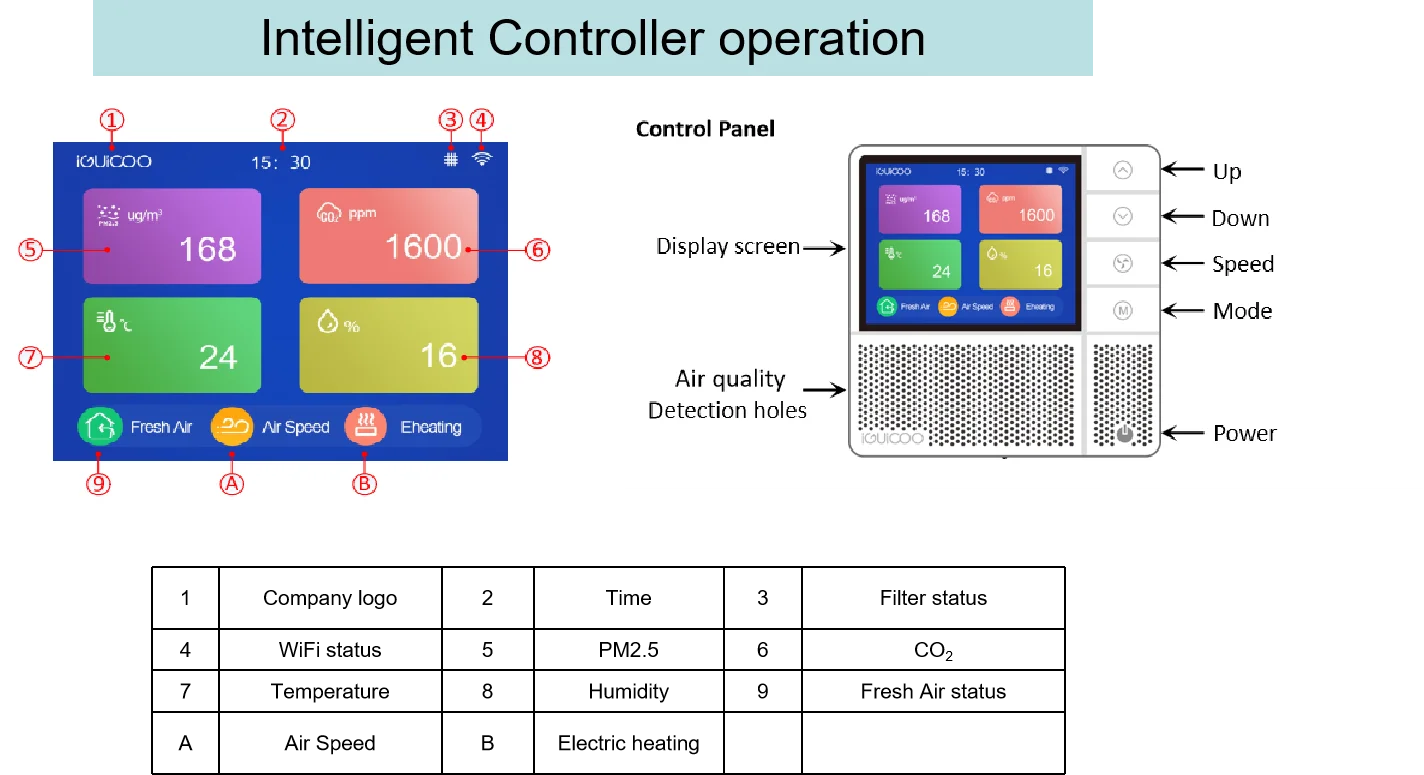

Intelligent Controller operation
•Intelligent detection Indoor temperature, humidity, CO2 concentration, PM2.5 concentration detection •Smart display 2.8 inch color LCD display, all data real-time display; •4 speed speed High speed, medium speed, low speed, automatic 4 speed, to meet the needs of more customers; •A variety of working modes Pre-heating, ventilation, bypass,to meet the needs of different seasons
WIFI function
Work with Tuya Smart APP
Intelligent control
According to indoor air quality

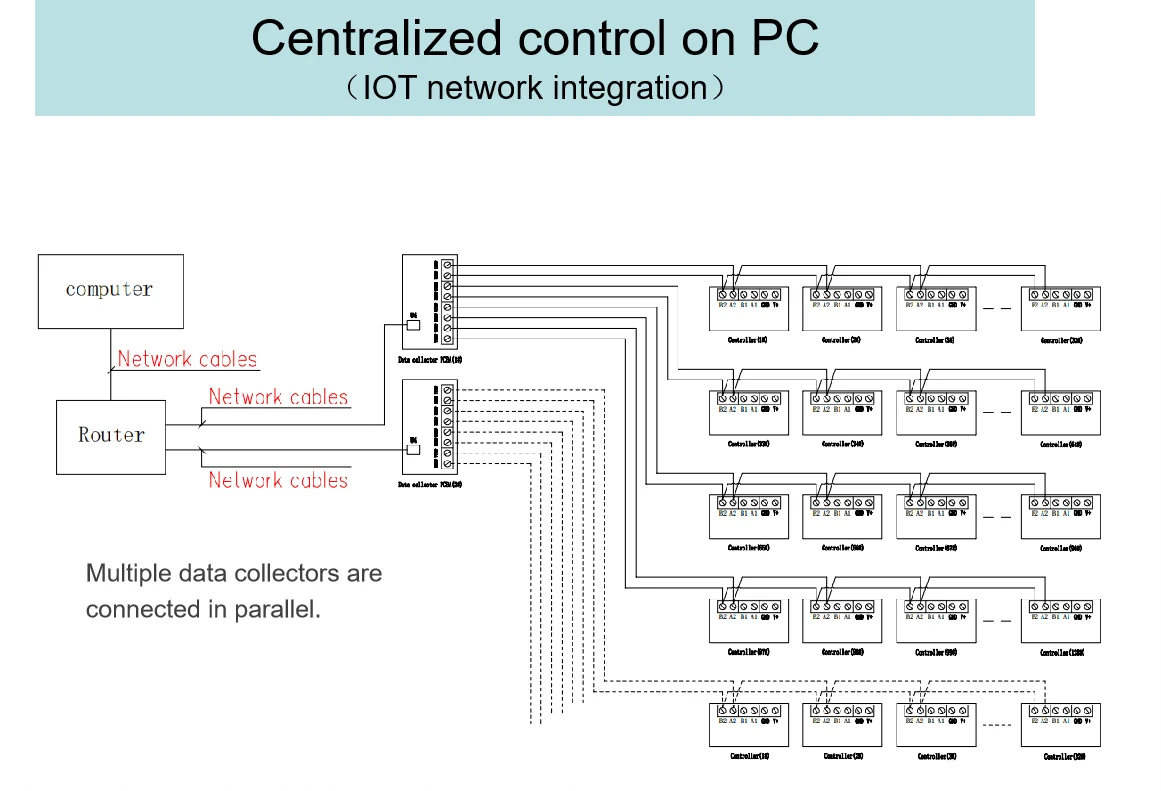

Optional Centralized control
Up to 128pcs ERV controlled by one Data acquisition unit

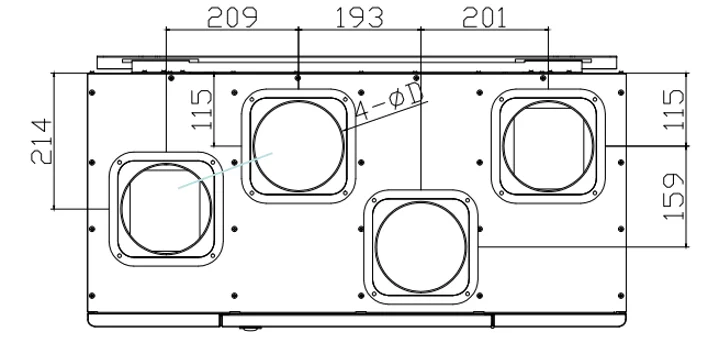

Model | Φ D | Inlet and outlet pipe diameter |
TEWPW-025(C1-1D2) | 150 | Rc 3/4" |
TEWPW-035(C1-1D2) | 150 | Rc 3/4" |
TEWPW-050(C1-1D2) | 200 | Rc 3/4" |
Specification & Dimensions
Technical parameter | ||||||
Model | TEWPW-025(C1-1D2) | TEWPW-035(C1-1D2) | TEWPW-050(C1-1D2) | |||
Airflow（m³/h） | 250 | 350 | 500 | |||
Rated E.S.P（Pa） | 100 | 100 | 100 | |||
Temp.Eff. (%) | 80-93 | 75-90 | 73-88 | |||
Noise dB（A） | 34 | 36 | 42 | |||
Power input (W)（Fresh air only） | 115 | 155 | 225 | |||
Pre-cooling capacity（W） | 1200* | 1500* | 1800* | |||
Pre–heating capacity（W） | 2000* | 2500* | 3000* | |||
Water supply (kg/h) | 210 | 270 | 320 | |||
PTC preheating （W）（Anti-freezing） | 300（600） | |||||
Rated voltage/frequency | AC 210-240V / 50（60）Hz | |||||
Energy recovery | Enthalpy exchange core，heat recovery efficiency is up to 93% | |||||
Purification efficiency | 99% | |||||
Controller | TFT Liquid crystal display / Tuya APP | |||||
Motor | DC motor（Double intake direct current centrifugal fan） | |||||
Purification | Primary filter + H12 Hepa filter | |||||
Operation mode | Fresh air purification + By-pass function | |||||
Operating ambient temperature（℃） | -25～40 | |||||
Product size（L*W*H）mm | 850x400x750 | |||||
IFD sterilization filter | Optional | |||||
Fixation | Wall-mounted or standing-mounted | |||||
Connect size（mm） | φ150 | φ150 | φ200 | |||
* Indicates test conditions: cooling inlet dry and wet bulb temperature DB/WB: 27/19.5℃, chilled water inlet and outlet
temperature: 7/12℃. Heating inlet air dry bulb temperature DB: 21℃, hot water inlet temperature 60℃.
temperature: 7/12℃. Heating inlet air dry bulb temperature DB: 21℃, hot water inlet temperature 60℃.
Company Profile
Packing & Shipping
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
FAQ
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–2 set: US $961 / set
- 3–10 set: US $805 / set
- 11–99 set: US $786 / set
- 100+ set: US $742 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this energy-efficient flexible mvhr ventilator?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the energy-efficient flexible mvhr ventilator be supplied for my local voltage?
The standard configuration is 110V-240V/50-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sichuan Guigu Renju Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Sichuan Guigu Renju Technology Co., Ltd. range on HVACR Nexus.
