This freezing equipment comes from WOBO Industrial Group. The specification below is the factory’s own. Supplier profile: 7 years on the platform. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Freezing Equipment
- Refrigerating Capacity(Kg): 1000
- Warranty: 1 Year
- After Warranty Service: Video and online technical support
- Warranty Of Core Components: 1 Year
- Place Of Origin: Henan, China
- Machine Type: cryogenic treatment machine
Technical Specifications
| Machine Type | cryogenic treatment machine |
|---|---|
| Key Selling Points | Easy To Operate |
| Core Components | PLC |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 950 |
| Brand Name | WOBO |
| Valid Size (L*W*H) | 1000*700*700mm |
| Overall Dimensions (L*W*H) | 1800*1280*1220mm |
| Volume(L) | 490 |
| Refrigerating Capacity(Kg) | 1000 |
| After-Sales Service Provided | Video and online technical support |
| After Warranty Service | Video and online technical support |
| Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year |
| Showroom Location | None |
| Applicable Industries | Manufacturing Plant, Energy & Mining, metal metallurgy & machinery parts |
| Selling Units | Single item |
| Single Package Size | 201.00X155.00X154.00 cm |
| Single Gross Weight | 950.0 kg |
Product Details

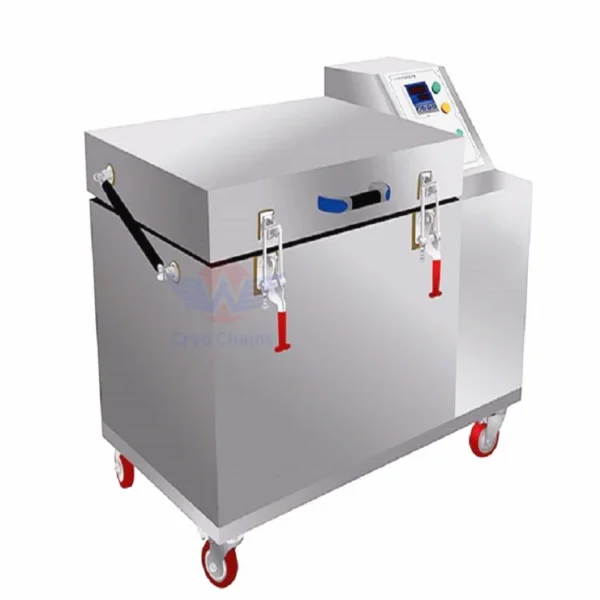

-196℃ Multi-purpose Deep Cryogenic Treatment Equipment:
Stainless Steel Inquid Nitrogen Intelligent Cryogenic Device For Animal Husbandry
Product Description
Main Features:
1. Refrigerating medium: liquid nitrogen (LN2);
2. One-button operation, simple and stable;
3. The box body is insulated by imported multi-layer composite insulation materials with thermal conductivity of 0.018~0.024 W/(m.K).;
4. The infusion tube is insulated by ultra-polar vacuum with the vacuum ≤1.33×10-3Pa;
5. Liquid nitrogen atomization +DTD technology can take into account the requirements of atomization protection workpiece and uniformity;
6. The control system USES touch screen +PLC, PID control mode, accurate temperature control, can achieve data storage and query functions;
7. It has USB, serial port, network port and other external interfaces;
8. Automatically print the process report after the process is finished;
9. The temperature sensor adopts class A precision PT100 platinum resistance thermometer and has been verified by the national authority;
10. The paperless recorder or paper recorder can accurately record the process temperature;
11. Solenoid valves are connected in parallel with one for standby and one for one-key switching;
12. Liquid nitrogen gas recovery function: the nitrogen discharged after refrigeration can be recovered to the storage tank for use in the heat treatment furnace;
13. Reminder and alarm functions;
14. Equipped with overtemperature sound and light alarm device;
15. Emergency stop function, can cut off the heating or cooling function, to ensure the safety of use;
16. End of process reminder.
2. One-button operation, simple and stable;
3. The box body is insulated by imported multi-layer composite insulation materials with thermal conductivity of 0.018~0.024 W/(m.K).;
4. The infusion tube is insulated by ultra-polar vacuum with the vacuum ≤1.33×10-3Pa;
5. Liquid nitrogen atomization +DTD technology can take into account the requirements of atomization protection workpiece and uniformity;
6. The control system USES touch screen +PLC, PID control mode, accurate temperature control, can achieve data storage and query functions;
7. It has USB, serial port, network port and other external interfaces;
8. Automatically print the process report after the process is finished;
9. The temperature sensor adopts class A precision PT100 platinum resistance thermometer and has been verified by the national authority;
10. The paperless recorder or paper recorder can accurately record the process temperature;
11. Solenoid valves are connected in parallel with one for standby and one for one-key switching;
12. Liquid nitrogen gas recovery function: the nitrogen discharged after refrigeration can be recovered to the storage tank for use in the heat treatment furnace;
13. Reminder and alarm functions;
14. Equipped with overtemperature sound and light alarm device;
15. Emergency stop function, can cut off the heating or cooling function, to ensure the safety of use;
16. End of process reminder.
Main Technical Indicators:
Temperature control range: -196℃ ~ room temperature
dewar storage capacity: customized by users
cooling rate: ≤60℃/min
heating rate: ≤20℃/min
temperature uniformity: ±2℃
temperature control accuracy: temperature drop, constant temperature ≤±2℃ (adjustable);
temperature control: intelligent control
distribution specification: AC110V-AC220V/50Hz
power consumption: ≤50W
dewar storage capacity: customized by users
cooling rate: ≤60℃/min
heating rate: ≤20℃/min
temperature uniformity: ±2℃
temperature control accuracy: temperature drop, constant temperature ≤±2℃ (adjustable);
temperature control: intelligent control
distribution specification: AC110V-AC220V/50Hz
power consumption: ≤50W

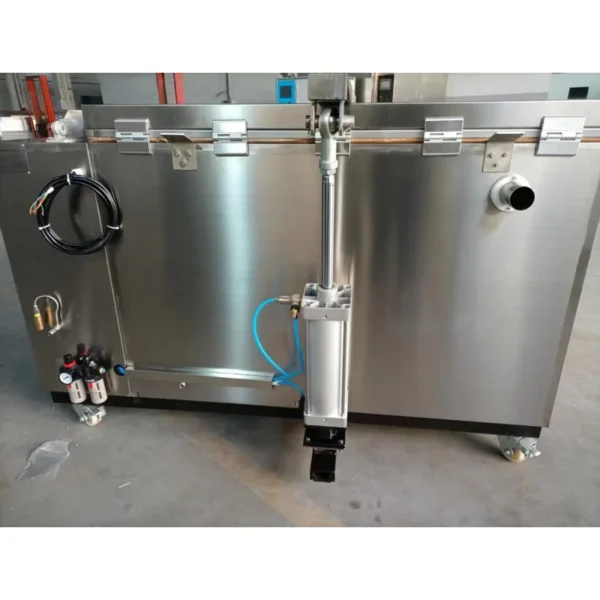

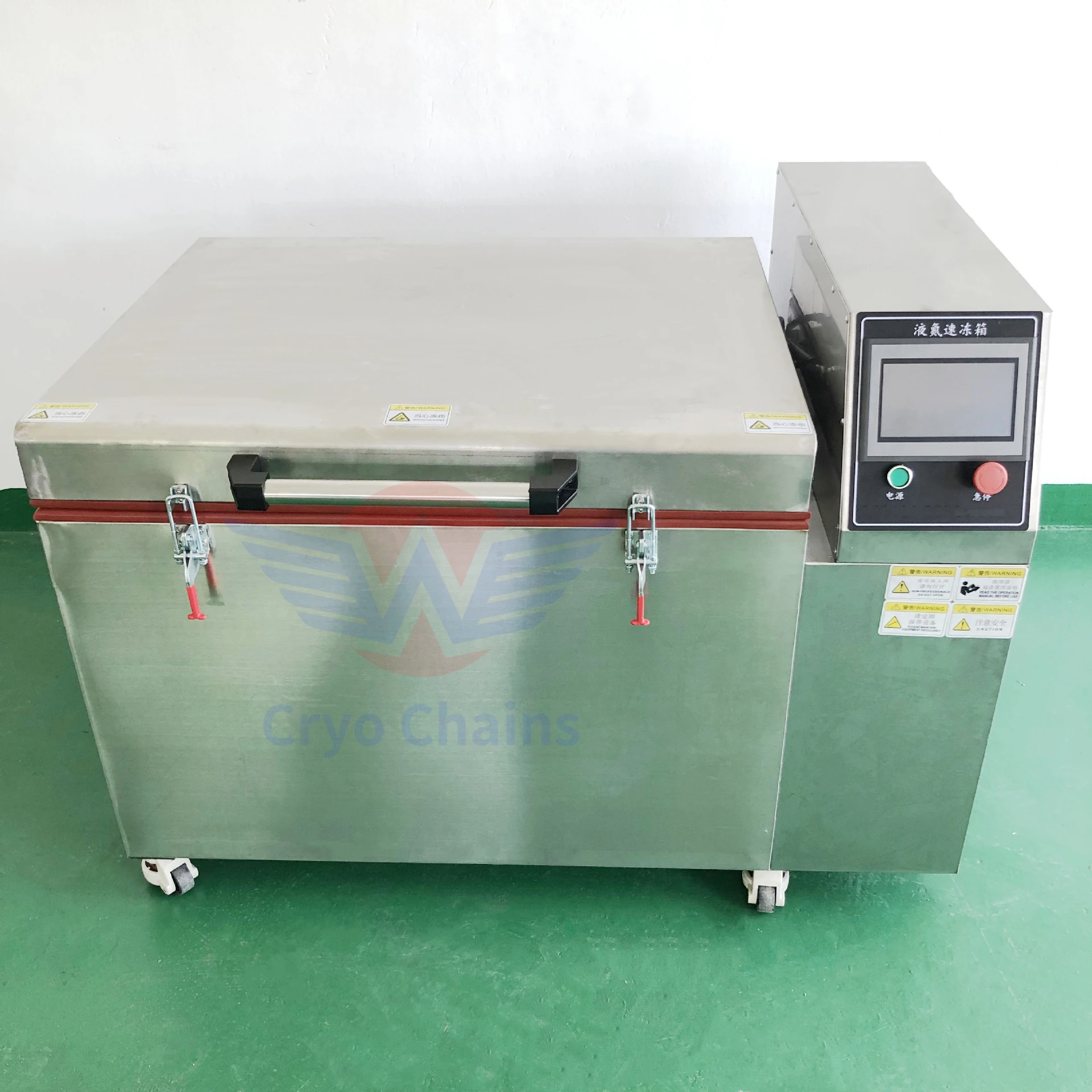

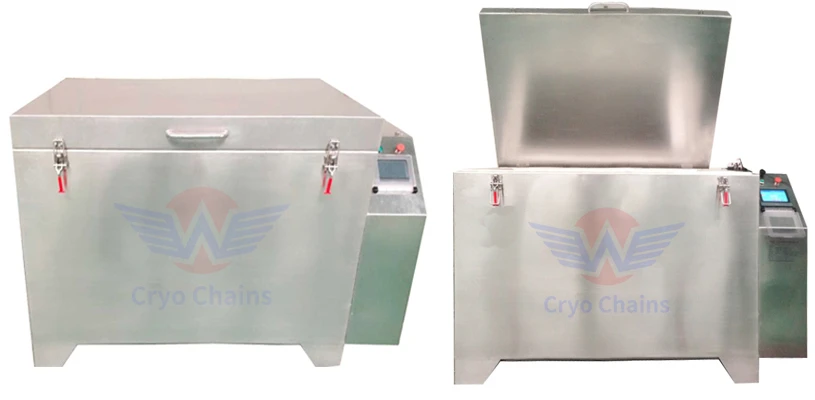

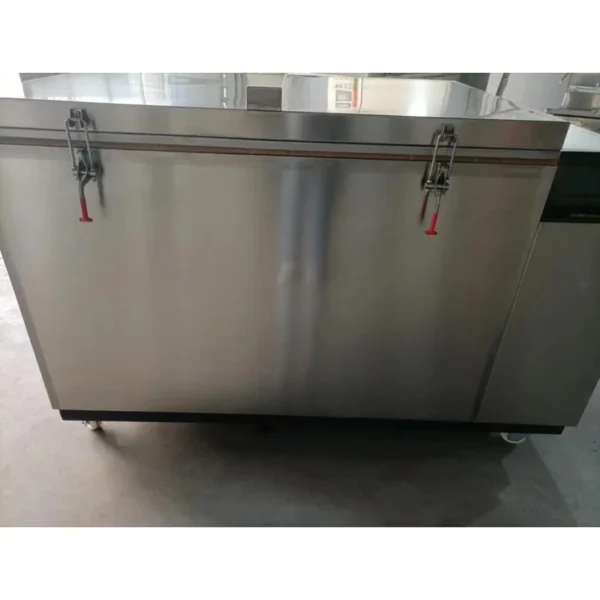

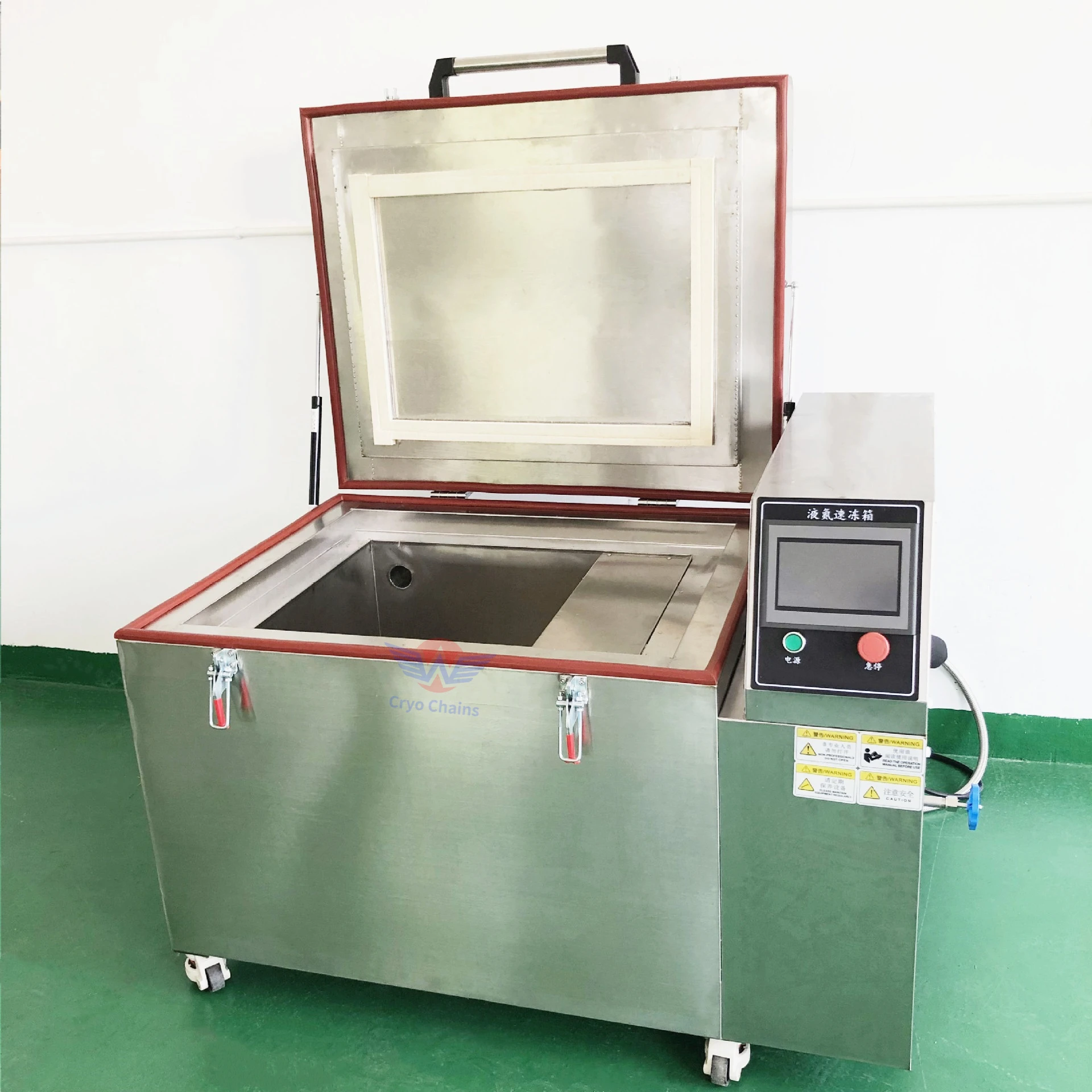

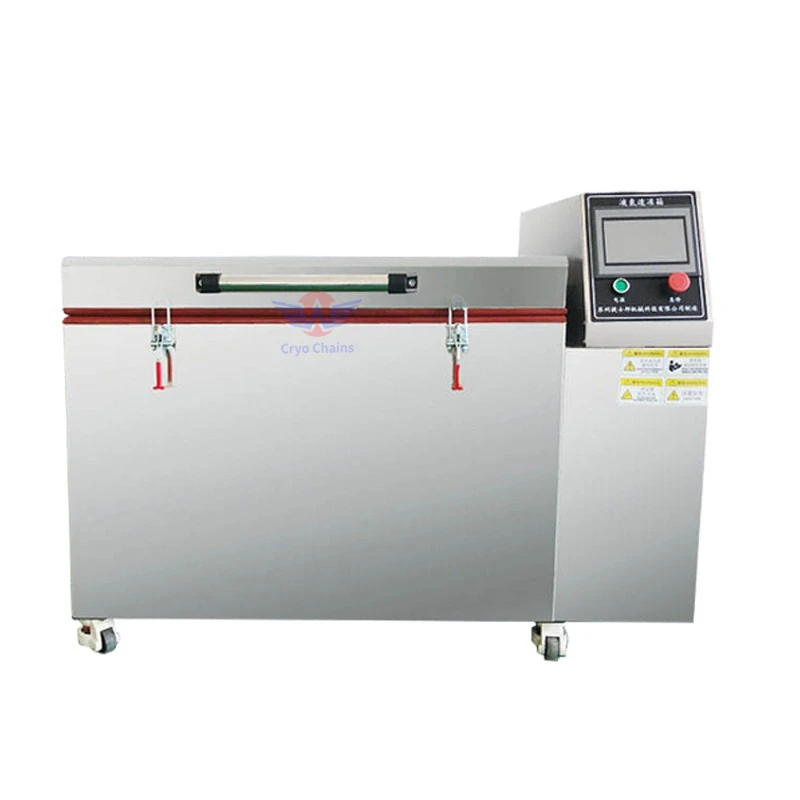

Product Show

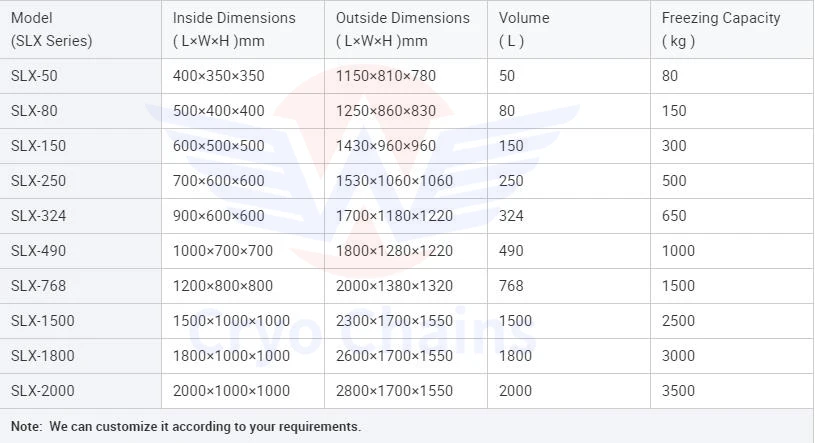

Product Parameter
Temperature control range | -196~150 degrees | ||||||
Temperature uniformity | ±2~±5 degrees | ||||||
Temperature control accuracy | ±2 degrees | ||||||
Cooling rate | 0.1~40 degrees / min | ||||||
Heating rate | 0.1~10 degrees/min | ||||||
Applications
Cryogenic treatment equipment can be used in the cryogenic modification of metal materials, pulverized metallurgical products, cutting tools, measuring tools, molds, mechanical parts, medical materials, etc. It can also be used in the fields of genetic and biological engineering, medicine, food processing, plant breeding, aerospace, animal husbandry and so on.
Company Information
We are focus on cryogenics over 10 years, and can provide professional one-stop service for cryogenic vessels, equipment, and solutions. We are good at non-standard customization service and developing new products on various cryogenic applications.
Cryo Chains is a high and new tech company, which is specialized in R&D, OEM and selling cryogenic container, cryogenic freezing equipment, and cryogenic solutions.
Cryo Chains has always been upholding the corporate concept that “the company should seek supreme quality, advanced technology, sincere service and innovative development”. We have a technical team of professional technical personnel with experience of about many years in R&D and manufacturing of various types of cryogenic liquid storage transportation, cryogenic freezing equipment.
We have accumulated rich experience in acquiring and keeping vacuum, multi-layer insulation, cryogenic freezing equipment and biological product cryopreservation, cryogenic intelligent electronic control system, and so forth. We have successful experience of several major cryogenic engineering implementations, we have established technical cooperation with various food plants, higher medical institutes and scientific research institutions.
Our business covers stem cell bank, blood bank, hospital, biological engineering, animal husbandry, higher institute, research institution, machinery, petrifaction, semi-conductor, aerospace, superconductor, industrial gas and liquid, metallurgy, frozen food preservation, and so on, and could provide mature project designs.
Our products have passed the test of national cryogenic liquid container testing center; meanwhile we get the CE certificate. The company strictly follows ISO 9001 quality control procedures and CE etc. to ensure its product quality and 100% qualified product rate. In the meanwhile, after-sale service system of quick response is established to make sure that users can safely use its products. Now our products have been sold to over 70 countries in the world and earn very good reputation.
Cryo Chains is a high and new tech company, which is specialized in R&D, OEM and selling cryogenic container, cryogenic freezing equipment, and cryogenic solutions.
Cryo Chains has always been upholding the corporate concept that “the company should seek supreme quality, advanced technology, sincere service and innovative development”. We have a technical team of professional technical personnel with experience of about many years in R&D and manufacturing of various types of cryogenic liquid storage transportation, cryogenic freezing equipment.
We have accumulated rich experience in acquiring and keeping vacuum, multi-layer insulation, cryogenic freezing equipment and biological product cryopreservation, cryogenic intelligent electronic control system, and so forth. We have successful experience of several major cryogenic engineering implementations, we have established technical cooperation with various food plants, higher medical institutes and scientific research institutions.
Our business covers stem cell bank, blood bank, hospital, biological engineering, animal husbandry, higher institute, research institution, machinery, petrifaction, semi-conductor, aerospace, superconductor, industrial gas and liquid, metallurgy, frozen food preservation, and so on, and could provide mature project designs.
Our products have passed the test of national cryogenic liquid container testing center; meanwhile we get the CE certificate. The company strictly follows ISO 9001 quality control procedures and CE etc. to ensure its product quality and 100% qualified product rate. In the meanwhile, after-sale service system of quick response is established to make sure that users can safely use its products. Now our products have been sold to over 70 countries in the world and earn very good reputation.
Certifications
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $6260 / piece
- 10+ piece: US $6160 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezing equipment?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by WOBO Industrial Group Corp., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full WOBO Industrial Group Corp. range on HVACR Nexus.
