Key specification for this blast freezer: 380V, cooling capacity 700kg/hour. Everything below is reproduced from the factory data sheet. Made by WOBO Industrial Group Corp. (8 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Blast Freezer
- Power(W): 13KW
- Voltage: 380V
- Cooling Capacity: 700kg/hour
- Material: Stainless Steel
- Warranty: 1 Year
- After Warranty Service: Online and Video technical support
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Voltage | 380V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Core Components | Engine |
| Key Selling Points | High Productivity |
| Power(W) | 13KW |
| Place Of Origin | China |
| Cooling Capacity | 700kg/hour |
| Brand Name | Cryo Chains |
| Dimension(L*W*H) | 12.5*2.17*2.1m |
| After Warranty Service | Online and Video technical support |
| Local Service Location | None |
| After-Sales Service Provided | Online and Video technical support |
| Freezing Time | 3~50min |
| Inlet Height | 900mm |
| Exhaust Pipe Size | 300mm |
| Material | Stainless Steel |
| Marketing Type | Ordinary Product |
| Applicable Industries | Food & Beverage Factory, Farms |
| Showroom Location | None |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| Weight | 50000 |
| Selling Units | Single item |
| Single Package Size | 300X150X150 cm |
| Single Gross Weight | 65.000 kg |
Product Details

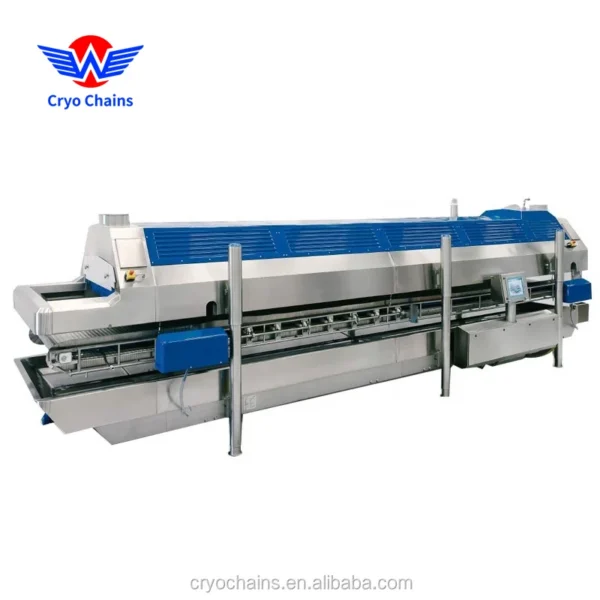

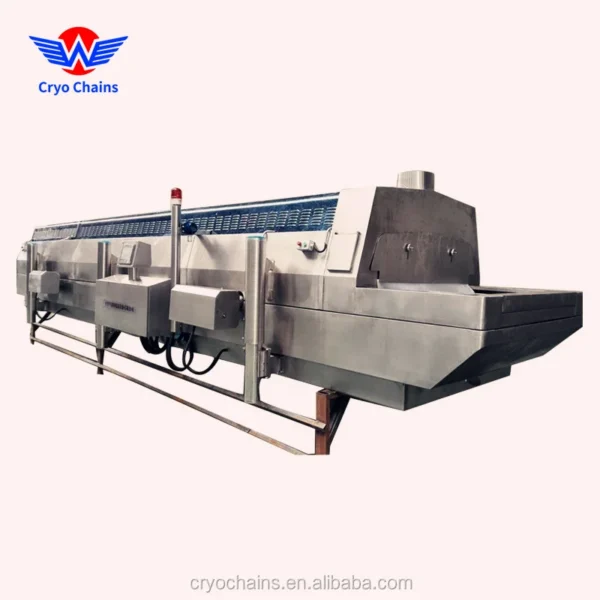

IQF Blasting Liquid Nitrogen Tunnel Freezing Machine: | ||||||||
Cryogenic Iqf Freezing Tunnels Liquid Nitrogen Tunnel Freezer Small Quick Freezer Iqf Tunnel Blast Freezer For Fish | ||||||||
Introduction of IQF Liquid Nitrogen Quick Freezer:
modular in design, enabling you to expand production by adding additional tunnels for a longer freezing production line. It is available in several models and belt widths with production rates of 300–2,500 kg/h .
Liquid nitrogen temperatures can reach minus 196℃(-196℃).When it is in contact with food,Gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick reozen.Such repid freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly,complete the exchange of hot inverse,thereby improving the utilization of the nitrogen.
Feature of Liquid Nitrogen Quick Freezer:
2) Fast freezing time, the fastest freezing time is 5 minutes.
3) No damage of cell structure, no dehydration and dry loss,no moisture loss.
4) Improve productivity, improve texture, color, flavor of frozen product.
5) The nitrogen freezer is Environmental, no pollution, no noise.
6) Easy to operate and easy to repair, dont need special technician.
With lifting mechanism, ultra-high configuration;
With oxygen concentration alarm, safety and energy saving;
Exquisite workmanship, pay attention to quality;

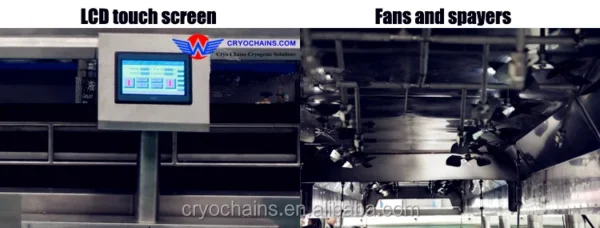

Intelligent temperature control, fast refrigeration;
Clean and environmentally friendly.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $41200 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the blast freezer be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by WOBO Industrial Group Corp., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full WOBO Industrial Group Corp. range on HVACR Nexus.
