The evaporative air cooler listed here carries 20000m3/h, type EVAPORATIVE AIR COOLER, documented exactly as the manufacturer publishes it. Made by Fuzhou Green Mechanical And Electrical Technology Co., Ltd. (3 years on the platform, typical reply ≤13h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Evaporative Air Cooler
- Cooling Capacity: 25Kw
- Air Flow: 20000m3/h
- Speed: 10
- Warranty: 1 Year
- Certification: CE
- Place Of Origin: Fujian, China
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Ceiling Mount |
| Fan Motors Type | AC |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 80 |
| Brand Name | Green |
| Certification | CE |
| Model No. | GL20-ZX10CA |
| Color | white |
| Dimension | 1150*1150*960mm |
| Speed | 10 |
| Air Flow | 20000m3/h |
| Cooling Capacity | 25Kw |
| Temperture | 5-12 degree Celsius |
| Noise | ≤74DbA |
| Application Area | 100-150m2 |
| Selling Units | Single item |
| Single Package Size | 115X115X96 cm |
| Single Gross Weight | 80.0 kg |
Product Details

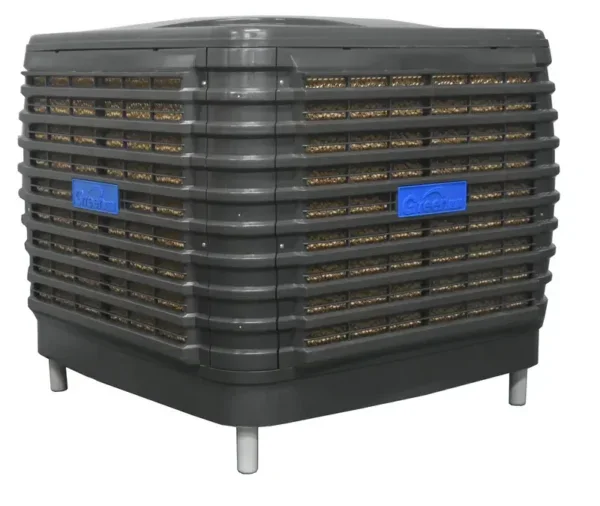

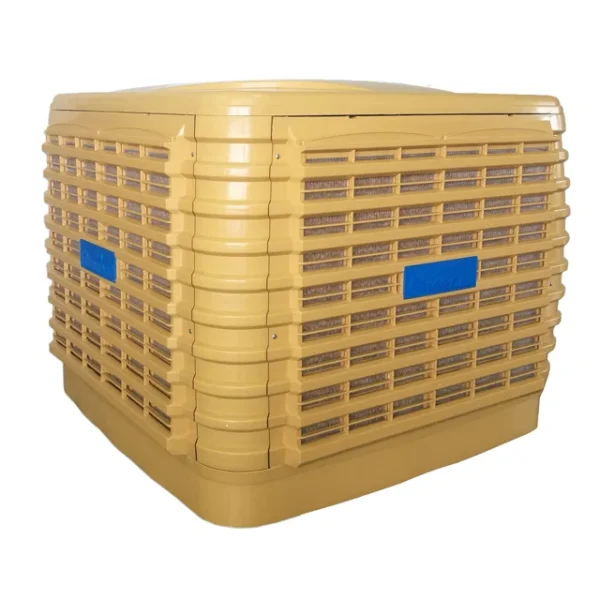

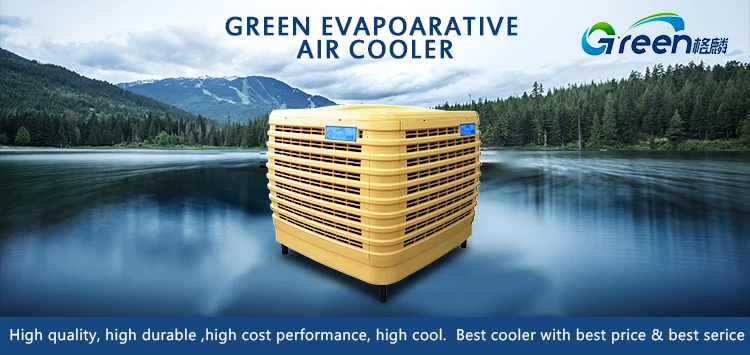

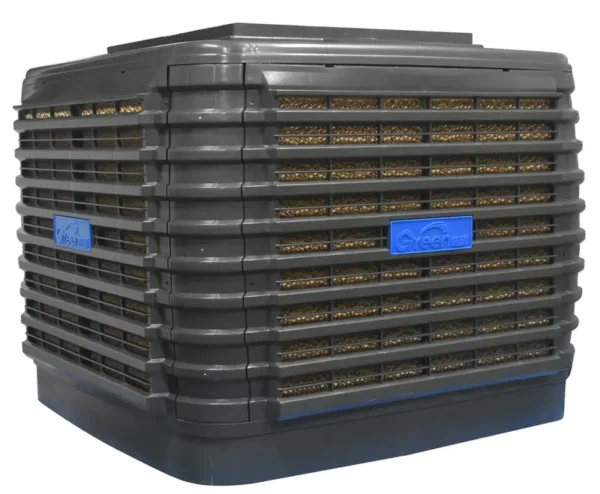

Industrial air cooler
Industrial evaporative air cooler

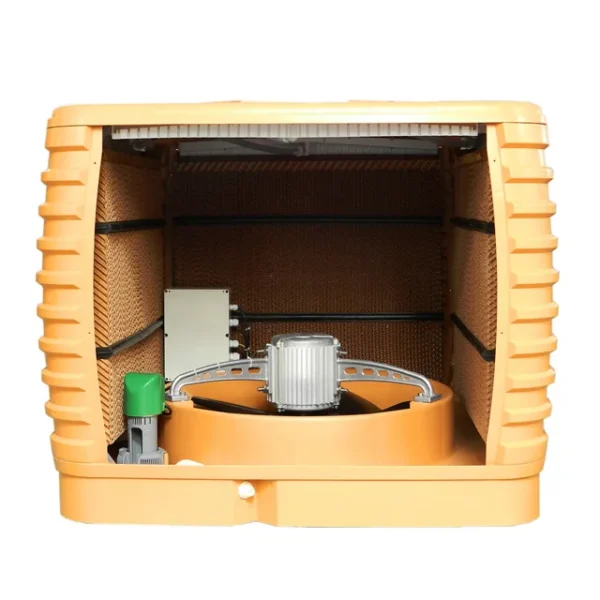

GL20-ZX10CA Detailed Features
1.All plastic shell of cooler is made of high strength composite materials
2.Special designed for air cooler fan, reach top air flow of 20,000 m³/h, full plastic structure, high pressure of fan and low noise.
3.With integrated and special water distribution structure makes the water distribute smoothly.
4 .Using high efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.
5 .Specially designed air cooler body for ten years guarantee.
6 Enhanced column design and strong machine
7 .Streamline arc designed and smooth shape; unique in the country and best sense of beauty
8. 1.3kw Fan motor which used aluminum shell and resistance to high temperature and high humidity; it operate smoothly and have long service life.
9. With the special water pump of the evaporative air cooler, resistant to idle, and fit to muddy run.
10 .Using high quality cooling pad, high saturated, five years guarantee for cooling pad.
11 .Designed over-voltage over-current electric control protection, and intelligent LCD controller which is easy to operate and understand.
Technology parameters
| Model | Vol./Fre. | Motor Power | Air flow | Full Pres. | Fan Speed |
| GL20-ZX10CA down discharge | all power model | 1.3kw | 18000m3/h 10600CMF | 210Pa | Variable |
| Dimension of air outlet | Physical dimension | Pad sizes | Noise(dba 1m) | Net.Wei. | Op. Wei. |
| 660*660mm (26”X26”) | 1150x1150x960mm 45.3"x45.3"x37.8" | 775x670x100mm 30.5"x26.4"x4" | ≤73 | 80kgs | 120kgs |
| Airflow (fan)style | Rate Current | Water consumption | Water tank capacity | Water drain | Effective area |
| axis-flow | 5.6(A) | 40-60(l/h) | 45(L) | Auto drain | 100-200(m2) 1000-2000sq.ft |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $420 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this evaporative air cooler carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Fuzhou Green Mechanical And Electrical Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fuzhou Green Mechanical And Electrical Technology Co., Ltd. range on HVACR Nexus.
