Water Cooled Fan, Wall, 340, 36

This water cooled fan is listed with the manufacturer’s full published specification — air flow (m³/h) 340, power input (w) 36, refrigerant Water. It is produced by Dezhou Kailong HVAC Equipment Co., Ltd., a verified supplier of 2 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Water Cooled Fan

• Power Input (W): 36
• Air Flow (M³/H): 340
• Refrigerant: Water
• Warranty: 3 Years
• Place Of Origin: China Shandong
• Application: Hospital, Hotel, Home, School, Plant, Warehouse, Office, Mall, Apartment

Technical Specifications

Product Details

Product Details

Products Description

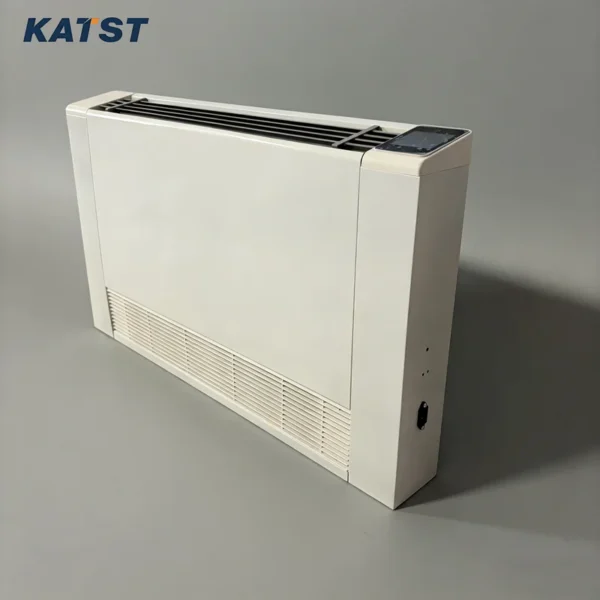

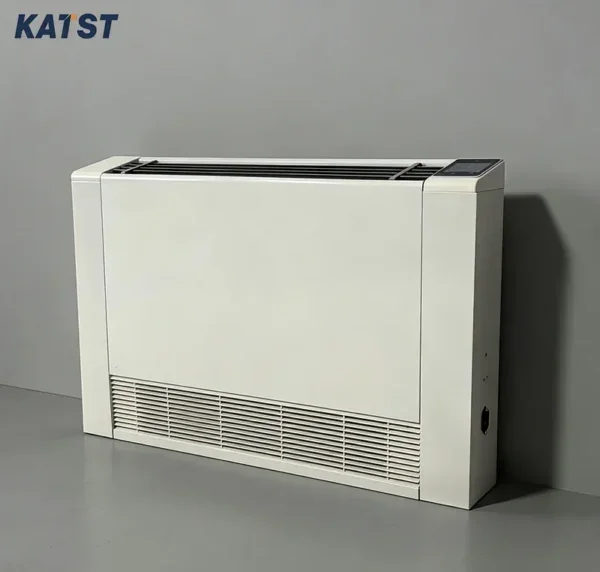

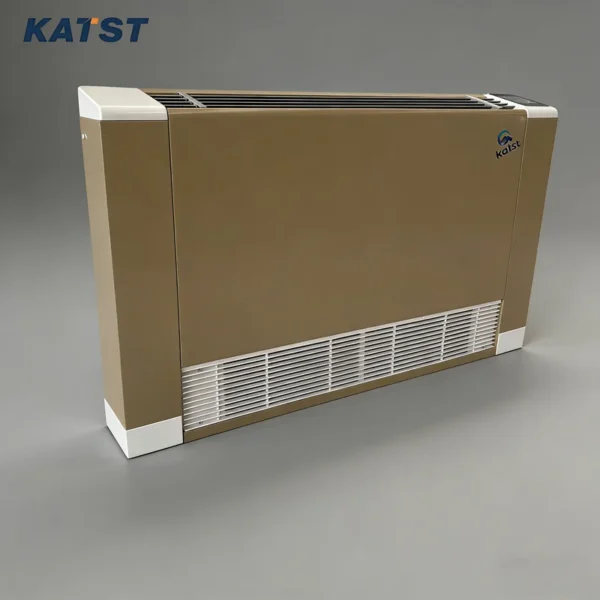

130mm Slim Exposed Fan Coil Unit

130mm Slim Exposed Fan coil is composed of condenser and wind turbine motor, indoor fan coil part and no compressor to participate in the work, fan coil internal copper pipe circulated by the heat pump to provide cold water or hot water, through the wind turbine motor operation, will produce the cold and heat blown indoors, so as to achieve the effect of refrigeration and heating, such a way of working is more energy-saving and environmentally friendly, in full compliance with the modern low-carbon energy saving trend, at the same time, the water system working principle, on the one hand, to ensure that meet the cold and heat under the premise, humidity can also be a good complement to make the living environment more comfortable. At the same time, due to the working principle of the water system, on the one hand, under the premise of ensuring that meets the cooling and heating, humidity can also be a good supplement, so that the living environment is more comfortable.

Product Features

Product Paramenters

Model   parameters	LM-85（6 in, 6 out）	LM-136（6 in, 6 out）

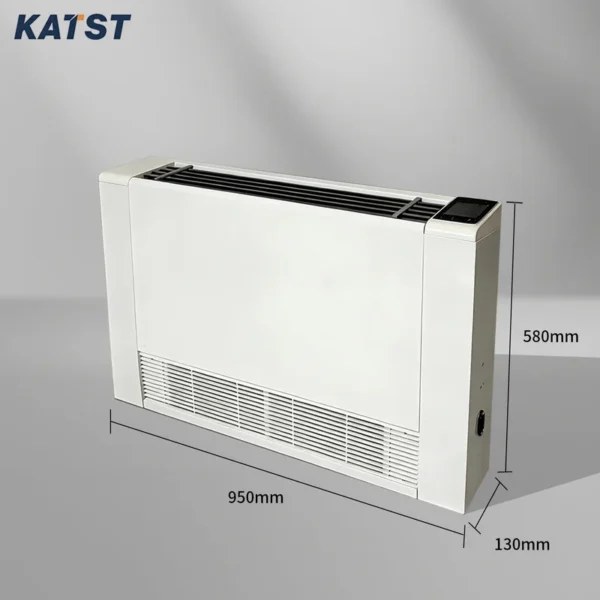

Size of the fan coil unit	950*130*580	1225*130*580
Outlet size	560*100	940*100
Return air opening size	560*100	940*100
Exhaust port material	aluminium alloy	aluminium alloy
Inlet material	plastic material	galvanized sheet
Fin material	hydrophilic aluminum foil	hydrophilic aluminum foil
Cooling table copper pipe	9.52*0.28	9.52*0.28
power(W)	20W	25W
weight(KG)	16	20
Load area(㎡)	15-20	20-30
blast capacity（m³/H)	400-800	400-1000
Thermostat mode	Ventilation, warm air, cold air	Ventilation, warm air, cold air

From domestic to international, our sales network covers many cities and regions, and our products have receivedhigh praise in the market, At the same time, we continuously develop and research new products to meet the ever.changing needs ofour customers.

Our Advantages

Experienced and professional HVAC solution provider Floor plan piping design

One-stop service. we could not only provide the unit, but also all installation materials

We could send out our engineer to you if needed

24*7 online service

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $60 / set
  • 20–49 set: US $50 / set
  • 50+ set: US $40 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooled fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dezhou Kailong HVAC Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dezhou Kailong HVAC Equipment Co., Ltd. range on HVACR Nexus.
