The explosion proof fans listed here carries 380v or customize, 38.5kw(51.63hp), documented exactly as the manufacturer publishes it. Made by Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co., Ltd. (11 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Explosion Proof Fans
- Model Number: QX500
- Power: 38.5kw(51.63hp)
- Voltage: 380v or customize
- Warranty: one year
- Place Of Origin: Guangdong, China
- Type: Spray Booths
Technical Specifications
| Type | Spray Booths |
|---|---|
| External Size | 7000*5500*3300mm(L*W*H) |
| Heating System | Electric Heating |
| Power | 38.5kw(51.63hp) |
| Lighting System | Led Lighting, explosion proof lighting, energy saving led light |
| Place Of Origin | Guangdong, China |
| Voltage | 380v or customize |
| Model Number | QX500 |
| Warranty | one year |
| Usage | car painting&baking |
| Certify | ISO9000,CE |
| Filters | prefilter/ceiling filter/activated carbon filter |
| Ventilation | 2 intake fans,1 exhaust fan |
| Color | red,orange,blue,white |
| Selling Units | Single item |
| Single Package Size | 700X230X230 cm |
| Single Gross Weight | 68.0 kg |
Product Details
PRODUCT HIGHLIGHTS

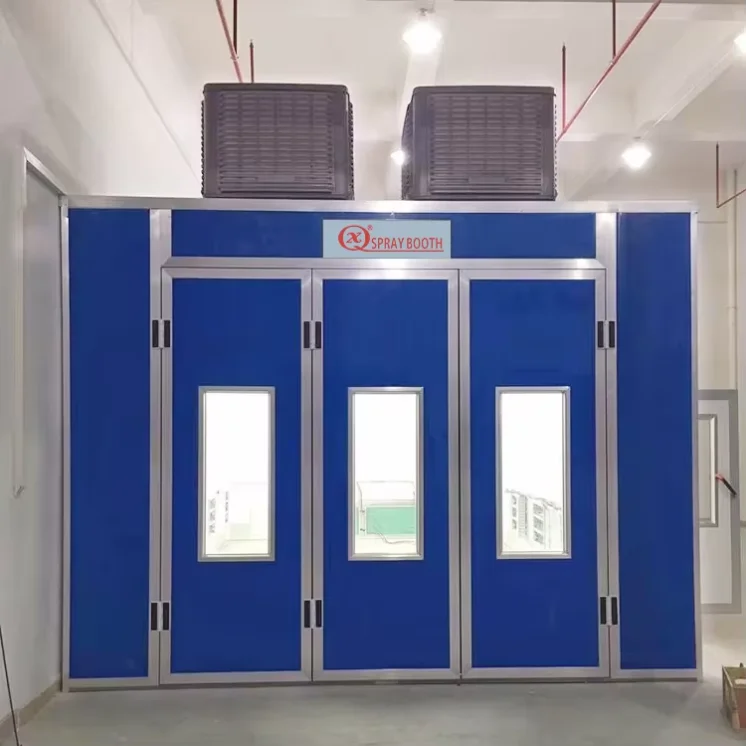

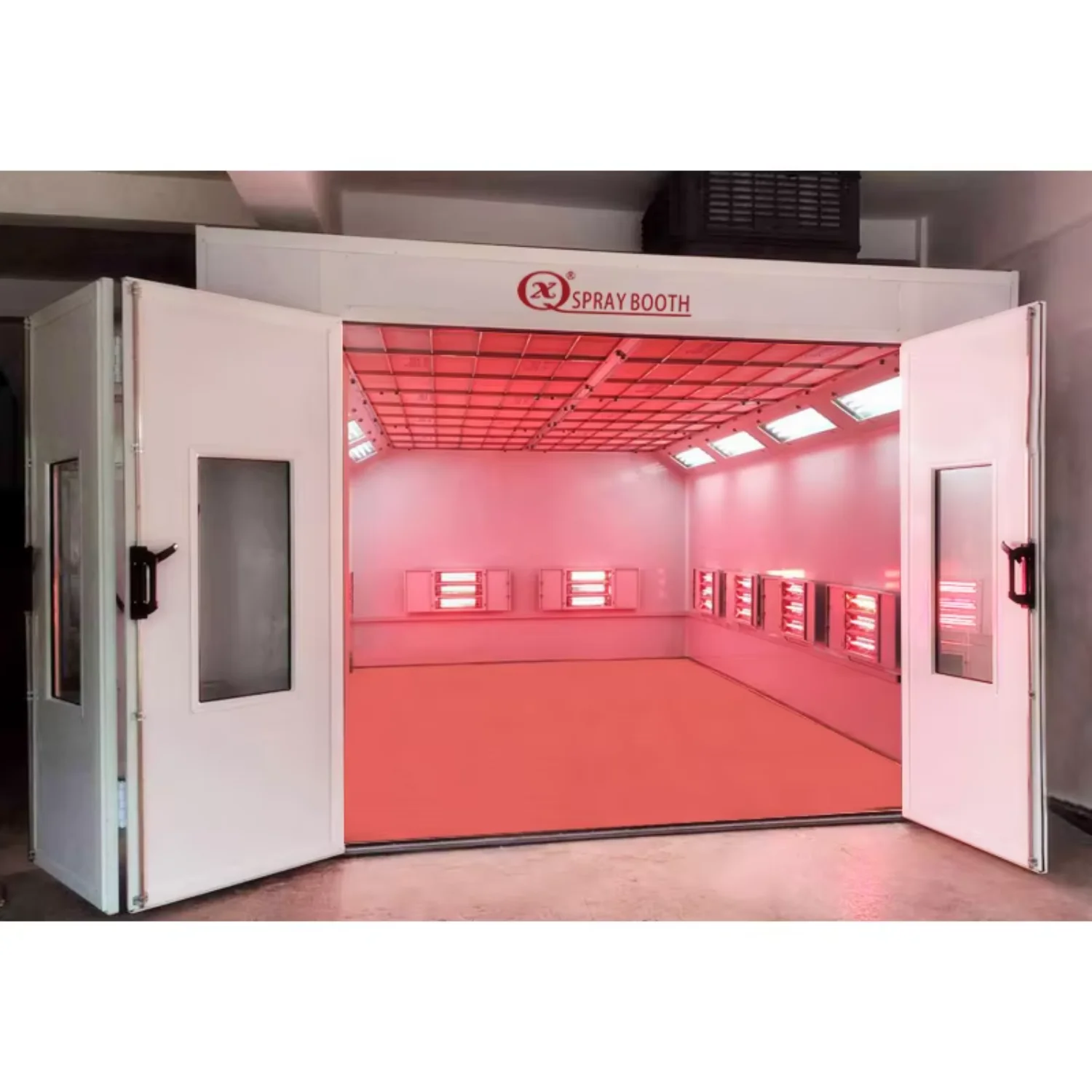

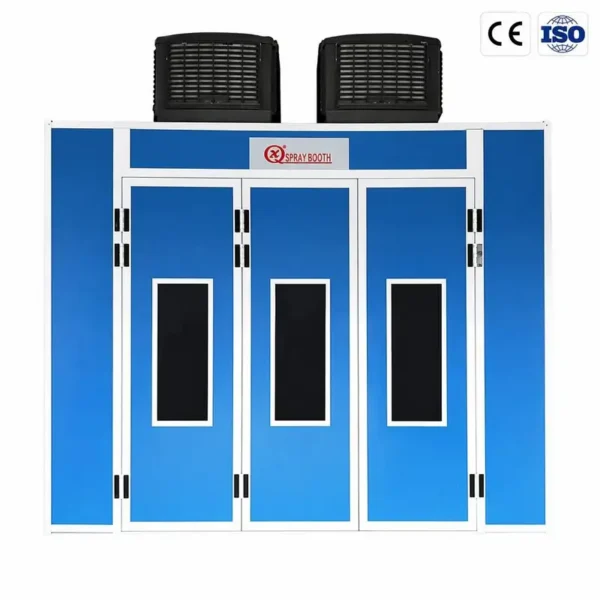

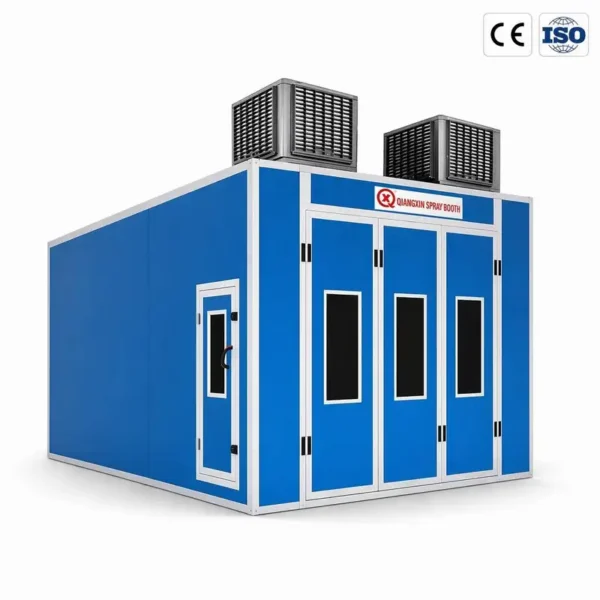

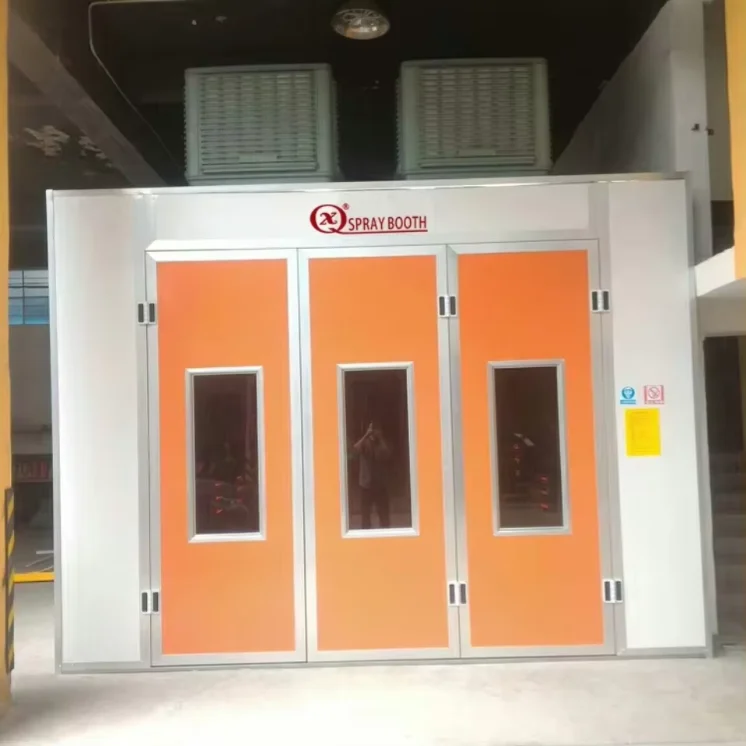

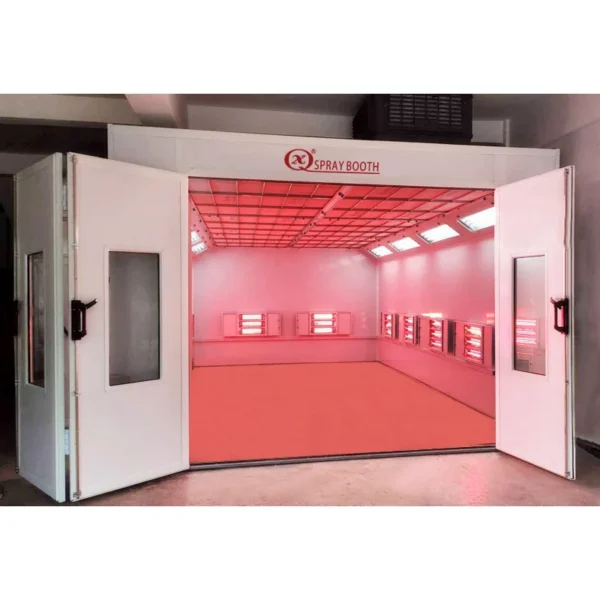

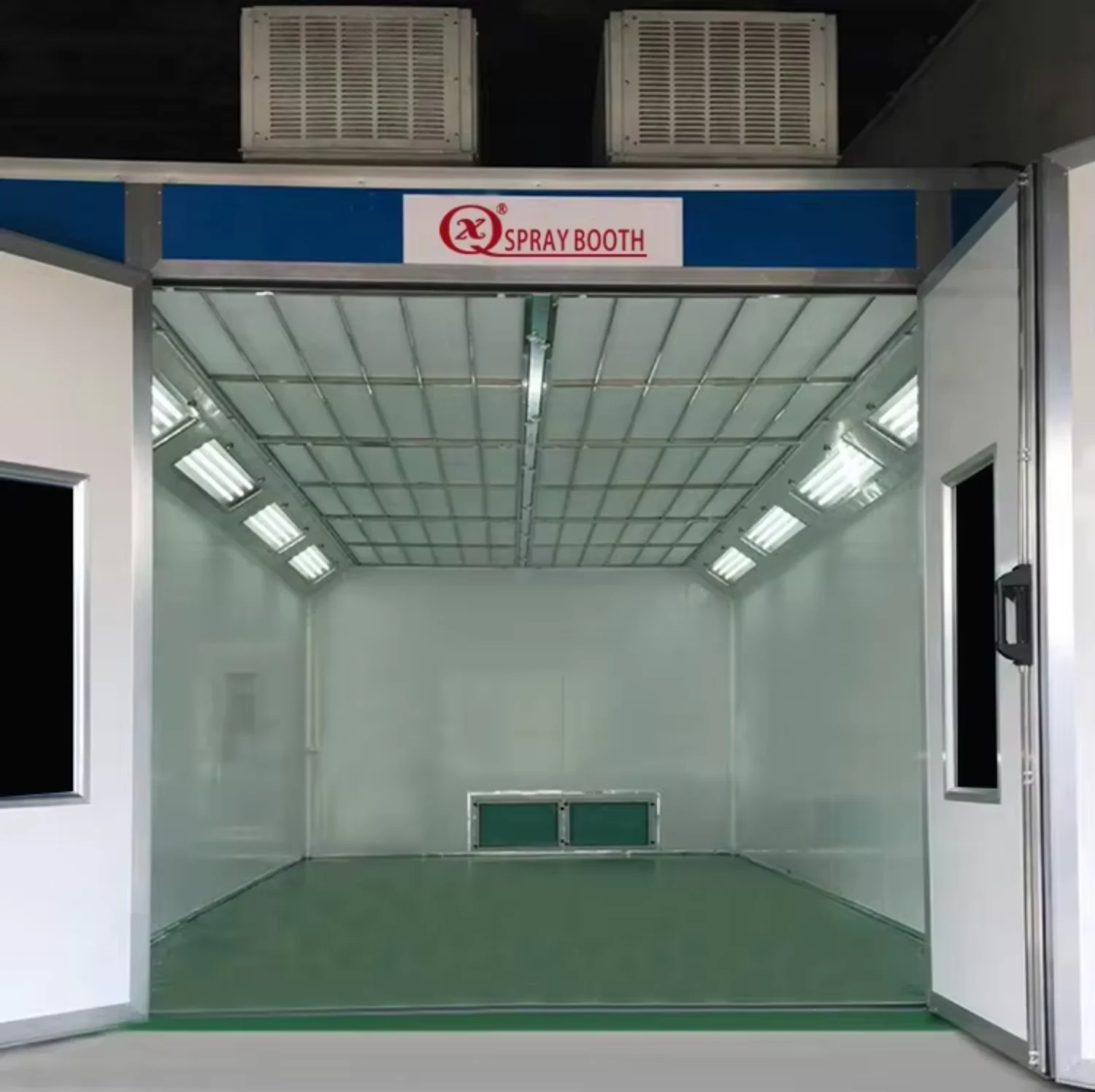

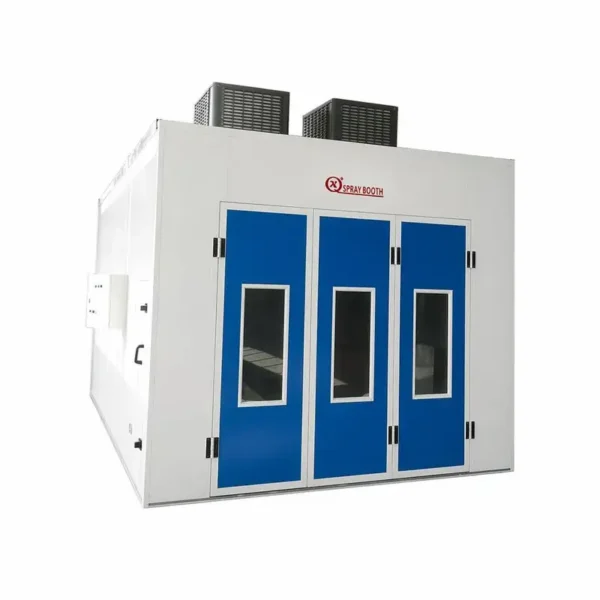

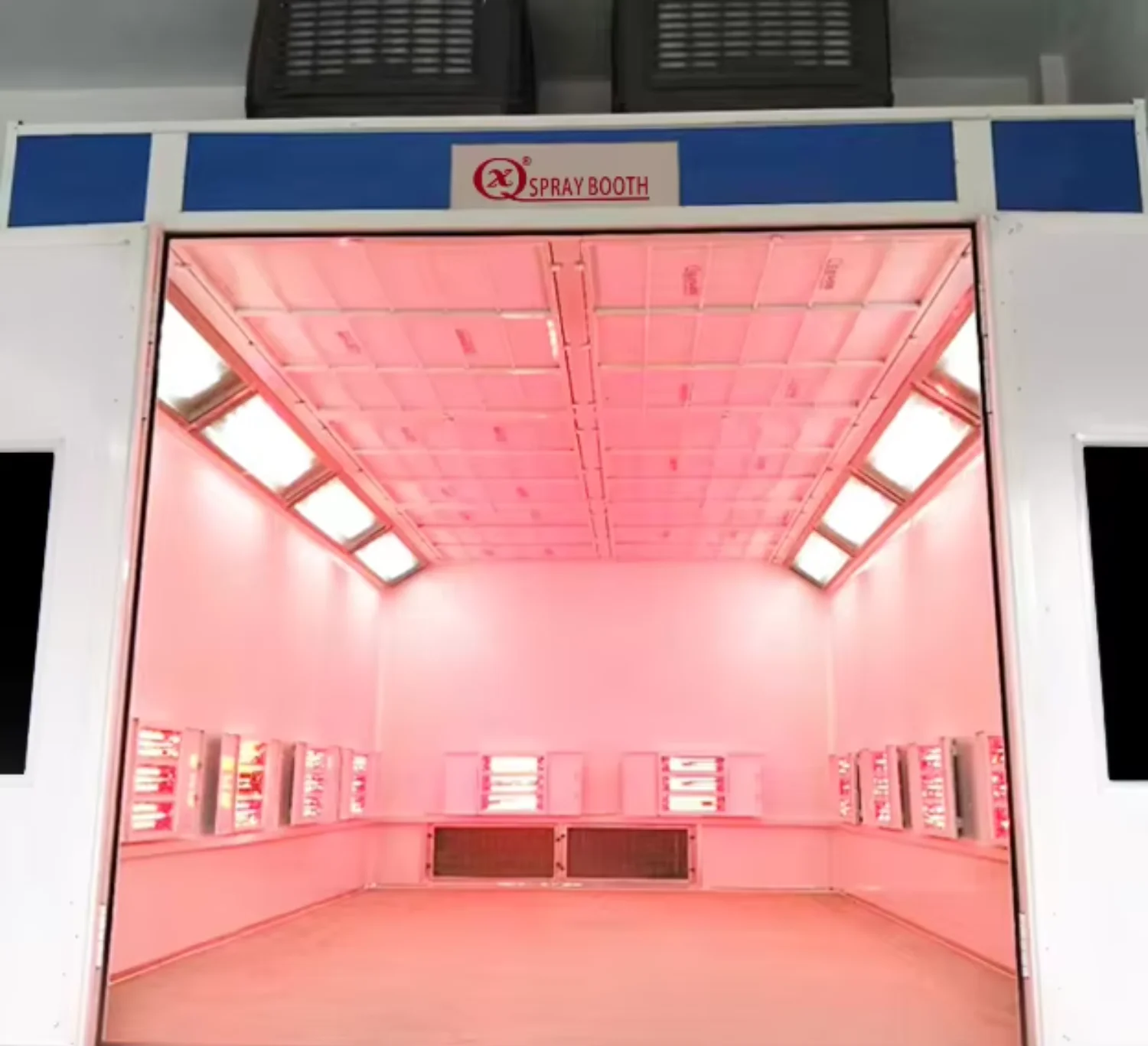

- Model QX500 Upgrade your auto repair and painting efficiency with our fully upgraded QX500 car spray booth. Designed for professional workshops, it provides a dust-free, safe, and highly efficient baking environment.
- Durable & Insulated Structure: Built with high-quality 50mmEPS wall panels, offering excellent thermal insulation, noise reduction, and structural stability for long-term commercial use.
- Clean & Purified Environment: Features a 3-layer advanced filtration system . It effectively captures dust and paint particles, ensuring a flawless painting finish while protecting the environment.

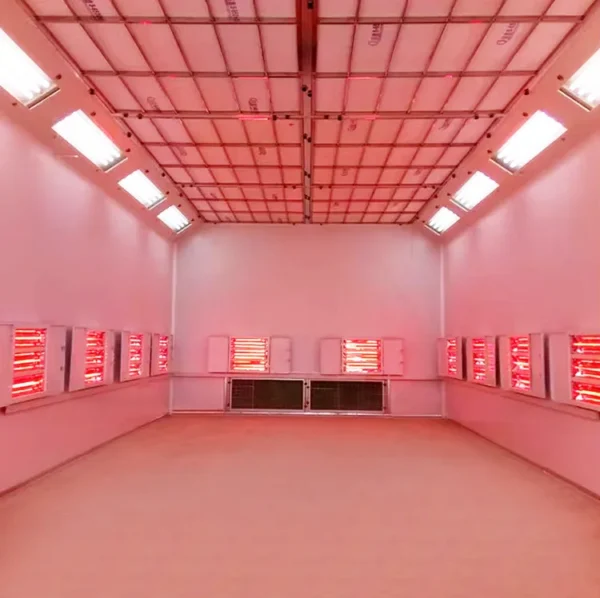

- Super Bright & Safe Lighting: Adopts 24 pcs explosion-proof energy-saving LED lights, providing shadow-free illumination for precision painting operations.
- High-Power Ventilation: Powered by a 14.5 kw system with 2 intake fans and 1 exhaust fan, guaranteeing optimal airflow and rapid extraction of paint fumes.
Internal Size | 6900*3900*2650(mm)(L*W*H) |
External Size | 7000*5500*3300(mm)(L*W*H) |
Entrance Door | •1set 3 folds door aluminum alloy binding framework(thickness:1.8mm) size:2830*2600(mm)•With strengthen door hinge, door lock bar and durable door handle •Aluminum alloy and steel panel surface use powder coating treatment with bright surface and uniform color |
Personal Door | 1set side hung door aluminum powder coating surface treatment durable door fame: 700*1700mm(W*H), with safety lock and handle. (Face the booth,personal door is on the right side) |
Wallboard | •Temper glass lamp boxes are 45° fixed on upper two side,with 8 group*4pcs =32pcs 18w energy saving LED lamp •Compared with traditional lighting,it can save up to 65% of energy and lifetime more than 30,000 hours |
Lighting System | •With 2pcs centrifugal air blowers,total parameter:2 sets*4kw 12500m3/h,(centrifugal type,durable cooper motor,easy installation)•With 1pcs centrifugal air blowers,total parameter:5.5kw. 18000㎡/h, (centrifugal type,durable cooper motor,easy installation) |
Cabinet setting | •Intake air from upside,downside exhaust wind. •Frame is made of tube 50*50mm,body plate is made of galvanizedplate(thickness:0.8mm)•With black aluminum alloy handle,overall smooth and rust-proof,fan cabinets in Sliver(face the booth,the air cabinet is on the right side) |
Heating system | •With 1pc Italy brand RIELLO diesel burner,1pc stainless steel heat exchanger,1pc actuator,1pc fuel box shelf. •Maximum heatoutput 250000k cal/h.Heat up quickly.The operating temperature:50℃-60℃ Maxtemperature:75℃ •Pooer electric damper. •1unit heat exchanger,made of stainless steel SUS304, round type multi-cycle,radiatorpipe, equipped with safe anti-explosion hole |
Filtration system | High efficient 4 filters to provide dust-free space for painting and meet with environmental protection: ①Air inlet with prefilter:dust holding capacity 400g/㎡ ②Ceiling equipped with CC-G650 type high-efficiency filter ③With three layers of activated carbon in exhaust cabinet. ④Outlet with filter cotton |
Control system | Switch for painting,baking,light switch,breakdown indicator ,power switch, emergency stop switch (Face the booth,the controlsystem is on the right side) |
Air Duct | •Made of galvanized plate,700*700*900,2pcs straight,1pc elbow. •Reinforcing frame and professional corner flanges |
Basement (foundation) | High performance full antirust treatment grille galvanized(5 rows grilles). Square tube column.2pcs antirust treatmentramps:2000*630mm(L*W). |
Voltage | 380V-3PH-50Hz as customer's required |
Light intensity | ≥1000luxes |
No Load Speed | 0.3 m/s |
Total Power | 38.5kw |
Place of Origin | China |
Warranty | 1 year |
Guangzhou Qiangxin: Your Trusted 11-Year Direct Factory We are not just a trading company; we are the direct manufacturer with over 11 years of expertise in environmental protection electromechanical equipment. Direct Factory Pricing: Cut out the middleman and get the best B2B wholesale prices. Customization Experts: We fully support Minor Customization and Drawing-based Customization. Need a specific internal size, different door layout, or custom color (Red, Orange, Blue, White)? Our engineer
Strict Quality Control & EU Standard Compliant Quality and safety are our top priorities. The QX2000AB spray booth is manufactured under strict quality management systems and holds global certifications. CE Certified: Fully complies with European health, safety, and environmental protection standards. ISO9000 Approved: Manufactured in an ISO-certified facility ensuring consistent quality for every unit delivered.
We support full personalized customization to meet your unique requirements.
FAQs
Who are we?
We are direct manufacturer of all kinds of booth and oven with 12+ years experience in Guangdong South China.
How long is the warranty?
12 months
How is the payment?
TT/ Payment through Alibaba/ Cash
How is the transportation?
By sea/ train /factory pick up
Can the voltage be customized for my country?
Yes! The standard voltage is 380V/3Phase/50Hz, but we can customize the electrical system to match your local power supply requirements.
How can you buy from us?
Contact our sales for more details about product ,purchasing,after-sales service through Alibaba,email, phone and so on.
How can we guarantee quality?

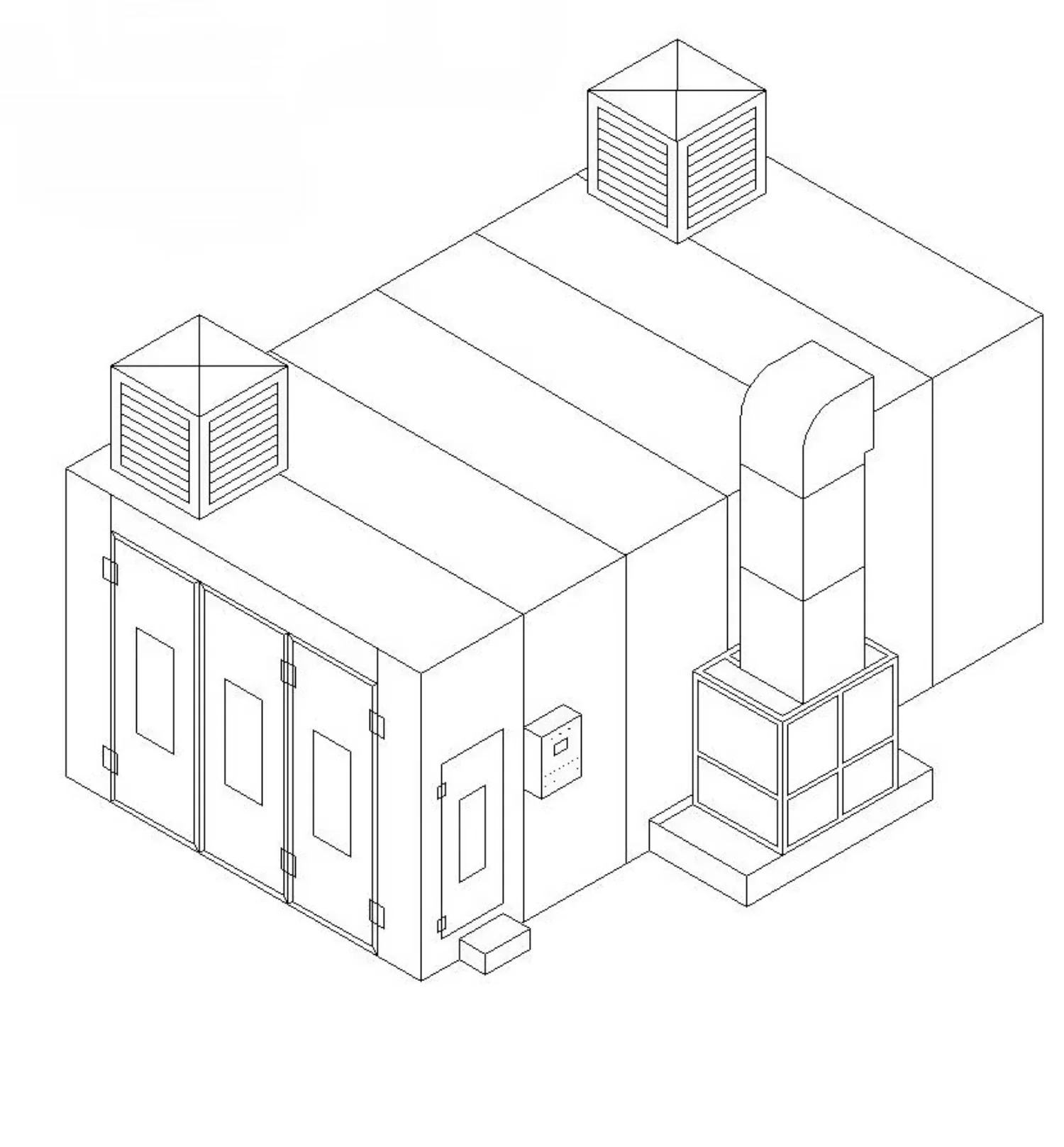

Always a complete parameter and 3D drawings before production; Always final Inspection before shipment.
Why should you buy from us not from other suppliers?
a. High-quality raw materials is used. b.Our product are CE,ISO,RCM certificated. c.We have 12 years of product experience and industry experience, achieving extraordinary quality and excellent service.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this explosion proof fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a one year warranty. Spare parts and technical support remain available after the warranty period.
Can the explosion proof fans be supplied for my local voltage?
The standard configuration is 380v or customize. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
