External rotor motor — voltage 220/240/380/420, power source Electric. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This External Rotor Motor
- Model Number: AF600150-B
- Power Source: Electric
- Voltage: 220/240/380/420
- Material: Cast Iron
- Blade Material: metal
- Speed: 1300/1400RPM
Technical Specifications
| Blade Diameter | 23.6IN |
|---|---|
| Voltage | 220/240/380/420 |
| Speed | 1300/1400RPM |
| Type | Wall-Mounted Axial Fan |
| Material | Cast Iron |
| Blade Material | metal |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | symbang |
| Model Number | AF600150-B |
| Color | Black |
| Certification | CE;RoHS |
| Size | 600*150mm |
| Motor Type | Ac fan |
| Applicable Industries | Building Material Shops/Machinery Repair Shops/Food & Beverage Factory |
| Selling Units | Single item |
| Single Package Size | 70X70X25 cm |
| Single Gross Weight | 15.0 kg |
Product Details

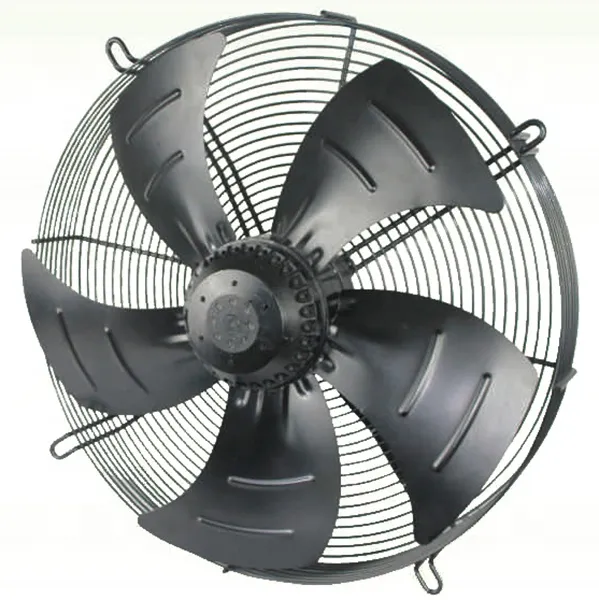

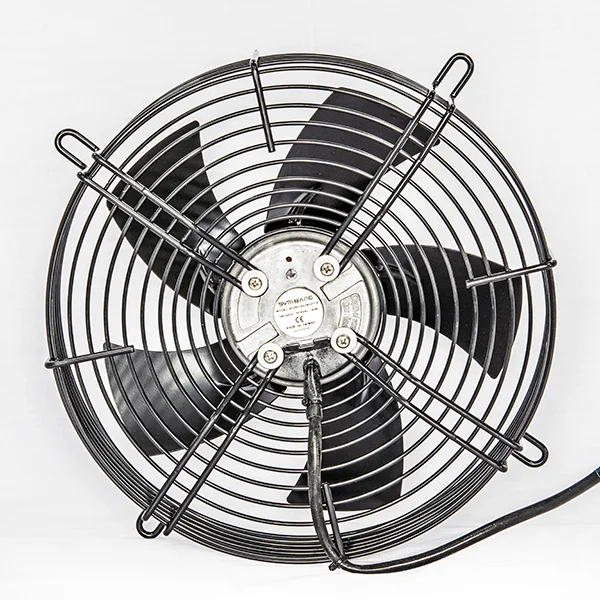

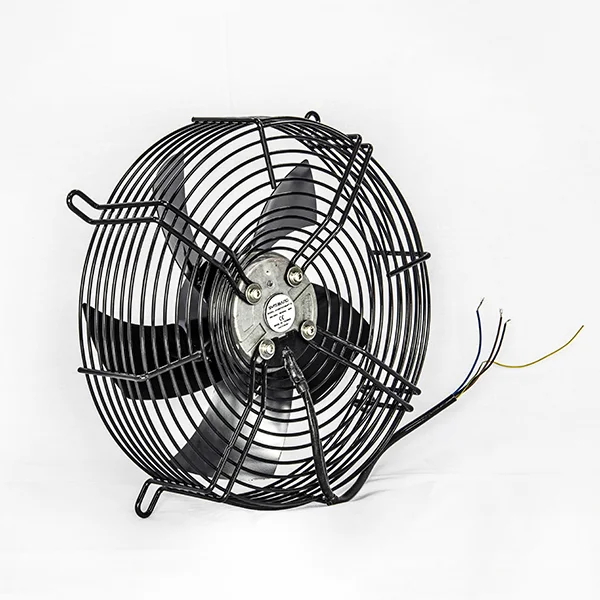

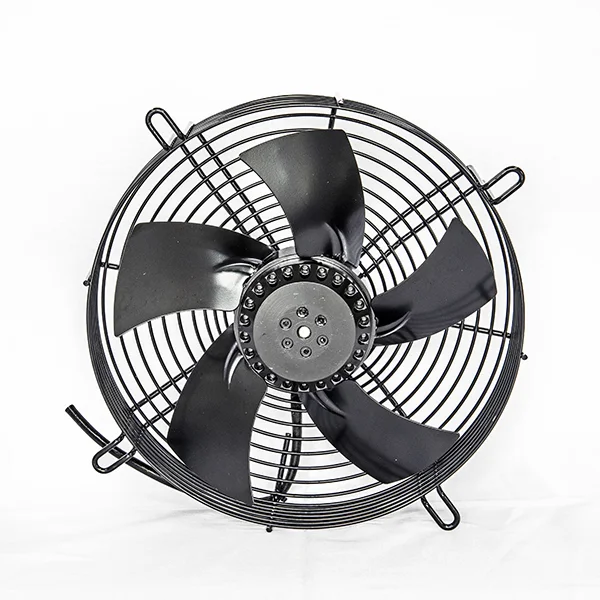

AF600150-B AC 220V External Rotor Motor Industrial Condenser Cooling Fans 600*150mm
General information
| HOUSING | Aluminum Die Casting, Painted Black |
| IMPELLER | Metal |
| BEARING | Ball |
| OPERATING TEMPERATURE | -10°C to + 105°C |
| INSULATION | Class F |
| OPERATING VOLTAGE RANGE | 200 VAC to 240 VAC for 220V Type |
| 380 VAC to 420 VAC for 380V Type | |
| DIELECTRIC STRENGTH | 5mA Max. at 1500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| MOTOR TYPE | AC Induction Capacitor Motor |
| SAFETY | Impedance Protected |
| TERMINATION | Lead Wire |
| WEIGHT | 14 kg |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
Specification
| MODEL NO. | RATED VOLTAGE (V) | FREQUENCY (Hz) | RATED CURRENT (A) | INPUT POWER (W) | SPEED | MAX. AIR FLOW | NOISE dB(A) @1M | |
| (RPM) | CFM | m3/min | ||||||
| AF600160V3M4PT-B | 380/420 | 50/60 | 1.6 | 820 | 1300/1400 | 4925/5437 | 139.38/153.87 | 73/80 |
| AF600160V3L6PT-B | 380/420 | 50/60 | 1.4 | 520 | 900/950 | 4825/5237 | 136.55/148.21 | 70/78 |
| AF600160V2L6PS-B | 220/240 | 50/60 | 2.4 | 520 | 900/950 | 4825/5237 | 136.55/148.21 | 70/78 |

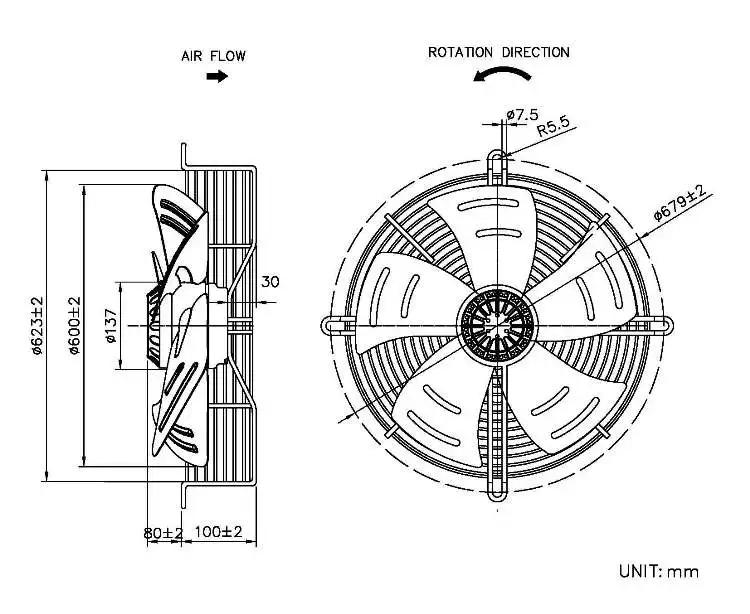

Dimension

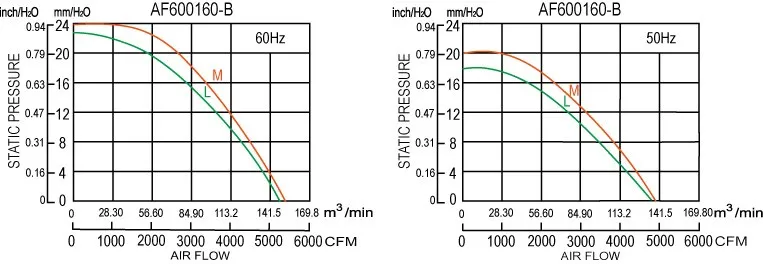

Air performance
Company profile:
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this external rotor motor carry?
It is supplied with CE;RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the external rotor motor be supplied for my local voltage?
The standard configuration is 220/240/380/420. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
