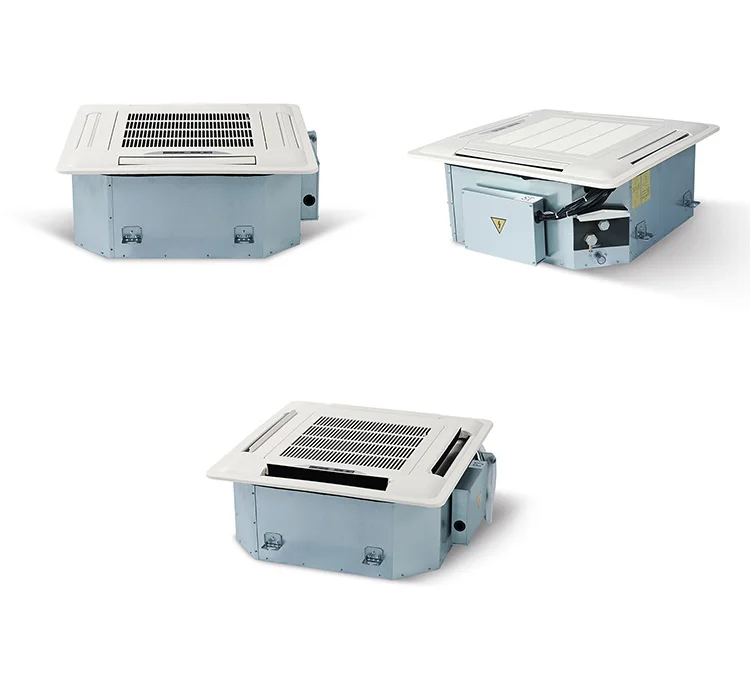

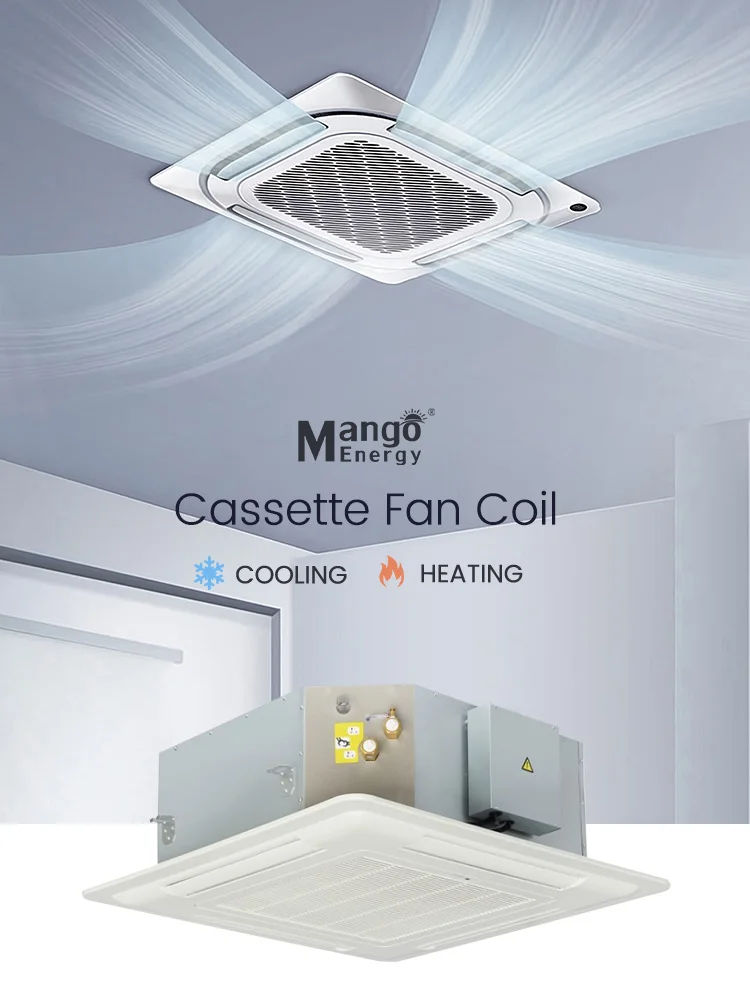

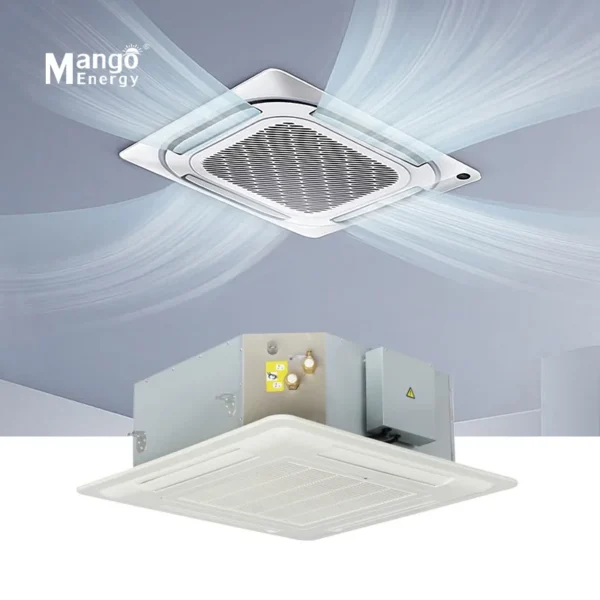

Fan Coil Unit, Ceiling, 1-1.98kW, Electrical

Fan coil unit — cooling capacity 1-1.98kW, power source Electrical. The complete factory specification follows. Made by Guangdong Europe Mango New Energy Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Fan Coil Unit

• Model Number: FP-34
• Power Source: Electrical
• Cooling Capacity: 1-1.98kW
• Heating Capacity: 1.5-2.98kW
• Material: Plastic
• Warranty: 2 Years

Technical Specifications

Product Details

Model			FP-34	FP-51	FP-68	FP-85
Cooling Ca. (kw) (Water in 7℃)	H	1.98	2.98	3.68	4.98
		M	1.63	2.27	2.81	3.75
		L	1.04	1.51	1.89	2.51
Heating Ca. (kw) (Water in 60℃)	H	2.98	4.8	5.48	7.2
		M	2.45	3.67	4.19	5.42
		L	1.57	2.44	2.82	3.6
Air flow（m³/h）	H	340	510	680	850
		M	280	390	520	640
		L	180	260	350	430
Advise Area（m2）			10	15	20	25
Power Input（W）			34	50	58	72
Current (A)			0.151	0.225	0.258	0.32
Noise d B (A)			34	35	37	39
Static pressure (Pa)			12
Power Supply			220-240v/ 1ph/50Hz
Control way			Wired or remote controller
Water flow (m³/h）			0.42	0.52	0.62	0.86
Water pressure drop(kPa)			14	14	16	18
Water pipe for in/out			ZG3/4”

Model			FP-102	FP-136	FP-170	FP-204	FP-238
Cooling Ca. (kw) (Water in 7℃)	H	5.58	7.2	9.9	10.8	12.6
		M	4.32	5.53	7.51	8.08	9.68
		L	2.85	5.53	5	5.55	6.45
Heating Ca. (kw) (Water in 60℃)	H	8.18	10.8	14.5	16.2	18.9
		M	6.33	8.17	11	12.35	14.52
		L	4.52	5.47	7.33	8.48	9.68
Air flow（m³/h）	H	1020	1360	1700	2040	2380
		M	790	1030	1290	1500	1800
		L	520	690	860	1030	1200
Advise Area（m2）			30	40	50	60	70
Power Input（W）			92	126	128	152	198
Current (A)			0.385	0.561	0.547	0.677	0.882
Noise d B (A)			40	41	41	43	44
Static pressure (Pa)			12
Power Supply			220-240v/ 1ph/50Hz
Control way			Wired or remote controller
Water flow (m³/h）			0.98	1.08	1.58	1.78	1.92
Water pressure drop(kPa)			22	25	39	44	46
Water pipe for in/out			ZG3/4”

Q1> What does mango energy company do ?
A1:Our Company Professional Supply: Heating Cooling DHW DC Inverter Heat Pump 9-34kW Swimming Pool Heat Pump 11-192kW Commercial
Heating Cooling Heat Pump 9-180kW Commercial Hot Water Heat Pump 10-72kW Water / Ground Source Heat Pump 11-200kW Water Tank and
Other Components.

Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 200 PCS / day.

Q3> What is Mango heat pump certification ?
A3 : Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and
CCCcertificate. Get Class A+, A as ErP EN14825 test report .
Q4> What Mango energy do for their agent / distributor /OEM ?
A4 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.

Q5> What Mango energy offer to their business partner ?
A5: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .

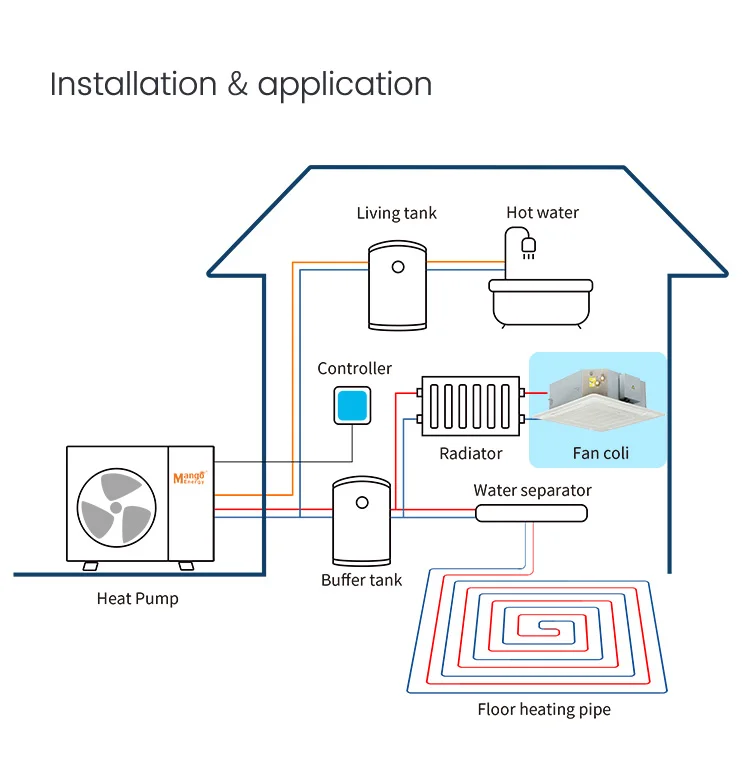

Q6> where is Mango energy heat pump using ?
A6: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used
in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot
water plants, etc.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–9 unit: US $172 / unit
  • 10–19 unit: US $165 / unit
  • 20+ unit: US $154 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangdong Europe Mango New Energy Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Europe Mango New Energy Technology Co., Ltd. range on HVACR Nexus.
