The water heater listed here carries 220V/1/50,380/3/50, 60kW, documented exactly as the manufacturer publishes it. Made by Guangdong Europe Mango New Energy Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Heater
- Model Number: MG-120KFXLN
- Power Source: Electric
- Power Supply: 220V/1/50,380/3/50
- Heating Capacity: 60kW
- Housing Material: Galvanized version
- Refrigerant: R410A
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 60kW |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R410A |
| Storage / Tankless | Cycle heating |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized version |
| Feature | Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Logo/Graphic Design | UV printing |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | Mango Energy |
| Model Number | MG-120KFXLN |
| Function | Swimming Pool Heating Cooling |
| Heat Exchanger | Titanium Heat Exchanger |
| Power Supply | 220V/1/50,380/3/50 |
| Ambient Temperature | -5°C -43°C |
| Noise | ≤66 |
| Selling Units | Single item |
| Single Package Size | 145X74X115 cm |
| Single Gross Weight | 340.0 kg |
Product Details
Model | MGKN-030IC | MGKN-050IIC | MGKN-060IIC | MGKN-070IIC | MG-100KFXLN | MG-120KFXLN | ||||||||
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||||||||||
Heating Capacity | kW | 15.3 | 25.0 | 30.0 | 35.1 | 50.2 | 60.1 | |||||||
COP | W/W | 5.93 | 5.91 | 5.87 | 5.82 | 5.89 | 5.86 | |||||||
Input Power | kW | 2.58 | 4.23 | 5.11 | 6.03 | 8.53 | 10.26 | |||||||
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||||||||||
Heating Capacity | kW | 10.5 | 17.3 | 21.2 | 28.1 | 35.0 | 42.0 | |||||||
COP | W/W | 4.67 | 4.68 | 4.65 | 4.64 | 4.60 | 4.60 | |||||||
Input Power | kW | 2.25 | 3.70 | 4.56 | 6.06 | 7.61 | 9.13 | |||||||
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||||||||||
Cooling Capacity | kW | 9.2 | 12.3 | 14.2 | 18.4 | 24.1 | 31.3 | |||||||
EER | W/W | 3.25 | 3.51 | 3.46 | 3.47 | 3.63 | 3.52 | |||||||
Input Power | kW | 2.83 | 3.50 | 4.10 | 5.30 | 6.64 | 8.90 | |||||||
Power Supply | V/PH/Hz | 220V/1/50 or 380/3/50 | 380/3/50 | |||||||||||
Water Out let/In let | inch | 1.5″ | 2″ | |||||||||||
Water Flow Volume | ㎥/h | 5.3 | 8.6 | 10.3 | 12.1 | 17.3 | 20.7 | |||||||
Refrigerant Type | R410a | |||||||||||||

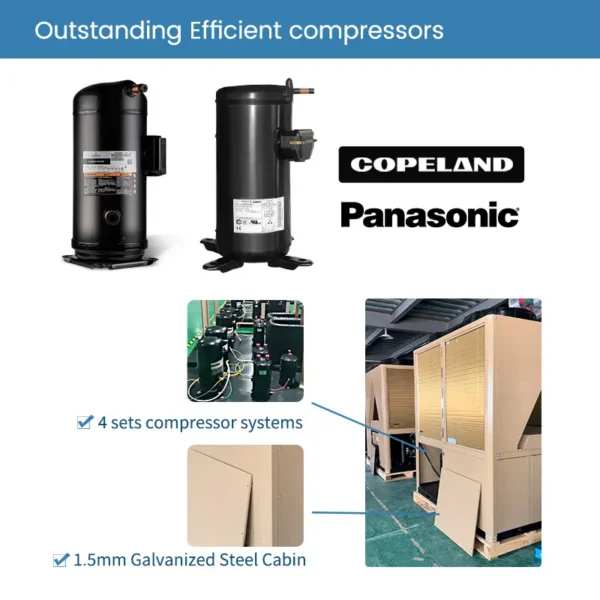

Compressor | Copeland/Panasonic | |||||||||||||
Ambient temperature | （-5°C -43°C） | |||||||||||||
Noise | ≤52 | ≤55 | ≤55 | ≤56 | ≤66 | ≤66 | ||||||||
Dimension(mm) | 710*710*925 | 810*810*1055 | 810*810*1055 | 810*810*1055 | 1450*740*1150 | 1450*740*1150 | ||||||||
Weight (N./W.) KG | 95/100 | 145/155 | 150/160 | 155/165 | 280/300 | 320/340 | ||||||||
Model | MG-150KFXLN | MG-200KFXLN | MG-250KFXLN | MG-500KFXLN | MG-600KFXLN | |||||||
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||||||||
Heating Capacity | kW | 90.2 | 100.3 | 126.0 | 246.1 | 298.2 | ||||||
COP | W/W | 5.86 | 5.56 | 5.95 | 5.85 | 5.76 | ||||||
Input Power | kW | 15.38 | 18.04 | 21.16 | 42.10 | 51.80 | ||||||
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||||||||
Heating Capacity | kW | 52.1 | 70.0 | 87.5 | 176.0 | 215.2 | ||||||
COP | W/W | 3.80 | 4.60 | 4.60 | 4.54 | 4.63 | ||||||
Input Power | kW | 13.70 | 15.22 | 19.02 | 38.80 | 46.50 | ||||||
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||||||||
Cooling Capacity | kW | 36.6 | 55.1 | 68.1 | 137.2 | 164.2 | ||||||
EER | W/W | 3.49 | 3.23 | 3.39 | 3.33 | 3.28 | ||||||
Input Power | kW | 10.50 | 17.04 | 20.10 | 41.20 | 50.10 | ||||||
Power Supply | V/PH/Hz | 380/3/50 | ||||||||||
Water Out let/In let | inch | 2″ | 3″ | 4″ | ||||||||
Water Flow Volume | ㎥/h | 31.0 | 34.5 | 43.3 | 84.6 | 102.6 | ||||||
Refrigerant Type | R410a | |||||||||||
Compressor | Copeland/Panasonic | |||||||||||
Ambient temperature | （-5°C -43°C） | |||||||||||
Noise | ≤68 | ≤70 | ≤72 | ≤78 | ≤79 | |||||||
Dimension(mm) | 1507*857*1611 | 1860*1030*2100 | 1860*1030*2100 | 1905*1860*2280 | 1905*1860*2280 | |||||||
Weight (N./W.) KG | 372/395 | 560/588 | 582/615 | 1142/1200 | 1182/1280 | |||||||
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $2850 / unit
- 10–19 unit: US $2750 / unit
- 20+ unit: US $2650 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220V/1/50,380/3/50. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Europe Mango New Energy Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Europe Mango New Energy Technology Co., Ltd. range on HVACR Nexus.
