Fan — type fan filter unit, certification CE ISO ROHS. The complete factory specification follows. Made by Guangzhou Bacclean Tech Co., Ltd. (8 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan
- Cabinet Material: Galvalume
- Wind Speed: 0.45m/s
- Warranty: 1 Year
- Certification: CE ISO ROHS
- Place Of Origin: Guangdong, China
- Application: Cleanroom
Technical Specifications
| Type | fan filter unit |
|---|---|
| Condition | New |
| Warranty | 1 Year |
| Place Of Origin | Guangdong, China |
| Brand Name | Bacclean |
| Weight (Kg) | 50 |
| Product Name | FFU |
| Application | Cleanroom |
| Cabinet Material | Galvalume |
| Function | Purification Filter |
| Certification | CE ISO ROHS |
| HEPA Efficiency | H14 |
| Wind Speed | 0.45m/s |
| Noise | <65dB |
| With Pre-Filter | Available |
| Size | Customized Size |
| Selling Units | Single item |
| Single Package Size | 130X54X80 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Product Information
All sizes and styles can be customized | ||||||||||
Model | AL-FFU-2*2 | AL-FFU-2*4 | AL-FFU-3*4 | AL-FFU-4*4 | ||||||
Overall sizeW*L*H(mm) | 575*575*300 | 575* 1175*300 | 875*1175*300 | 1175*1175* 380 | ||||||
HEPA filter sizeW*L*H(mm) | 570*580*69 | 570* 1170*69 | 870* 1170*69 | 1170 * 1170* 69 | ||||||
plenum chamber material | A3 cold plate spray / Galvanized aluminum sheet/Stainless steel | |||||||||
wind volume(m³/h) | 800 | 1000 | 1200 | 2000 | ||||||
Average wind speed (m/s) | 0.3-0.5 | |||||||||
Outside the box static pressure (pa) | 96(10mmAq) | |||||||||
Power (KW) | 100-200 | |||||||||
Fan Type / Control | AC fan/DC fan/group control | |||||||||
NoiseDB | 55 | |||||||||
High efficiency filtration | Size | 870*570*69 | 570*1170*69 | 610*1220*69 | 1170*1170*69 | |||||
Efficiency | 99.99%@0.3um | |||||||||
Frame | High-grade aluminum | |||||||||
Initial pressure loss | 110Pa@0.45m/s | |||||||||
Characteristic | little resistance, long service life | |||||||||
Fan | power supply(V/Hz) | 220/50 | ||||||||
Type | Aluminum turbo fan | |||||||||
Vibration coefficient(mm/s) | 0.2~0.5 | |||||||||

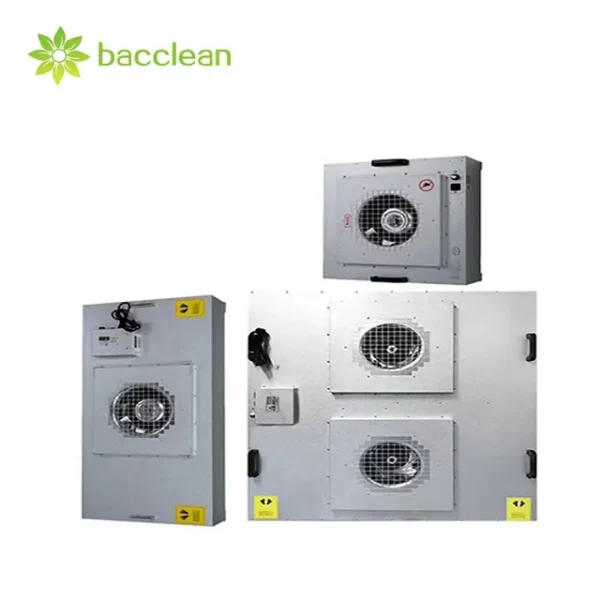

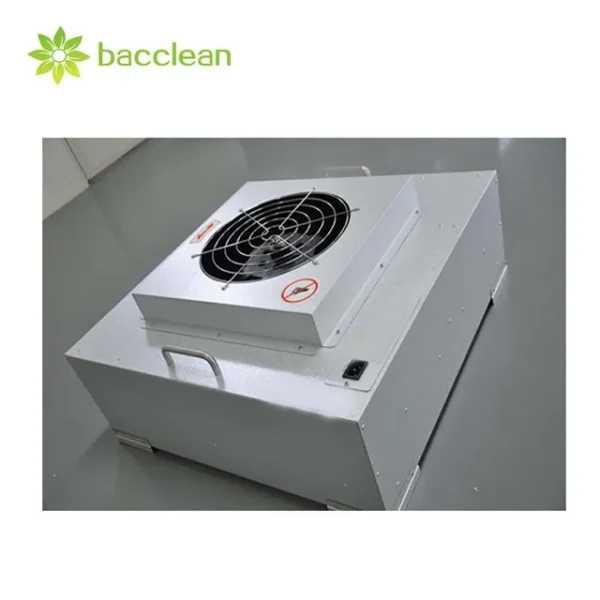

Product Display

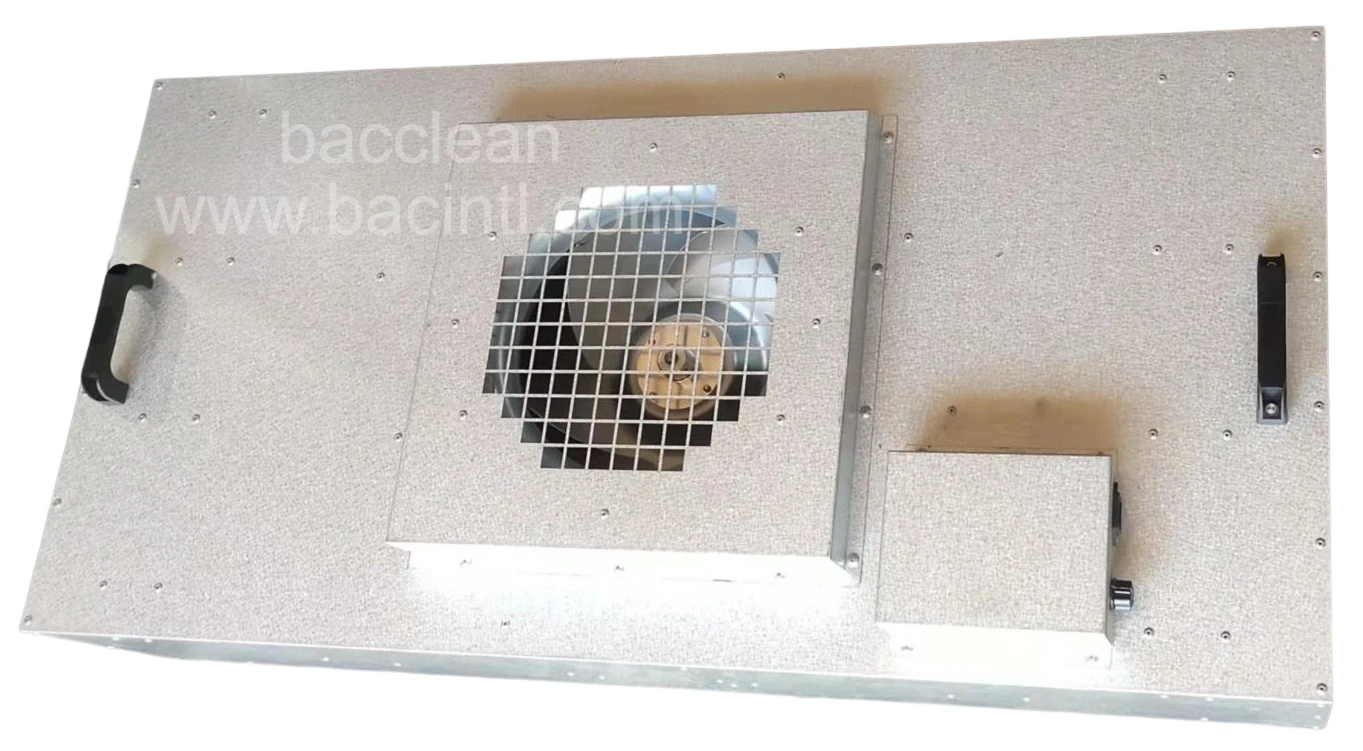

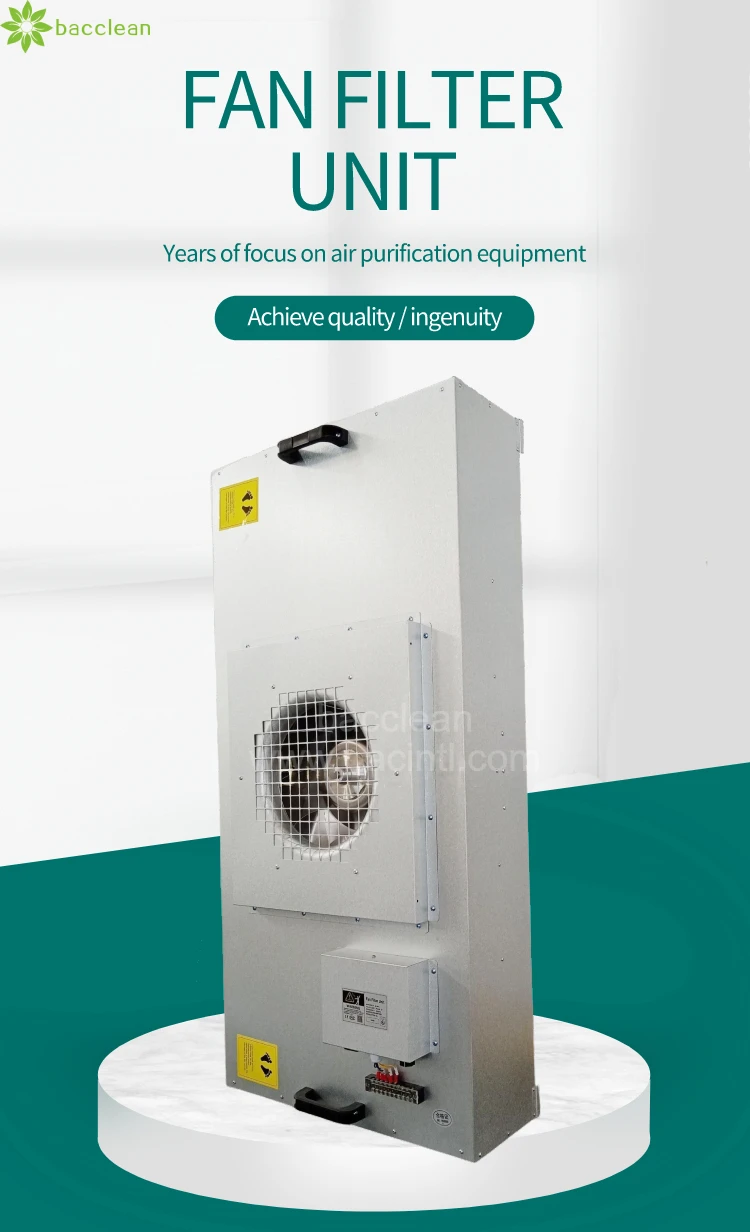

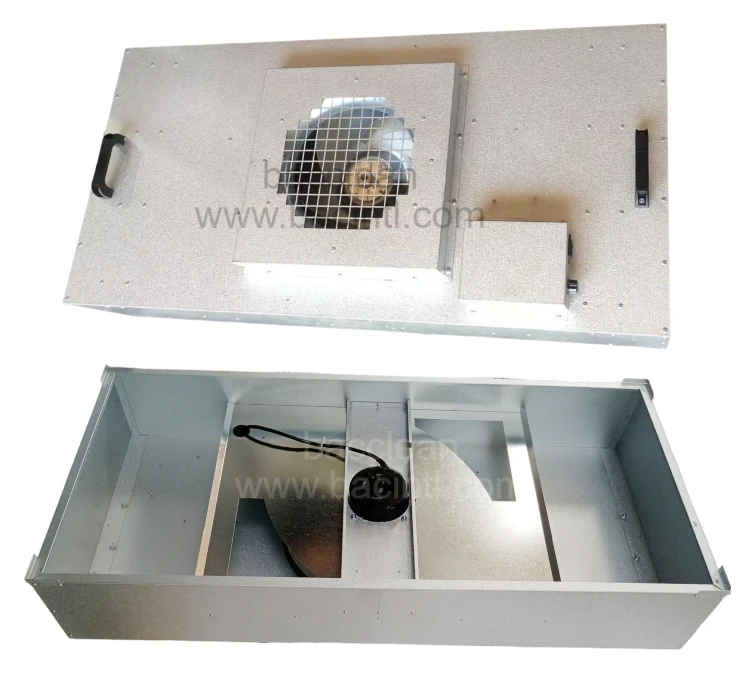

Fan Filter Unit
A cleanroom fan filter unit (FFU)/ laminar flow hood is a type of air filtering equipment.
It is used to supply purified air to cleanrooms or microenvironments by filtering out harmful airborne particles from the recirculating air.
The units are installed within the system’s ceiling or floor grid.
Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand.
Units often contain their own pre-filter, HEPA filter, and internally ontrollable fan air distribution
The features of the FFU
1 The energy efficiency ratio is high and the calorific value is small.
2 It is easy to be installed, and it can be used by one or in series.
3 It has multi-stage adjustable wind speed controller.
4 It has an interlligent control system.
5 It has compact and firm structure with light weight, corrosion resistance, rust prevention and good performance.

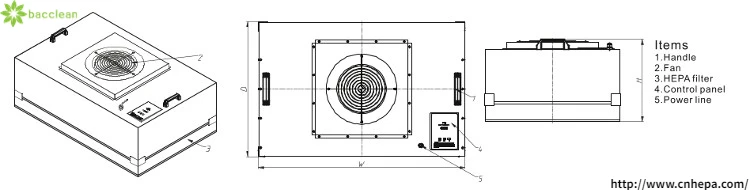

Control panel

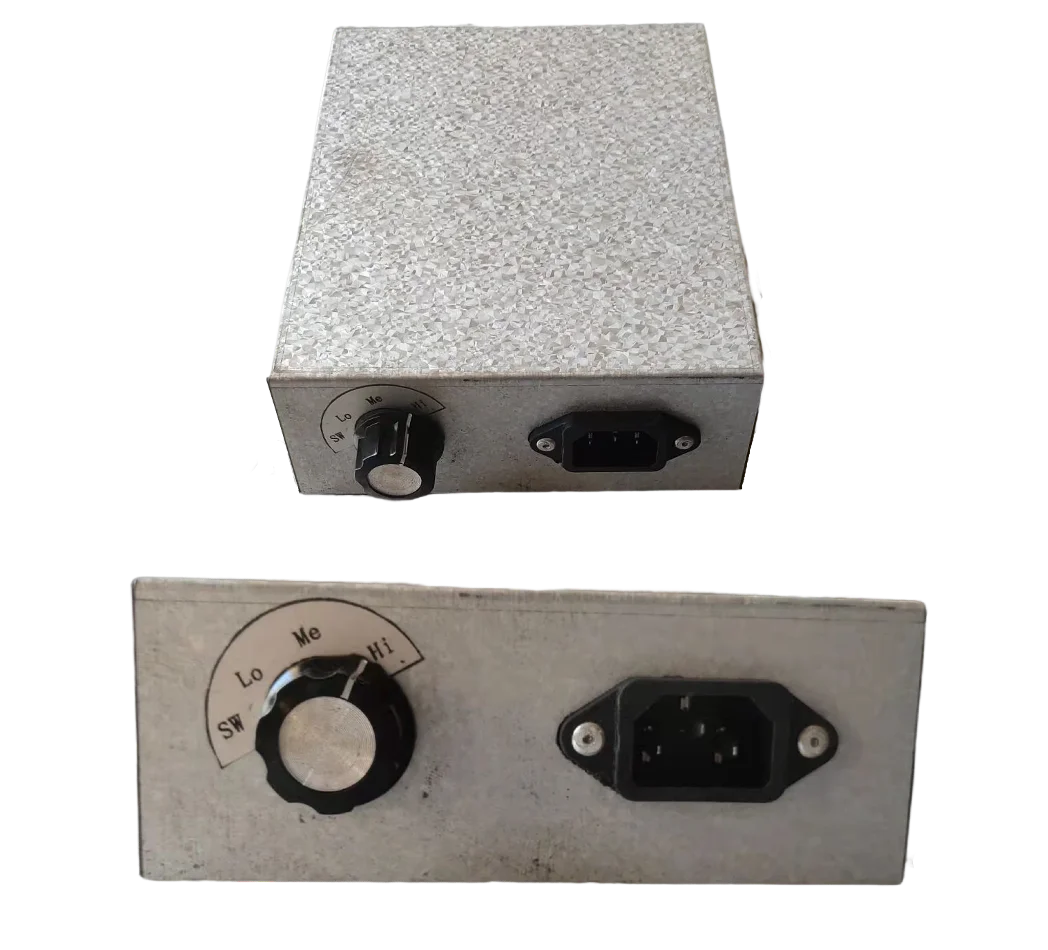

Speed switch(Optional)

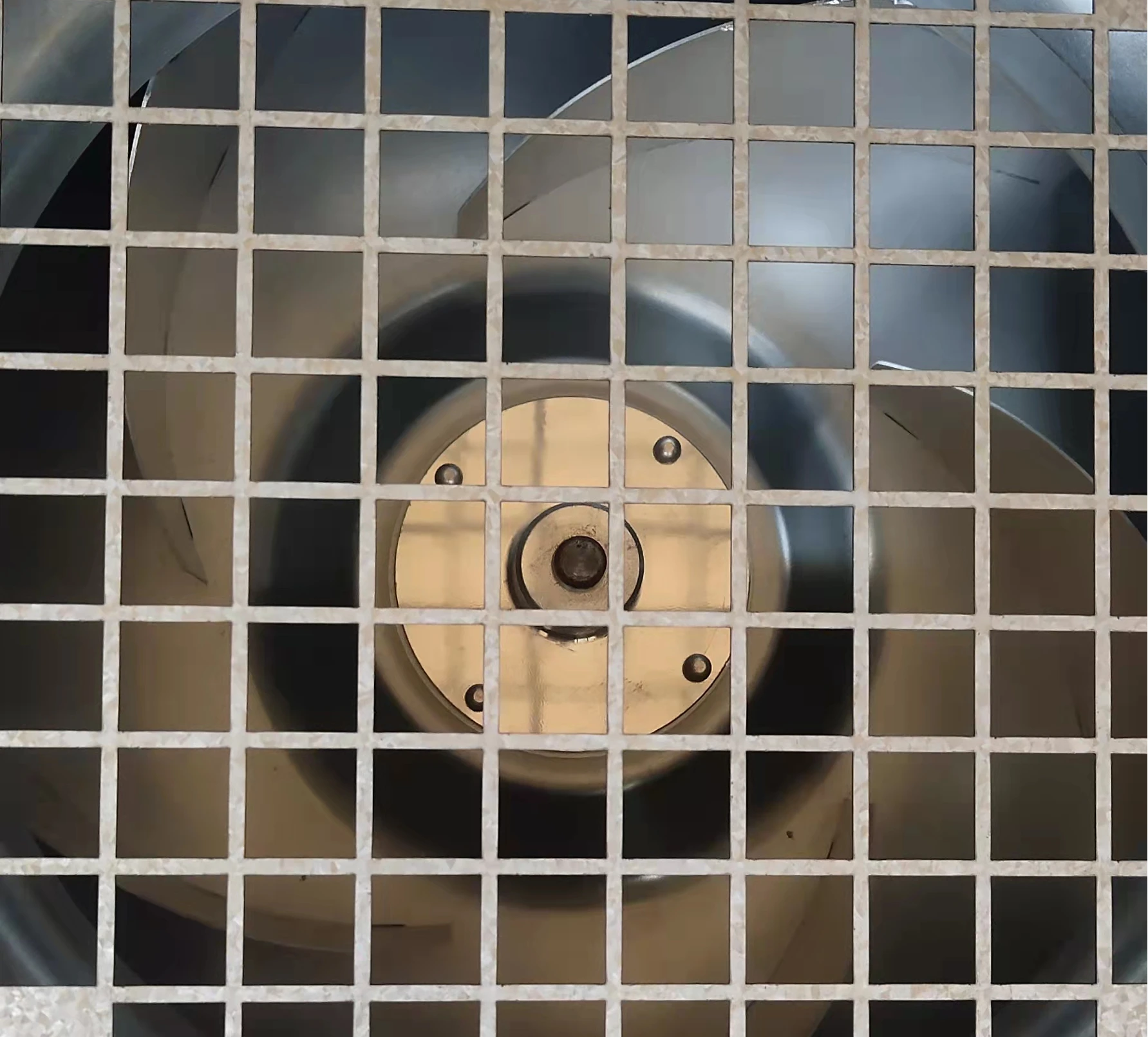

motor
Insulated handle

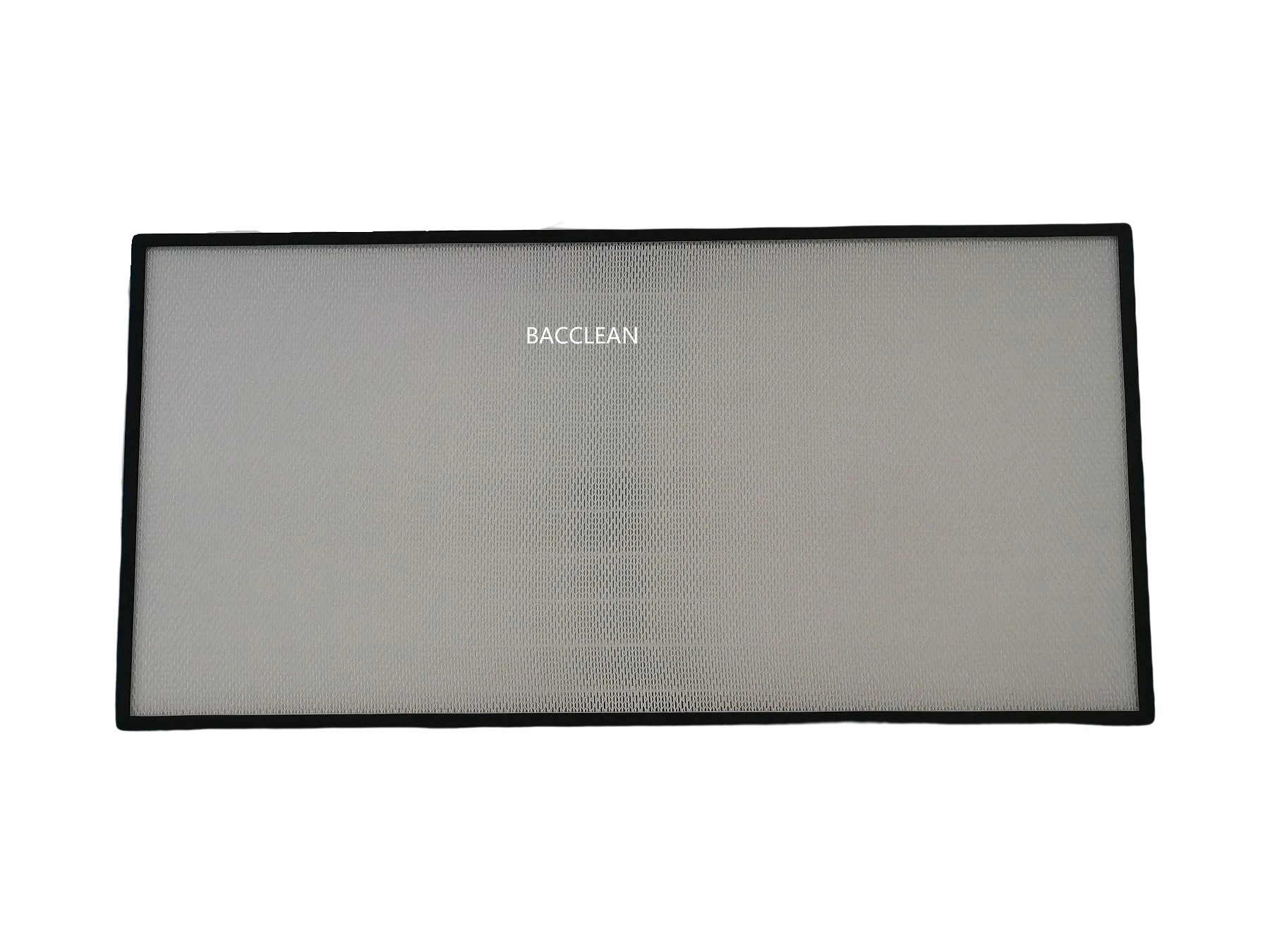

Mini pleat HEPA filter for FFU FAN FILTER UNIT
The efficiency can be H13 & H14 according to the need.

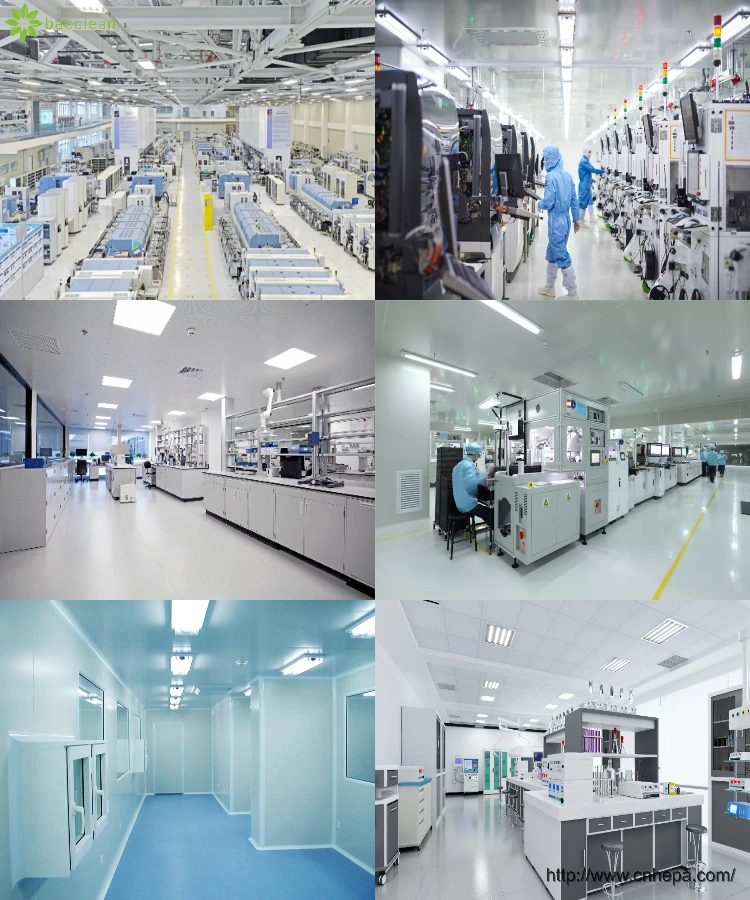

Application
Application
HEPA Filter Fan filter unit (FFU) are widely used in clean room, clean operating station, clean production line, assembled clean room and partial 100 level occasions.
It can provide high quality clean air to different size and different cleanliness level's clean room and microenvironment.
Hot-Sale Products

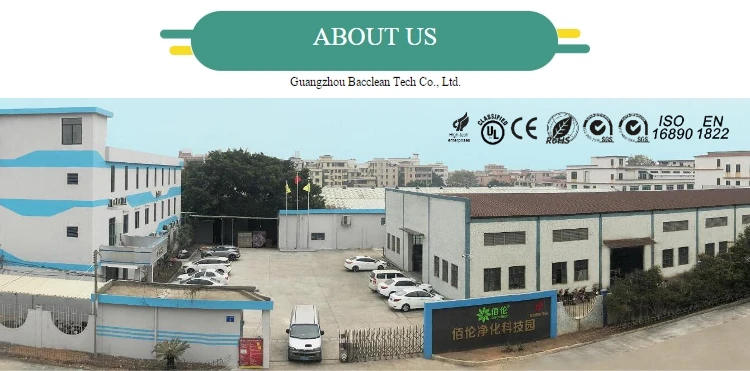

ABOUT US
