Water Cooled Condenser, HVAC, 220 V

The water cooled condenser listed here carries 220 V, 380 V, heat exchanger type Tube And Shell Heat Exchanger, documented exactly as the manufacturer publishes it. Made by Nanjing Aidea Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Water Cooled Condenser

• Voltage: 220 V, 380 V
• Flow Capacity: Customized
• Material: Stainless Steel, Carbon steel, Copper, Aluminum
• Warranty: 1 Year
• After Warranty Service: Technical Support

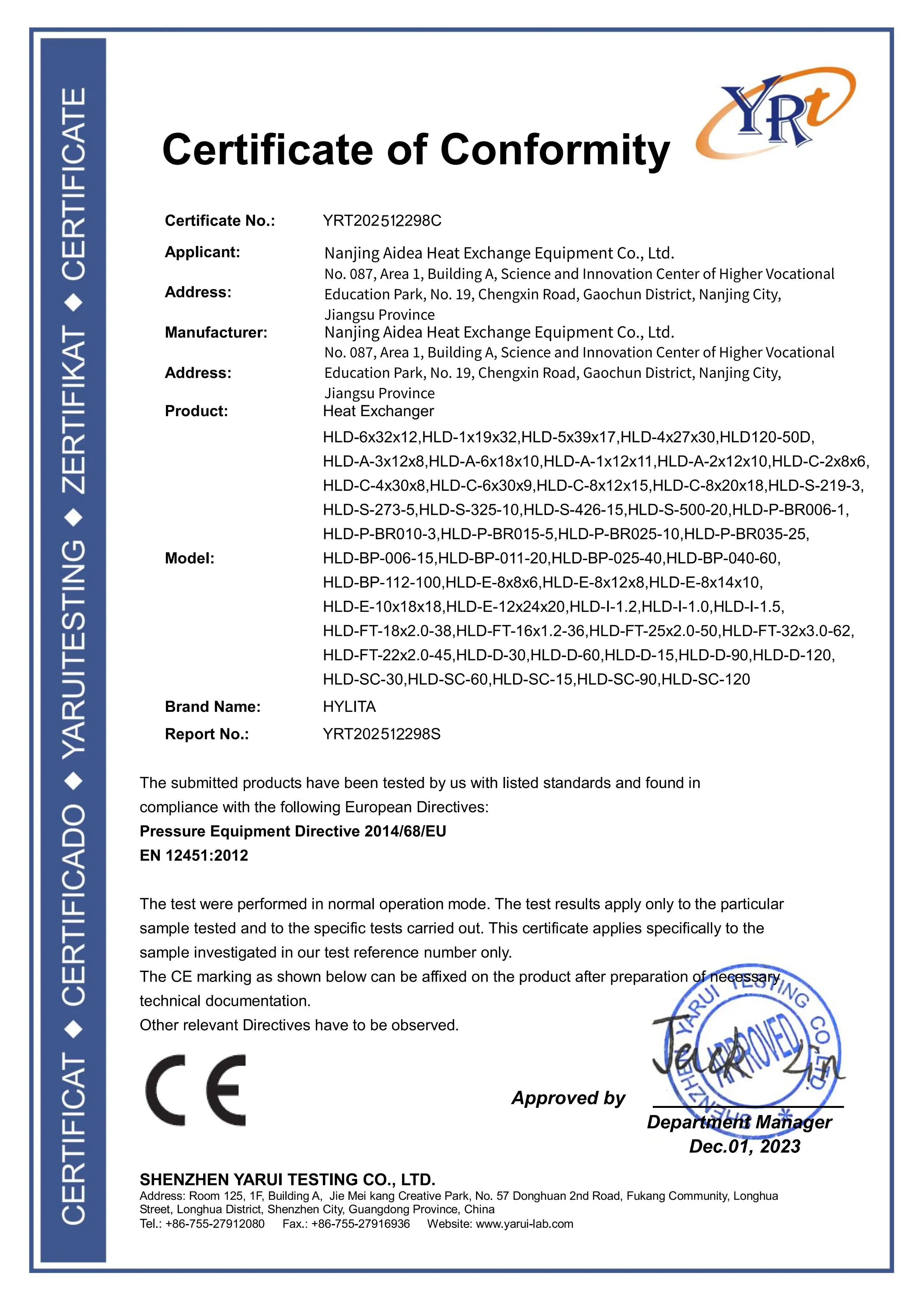

• Certification: Ce/ISO9001:2008

Technical Specifications

Product Details

Product Description

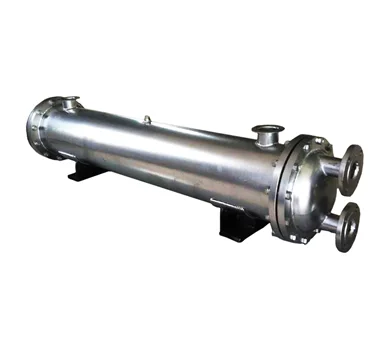

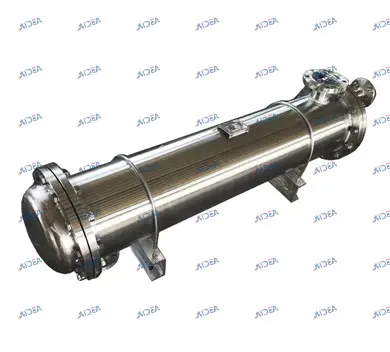

Shell and Tube Heat Exchanger

Shell and Tube Heat Exchanger is one of Our Main Products.

Shell & Tube Heat Exchangers consist of a cylindrical body with parallel heat transfer tubes. While one of the fluids passes
through the tubes, the other passes through the body and provides the heat transfer between the fluids. It is the most widely used heat exchanger in oil refineries and large chemical plants and is suitable for higher pressure applications.

Advantages of Shell and Tube Heat Exchanger :

1.Material: Based on different working condition media and heat exchange requirements, optional heat exchange tube materials include carbon steel tubes, stainless steel tubes, copper tubes, nickel tubes and titanium tubes. Corrosion-resistant coating protection can also be applied according to anti-corrosion needs.
2.Customizable: Our heat exchangers can be customized in dimension, water connector, and heat exchange capacity.

3.Parameter: During quotation, our technical department will provide an HTRI calculation report to verify the actual operating conditions and ensure that the heat exchanger fully meets the required performance specifications..
4.Applications: Shell and Tube heat exchanger perfect for Swimming Pool Heat Pump, Aquarium Chiller, Marine Refrigerant System, Solar Energy Heater, Spa Heating,Aquaculture, Pharmacy, Food industry, Electroplating Industry, Heat Recovery and so on.
5.Warranty:Our heat exchanger has a 1-year warranty. Production and fabrication can be carried out in accordance with ASME standards as an option.

Professional Applications of Shell & Tube Heat Exchangers :

1.Chemical Reactors – Precise Feed Gas Preheating
2.Industrial Hydraulic Systems – Hydraulic Oil Cooling
3.Lubricating Oil Systems – Oil Temperature Control
4.Petrochemical Processing – Crude Oil Preheating
5.Power Generation – Turbine Lube Oil Cooling
6.HVAC & Refrigeration – Chilled Water Condensing
7.Food & Beverage – Pasteurization & Sterilization
8.Waste Heat Recovery – Thermal Energy Utilization
9.And more…

Industry Coverage & Product Offerings :

We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.

Shell & Tube Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.

Details of Materials

Material	Key Properties	Typical Applications & Standards
Carbon Steel	High mechanical strength, cost-effective	Widely adopted for shells in industrial systems (e.g., ASME SA-516 Gr. 70), suitable for non-corrosive environments and moderate temperatures (<300°C).
Stainless Steel	Excellent corrosion resistance (e.g., SS304/316), good thermal performance	Ideal for chemical, food processing, and HVAC systems (ASTM A240),resistant to chloride-containing fluids (e.g., < 1000 ppm Cl⁻).
Nickel Alloys	Superior resistance to extreme corrosion (e.g., Inconel 600/625, Hastelloy C-276)	Selected for high-temperature (>800°C) or aggressive environments (e.g., sulfuric acid, seawater desalination), compliant with NACE MR0175/ISO 15156.
Copper Alloys	High thermal conductivity (e.g., CuNi 70/30, Brass)	Common in condensers and cooling systems with non-corrosive water (ASTM B111), limited to < 150°C and non-ammonia environments.
Titanium	Exceptional corrosion resistance (e.g., Grade 2/Grade 7)	Critical for seawater applications (e.g., marine, offshore platforms), resistant to chlorides, acids, and biofouling (ASTM B338 Gr.2).

Shell:

The shell constitutes the primary pressure vessel housing the tube bundle, serving dual roles:
1. Structural Support: Provides mechanical integrity for tube bundle alignment and thermal expansion management.
2. Fluid Containment: Acts as the pressure boundary for shell-side fluid flow (typically 10–30 bar operating range).

Configuration	Key Mechanism	Optimal Use Case
Fixed Tube Sheet	Integral tube sheet welded to shell	Low Temperature (<50°C), clean fluids, low pressure (<15 bar)
Floating Head	Floating tube sheet accommodates thermal expansion	High Temperature (>50°C), viscous/corrosive media, frequent cleaning
U-Tube	U-shaped tubes allow unrestricted expansion	High-pressure (≥30 bar), high-temperature (>300°C), single-pass design

Tubes:

The shell houses a tube bundle with smaller tubes (e.g., 10–30 mm OD). Fluids flow through tubes (tube side) and around them
(shell side), enabling efficient heat transfer via conduction/convection through tube walls.

• Carbon Steel
• Stainless Steel
• Copper Alloys
• Nickel Alloys
• Titanium

• Brass

High Quality Welding :

High-quality welding ensures leak-free operation and structural integrity in shell-and-tube heat exchangers, critical for safety compliance and preventing stress corrosion cracking in high-pressure/temperature applications.

Engineering Design

We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.
We can provide detailed drawing after your order.We can also provide Custom services.

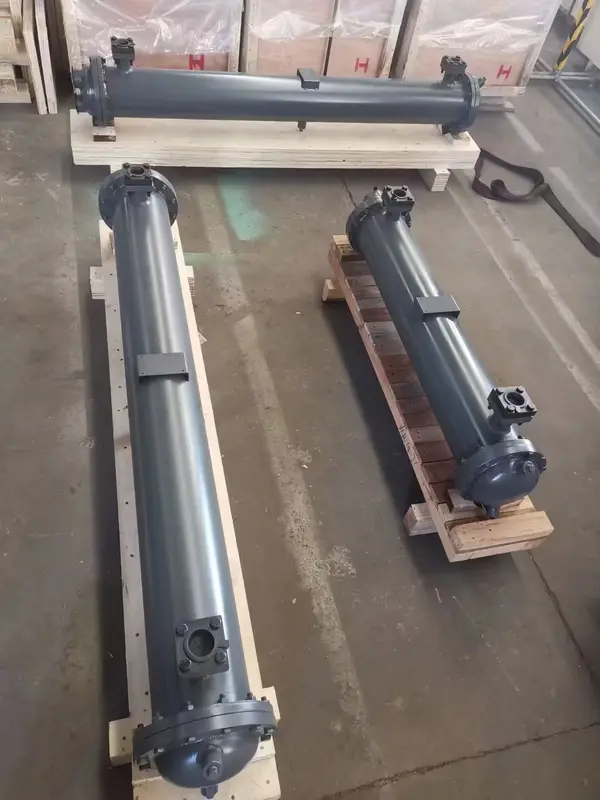

Packing & Delivery

Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.

Company Profile

FAQ

1 Q: I haven't done business with you so we want to make online order to protect me,is it Ok for you ?
1 A: Our company has been in filed for 10 years, Your Alibaba online order is welcome, we we will provide good service to you.

2 Q: What is the MOQ? Can I place small order please ?
2 A: Small order is also welcome in our company.

3 Q: How long warranty can we have for my orders
3 A: Finned Tube Heat ExchangerOne year warranty for all products, 2 years warranty available for some specific orders.

4 Q: What service can you provide ?
4 A: We will confirm all details with you before payment, any changes will let you know in advance, any progress will show you
photos and video for your reference and will let you know your order’s status. Will send draft documents for your reference before
issuing official document.

5 Q: How do you control quality ?
5 A: Our produces heat exchangers since 2015 and we passed ISO 9001 in 2017. We are serving hundreds customers whom from
40+countries around the world. All products will be 100% tested before shipping out.

6 Q: What are your main products ?
6 A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers,
plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–99 set: US $1197 / set
  • 100–199 set: US $1097 / set
  • 200+ set: US $997 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooled condenser?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this water cooled condenser carry?

It is supplied with Ce/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the water cooled condenser be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Nanjing Aidea Heat Exchange Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nanjing Aidea Heat Exchange Equipment Co., Ltd. range on HVACR Nexus.
