The for steam boilerthermal boiler listed here carries material Stainless Steel, type Oil Burner, documented exactly as the manufacturer publishes it. Made by Zhengzhou Dabonn Energy Co., Ltd. (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This For Steam Boilerthermal Boiler
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Boiler System
- Application/Usage: Gas Burners Industrial Accessories
- Type: Oil Burner
Technical Specifications
| Type | Oil Burner |
|---|---|
| Material | Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Weight (Kg) | 30 |
| Place Of Origin | Henan, China |
| Product Name | Gas Burner China for Steam Burner |
| Design Fuel | oil, gas, diesel, heavy oil |
| Keywords | Burner Accessories |
| Application | Boiler System |
| Usage | Gas Burner Accessories |
| Name | Waste Engine Oil Burner |
| Application/Usage | Gas Burners Industrial Accessories |
| Item | Types Boiler Burners |
| Selling Units | Single item |
Product Details
Oil Gas Boiler Burner

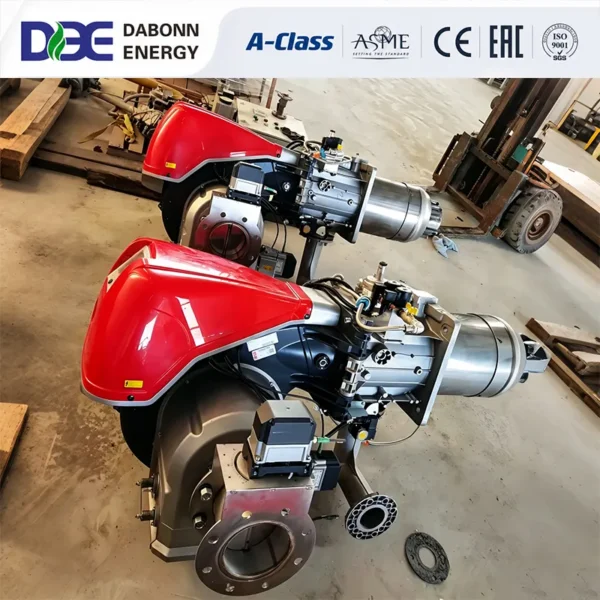

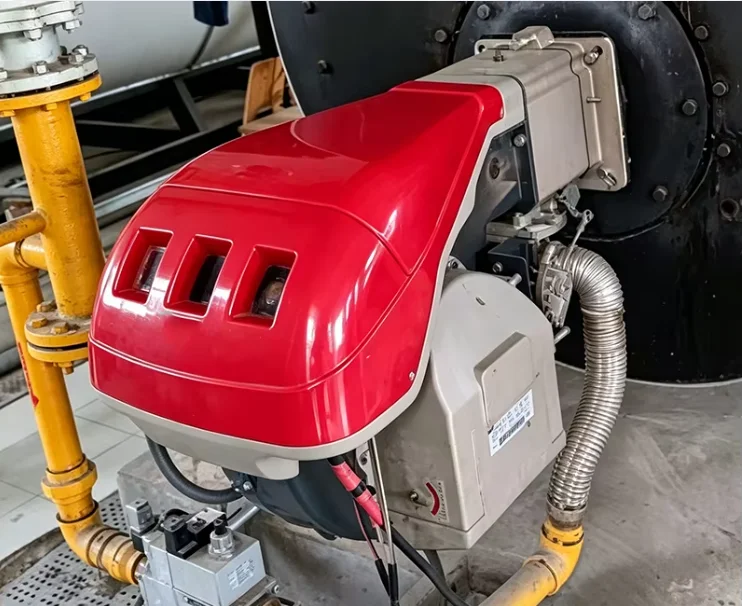

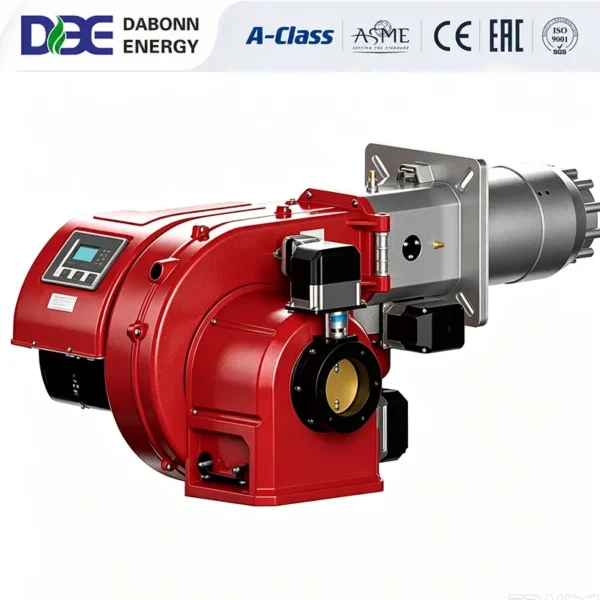

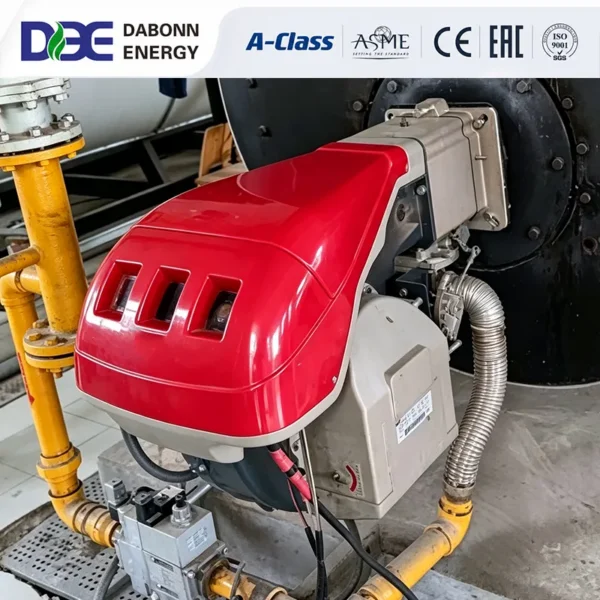

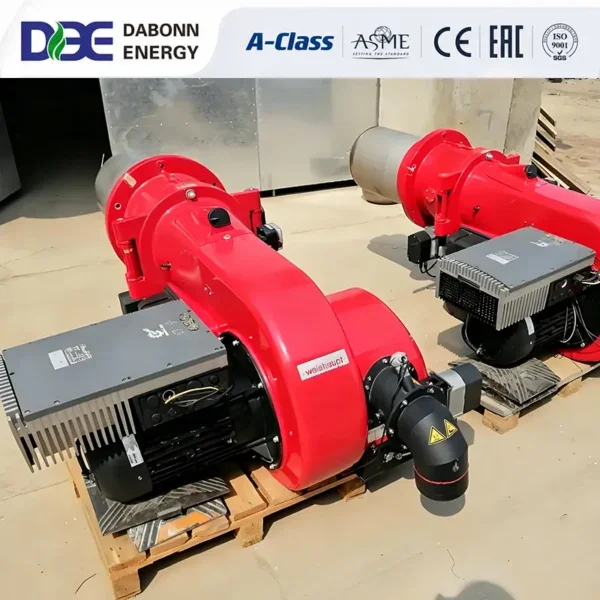

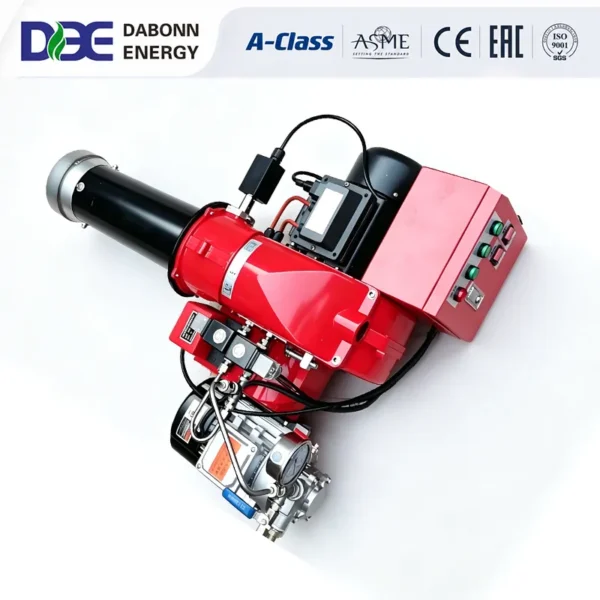

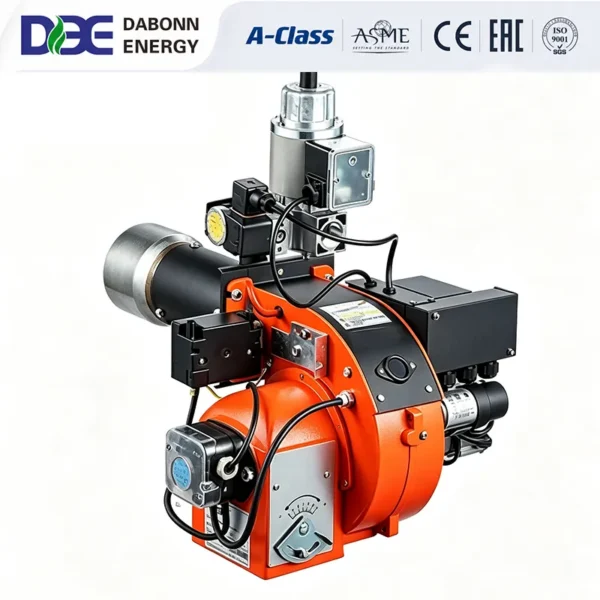

- The Dabonn oil/gas Boiler burner delivers high-efficiency, low-emission combustion for industrial boilers, thermal oil heaters, hot water generators, drying ovens, and process furnaces. Designed as a monobloc forced-draft package burner, it arrives fully assembled and factory-tested — simply bolt it to your boiler front plate, connect fuel and power, and fire.
- Fuel flexibility is the defining advantage. A single burner body accepts natural gas, LPG, CNG, LNG, diesel (light oil), heavy fuel oil (HFO), and waste oil — with dual-fuel models that can switch between gas and oil on the fly without shutdown.
Product Overview
Boiler burners are core combustion devices designed specifically for industrial boilers. They precisely mix fuel and air to achieve efficient, stable, and clean combustion. As the "heart" of the boiler, they directly determine the boiler's thermal efficiency, operating costs, and environmental emissions levels. We offer a full range of multi-fuel burner solutions to meet the diverse industrial thermal energy needs of steam boilers, hot water boilers, thermal oil heaters, and more.
Compatible with WNS, SZS, YY(Q)W, DZL, and all standard horizontal/vertical boiler front plates. Product Type | Fully automatic industrial boiler burner |
Thermal power range | 100 kW -20000 kW (customizable according to requirements) |
Applicable fuel | Natural gas, liquefied gas, diesel, heavy oil, dual fuel |
Control method | PLC fully automatic programming control, supporting remote monitoring |
Main material | Cast aluminum casing, stainless steel core components |
Nitrogen oxide emissions | (low nitrogen model) |
Connection method | Standard flange connection, easy to install |

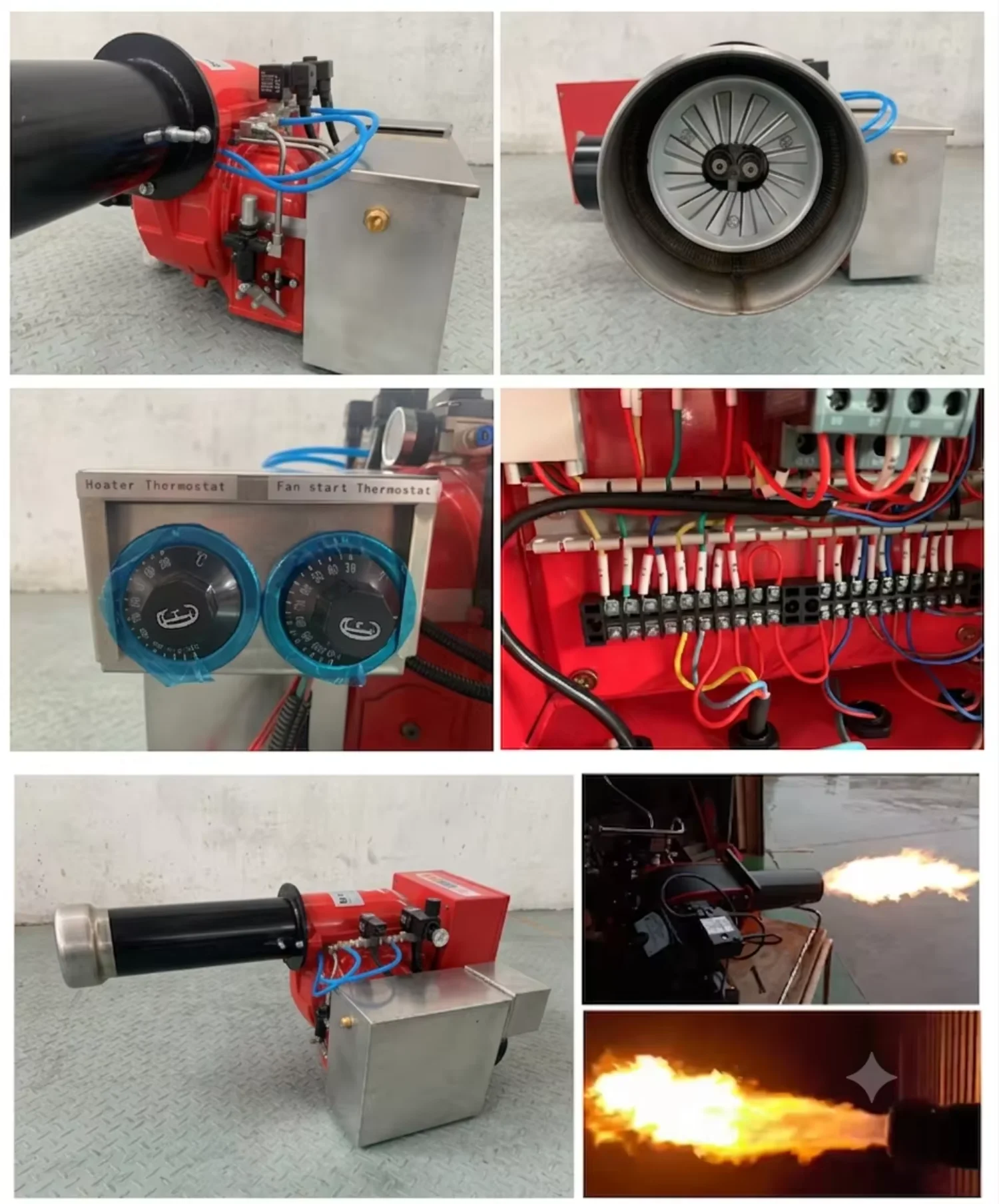

High-swirl diffusion disc with radial air injection slots — creates a recirculation zone at the flame root for stable ignition and complete burnout
Staged combustion air — primary air mixes with fuel at the nozzle, secondary air enters mid-flame, tertiary air wraps the flame envelope — this reduces peak flame temperature by 150–200°C, cutting thermal NOx formation by 40–60%
Adjustable flame geometry — by repositioning the diffuser disc relative to the burner throat, the flame can be tuned from short-and-wide (ideal for small furnace chambers) to long-and-narrow (for large water-tube boilers)
Model | Oil Gas Boiler Burner | CBL26P | CBL35P | CBL45P | CBL60P | CBL85P | |||||
Heat power | 89-172KW | 154-308KW | 178-391KW | 160-450KW | 250-600KW | 200-850KW | |||||
Operation | 1 stage fire | 1 stage fire | 1 stage fire | 2 stage fire | 2 stage fire | 2 stage fire | |||||
Fuel type | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | |||||
Fan motor | 0.2KW | 0.2KW | 0.4KW | 0.6KW | 0.6KW | 1.1KW | |||||
Power source | 220V/1N/50HZ | 380V/3N/50HZ | |||||||||
Model | Oil Gas Boiler Burner | CBL130P | CBL160P | CBL210P | CBL260P | CBL300P | |||||
Heat power | 320-1050KW | 400-1300KW | 500-1600KW | 800-2100KW | 950-2600KW | 1100-3000KW | |||||
Operation | 2 stage fire | 2 stage fire | 2 stage fire | 2 stage fire | 2 stage fire | 2 stage fire | |||||
Fuel type | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | Light oil, diesel | |||||
Fan motor | 1.5KW | 2.2KW | 2.2KW | 3KW | 7.5KW | 7.5KW | |||||
Power source | 220V/1N/50HZ | 380V/3N/50HZ | |||||||||
标题
Modulating burners continuously vary firing rate from ~10% to 100% of rated capacity. A Oil Gas Burner controller reads steam pressure (or water temperature) and adjusts fuel + air servomotors in real time. This eliminates the thermal shock and efficiency loss of frequent on/off cycling, saving 3–5% fuel compared to staged burners and extending boiler refractory life.
标题
Backed by Zhengzhou Dabonn Energy Co., Ltd. — a Grade-A boiler manufacturer with over 107+ patents and projects delivered across 80+ countries. From biomass-fueled industrial plants in Southeast Asia to wood chip boilers in Africa, Dabonn has earned trust through 20+ years of boiler engineering excellence. 1. A-Class Boiler Manufacturing License — certified design, fabrication, and installation 2. ISO 9001 / CE / ASME certified quality system 3. 107+ proprietary patents in combustion efficiency, heat recovery, and automation 4. 1200+ global projects delivered, covering food processing, textile, paper, and agro-industries
FAQs
Can we visit your factory?
Our factory is located in Henan, China. We have a professional team and advanced production equipment. We warmly welcome you to visit our factory.
How can I pay you?
T/T, Western Union, Money Gram and Ali Trade Assurance is better.
What trade methods are supported?
We can trade by EXW, CIF, FOB, FCA, CFR, DAP, DDP.
Why Choose Our Factory?
Full Lifecycle Support: Our engineers deliver remote technical support and after-sales services spanning engineering design, manufacturing and on-site commissioning.
Can I order a burner configured for both gas and oil?
Yes.
Zhengzhou Dabonn Energy Co., Ltd.
120+ Patents · A-Grade Boiler License · 170+ Countries · Your Fuel, Our Engineering
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $790 / piece
- 50+ piece: US $559 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this for steam boilerthermal boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhengzhou Dabonn Energy Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Zhengzhou Dabonn Energy Co., Ltd. range on HVACR Nexus.
