The free sample axial fan listed here carries voltage Other, DC 12V/24V/48V, blade material Plastic, documented exactly as the manufacturer publishes it. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Free Sample Axial Fan
- Model Number: MX12038ZBL1
- Voltage: Other, DC 12V/24V/48V
- Blade Material: Plastic
- Speed: 3000-4500RPM
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | Other, DC 12V/24V/48V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Roof Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX12038ZBL1 |
| Product Name | DC Brussless Fan |

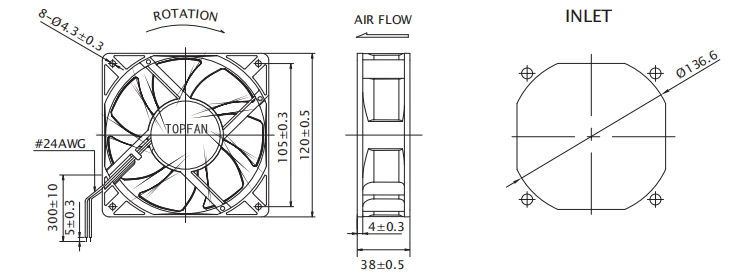

| Size | 120x120x38mm |
| Speed | 3000-4500RPM |
| Application | Exhaust Ventilation |
| Usage | Industry Greenhouse |
| Keyword | Exhaust Cooling Fan |
| Motor | Copper Motor |
| Bearing Type | Ball |
| Name | Industrial Axial Flow Ventilation Exhaust Fan |
| Sample | Free |
| Selling Units | Single item |
| Single Package Size | 12.5X12.5X4.2 cm |
| Single Gross Weight | 0.600 kg |
Product Details
Model | Bearing Type | Rated Volt | Operating Volt | Rated Current | Input Power | Speed | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||
Part No. | S B Y | VDC | VDC | AMP | Watt | RPM | CFM | Pa | dB-A | ||||||||
MX12038ZBU2 | B | 24 | 13.8-26.8 | 2 | 48 | 4500 | 222.3 | 215.3 | 64 | ||||||||
MX12038ZBH2 | B | 24 | 13.8-26.8 | 1 | 24 | 4000 | 193.5 | 167.7 | 60 | ||||||||
MX12038ZBM2 | B | 24 | 13.8-26.8 | 0.7 | 16.8 | 3500 | 173.3 | 134.4 | 55 | ||||||||
MX12038ZBL2 | B | 24 | 13.8-26.8 | 0.5 | 12 | 3000 | 146 | 97.8 | 50 | ||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
Product Name | DC Axial Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Metal & Plastic(94V-0)，PBT |
Bearing Type | Sleeve bearing&Ball Bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 5V 12V 24V 48V 110v 220v 230v 380v … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Ordering and Pricing
- Minimum order quantity: 300 piece
- Volume pricing:
- 300–999 piece: US $3.14 / piece
- 1000–9999 piece: US $2.54 / piece
- 10000+ piece: US $2.17 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this free sample axial fan?
The standard minimum order quantity is 300 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the free sample axial fan be supplied for my local voltage?
The standard configuration is Other, DC 12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
