Gas Brooder Heater, THD2080, 2116 kcal

This gas brooder heater is listed with the manufacturer’s full published specification — voltage No Electricity Needed, heating capacity 2116 kcal/h, power source Natural Gas. It is produced by Chongqing Haodong Technology Co., Ltd., a verified supplier of 18 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Gas Brooder Heater

• Power Source: Natural Gas
• Voltage: No Electricity Needed
• Heating Capacity: 2116 kcal/h
• Material: Aluminum Alloy
• Warranty: 1 YEAR
• Warranty Of Core Components: 1 Year

Technical Specifications

Product Details

Contact Information

Your inquiry is always welcome!!!

Please feel free to contact me for more info and timely service.

Products Description

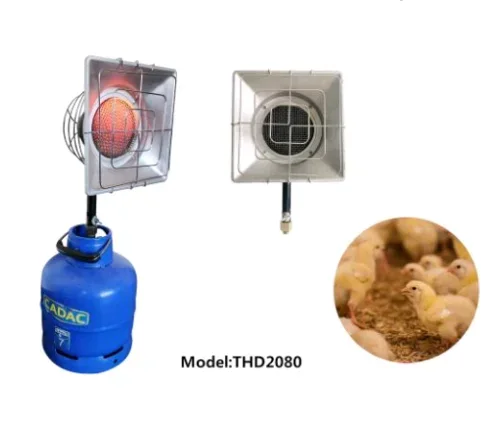

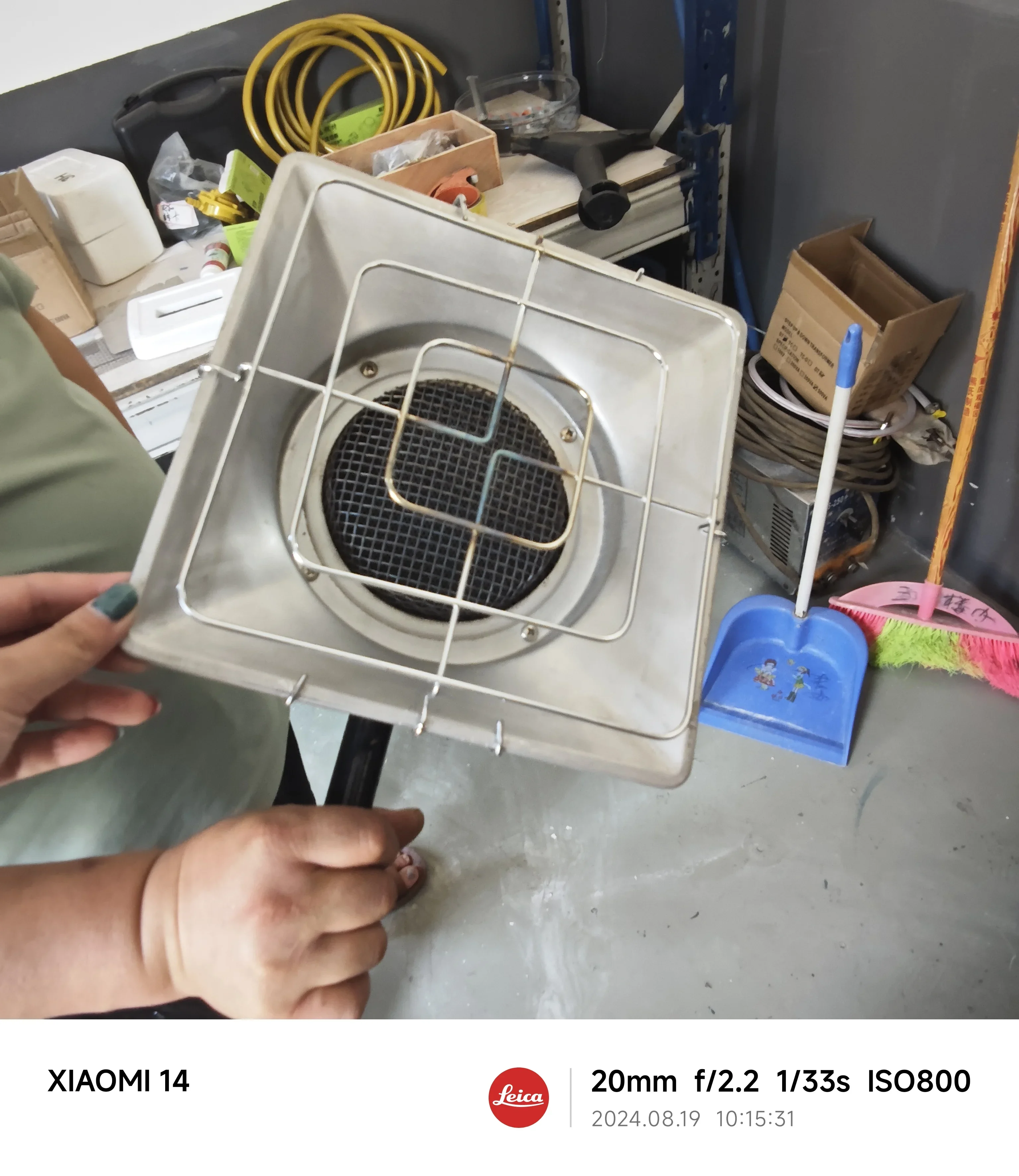

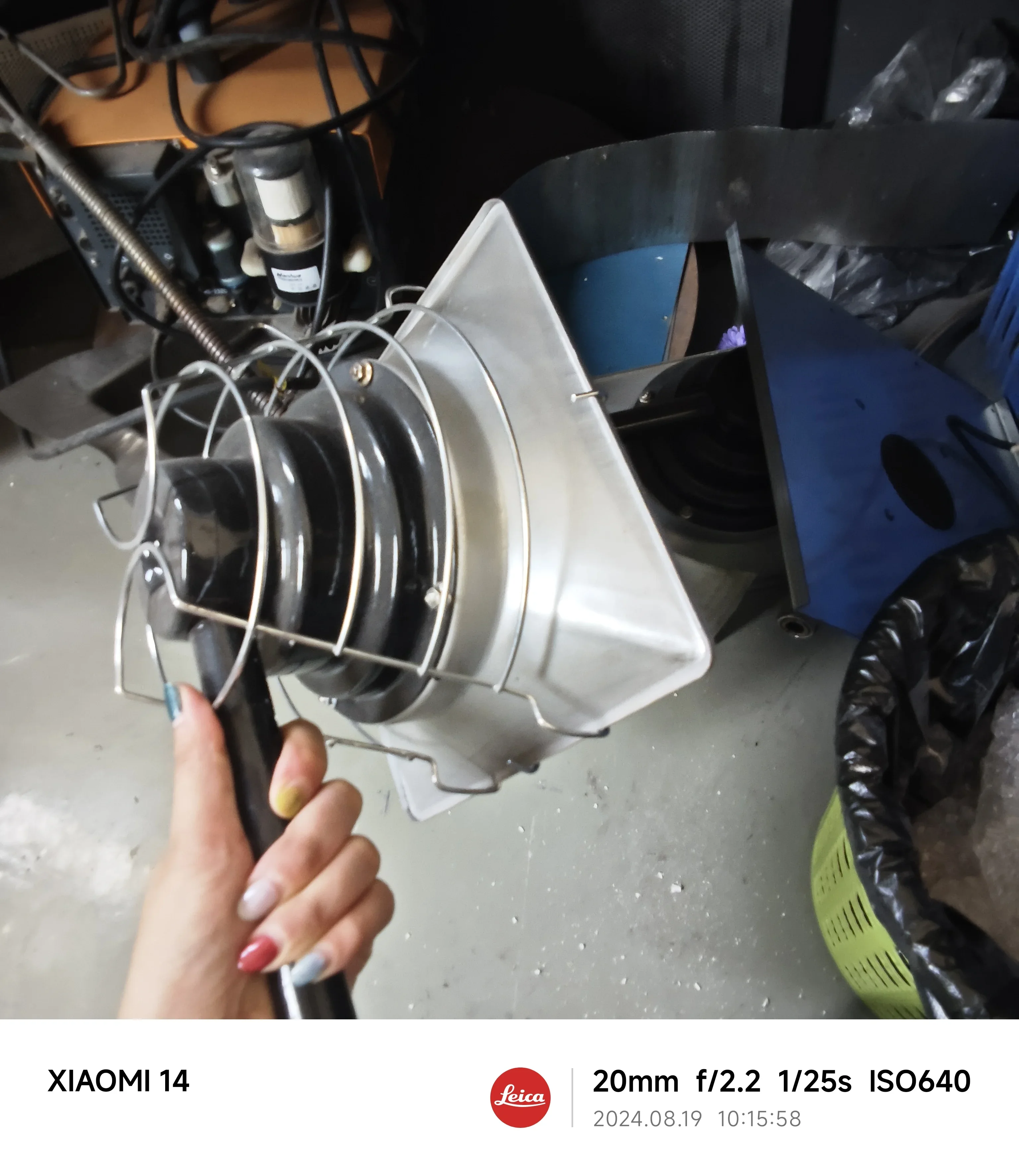

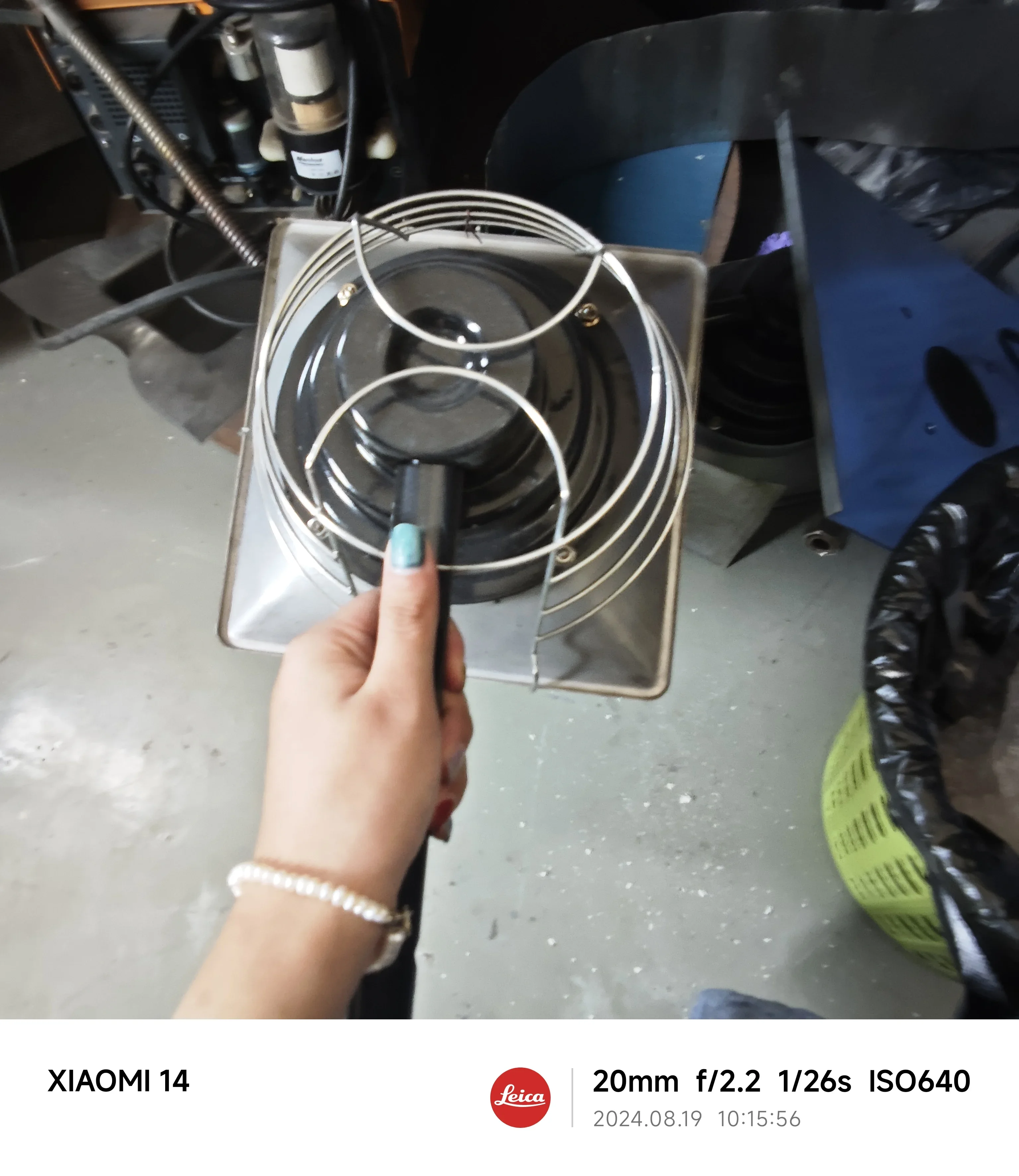

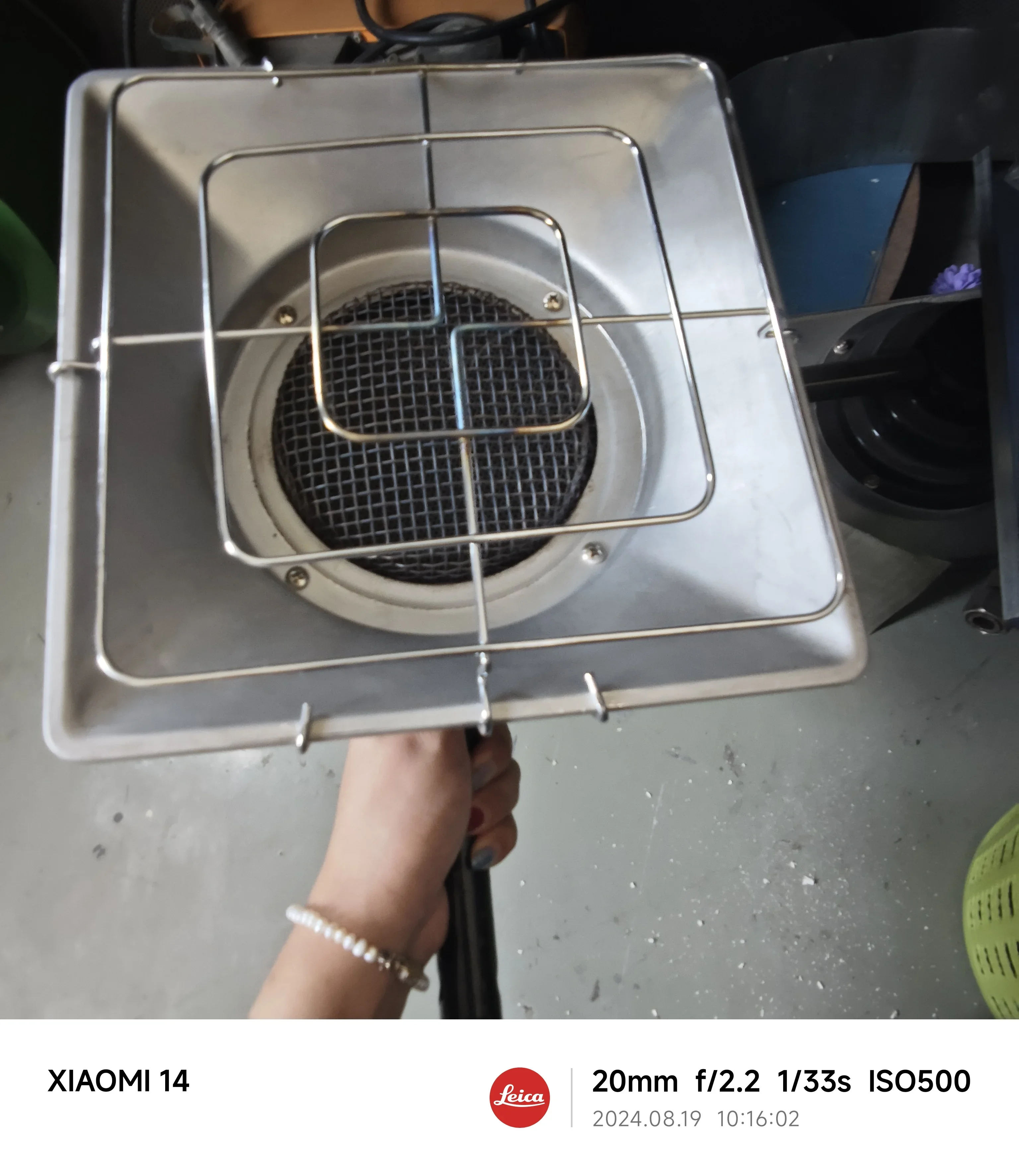

Poultry gas heater chick brooder heater THD2080
On the basis of catalytic technology, our factory has developed and produced infrared catalytic gas burners, gas heaters and gas brooders, which are successfully applied in painting, food baking, bbq grill, poultry heating etc.

Product Specification

Now based on IR Catalytic technology, we manufacture gas brooder THD2080 for chicks. goose, duck,etc.

MODEL	DIMENSION	CONSUMPTION			WEIGHT	POWER
	MM	NG( m3/h)	LPG(kg/h)	KG	KW
THD2080	345*210*138	0.20	0.073	0.9	0.5

Operation Steps

Please read the following instructions carefully before using this product.

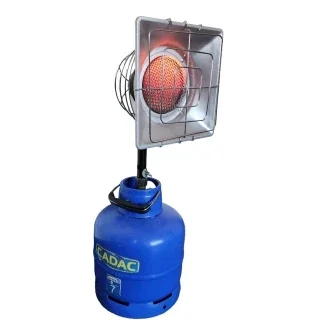

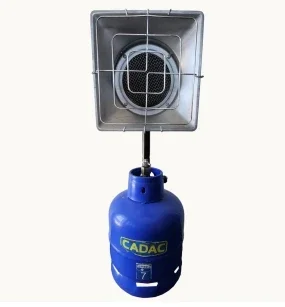

( 1 ) As shown in the figure, connect the infrared brooder and the LPG/NG cylinder to ensure that there is no gas leakage at each interface.

(2) Open the valve of the liquefied gas cylinder, supply air to the infrared brooder, at the same time, ignite the gas with a light gun (as shown in the picture).

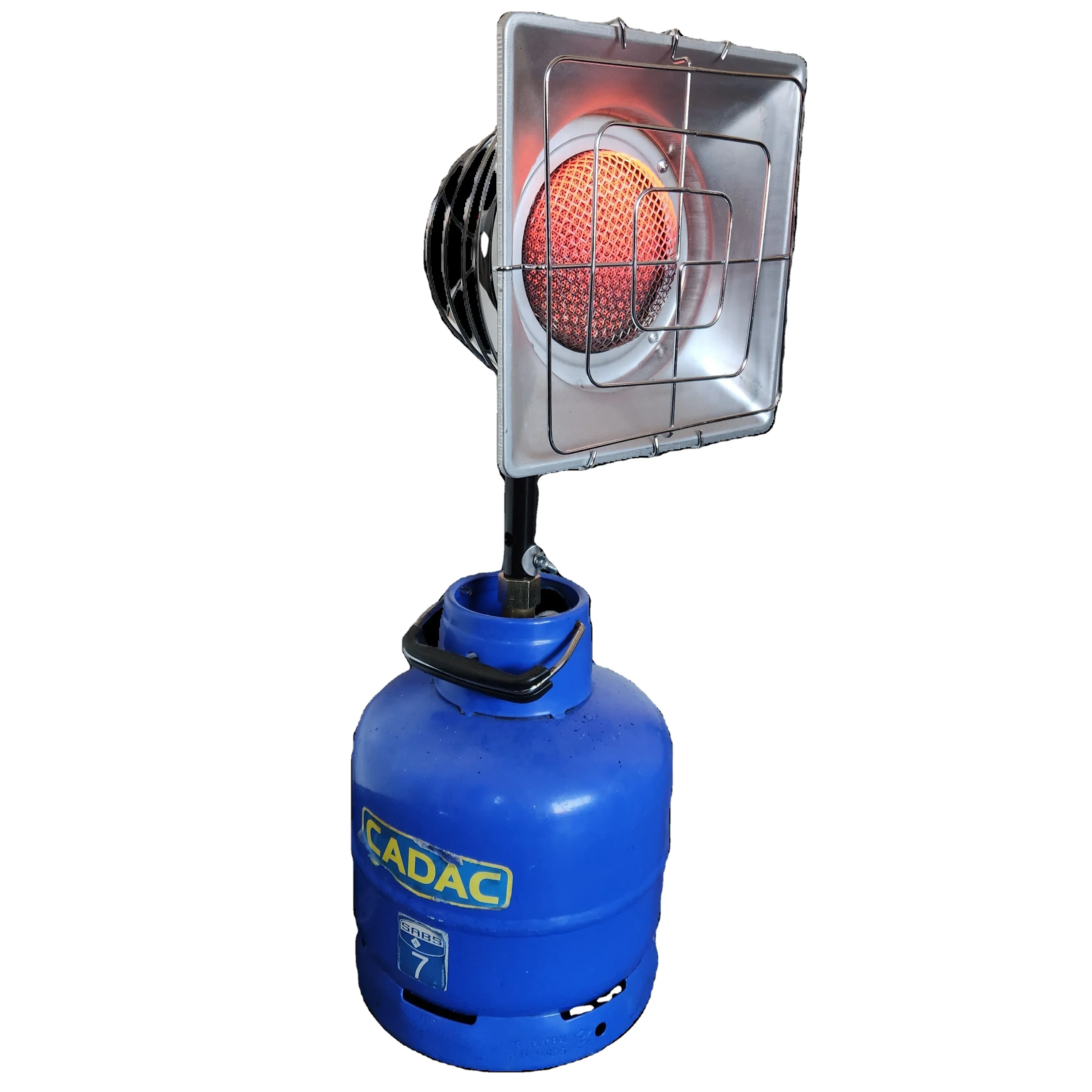

(3) The combustion surface of the infrared brooder is orange-red, and the surface has no flame for the best working condition.

Matters Need Attention:
(1) Each F208 Infrared Brooder Warms 200-400 Chicks
(2) Gas consumption per product (approximate): LPG:0.073kg/hNG:0.20m3/h .It's normal phenomenon there is blue flame at
beginning, after several minutes will disappear.
(3) If the blue flame has been on the ceramic plate, please increase
the flow of gas appropriately.
(4) If there is a big red flame, the reason maybe is
a. The pressure is too high.

Please adjust the pressure reducing valve to required pressure.

b. Oxygen lack. Pls keep indoor air circulation when brooder working. c. Ceramic plate is broken; Pls change the broken ceramic plate.
d. Gas purity difference. Each country gas purity is different, maybe will cause big fire, please match suitable nozzle.
(5) If it doesn't heat equal, pls check whether the feather block at filter net.
(6) This product is flameless, only see the red heating surface no flame in normal working.
(7) Pls check up and clean the complete system parts termly.

Product Application

APPLICATION

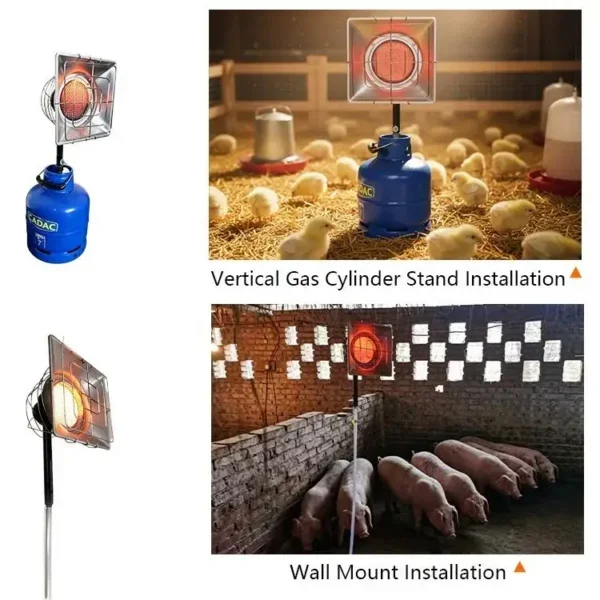

1. Poultry-livestock heating: widely used in poultry heating, farrowing, nursery, grower-finisher, wean-to-finish

2. Commercial Heating of sports hall, church, terrace, garage, exhibition hall, public building
3. Industrial Heating: industrial building, workshop, vehicle repair, warehouse.

ADVANTAGE

This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same
air consumption, it releases more heat and produces less waste gas.1. Economical & Energy saving: in the same power, our heater
saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%

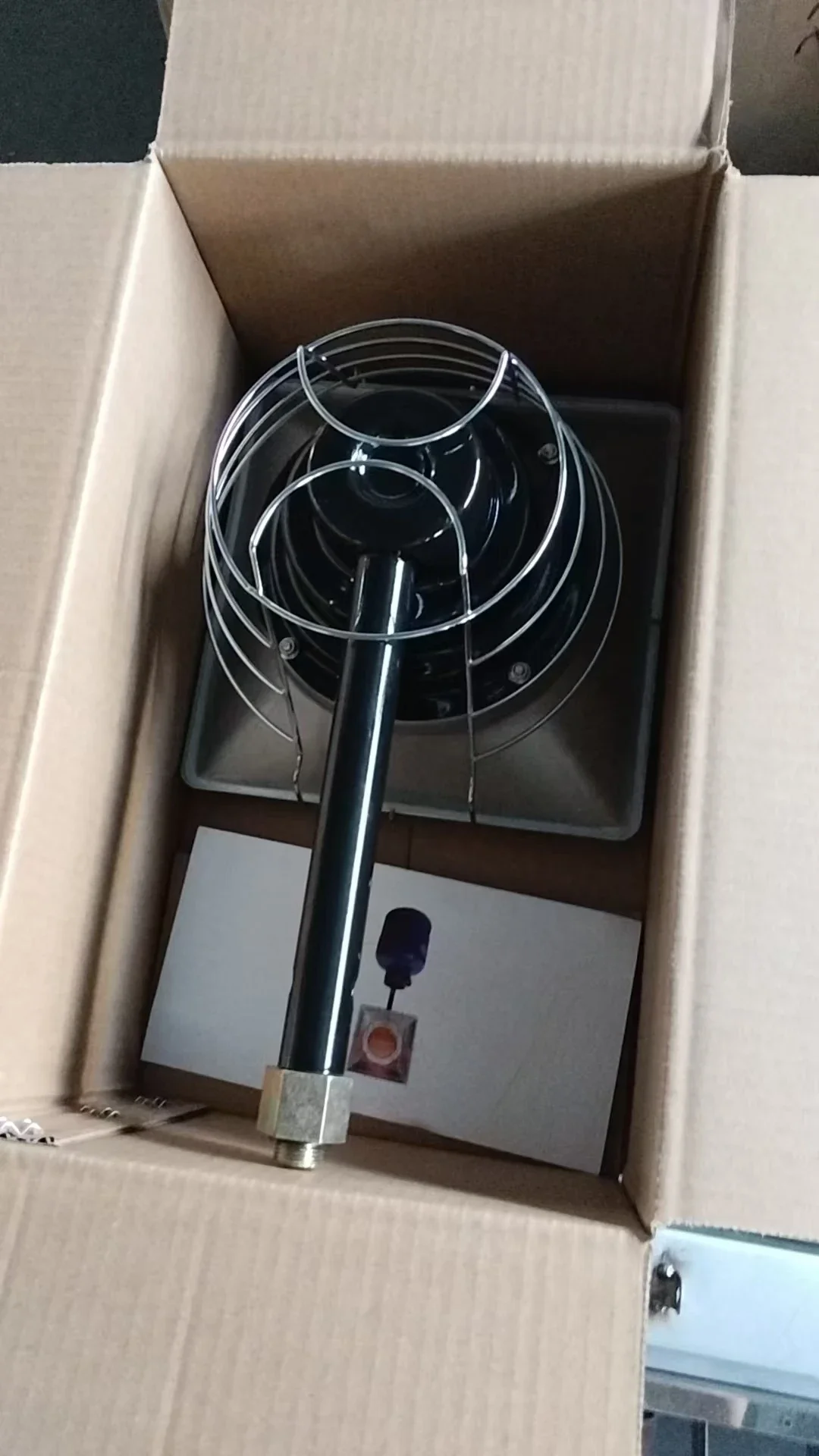

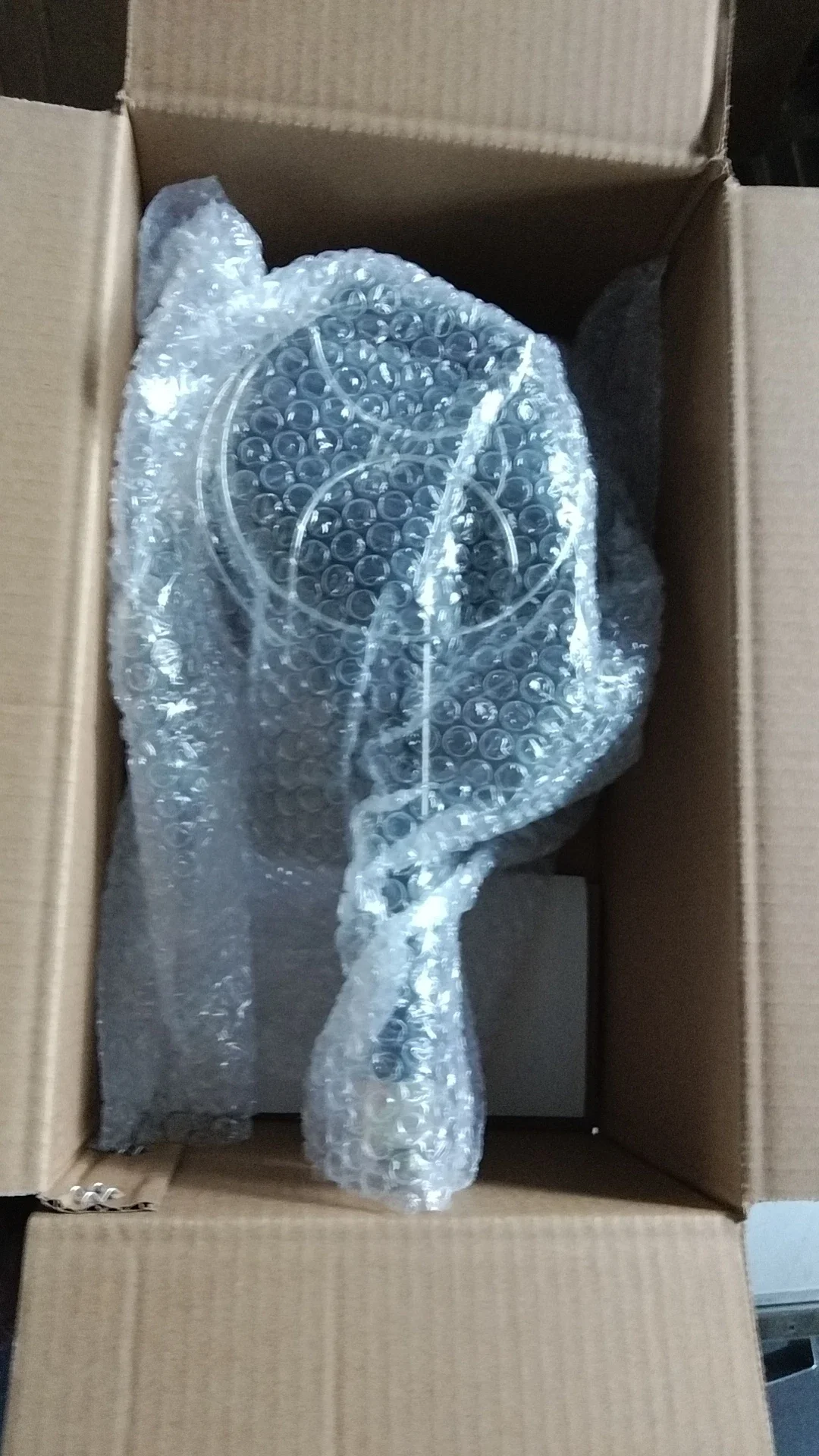

Product packaging

Company Profile

Chonqqing Haodong Technology co.,ltd

Chongqing Haodong Technology Co., Ltd was established in March 2005, over 11 years we focus on infrared catalytic combustion
technology promotion and application in industrial and civil fields. To electric heater, our infrared catalytic gas burner will
save 15%~20% operating cost for customers.

Golden customers from USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and
other 20 countries and regions, so appreciated with good reputation.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $16 / piece
  • 50–499 piece: US $14 / piece
  • 500+ piece: US $12 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this gas brooder heater?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 YEAR warranty. Spare parts and technical support remain available after the warranty period.

Can the gas brooder heater be supplied for my local voltage?

The standard configuration is No Electricity Needed. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Chongqing Haodong Technology Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Chongqing Haodong Technology Co., Ltd. range on HVACR Nexus.
