This industrial infrared heater is published with the manufacturer’s full specification — 110V/220V, power source Natural Gas. Made by Chongqing Haodong Technology Co., Ltd. (18 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Infrared Heater
- Power Source: Natural Gas
- Voltage: 110V/220V
- Material: Alloy
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
- Place Of Origin: Chongqing, China
Technical Specifications
| Type | Infrared Heater |
|---|---|
| Power Source | Natural Gas |
| Voltage | 110V/220V |
| Material | Alloy |
| Core Components | Ceramic plates |
| Key Selling Points | High Productivity |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Chongqing, China |
| Brand Name | THD |
| Dimension(L*W*H) | 840*130*175mm |
| Working Temperature Range | 35 – 450 ℃ |
| Product Name | Industrial oven infrared catalytic ceramic gas burners for furnace |
| Lifespan | above 11000hrs |
| Shap | square |
| Shell | gray cast iron |
| Upper Cover | stamped stainless iron |
| Nozzle | brass |
| Inner | cordierite honeycomb plates with catalyst |
| Fuel | NG,LPG |
| Working Pressure Range LPG | 2800-5000pa |
| Condition | New |
| Warranty Of Core Components | 1 Year |
| Applicable Industries | Food & Beverage Factory, Industrial oven heating |
| Weight | 7.3 |
| Packaging Details | Packing: bubblebag, carton |
| Selling Units | Single item |
| Single Package Size | 78X24X16 cm |
| Single Gross Weight | 8.000 kg |
Product Details

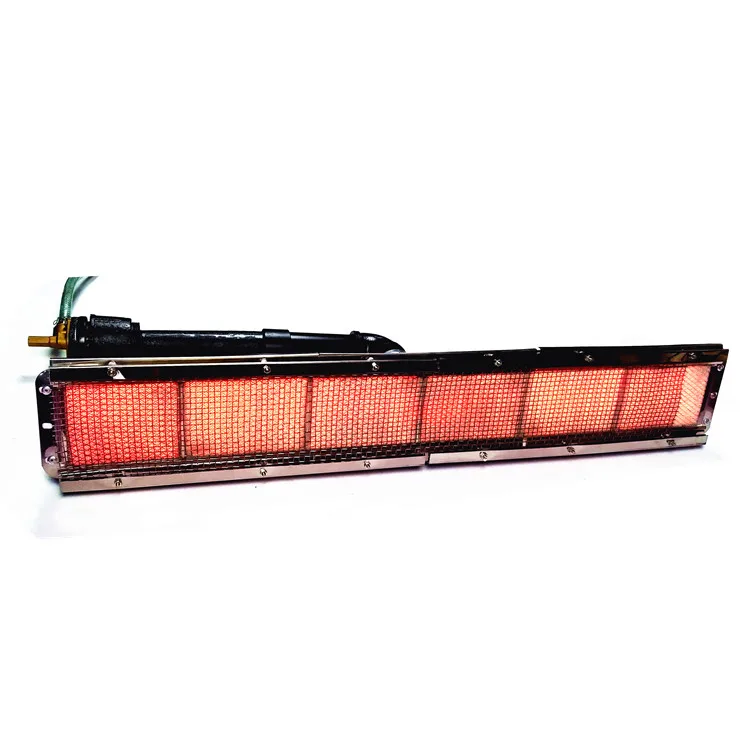

Product Name: Industrial oven infrared catalytic ceramic gas burners for furnace
Specification of Industrial oven infrared catalytic ceramic gas burners for furnace
| Item | Infrared gas burner HD242 |
| Spare parts | Ignition pin, pulse igniter, solenoid valve |
| Gas type | LPG, natural gas |
| Heat transfer rate | >95% |
| High efficiency | Start work in 8 seconds |
| Use lifetime | >11000hrs, with right use, can use 3~7 years. |
| Technology | Rare-earth catalyst, save gas 20% |
| Smokeless & Flameless | CO,80ppm, NOx<10ppm, CHx<50ppm |

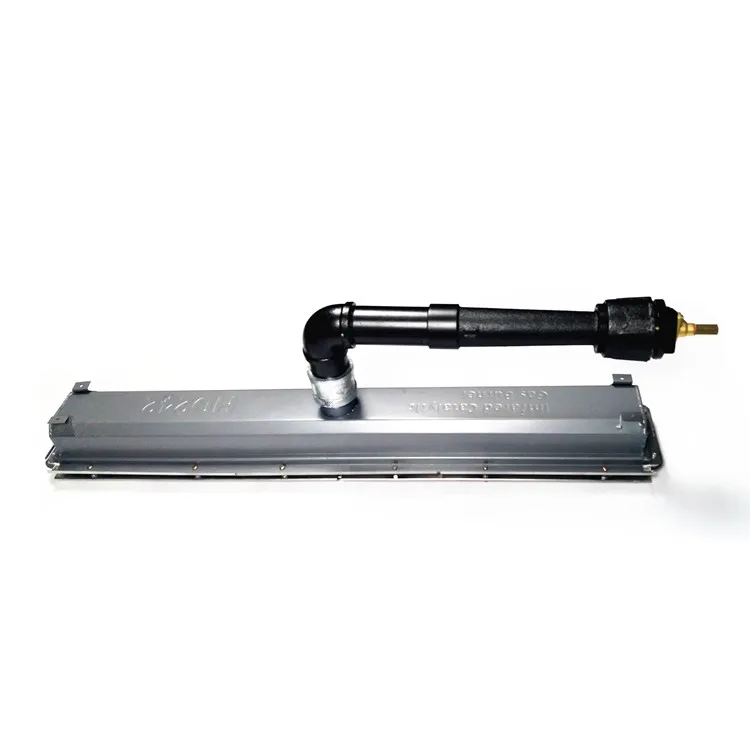

| Material | Galvanized steel body, cast iron air damper, honeycomb ceramic plates with catalyst, brass nozzle |
| Usage | Industrial surface treatment; Food baking; Latex/rubber glove drying; fiber/texitle drying; asphalt road drying. |
Technical parameters
| Items | Technical parameters |
| Types | natural gas (NG),liquefied petroleum gas (LPG) |
| Light-off temperature | ≥350 |
| complete combustion temperature | ≤380 |
| Heat source temperature | around 850 |
| Baking temperature range | 30—850 |
| Wavelength range | 1.9μm–15μm |
| Furnance pressure natural | 2000pa(NG)/2800pa(LPG) |
Comparison table for various energy consumption
| Furnace type Parameters | Electronic | Oil furnace | Coal-fired furnace | Infrared catalytic heaters |
| Energy requirement | 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
| Temperature | 180 | 180 | 180 | 180 |
| Energy consumption | Electricity(15 kW/h) | Electricity (1Kw/h)+ diesel (2Kg) | Coal (10Kg) | LPG(0.9Kg) |
| Heating time | 20 minutes | 40 minutes | 90 minutes | 5-8 minutes |
Energy-saving, High efficiency, flameless&Smokeless!!
Main purposes:
Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control……It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking…….
1. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
2. The food industry: drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
4. Food and beverage industry: all kinds of barbecue, fruit and vegetable dehydration.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6 .Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. The heat treatment of metallic materials (300 — 800 ).
8. Heating ,warming and insulation for commercial buildings and workshop

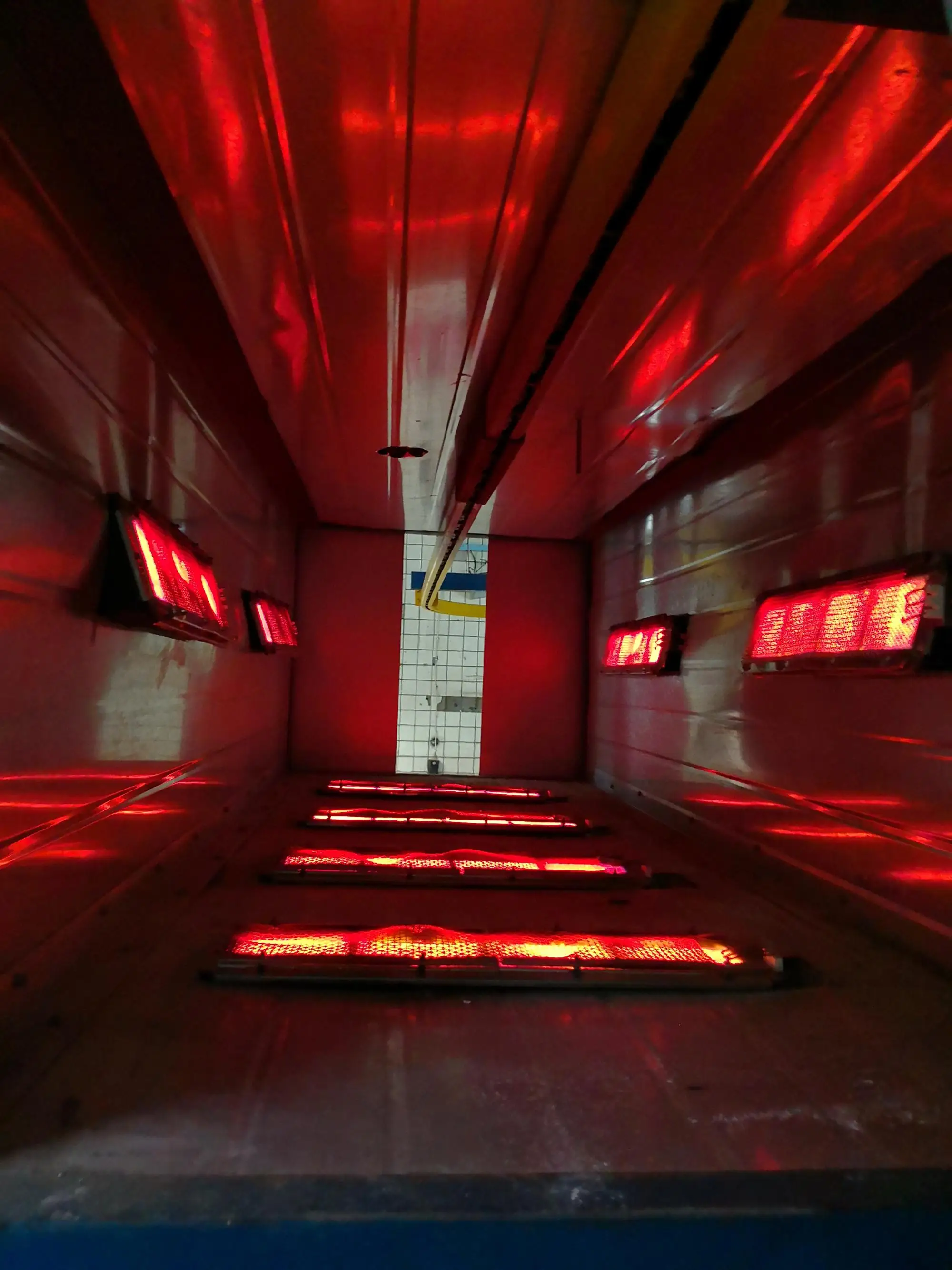

Application of Industrial oven infrared catalytic ceramic gas burners for furnace:
HOPE COOPERATION WITH YOU, NO MATTER WHERE YOU ARE! PLEASE CONTACT ME.
Ms. Kathy Tang
Mobile, What's app, Wechat: 0086-18423473470
Skype: tyc9744
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $76 / piece
- 50–199 piece: US $70.3 / piece
- 200+ piece: US $62.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial infrared heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial infrared heater be supplied for my local voltage?
The standard configuration is 110V/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
