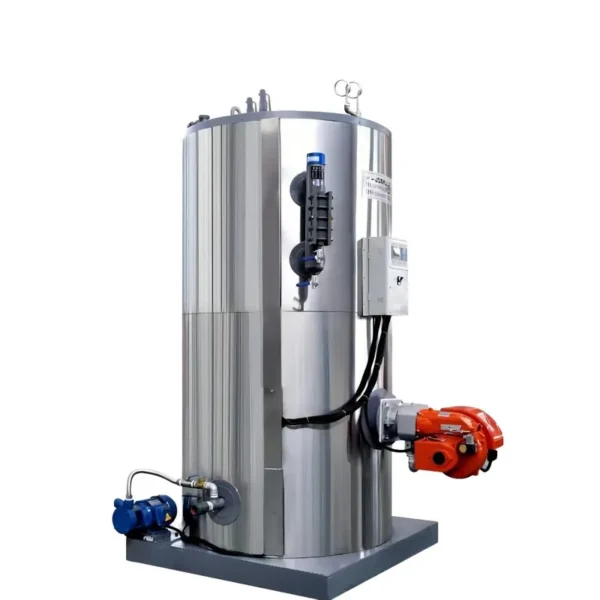

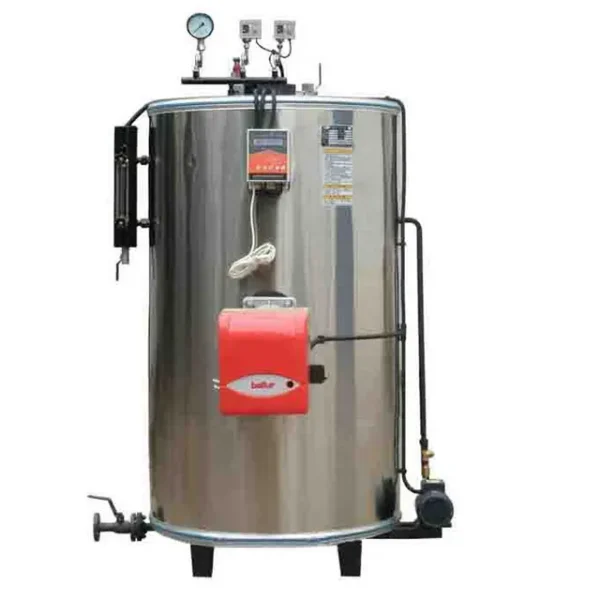

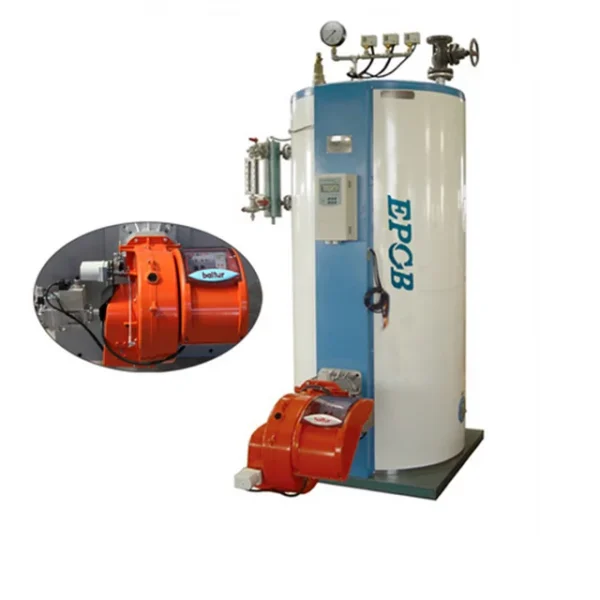

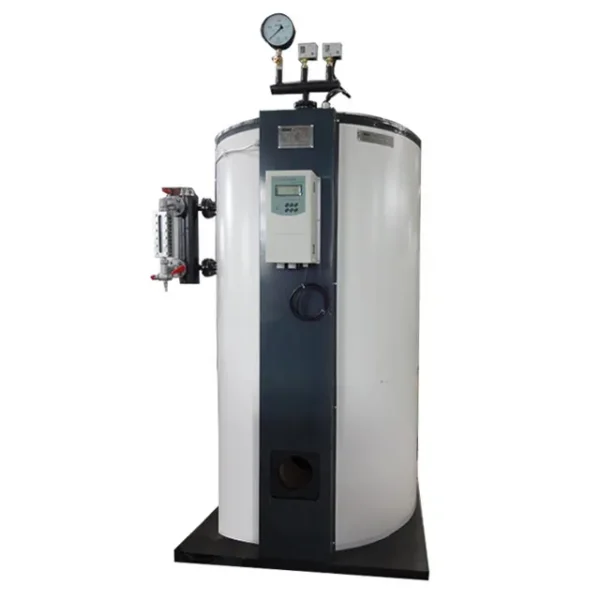

Steam boiler — material Carbon Steel, Alloy Steel, type Natural Circulation. The complete factory specification follows. Made by Qingdao East Power Industry Equipment Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Water Capacity: 24.3L-49L
- Material: Carbon Steel, Alloy Steel
- Warranty: 1 Year
- Certification: CE; ISO9001; ASME
- Place Of Origin: Shandong, China
- Type: Natural Circulation
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas |
| Pressure | Max. 1.0MPa |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Material | Carbon Steel, Alloy Steel |
| Core Components | Burner, Water Pump, Electric control |
| Key Selling Points | High Thermal Efficiency |
| Style | VERTICAL |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 500 |
| Place Of Origin | Shandong, China |
| Brand Name | EPCB |
| Dimension(L*W*H) | 480*515*1165-2000*1300*2250 |
| Product Name | Gas Oil Fired Steam Generator |
| Keywords | Steam Generator |
| Color | Customer’s Requirement |
| Thermal Efficiency | 91%~95% |
| Rated Working Pressure | 0.4-0.7Mpa |
| Control System | Automatic Control System |
| Water Capacity | 24.3L-49L |
| Rated Steam Temperature | 151-170℃ |
| Certification | CE; ISO9001; ASME |
| Selling Units | Single item |
Product Details
Model | Steam generator | Steam boiler (Class D exempt from inspection) | |||||||||||
LSS0.03 | LWS0.05 | LSS0.1 | LSS0.15 | WZS0.3 | WZS0.5 | ||||||||
Rated evaporation capacity (kg/h) | 30 | 50 | 100 | 200 | 300 | 500 | |||||||
Rated working pressure (Mpa) | 0.4/0.7 | 0.7 | |||||||||||
Rated steam temperature (℃) | 151/170 | 170 | 170 | 170 | 170 | ||||||||
Water supply temperature (℃) | 20 | ||||||||||||
Design thermal efficiency (%) | 91~95 | ||||||||||||
Water capacity (L) | 24.3 | 29 | 48.9 | 49.6 | 49 | 49 | |||||||
Shipping weight (T) | 0.17 | 0.4 | 0.55 | 0.72 | 1.2 | 1.5 | |||||||
Natural gas pipeline diameter (DN) | 20 | 25 | 32 | 40 | |||||||||
Natural gas supply pressure (Kpa) | 2-3 | 4-6 | |||||||||||
Fuel consumption | Light oil (kg/h) | 2 | 3.2 | 6.5 | 9.8 | 19.5 | 32.5 | ||||||
Natural gas (Nm3/h) | 2.3 | 3.9 | 7.5 | 11.3 | 23.4 | 39.6 | |||||||
Liquefied petroleum gas (Nm3/h) | 0.9 | 1.5 | 2.9 | 4.5 | 9.0 | 15.3 | |||||||
City gas (Nm3/h) | 4.9 | 8.3 | 15.9 | 23.8 | 49.7 | 84.2 | |||||||
Heated area | Radiation (m2) | 0.3 | 0.72 | 1.2 | 1.4 | 1.66 | 2.2 | ||||||
Convection (m2) | 0.63 | 1.32 | 1.5 | 3.7 | 6.63 | 13.3 | |||||||
Energy saver (m2) | / | / | 9.5 | 9.54 | 6.99 | 6.43 | |||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this steam boiler carry?
It is supplied with CE; ISO9001; ASME documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao East Power Industry Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao East Power Industry Equipment Co., Ltd. range on HVACR Nexus.
