Key specification for this grate coal fired boiler: material Stainless Steel, type Natural Circulation. Everything below is reproduced from the factory data sheet. Made by Zhengzhou Dabonn Energy Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Grate Coal Fired Boiler
- Steam Capacity: 4-35t/h Boiler
- Material: Stainless Steel
- Warranty: 2 Years
- Place Of Origin: Henan, China
- Type: Natural Circulation
- Combustion Type: Rice husk fired steam boiler
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Coal Wood / Biomass |
| Pressure | Low Pressure |
| Structure | fire and water tube |
| Type | Natural Circulation |
| Material | Stainless Steel |
| Core Components | PLC, Motor, Boiler main body |
| Key Selling Points | Automatic, Easy to Operate, High Safety Level |
| Style | Horizontal |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 25500 |
| Place Of Origin | Henan, China |
| Brand Name | DBE |
| Dimension(L*W*H) | Depends on Steam Capacity |
| Product Name | SZL Series Coal Fired Steam Boiler |
| Steam Capacity | 4-35t/h Boiler |
| Design | Double Drum Water Tube Boiler |
| Technical & Structural Keywords | Chain grate coal fired boiler |
| Thermal Efficiency | High Thermal Efficiency (82%+) |
| Combustion Type | Rice husk fired steam boiler |
| Control Mode | Automatic Operation Steam Boiler |
| Applicable Fuel Size | 6 to 25mm Biomass Fired Adaptability |
| Keywords | Wood pellet hot water boiler,Coffee husk boiler |
| Performance USPs | Customized Boiler Solution |
| Selling Units | Single item |
Product Details
Biomass Coal Steam Boiler

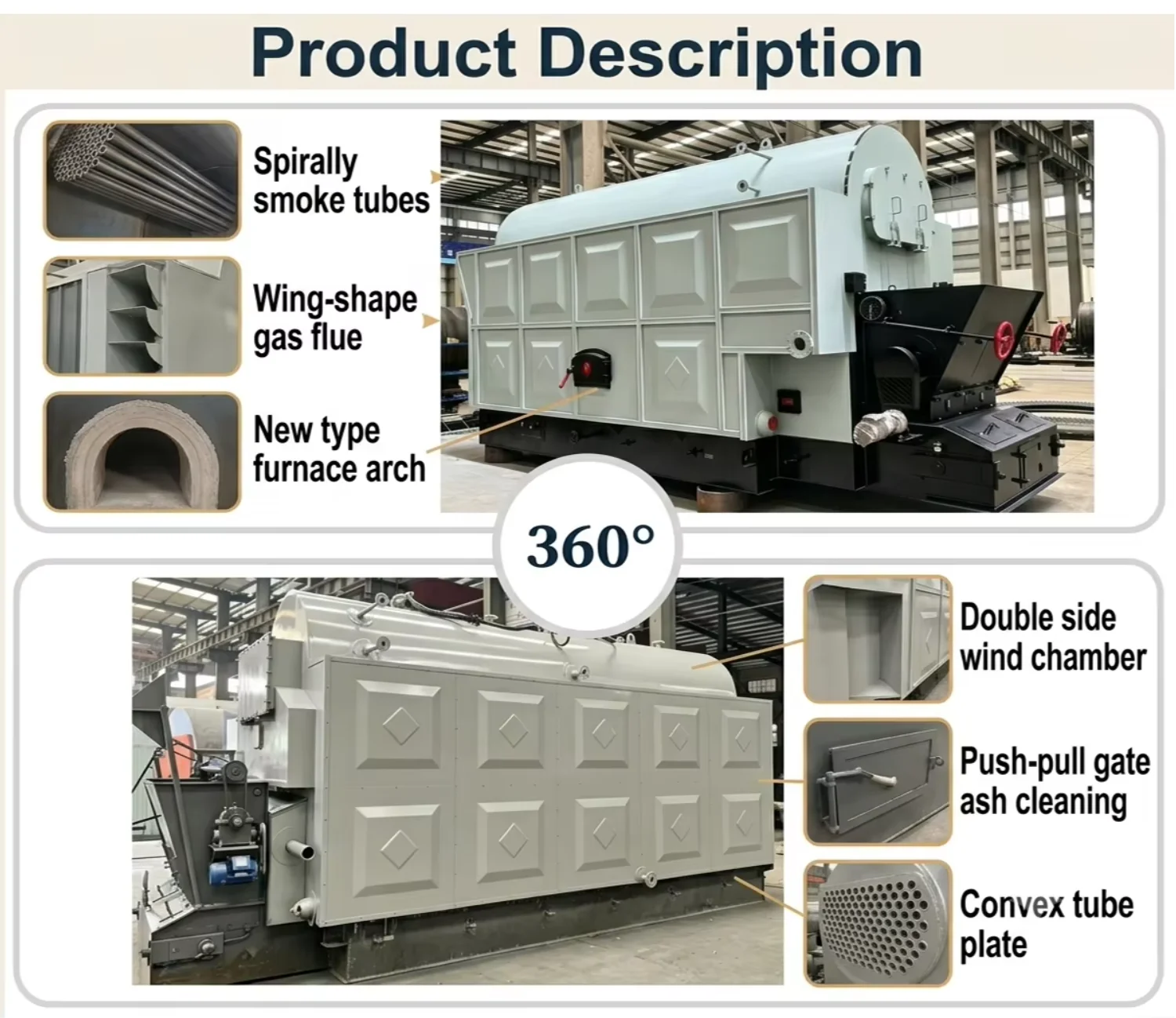

- Automatic Chain Grate Stoker: The advanced Chain Grate system ensures stable fuel feeding, uniform combustion, and automatic ash removal, minimizing manual labor and downtime.
- Superior Thermal Efficiency: Advanced membrane water wall design ensures a thermal efficiency of over 85%, significantly reducing your annual fuel costs.

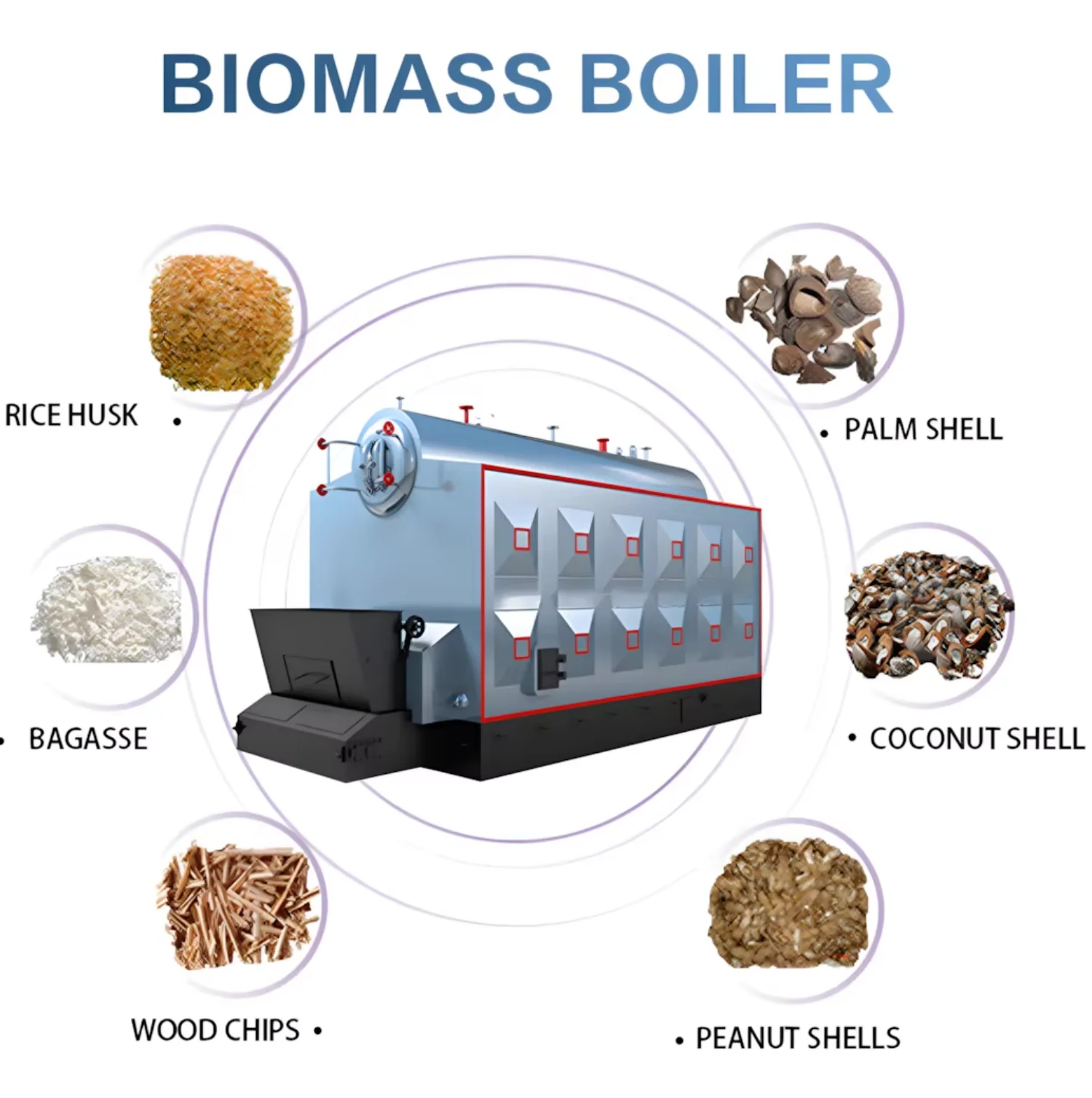

- Fuel flexibility is at the core of this design. The automatic chain-grate stoker accepts a wide range of solid biomass fuels — wood pellets, wood chips, sawdust, rice husks, palm kernel shells (PKS), bagasse, coconut shells, and compressed biomass briquettes — giving you the freedom to switch fuels based on local availability and cost.
- Designed for 24/7 continuous operation in demanding environments: food & beverage processing, textile dyeing, paper mills, plywood & timber drying, sterilization, and district heating.
- Every unit is built to ASME / ISO / CE standards with full radiography inspection on all pressure welds.
标题
Our biomass fired steam boiler is a complete industrial steam solution designed for factories that want to replace coal or oil boilers with renewable, low-cost energy.
标题
Customization – Built For Your Factory：Every project is different, and we build every boiler to match:
Capacity & pressure: from 1 t/h to 30 t/h, pressure 0.7-2.5 MPa or higher, saturated or superheated steam.
Fuel: tuned combustion system for your specific biomass fuel, including moisture and ash content analysis.
Power supply: customized voltage, frequency and control logic for your country (380V/50Hz, 440V/60Hz, 480V/60Hz…).
Climate & location: high-altitude, coastal anti-corrosion, desert and cold-climate versions.
System integration: heat exchangers, steam accumulators, water treatment, chimney and fuel handling system as a complete turnkey package.
ITEM | DZL1-1.25-SCII | DZL2-1.25-SCII | DZL3-1.25-SCII | DZL4-1.25-SCII | DZL5-1.25-SCII | ||||
Rated evaporation (t/h) | 1 | 2 | 3 | 4 | 5 | ||||
Rated working pressure (MPa) | 1.0/1.25/1.6/1.8/2.0/2.5(Rated working pressure can be selected according to user requirements and standard series) | ||||||||
Feed water temperature (℃) | 20 | 20 | 20 | 20 | 20 | ||||
Applicable fuel and low calorific value | Wood: 3000Kcal/Kg Biomass particles: 4000Kcal/Kg Coal: 5500Kcal/Kg | ||||||||
Boiler thermal efficiency (%) | 85-87 | ||||||||
Maximum transport weight of boiler (T) | 13 | 23 | 24 | 26 | 38 | ||||
Maximum transport size of boiler (m) (L×W×H) | 4.25×202×2.9 | 2.5×5.6×3.4 | 5.7×2.6×3.4 | 6.62×3.0×3.6 | 7.52×2.8×3.85 | ||||
Certified Quality You Can Trust
1. A-Grade Boiler Manufacturing License (China's highest tier)
2. ASME / ISO / CE certified
3. 107+ technical patents in combustion, heat transfer, and control systems
1. Multi-Fuel Biomass Combustion – One Boiler, Every Fuel
The chain grate design (DZL/SZL) accepts a wide range of biomass fuels without modification. Whether you have rice husk in Vietnam, bagasse in Thailand, palm kernel shell in Indonesia or wood pellets in Europe, our boiler burns it cleanly and efficiently. Ask us for a free fuel analysis to confirm the best combustion design for your local fuel.
2. Energy Saving Boiler Design – Lower Steam Cost
High thermal efficiency 99% comes from: large heating surface, optimized chain grate, three-pass flue gas flow, and optional economizer + air preheater to recover waste heat. The result is lower fuel consumption per ton of steam and a dramatically lower steam production cost versus oil or coal fired boilers.
3. Fully Automatic Operation – Less Labor, Fewer Errors
PLC-based automatic control with touch screen: automatic fuel feeding, auto ignition, auto water level, auto pressure control, auto alarm and safety shutdown. One operator can supervise multiple boilers. Remote monitoring and mobile alert are available on request.
Why Dabonn Biomass Boilers Deliver More Value | ||
Your Concern | Dabonn's Answer | |
Fuel cost is killing my margin | Our multi-fuel design burns biomass pellets, wood chips, palm shells, bagasse, rice husks — whatever is locally abundant and cheap | |
I worry about unstable steam output | Double-drum / water-fire tube hybrid design ensures steady pressure even under fluctuating load | |
Maintenance is a headache | Large furnace volume + optimized grate design = complete combustion, less ash, less cleaning | |
I need it to run 24/7 | Heavy-duty structure, thickened steel plates, and automatic slag removal for non-stop operation | |
Environmental compliance | Integrated dust removal + desulfurization options. Emissions meet EU / local standards | |
I don't have technical staff on site | Full PLC automation with remote monitoring support | |
Certifications & Quality Control
1. ISO 9001 / CE / ASME certified quality system
2. third-party inspection accepted before shipment
3. 100% hydrostatic test on every pressure part
4. Complete document package: drawings, test reports, operation manual, packing list
Factory Strength & 32+ Years Export Experience
Zhengzhou Dabonn Energy Co., Ltd. is a professional industrial boiler manufacturer with:
1. 32+ years of export experience serving buyers in 170+ countries across Southeast Asia, Africa, Latin America and the Middle East.
2. A-class boiler manufacturing license in China – the highest national qualification for pressure equipment.
3. 107+ patents in boiler design, combustion and control technology.

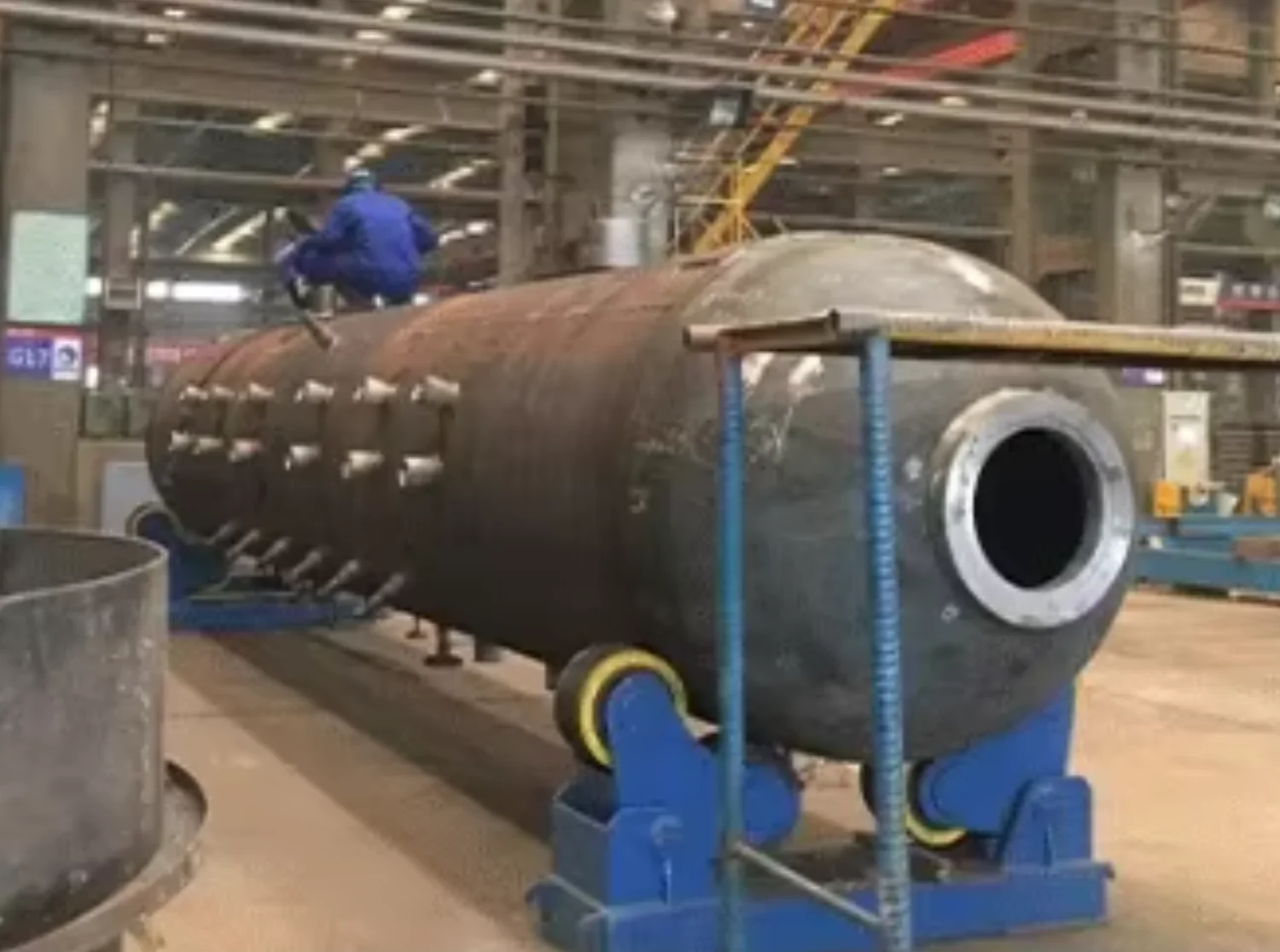

4.Full in-house production: design, plate cutting, welding, pressure testing, painting and testing under one roof.
5.Dedicated export team: English-speaking sales engineers, bilingual technical documentation, and after-sales support in your time zone.
FAQs
Can you design a boiler for my specific steam pressure and temperature requirements?
Yes. All our boilers are custom-engineered. Simply provide your required steam output (T/H), working pressure (MPa), steam temperature (°C), and fuel type.
Can we visit your factory?
Our factory is located in Henan, China. We have a professional team and advanced production equipment. We warmly welcome you to visit our factory.
How can I pay you?
T/T, Western Union, Money Gram and Ali Trade Assurance is better.
What trade methods are supported?
We can trade by EXW, CIF, FOB, FCA, CFR, DAP, DDP.
Why Choose Our Factory?
Full Lifecycle Support: Our engineers deliver remote technical support and after-sales services spanning engineering design, manufacturing and on-site commissioning.
What fuels can this biomass steam boiler burn?
Wood pellets, rice husk, bagasse, palm kernel shell (PKS), coconut shell, wood chips, sawdust, straw and biomass briquettes. The combustion system is tuned to your local fuel; coal/biomass dual fuel is also available.
Our Service & Support
Pre-sales: free technical consultation, fuel analysis, boiler selection and layout drawing.
Ordering: contract review, production photo & video updates, third-party inspection welcome.

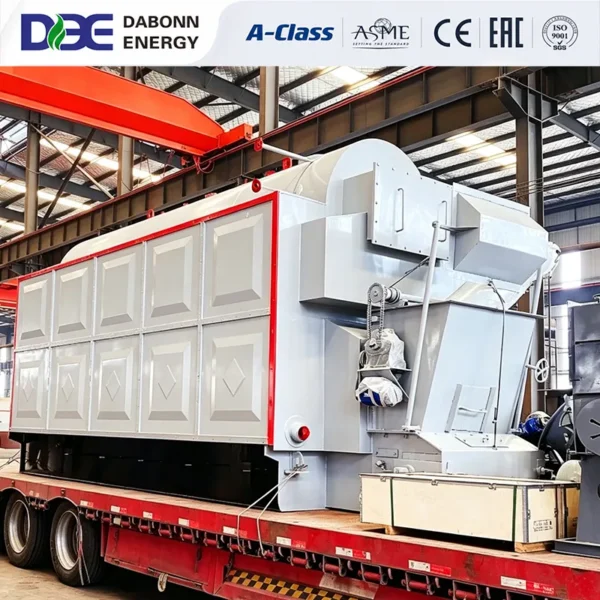

Delivery: seaworthy export packing, complete shipping documents, delivery to your port.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $6600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this grate coal fired boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
