This wall fan is published with the manufacturer’s full specification — 380 V, power source Electric. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Wall Fan
- Model Number: BST-CF1380
- Power Source: Electric
- Power: 1100w
- Voltage: 380 V
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 1250mm |
|---|---|
| Voltage | 380 V |
| Speed | 439 |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | BOOST |
| Model Number | BST-CF1380 |
| Product Name | Green house Poultry Chicken 50inch cone butterfly cone fan |
| Size | 1380*1380*1300mm |
| Belt | Japanese Mitsuboshi |
| Frame Material | Galvanized Sheet/Stainless Steel |
| Motor Brand | China motor/Siemens motor/WEG motor/ABB motor |
| Balde Rpm | 439rpm |
| Application | Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop |
| Power | 1100w |
| Opening Device | Cone fan |
| Selling Units | Single item |
| Single Package Size | 138X138X130 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Products Description

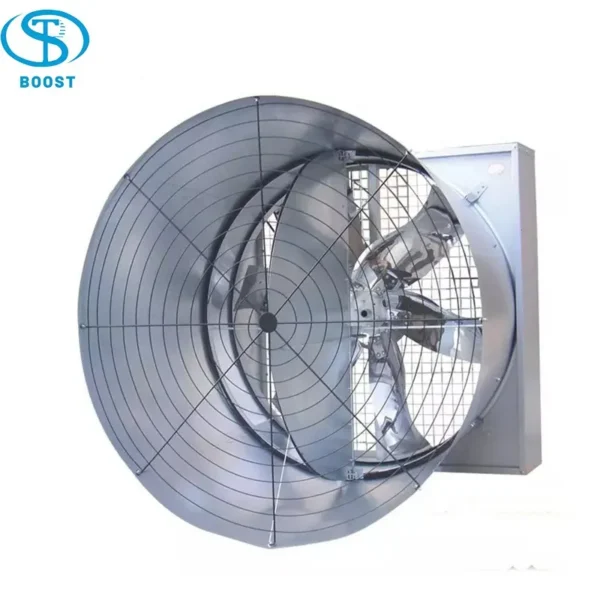

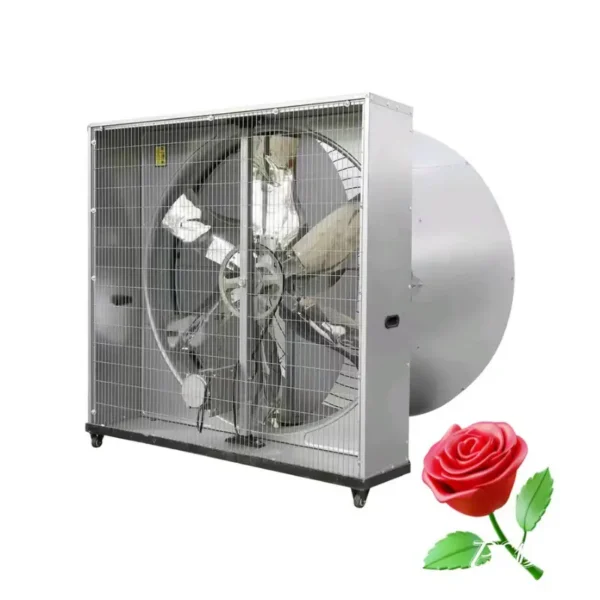

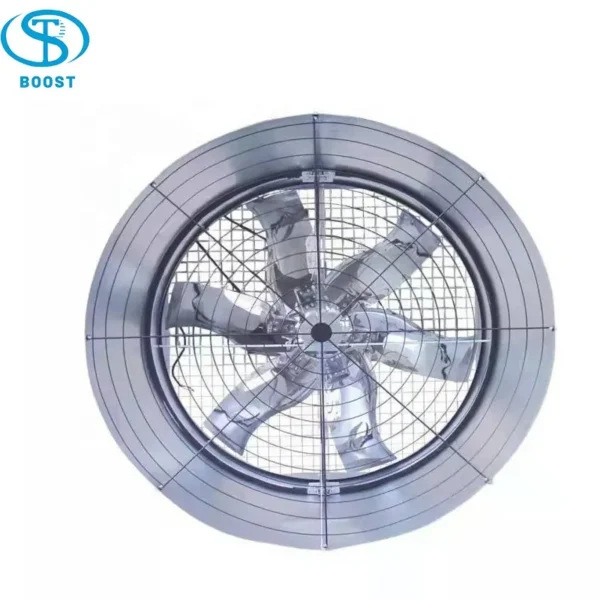

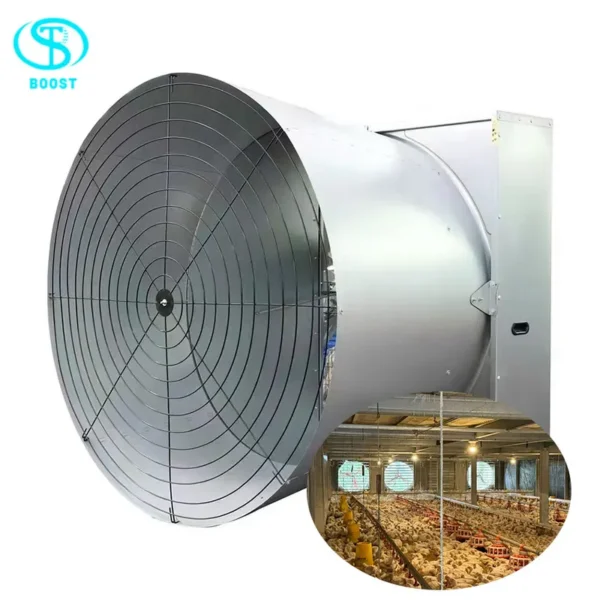

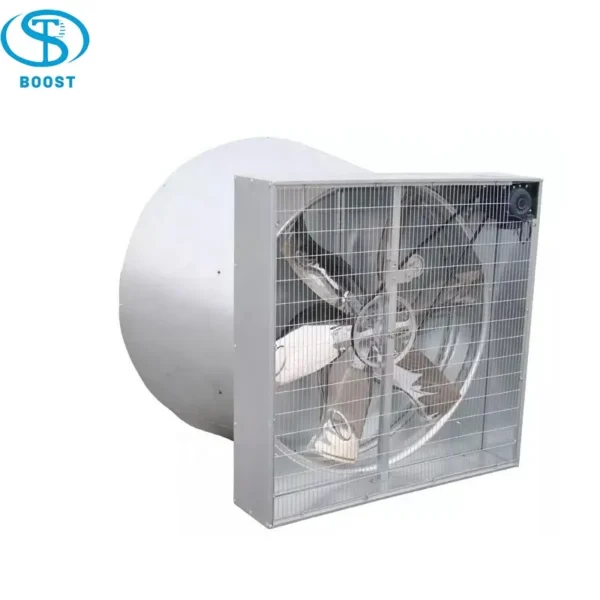

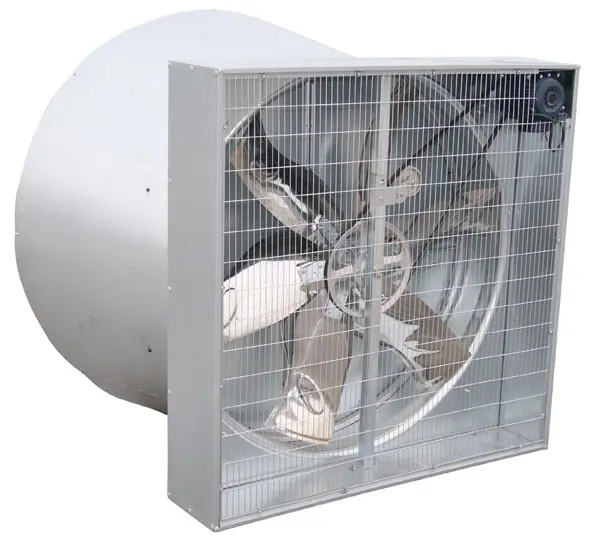

50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Input power (KW) | Noise (db) |
BST1000C | Belt | 900 | 610 | 1400 | 28000 | 750 | ＜65 |
BST1100C | Belt | 1000 | 600 | 1400 | 36000 | 750 | ＜65 |
BST1380C | Belt | 1270 | 439 | 1400 | 51020 | 1100 | ＜65 |
Motor
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Brand: Chinese motor and Siemens motor Certificate: CCC Protection
class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mmAdvantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
1.Material:High quality Nylon PA66
2.Guide Rod:304 stainless steel with special material outside,high strength,no rust,reduce friction.
2.Guide Rod:304 stainless steel with special material outside,high strength,no rust,reduce friction.
3.Rivet:304 stainless steel,wear-resisting,no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wear resisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing fiction,rust-resistant.
Fan belt pulley
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.Advantage:
Small wind resistance,Large air flow, attractive and durable.
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto
punching and bending. Highly-accurate. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Advantage:
High strength,Strong corrosion resistance
Belt
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
We have Chinese belt and Japanese Mitsubishi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
No electricity ventilation,Opening centrifugal push-pull system,then Shutters can open and close automatically.
Advantage:
Windproof ,Rainproof
Advantage:
Windproof ,Rainproof
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Detail Images
Factory&Workshop
WHY CHOOSE BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Packaging&Shipping
FAQ
After-sales service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the
machine.
* Engineers are available to service machinery overseas
* Engineers are available to service machinery overseas
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–19 set: US $200 / set
- 20+ set: US $150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the wall fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
