Key specification for this gzling regenerative air blower: power source Electric, type industrial air vacuum pump blower. Everything below is reproduced from the factory data sheet. Made by Wuxi Gezhiling Mechanical & Electrical Co., Ltd. (15 years on the platform, typical reply ≤22h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Gzling Regenerative Air Blower
- Model Number: 2RB510A11
- Power Source: Electric
- Horsepower: 1.5HP
- Warranty: 1 year
- Place Of Origin: Jiangsu, China
- Application: Food And Beverage Industry
Technical Specifications
| Application | Food And Beverage Industry |
|---|---|
| Structure | Screw Pump |
| Power Source | Electric |
| Motor | 100% cooper wire |
| Warranty | 1 year |
| Customized Support | OEM, OBM |
| Horsepower | 1.5HP |
| Pressure | High Pressure |
| Model Number | 2RB510A11 |
| Place Of Origin | Jiangsu, China |
| Brand Name | GZLing |
| Frequency | 50/60HZ |
| Type | industrial air vacuum pump blower |
| Bearing | NSK |
| Selling Units | Single item |
| Single Package Size | 45X45X45 cm |
| Single Gross Weight | 35.0 kg |
Product Details
Parameters:
| Item NO. | Stage (S/D/3) | Frequency (HZ) | Power (KW) | Voltage (V) | Current (A) | Air Flow (m³/h) | Vacuum (mbar) | Pressure (mbar) | Sound dB(A) | Weight (KG) |
| 2RB 510 A11 | Single | 50 | 1.5 | 200-240V | 9 | 210 | -200 | 190 | 64 | 24 |
| 60 | 1.75 | 200-240V | 9.5 | 255 | -220 | 210 | 70 |

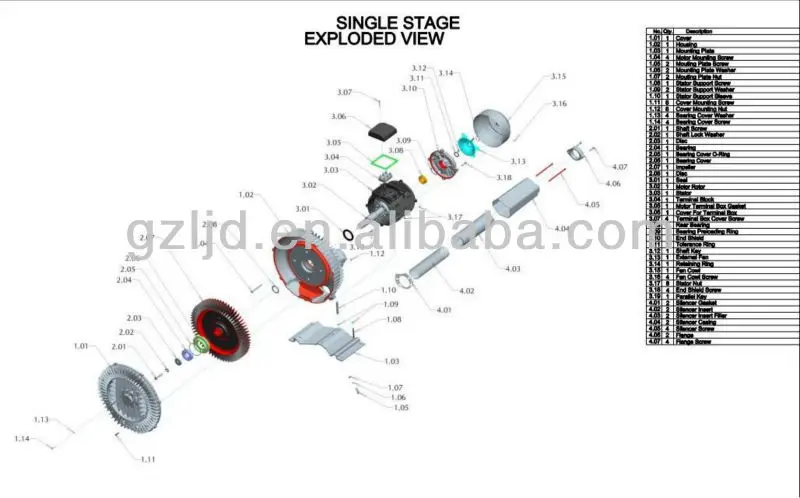

Composion:

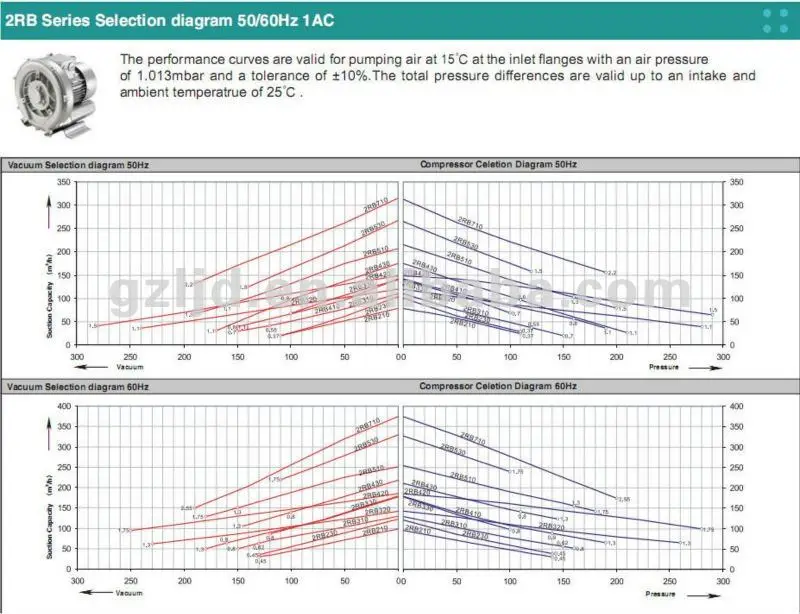

Performance curve:
Features:
1. Beautiful surface
2. Easy installation
3. Low noise level
4. No vibration, and therefore complete dynamic stability
5. Pulsation-free discharge
6. Minimal maintenance
7. Higher pressure ratio
8. Cooler running bearings
9. Longer grease life
10. Simple maintenance
11. 100%oil-free air
12. Suitable for environmental protection
13. Small dimensions
14 continuous duty
Applications:
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
3.Packing machines
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
6.Soil remediation
7.Thermoforming
8.Sorting/enveloping of letters
9.Food-processing
10.Laser printers
11.Dental suction equipments
12.Paper processing
13.Printers/copiers
14.Textile machines
15.Aeration of fish ponds
16.Gas analysis
17.Wsimming pool equipment/whirlpools
Ex stock for use world-wide
The G-series side channel blower feature voltage rang motors for 50HZ and 60HZ in protection class IP55(insulation class F) are UL,CE,CCCapproved.this makes them the ideal solution for wide use.they can be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.they are available for your requirements anytime.
G-series operating principle
The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.
Certificate:
Production Line:
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gzling regenerative air blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Gezhiling Mechanical & Electrical Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Gezhiling Mechanical & Electrical Co., Ltd. range on HVACR Nexus.
