Key specification for this side channel blower: rated voltage 200-720V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Wuxi Gezhiling Mechanical & Electrical Co., Ltd. (15 years on the platform, typical reply ≤17h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Side Channel Blower
- Model Number: HB-250A
- Power Source: Electric
- Rated Voltage: 200-720V
- Blade Material: Aluminium Alloy
- Material: die-casting Aluminum Alloy
- Warranty: 1 year
Technical Specifications
| Application | Industrial Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 200-720V |
| Electric Current Type | AC |
| Blade Material | Aluminium Alloy |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Place Of Origin | Jiangsu, China |
| Brand Name | GZLing |
| Model Number | HB-250A |
| Color | Silver |
| Cooling Method | Air Cooling |
| Material | die-casting Aluminum Alloy |
| Certification | CE/RoHS/CCC |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 15.000 kg |
Product Details
Specification:
- Product name:side channel blower 250W single phase 220V hot selling
- IP55 Insulation class F
- Bearing continuously works 130000 hours without maintance 12-moth warranty
- Famous Brand (OEM Allowed)
- Certificates:CE,UL,RoHS,CCC
- German technology
- EX-stock
1.Parameters: for side channel blower 250W single phase 220V hot selling
| Model | Stage | Power KW | Voltage V | pressure mbar | vacuum mbar | air flow M3/h | Sound dB(A) | Diameter inch | Weight kg |
| HG-250A | Single | 0.25 | 220/380V | 100 | -130 | 70 | 53 | 1.2” | 11 |
2.Explosive view: for side channel blower 250W single phase 220V hot selling
3.Feature: for side channel blower 250W single phase 220V hot selling
- Beautiful surface,Easy installation,Low noise level
- No vibration, and therefore complete dynamic stability
- Pulsation-free discharge,free maintenance
- Higher pressure ratio,100% oil free
- High temperature-resistant bearings with longer grease life
- Suitable for environmental protection
- Wide frequency motor with IP55,CALSS H
- Passed ISO,CE,CCC,UL ROHS test
- Air capacity:from 40m3/h to 2500m3/h
- Pressure:from 60mbar to 780mbar
4.Application: for side channel blower 250W single phase 220V hot selling
- Pneumatic conveying systems
- Lifting and holding of parts by vacuum
- Packing machines
- Aeration of sewage-treatment plants
- Filling of bags/bottles/hoppers
- Soil remediation
- Thermoforming
- Sorting/enveloping of letters
- Food-processing
- Laser printers
- Dental suction equipment
- Paper processing
- Printers/copiers
- Textile machines
- Aeration of fish ponds
- Gas analysis
- Swimming pool equipment/whirlpools
5.Installation connection: for side channel blower 250W single phase 220V hot selling

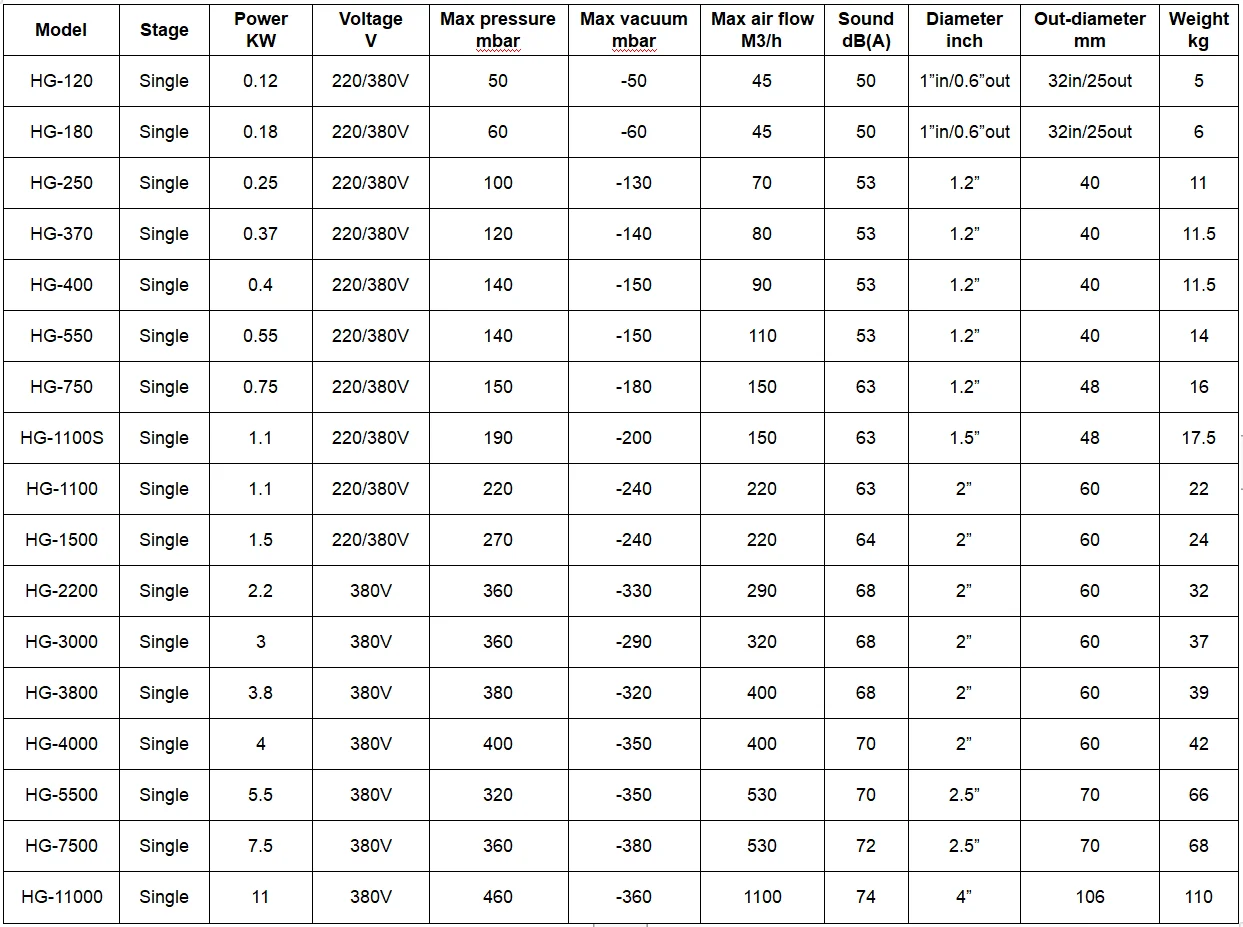

6.Other models:for side channel blower 250W single phase 220V hot selling
Build in 2001,has 108000squarmeter,start researching and manufacturing the air blower,side channel blower,vacuum blower,ring blower,regenerative blower.Set in jiangsu province,near to shanghai seaport or ningbo seaport.
Our company has powerful research technology,advanced die-casting aluminum alloy equipment,auto copper wire machine,printing production line.Introduced international best technology,has excellent engineer team.
Our company imported more than 80sets advanced production equipment from German,Japan etc,has more than 20 production lines,workers assemble more than 1000sets per day.
There's enough stock for regular items to suit some client's urgent demand.Using strong carton and stick pallet to pack the blower,avoid the damage in shipping way.
Where’s your company located in?
We are located in wuxi city,jiangsu province,near the shanghai port or hangzhou port
What’s your products?
Our main products is side channel air blower,ring blower,regenerative blower, and develop other industrial equipment as well
What’s warranty time?
It is 18 months.And read the user manual before running the blower to make sure the correct working
What’s shipping could for your products?
By sea,by air,by express are both available.
What’s payment way could available?
TT,PAYPAL,WEST UNION,Money gram,Credit card etc
Could the products customized?
Yes,OEM customized is available.Like ATEX type,antiseptic(Teflon) etc
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $75 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this side channel blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this side channel blower carry?
It is supplied with CE/RoHS/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the side channel blower be supplied for my local voltage?
The standard configuration is 200-720V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Gezhiling Mechanical & Electrical Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Gezhiling Mechanical & Electrical Co., Ltd. range on HVACR Nexus.
