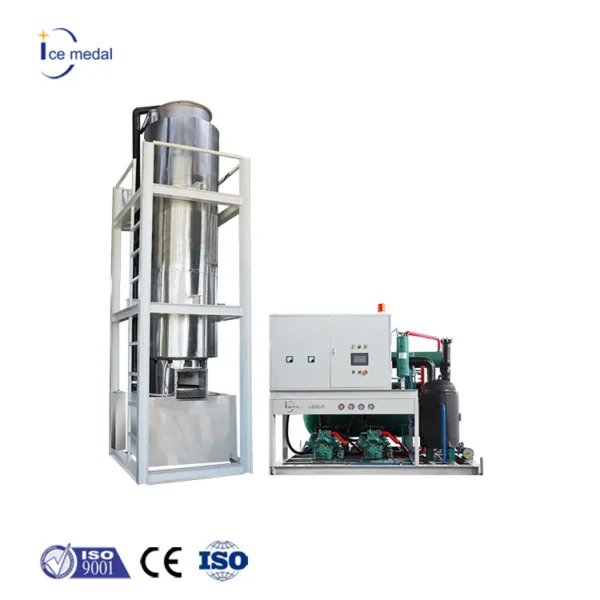

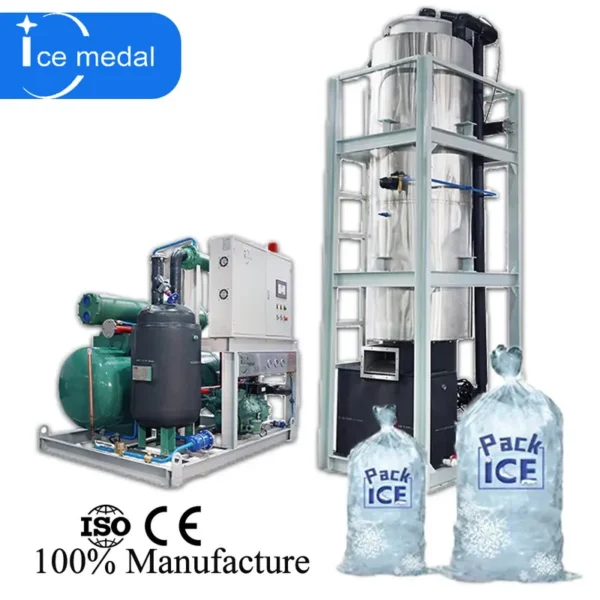

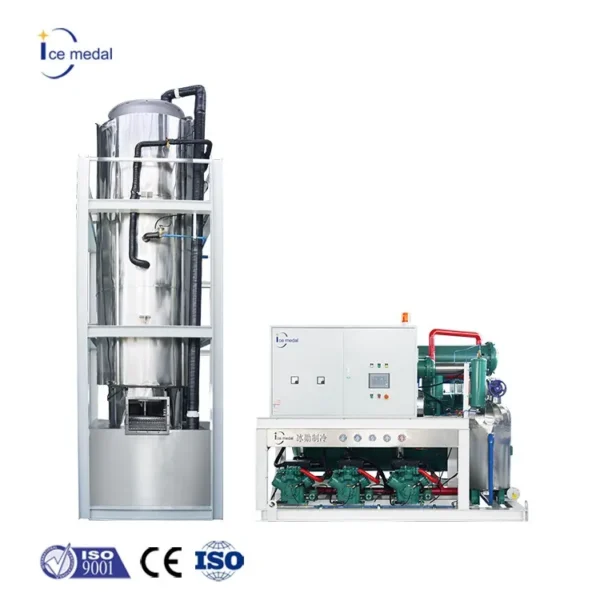

The hacer hielo ice tube listed here carries 380v/50hz/3ph, capacity 1-60ton per day, documented exactly as the manufacturer publishes it. Made by Hunan Icemedal Refrigeration Equipment Co., Ltd. (5 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Hacer Hielo Ice Tube
- Power: 12KW
- Voltage: 380v/50hz/3ph
- Ice Storage Capacity: 1000 kg
- Capacity: 1-60ton per day
- Material: Stainles Steel
- Warranty: 1 Year
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Storage Capacity | 1000 kg |
| Voltage | 380v/50hz/3ph |
| Power | 12KW |
| Compressor Brand | Frascold, Bitzer, Copeland, Bock |
| Key Selling Points | High Productivity |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Water Pump, Water Cooling System, Water Tank, Compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Hunan, China |
| Weight (Kg) | 3500 |
| Brand Name | ICEMEDAL |
| Dimension(L*W*H) | 3100*2200*2500 |
| Condensation | Water cooled condenser/Air cooled condenser |
| After Warranty | Video technical support, Online support, Spare parts |
| After-Sales Service | Overseas Machinery Service, field installation, training |
| Tube Ice Length | 30mm to 50mm |
| PLC Program | Germany brand Siemens |
| Capacity | 1-60ton per day |
| Certification | CE |
| Key Words | Tube ice making machine |
| Material | Stainles Steel |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |

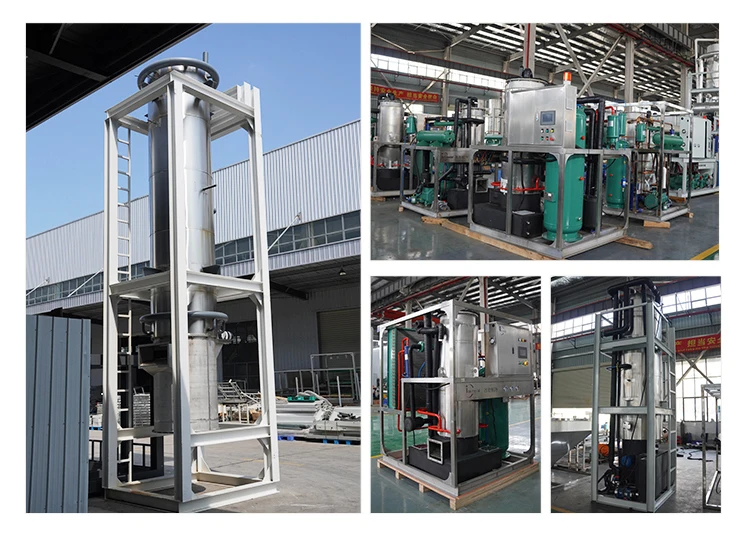

Product Details
The ice tube is thick and crystal clear, and it takes a long time to melt or store. The gas permeability is good so it is widely used in daily food, fruit and vegetable preservation, aquatic products preservation, etc.

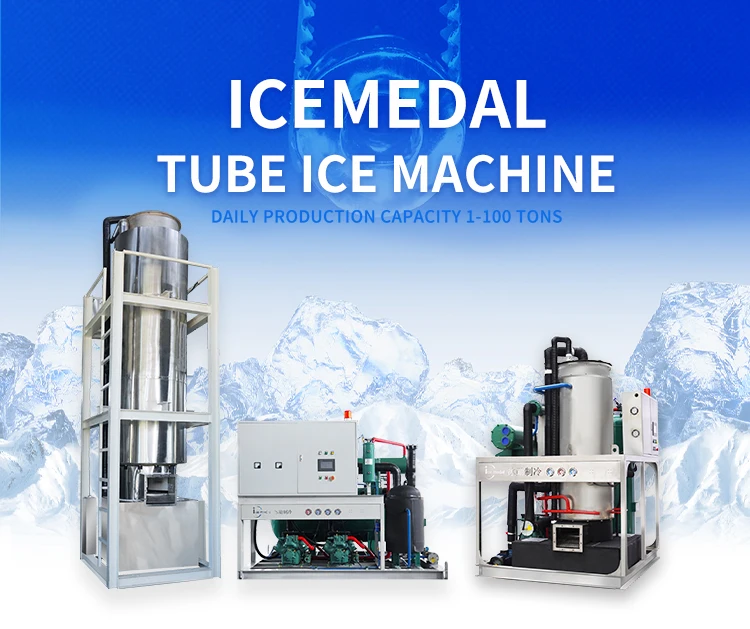

Icemedal 1-30 ton Tube Ice Machine Parameters | ||||||||||||||
Model | Daily Output | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unite Size (L*W*H mm) Integrated type | Unit N.W.(KG | ||||||||
IMT1 | 1T/24h | 4.1kw | 0.25kw | 1kw | 1100*900*1780 | 900 | ||||||||
IMT2 | 2T/24h | 7.44kw | 0.25kw | 1.5kw | 1250*1000*1950 | 1200 | ||||||||
IMT3 | 3T/24h | 10kw | 0.55kw | 1.5kw | 1300*1100*2200 | 1500 | ||||||||
IMT5 | 5T/24h | 19.9kw | 0.55kw | 2.2kw | 1600*1400*2250 | 1800 | ||||||||
Model | Daily Output | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unite Size (L*W*H mm)Split type | Unit N.W.(KG) | ||||||||
Mian Host | Evaporator | |||||||||||||
IMT10 | 10T/24h | 27.9kw | 1.5kw | 4kw | 1900*1600*1850 | 1200*1200*3390 | 3500 | |||||||
IMT15 | 15T/24h | 46.4kw | 1.5kw | 5kw | 2700*2000*2200 | 1500*1200*4250 | 4250 | |||||||
IMT20 | 20T/24h | 55.7kw | 2.2kw | 7.5kw | 2800*2200*2500 | 1500*1200*4250 | 6500 | |||||||
IMT30 | 30T/24h | 83.6kw | 2.2kw | 7.5kw | 3100*2200*2500 | 1800*1500*5700 | 7200 | |||||||

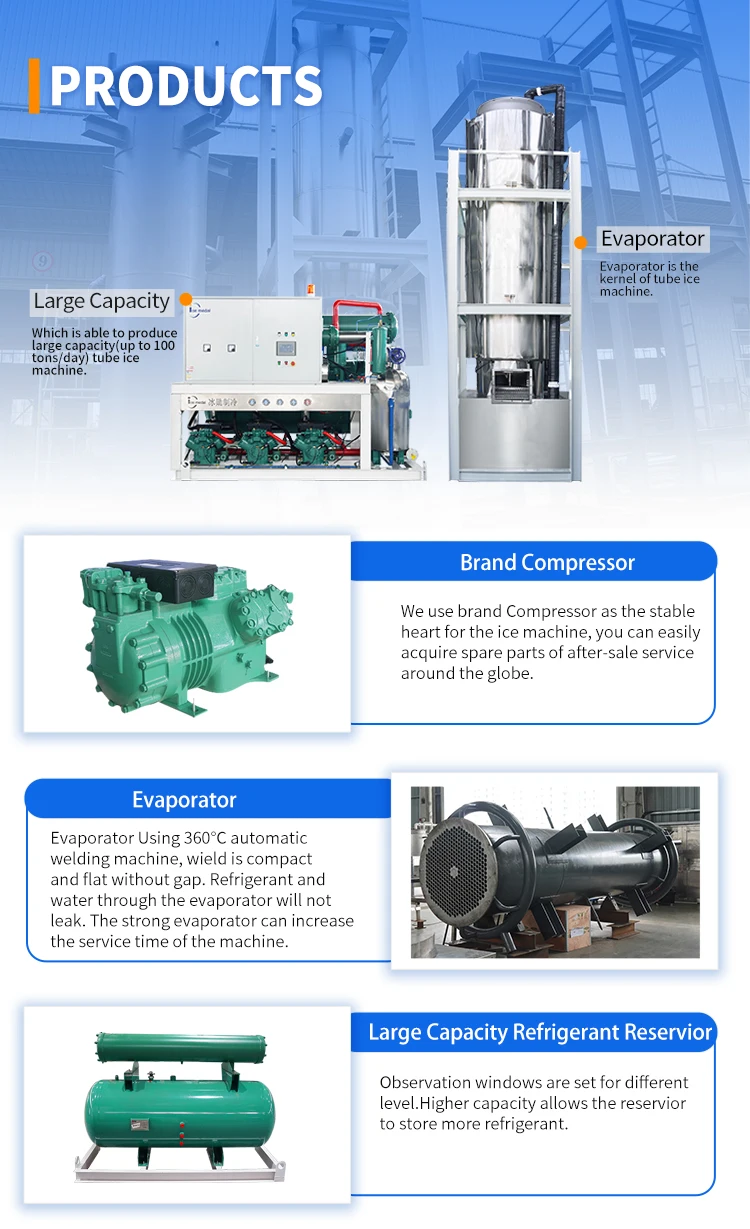

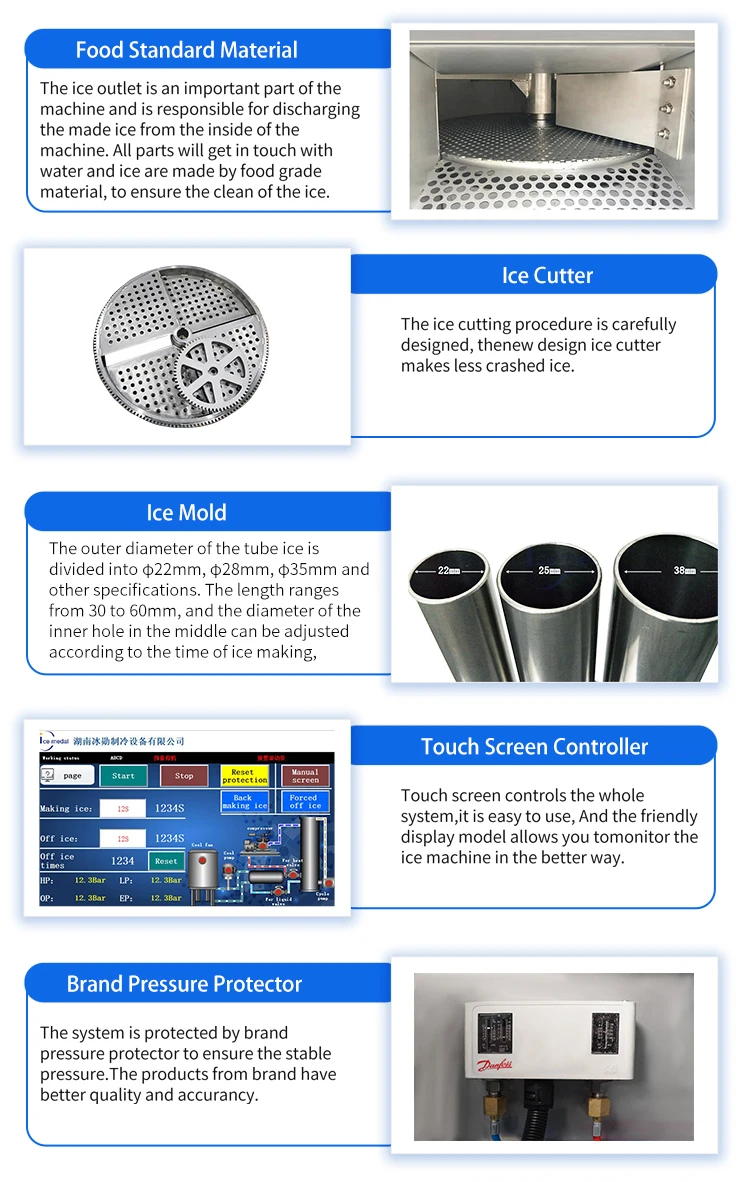

1. Compact Structure 3D design standardizes production and making the structure more reasonable. 2.Brand Compressor from Germany Bitzer and America Copeland. 3. Special Pipe Insulation, Aluminum pipe insulation is using insulating material and aluminum surface to cover the evaporator and pipe, to increase the efficient of ice making. 4. Stainless Steel Water Pump, the water circulating pump is stainless steel pump, all material getting touch with water is food standard. 5.Danfoss Pressure Protector, the system is protected by Danfoss pressure protector to ensure the stable pressure. | ||||||||||||||
A: Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.
2.Q: Do you test the ice machine in your factory?
A: Yes, Our equipment will be tested twice before being put into use. factory inspection and operation test after installation at the buyer's destination to ensure that we provide the best service to customers.
3.Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard?: Such as 440V/60 HZ or 220V three phase that suitable for America?
A: Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
4.Q: Whats the deliver time of your machine?
A: 1~5ton, 30 days since the deposit arrived at our account. 5~20 ton, 45 days.(based on the electricity 380V/50Hz/3p. some special design lead time will be longer.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hacer hielo ice tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this hacer hielo ice tube carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the hacer hielo ice tube be supplied for my local voltage?
The standard configuration is 380v/50hz/3ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hunan Icemedal Refrigeration Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hunan Icemedal Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
