The ice machine listed here carries voltage 3P/220V-440V/50Hz/60Hz(Optional), capacity 1-3 Tons / Day, documented exactly as the manufacturer publishes it. Made by Hunan Icemedal Refrigeration Equipment Co., Ltd. (5 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ice Machine
- Model Number: IMF1IMF3IMF5
- Power: 10KW
- Power Supply: 3P/220V-440V/50Hz/60Hz(Optional)
- Voltage: 3P/220V-440V/50Hz/60Hz(Optional)
- Ice Storage Capacity: Other
- Capacity: 1-3 Tons / Day
Technical Specifications
| Ice Shape | Flake Ice |
|---|---|
| Ice Storage Capacity | Other |
| Voltage | 3P/220V-440V/50Hz/60Hz(Optional) |
| Power | 10KW |
| Compressor Brand | Emerson, Bitzer, Copeland |
| Key Selling Points | High Productivity |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Hunan, China |
| Weight (Kg) | 1200 |
| Brand Name | ICEMEDAL |
| Model Number | IMF1IMF3IMF5 |
| Dimension(L*W*H) | 1500*1250*1260mm |
| Product Name | 3 Ton Flake Ice Machine |
| Capacity | 1-3 Tons / Day |
| Ice Size | 1.8mm~2.2mm |
| Refrigerant | R404a/R22a/R507 |
| Cooling Way | Air Water Evaporating Cooling |
| Function | Automatic Ice Tube Making Machine |
| Material | Stainless Steel 304 or chrome-plated carbon steel |
| Power Supply | 3P/220V-440V/50Hz/60Hz(Optional) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

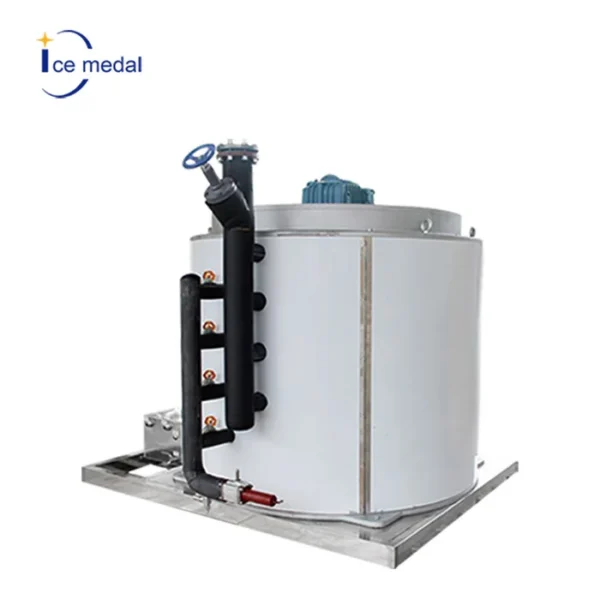

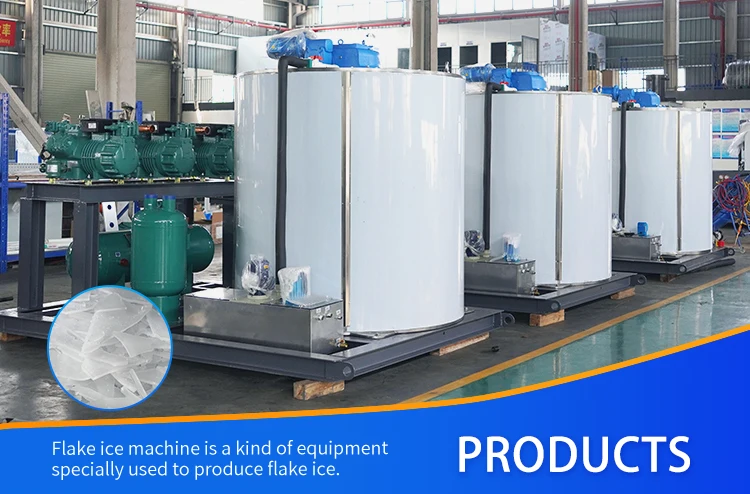

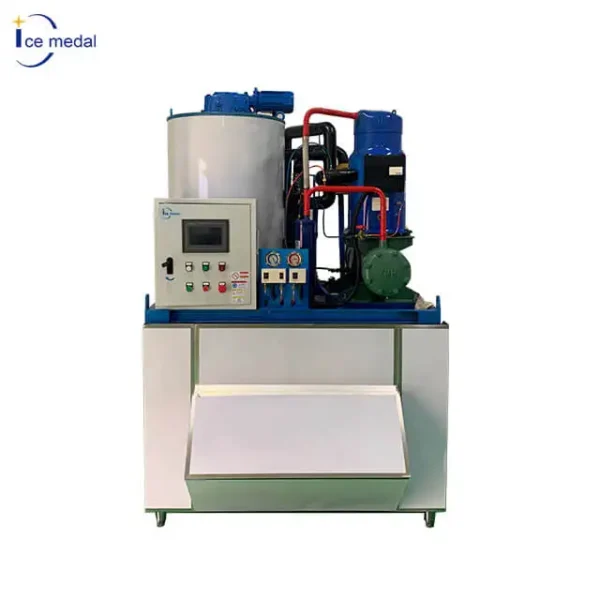

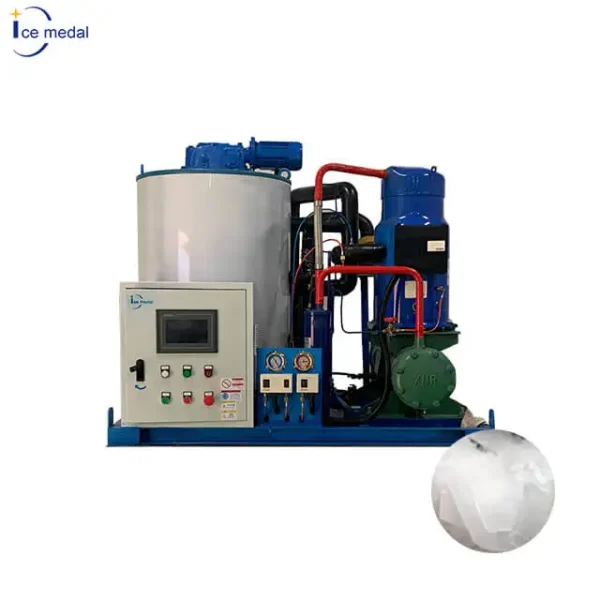

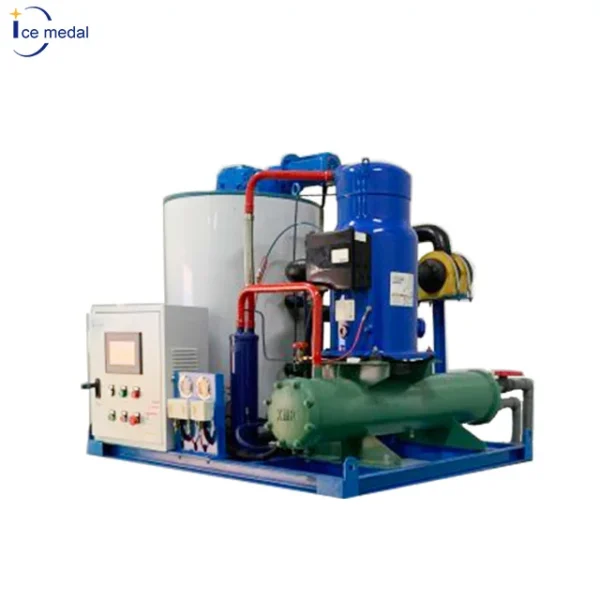

ICEMEDAL 1T/2T/3T Per Day Flake Ice Machine
Small-scale air-cooled flake ice machines (with daily production capacities of 1T, 2T, or 3T) are meticulously designed to meet the ice-making demands of poultry processing. The Icemedal flake ice machine demonstrates outstanding energy-saving performance, consuming only about 85 kilowatt-hours of electricity per ton of ice produced. It operates based on an advanced and efficient refrigeration system. Under standard operating conditions, that is, when the ambient temperature is 25 °C and the water temperature is between 18 °C and 20 °C, it can quickly convert 16 °C water into 1 ton of flake ice. Such low energy consumption gives it an advantageous production cost, bringing tangible benefits to poultry processing enterprises. Icemedal flake ice machines deliver outstanding refrigeration performance, featuring a high cooling capacity and swift ice production. Capable of churning out 1 to 3 tons of ice per day, they precisely meet the ice requirements of small and medium-sized poultry processing enterprises. During the poultry processing, from rapid cooling after defeathering to maintaining freshness throughout the production process, these machines play a crucial role. They can effectively prevent the quality degradation of poultry meat due to overheating or bacteria growth, ensuring that the final products reach consumers in the best condition. Even in the most challenging environments, they ensure a consistent ice supply, providing reliable support for the continuous operation of poultry processing.
Specification
IMF3 3 tons Flake Ice Machine Parameters | ||||
Name | Unit | Parameter | ||
Model | 4NES-14 | |||
Cooling Capacity(kW) | 19.83 | |||
Power(kw) | 8.45 | |||
Model | WN-15 | |||
Heat Exchange(kW) | 49.2 | |||
Condensing Temperature | Degree Celsius(℃) | 40 | ||
Evaporating Temperature | Degree Celsius(℃) | -20 | ||
Ambient Temperature | Degree Celsius(℃) | 32 | ||
Water Temperature | Degree Celsius(℃) | 20 | ||
Refrigerant | R22 | |||
Voltage | V/P/HZ | 380/3/50 | ||
Evaporator | Reducer Power(kw) | 0.37 | ||
Circulating Pump Power(kw) | 0.12 | |||
Brine Pump Power(kw) | 9 | |||
Model | LX-15 | |||
Power(kW) | 0.37 | |||
Model | GD40-20 | |||
Power | 1.5 | |||
Machine Dimension | L*W*H(mm) | 1500*1250*1260 | ||
Application
Flakes ice are widely used in Food and aquatic products processing, manufacturing, concrete cooling, pharmaceutical industry, poultry processing, fisheries, poultry meat processing, vegetable distribution and fresh keeping, chemical dyes and other places need ice.

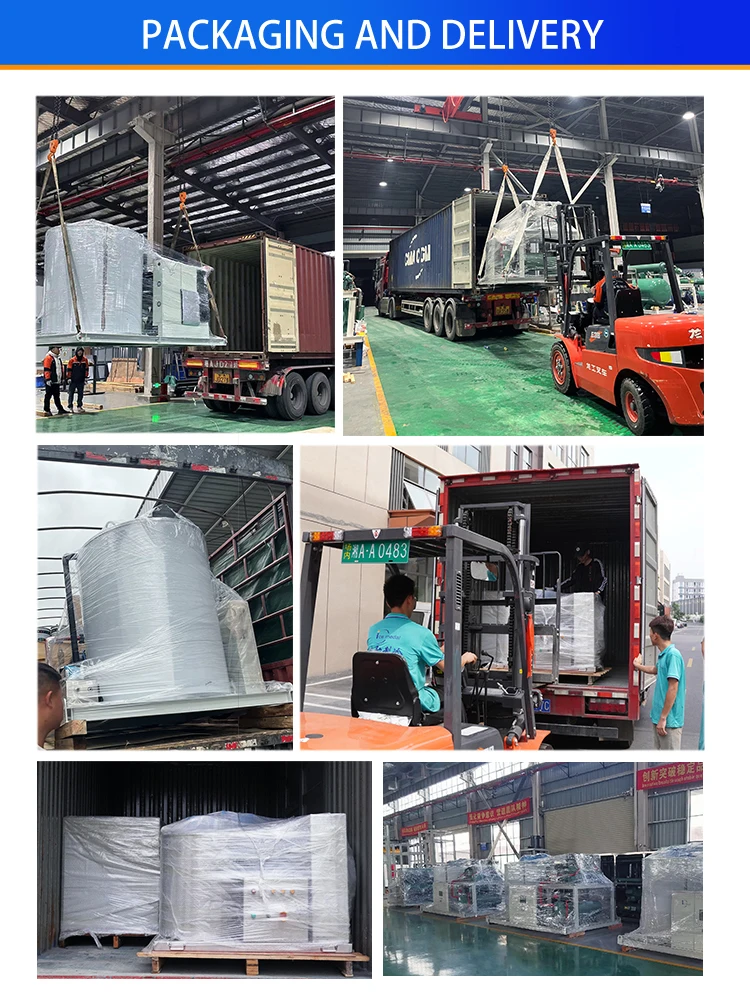

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power and water for the machine.
3. All required components for install the machine will be provided.
3. Machine come into use, customer only need prepare power and water for the machine.
3. All required components for install the machine will be provided.
Company Profile
FAQ
1. Q:I want to build an ice factory. How big the equipment is?
A: This needs to consider the model according to the output of ice you need in a day. The volume and ice output of different models are different. Refer to the parameter table on the details page.
2.Q:Where is the best place to install the equipment and what other factors need to be considered?
A: There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power.
3. Q:How to transport and install equipment?
A: After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.
we will tested and install well the machine before shipment, all necessary spare parts, operation, manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
4. Q: What is the price, what is the daily maintenance, and does it need to be looked after?
A: The prices of various models are different. Please consult the salesman for details. Keep the unit clean and sanitary, and clean the scale of water tank and evaporator from time to time. Check whether the apron pipe of the apron is blocked. There are still many details to pay attention to we will provide the operation manual.
5. Q:How much water and electricity does a ton of ice need?
A: The production cost of flake ice is very economical. It only takes about 85 degrees of electricity to refrigerate 16 ℃ water into 1 ton of flake ice.
A: This needs to consider the model according to the output of ice you need in a day. The volume and ice output of different models are different. Refer to the parameter table on the details page.
2.Q:Where is the best place to install the equipment and what other factors need to be considered?
A: There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power.
3. Q:How to transport and install equipment?
A: After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.
we will tested and install well the machine before shipment, all necessary spare parts, operation, manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
4. Q: What is the price, what is the daily maintenance, and does it need to be looked after?
A: The prices of various models are different. Please consult the salesman for details. Keep the unit clean and sanitary, and clean the scale of water tank and evaporator from time to time. Check whether the apron pipe of the apron is blocked. There are still many details to pay attention to we will provide the operation manual.
5. Q:How much water and electricity does a ton of ice need?
A: The production cost of flake ice is very economical. It only takes about 85 degrees of electricity to refrigerate 16 ℃ water into 1 ton of flake ice.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $4200 / set
- 10+ set: US $3600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 3P/220V-440V/50Hz/60Hz(Optional). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
