Key specification for this ice machine: 380v/50hz/3ph, capacity 1-30ton per day. Everything below is reproduced from the factory data sheet. Made by Hunan Icemedal Refrigeration Equipment Co., Ltd. (5 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Power: 12KW
- Voltage: 380v/50hz/3ph
- Ice Storage Capacity: 1000 kg
- Capacity: 1-30ton per day
- Material: Stainles Steel
- Warranty: 1 Year
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Storage Capacity | 1000 kg |
| Voltage | 380v/50hz/3ph |
| Power | 12KW |
| Compressor Brand | Frascold, Bitzer, Copeland, Bock |
| Key Selling Points | High Productivity |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Water Pump, Water Cooling System, Water Tank, Compressor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Hunan, China |
| Brand Name | ICEMEDAL |
| Dimension(L*W*H) | 3100*2200*2500 |
| Condensation | Water cooled condenser/Air cooled condenser |
| After Warranty | Video technical support, Online support, Spare parts |
| After-Sales Service | Overseas Machinery Service, field installation, training |
| Tube Ice Length | 30mm to 50mm |
| PLC Program | Germany brand Siemens |
| Capacity | 1-30ton per day |
| Certification | CE |
| Key Words | Tube ice making machine |
| Material | Stainles Steel |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

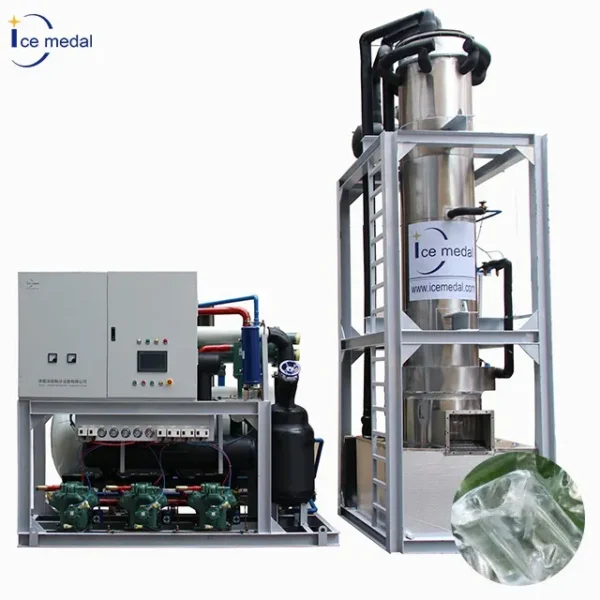

IMT10 10 ton per day Tube Ice Machine parameters | ||||||||
Name | Unit | Parameter | ||||||
Tube Diameter | mm | Φ22 | Φ28 | Φ35 | ||||

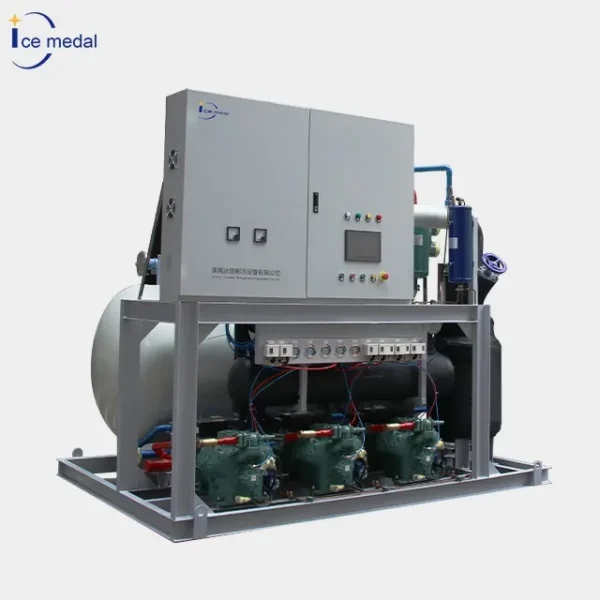

Brand Compressor | Model | 6FE-50 | ||||||
Refrigerating capacity(kw) | 79 | |||||||
Power(Kw) | 27.9 | |||||||
Condenser | Model | WN-55 | ||||||
Heat exchange capacity(kw) | 164.5 | |||||||
Condensing Temperature | Temperature(℃) | 40 | ||||||
Evaporating Temperatue | Temperature(℃) | -12 | ||||||
Ambient Temperature | Temperature(℃) | 32 | ||||||
Water Supply Temperature | Temperature(℃) | 20 | ||||||
Refrigerant | R404a | |||||||
Power Supply | V/P/HZ | 380/3/50 | ||||||
Motor Power | Ice Cutting Motor(kW) | 1.5 | ||||||
Recircling Pump(kW) | 1.5 | |||||||
Cooling Tower | Model | LX-60 | ||||||
Power(kw) | 1.5 | |||||||
Cooling Pump | Model | GD80-12 | ||||||
Power(kw) | 4 | |||||||
Cooling Fan Power | Power(kw) | 1.5 | ||||||
Water Cooling Machine Dimension | L*W*H(mm) | 1900*1600*1850 | ||||||
Refrigerant Quantity | kg | 250 | 275 | 300 | ||||
Machine Weight | kg | 3500 | ||||||
Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers,to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.

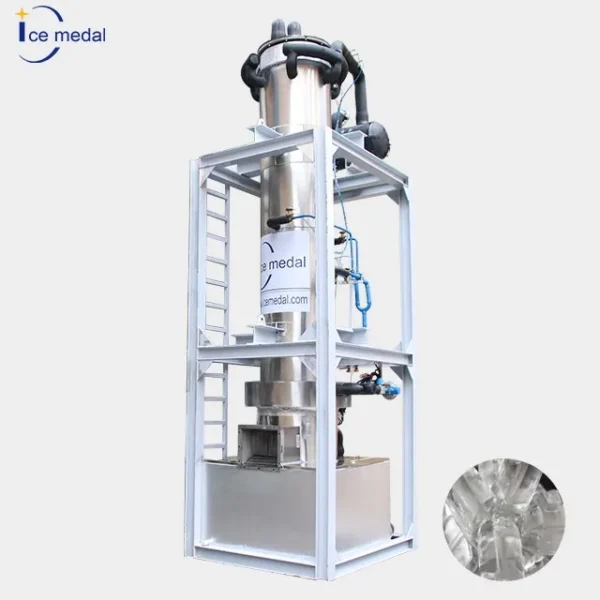

Tube ice Diameter:22 mm, 28 mm.35 mm Tube ice length : 24-45 mm,Tube ice inner size: 3-5 mm
We could introduce the local engineer to you install the machines.
3. What shall we do if there is any machine's malfunction？
You could see any malfunction reason from the touch screen and we could supply you the solution accordingly.
Yes, we could send you engineer from China to install your machine, you will be responsible for the accommodation and the installation cost.
5. Whats the deliver time of your machine?
1~5 ton, 30 days since the deposit arrived at our account, 5~20 tons, 45 days. (based on the electricity 380 V/50 Hz/3 p, some special design lead time will be longer)
6. Whats the payment method you accept?
Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.
7.How long the warranty for machine I buy?
12 months since the deliver date.
8. how to install the machine?
manual book and video will be provided to guide you how to install the machine, and also our service online
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $10000 / set
- 10–29 set: US $8000 / set
- 30+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380v/50hz/3ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hunan Icemedal Refrigeration Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hunan Icemedal Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
