This heavy duty boiler is published with the manufacturer’s full specification — 220 V, 380 V, power source type diesel powered. Made by Henan Fineschina Machinery Co., Ltd. (11 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Heavy Duty Boiler
- Model Number: Y180M-2, Y160M2-2, Y160M1-2, Y132S2-2
- Power Source Type: diesel powered
- Voltage: 220 V, 380 V
- Material: Metal, Cast Iron
- Blade Material: Carbon Steel
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | Customized |
|---|---|
| Mounting | Free Standing |
| Voltage | 220 V, 380 V |
| Motor Type | AC Motor |
| Speed | 2800rmp |
| Material | Metal, Cast Iron |
| Blade Material | Carbon Steel |
| Power Source Type | diesel powered |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Henan, China |
| Brand Name | Fineschina |
| Model Number | Y180M-2, Y160M2-2, Y160M1-2, Y132S2-2 |
| Color | White, Black, Silver, Chrome, Gold, Red, Blue, Grey, Yellow, Green |
| Applicable Industries | Construction Works |
| Product Name | Centrifugal Exhaust Fan |
| Application | Exhaust Ventilation |
| Keyword | Centrifugal Blower Ventilation Fan Industrial Exhaust Fan |
| Motor | Copper Motor |
| Usage | High Pressure Blowing |
| Feature | Low Noise Power Saving |
| Type | Centrifugal Impeller Blower |
| Selling Units | Single item |
| Single Package Size | 165X108X110 cm |
| Single Gross Weight | 298.000 kg |
Product Details
Product Description

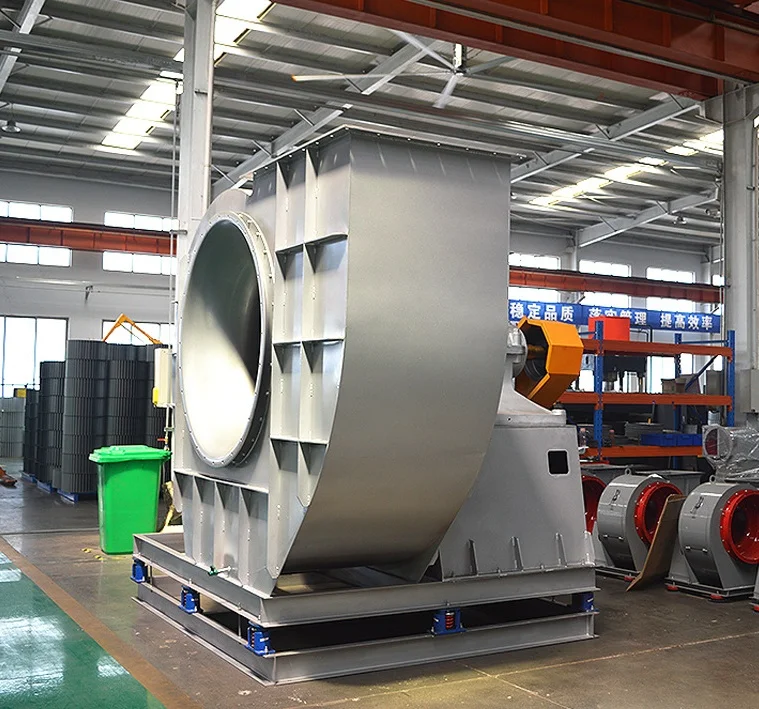

Y5‑48 Boiler Induced Draft Fan
This Y5‑48 boiler induced draft fan is engineered for boiler flue gas extraction and industrial ventilation. Its heavy‑duty steel
casing provides good resistance against high‑temperature flue gas corrosion while maintaining stable air volume and high pressure.
Fitted with dynamically balanced impeller, the unit operates smoothly with low vibration and low noise. It efficiently discharges
high‑temperature smoke for coal‑fired boilers, industrial furnaces and thermal processing projects.
casing provides good resistance against high‑temperature flue gas corrosion while maintaining stable air volume and high pressure.
Fitted with dynamically balanced impeller, the unit operates smoothly with low vibration and low noise. It efficiently discharges
high‑temperature smoke for coal‑fired boilers, industrial furnaces and thermal processing projects.
Specification
Model No. | Speed (r/min) | Total Pressure (Pa) | Air Flow (m³/h) | Power (kW) | Motor Model |
4C | 3550 | 1501‑2221 | 2932‑5564 | 5.5 | Y132S1‑2 |
5C | 3150 | 1913‑2819 | 5304‑9851 | 11 | Y160M1‑2 |
6.3C | 2800 | 2403‑3545 | 9432‑15639 | 22 | Y180M‑2 |
6.3C | 2000 | 1221‑1798 | 6737‑12511 | 7.5 | Y132S2‑2 |
8C | 2000 | 2253‑3323 | 13794‑25619 | 30 | Y200L‑4 |
8C | 1800 | 1823‑2686 | 12415‑23057 | 22 | Y180L‑4 |
10C | 1800 | 2958‑4483 | 22250‑44634 | 75 | Y280S‑4 |
10C | 1600 | 2332‑3531 | 19778‑39674 | 55 | Y250M‑4 |
12.5C | 1400 | 2794‑4234 | 33800‑67803 | 110 | Y315S‑4 |
Packing & Delivery
Our machines are packed with export‑standard plywood wooden cases, shock‑proof and moisture‑proof, to avoid damage during long‑distance sea or land transportation. Spare parts are well‑protected inside the crate with wrapping film.
We support multiple shipping solutions: full container load (FCL), less‑than‑container load (LCL), sea freight, air freight and
land transport. Goods will be securely fixed inside containers before shipment. Shipping documents including packing list,
commercial invoice and bill of lading will be provided.
We arrange delivery promptly upon receiving your confirmed payment. The lead time depends on machine models and production schedule.
We support multiple shipping solutions: full container load (FCL), less‑than‑container load (LCL), sea freight, air freight and
land transport. Goods will be securely fixed inside containers before shipment. Shipping documents including packing list,
commercial invoice and bill of lading will be provided.
We arrange delivery promptly upon receiving your confirmed payment. The lead time depends on machine models and production schedule.
Company Profile

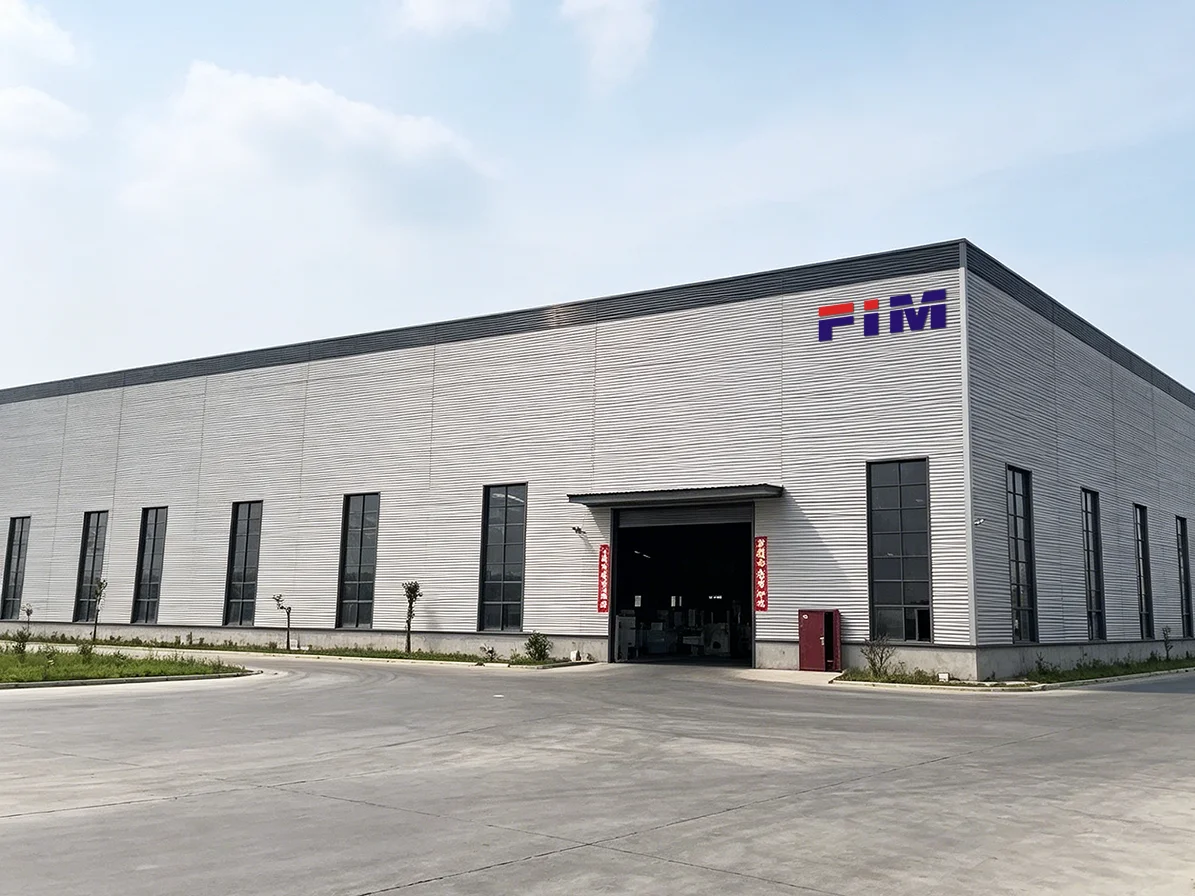

We are a specialized manufacturer of industrial fans and auxiliary equipment. Our facility features large-scale, standardized workshops and a full suite of advanced processing machinery, including laser cutting systems, CNC bending machines, and dynamic balancing equipment for impellers.
We specialize in producing the Y5 series of boiler induced-draft fans, centrifugal fans, and various other ventilation systems. Every stage of production—from raw material cutting, plate welding, and impeller casting to final product testing—is carried out in-house, ensuring that every unit undergoes rigorous quality inspection before leaving the factory.
With extensive experience supporting power plants, boiler systems, and projects in the cement and metallurgical industries, we offer both standard models and custom solutions tailored to specific operational requirements. We are committed to consistent quality, factory-direct pricing, and comprehensive after-sales service; we welcome customers to visit our facility.
FAQ
Q1: What is the main application of Y5‑48 boiler induced draft fan?
A1: Y5‑48 induced draft fan is mainly used for boiler smoke exhaust, also suitable for exhausting high‑temperature flue gas in metallurgy, chemical and thermal power industries. It transports flue gas with temperature below 250 degrees Celsius.
Q2: What flue gas temperature can this Y5‑48 fan bear?
A2: Standard model adapts to working temperature ≤250℃. If you need higher temperature resistance, please tell us your actual working condition for customized solution.
Q3: Can you provide different motor power for Y5‑48 boiler induced draft fan?
A3: Yes. We support multiple motor power options according to your air volume and pressure requirements. Please offer your required air flow, total pressure and local voltage frequency.
Q4: Does the Y5‑48 fan include motor and accessories?
A4: Standard quotation includes fan main body and matched motor. Damping base, soft connector and inlet/outlet expansion joint are optional spare parts, you can inform us if you need them.
Q5: What material options are available for Y5‑48 boiler induced draft fan?
A5: Standard impeller and casing adopt carbon steel. Wear‑resistant steel or stainless steel material can be customized for corrosive or high‑abrasion flue gas scenarios.
Q6: What is your lead time for Y5‑48 induced draft fan?
A6: Normal stock‑spec fan needs 7‑15 working days. Custom‑modified models will take 15‑25 working days, subject to order confirmation.
A1: Y5‑48 induced draft fan is mainly used for boiler smoke exhaust, also suitable for exhausting high‑temperature flue gas in metallurgy, chemical and thermal power industries. It transports flue gas with temperature below 250 degrees Celsius.
Q2: What flue gas temperature can this Y5‑48 fan bear?
A2: Standard model adapts to working temperature ≤250℃. If you need higher temperature resistance, please tell us your actual working condition for customized solution.
Q3: Can you provide different motor power for Y5‑48 boiler induced draft fan?
A3: Yes. We support multiple motor power options according to your air volume and pressure requirements. Please offer your required air flow, total pressure and local voltage frequency.
Q4: Does the Y5‑48 fan include motor and accessories?
A4: Standard quotation includes fan main body and matched motor. Damping base, soft connector and inlet/outlet expansion joint are optional spare parts, you can inform us if you need them.
Q5: What material options are available for Y5‑48 boiler induced draft fan?
A5: Standard impeller and casing adopt carbon steel. Wear‑resistant steel or stainless steel material can be customized for corrosive or high‑abrasion flue gas scenarios.
Q6: What is your lead time for Y5‑48 induced draft fan?
A6: Normal stock‑spec fan needs 7‑15 working days. Custom‑modified models will take 15‑25 working days, subject to order confirmation.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $1749.78 / piece
- 5+ piece: US $1600 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heavy duty boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heavy duty boiler be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Fineschina Machinery Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Fineschina Machinery Co., Ltd. range on HVACR Nexus.
