This centrifugal fans comes from Guangzhou Kelaichuang Purification Equipment Manufacturing. The specification below is the factory’s own. Supplier profile: 12 years on the platform, factory-assessed. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Centrifugal Fans
- Warranty: 1 Year
- Place Of Origin: China
- Weight (Kg): 300
- Selling Units: Single item
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Place Of Origin | China |
| Weight (Kg) | 300 |
| Selling Units | Single item |
Product Details

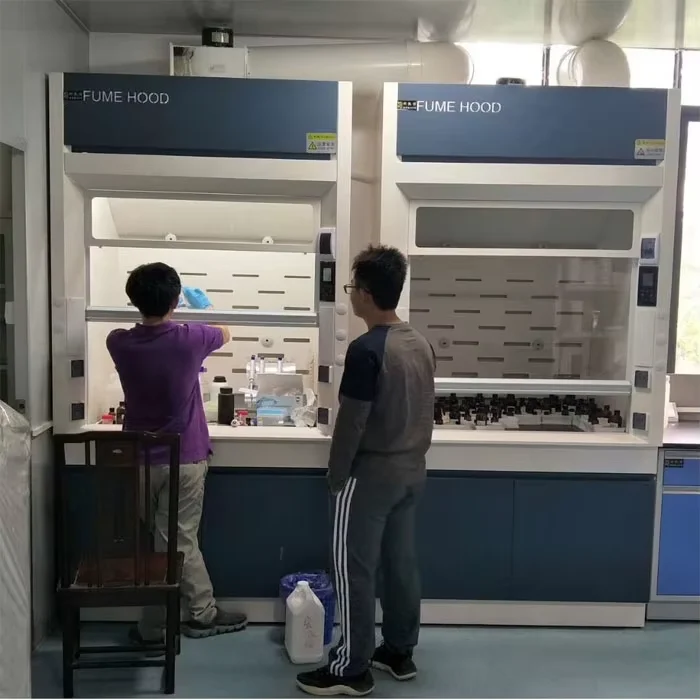

Fume hood is capable to provides safe ventilation to protect against exposure to hazardous or toxic fumes, flammable and explosive vapors and particulate resulting from laboratory analytical preparation and testing procedures. The construction material of interior is made of a nonflammable, chemical and acid resistant material.
secondary function includes protection against chemical spills, runaway reactions, and fires by acting as a physical barrier.
4ft(1200*850*2350mm)
5ft(1500*850*2350mm)
6ft(1800*850*2350mm)
Model | AL-FH1200 | AL-FH1500 | AL-FH1800 | ||
External Size (W*D*H)mm | 1200*850*2350 | 1500*850*2350 | 1800*850*2350 | ||
Inner Size (W*D*H)mm | 990*750*1205 | 1290*750*1205 | 1790*750*1205 | ||
Table Height(mm) | 860 | 860 | 860 | ||
Weight (kg) | 900 | 1600 | 1200 | ||
Window Opening(mm) | 650 | 650 | 650 | ||
Exhaust Airflow Volume | 1200m3/h | 1500m3/h | 1800m3/h | ||
Vibration | XYZ direct | ||||
Illumination | >/=800Lux | ||||
Front Window | Manual/Automatically, two layer laminated toughened glass >/=5mm, Anti-UV | ||||
Material | Exterior: 1.2mm cold-rolled steel with bacterial powder coating Interior: high grade melamine board with good acid and alkali resistance function | ||||
Standard Accessory | Fluorescent lamp, water tap, Gass tap, PP cup sink | ||||
Sockets | Total load of 4waterproof sockets / different type sockets of different country | ||||
Optional Accessory | Blower; PVC duct; Air Filter; | ||||
Consumption | 400W | 600W | 800W | ||

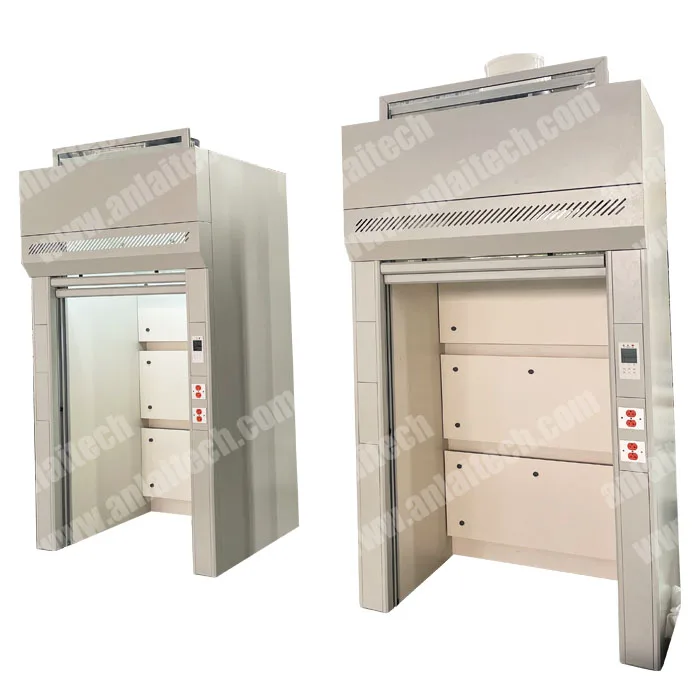

Large apparatus or complex set-ups may require the use of a Fume Hood specifically designed to meet these requirements. The
Walk-In Fume Hood has two vertical rising sashes that allow you to roll in large equipment or portable work stations.
Model | AL-WFH1200 | AL-WFH1500 | AL-WFH1800 | ||
External Size (W*D*H)mm | 1200*850*2350 | 1500*850*2350 | 1800*850*2350 | ||
Inner Size (W*D*H)mm | 990*750*2000 | 1290*750*2000 | 1790*750*2000 | ||
Exhaust Airflow Volume | 1200m3/h | 1500m3/h | 1800m3/h | ||
Illumination | >/=800Lux | ||||
Material | Exterior: 1.2mm cold-rolled steel with bacterial powder coating Interior: high grade melamine board with good acid and alkali resistance function | ||||
Sockets | Total load of 4waterproof sockets / different type sockets of different country | ||||
Optional Accessory | Blower; PVC duct; Air Filter; | ||||
Consumption | 400W | 600W | 800W | ||

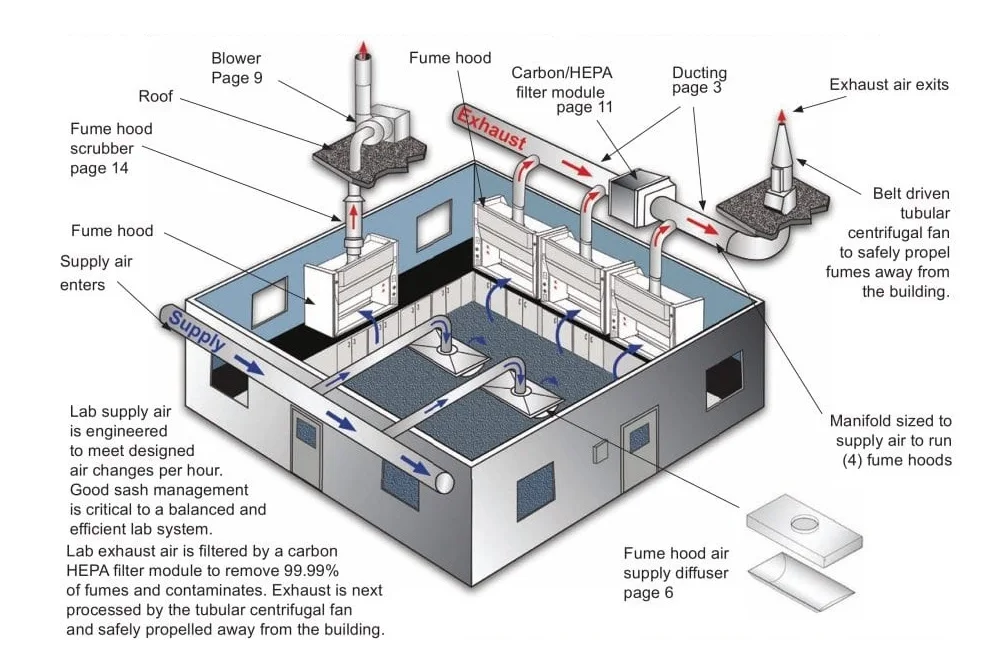

Integrated components, blowers, fume scrubbers, and ducting are engineered together to provide a safe, effective, and efficient fume hood ventilation system. VAV controllers minimize the amount of conditioned air that is exhausted through the fume hood.
RFQ about ANLAITECH:
A: We are manufacturer with professional designers and engineers. Our factory is located in Guangzhou city.
2. Q: How long is your warranty? Can we extend?
A: 13 months after installation and commissioning. Warranty can be extended with extra charge.
3. Q: Do you have professional engineer team fordesign and installation?
A: Yes, we have engineer team for ODM and OEM services
4. Q: What documents will you provide?
A: Usually we will provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instruction, layout drawing etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $1600 / set
- 3+ set: US $1400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
