The home hvac systems listed here carries 220 V, 380 V, 875 CFM, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Home Hvac Systems
- Power: 1.1
- Voltage: 220 V, 380 V
- Maximum Air Flow: 875 CFM
- Material: Steel
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Application | Industrial, Laboratory |
|---|---|
| Maximum Air Flow | 875 CFM |
| Filter Type | HEPA Filter |
| Filter Merv Rating | 14 |
| Type | Clean Room Booth |
| Voltage | 220 V, 380 V |
| Material | Steel |
| Mobility | Mobile |
| Condition | New |
| Warranty | 1 Year |
| Filter Efficiency | 95% |
| Place Of Origin | Guangdong, China |
| Brand Name | Anlaitech |
| Power | 1.1 |
| Weight (Kg) | 400 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Overview

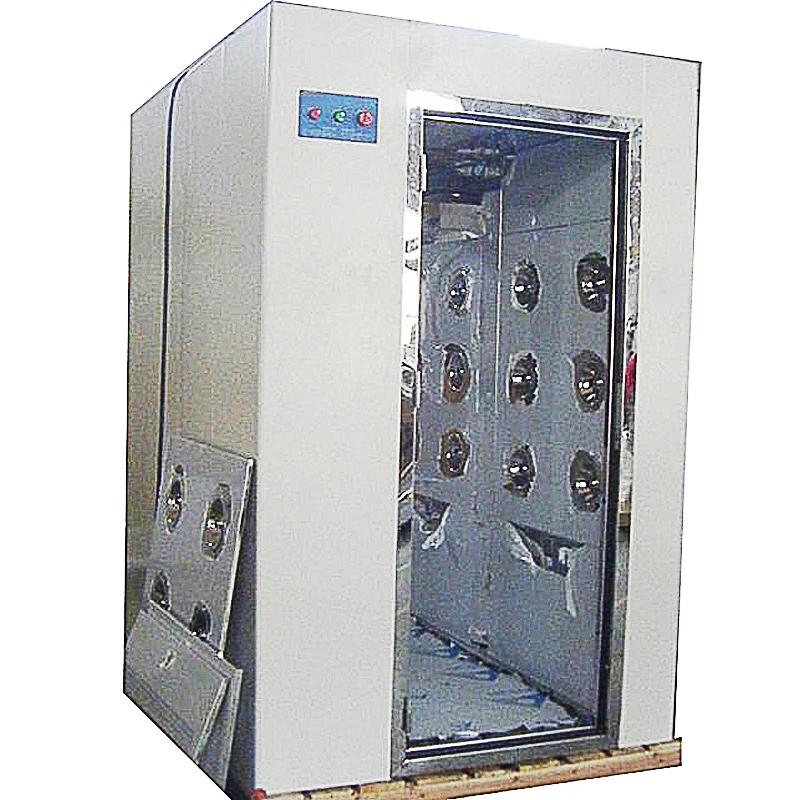

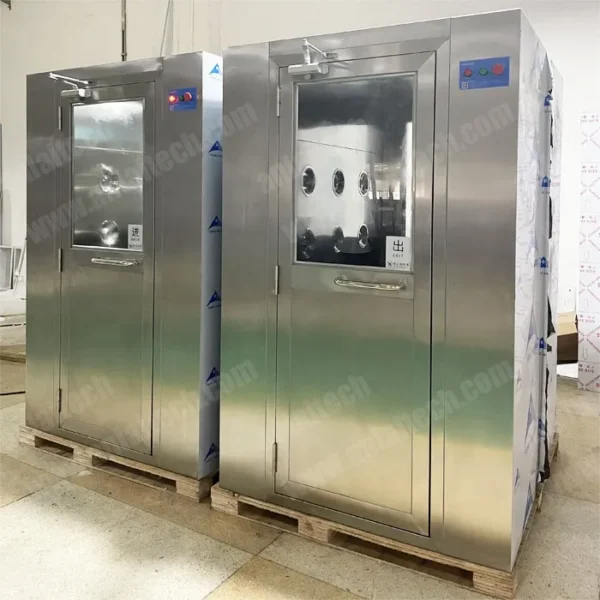

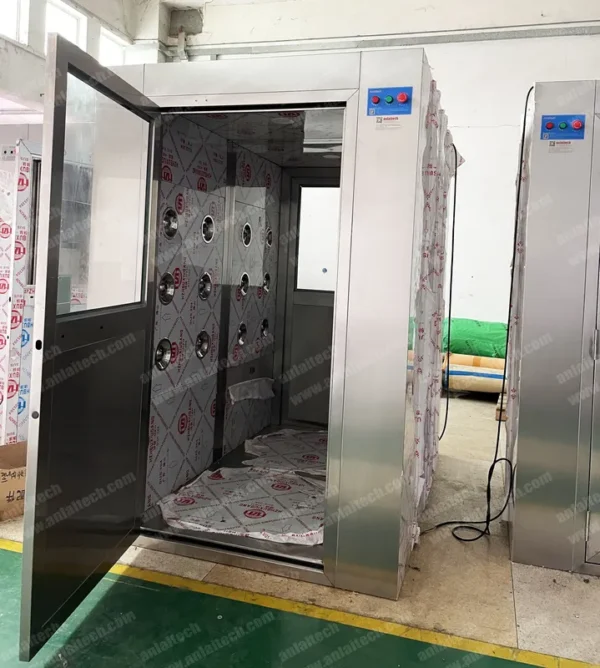

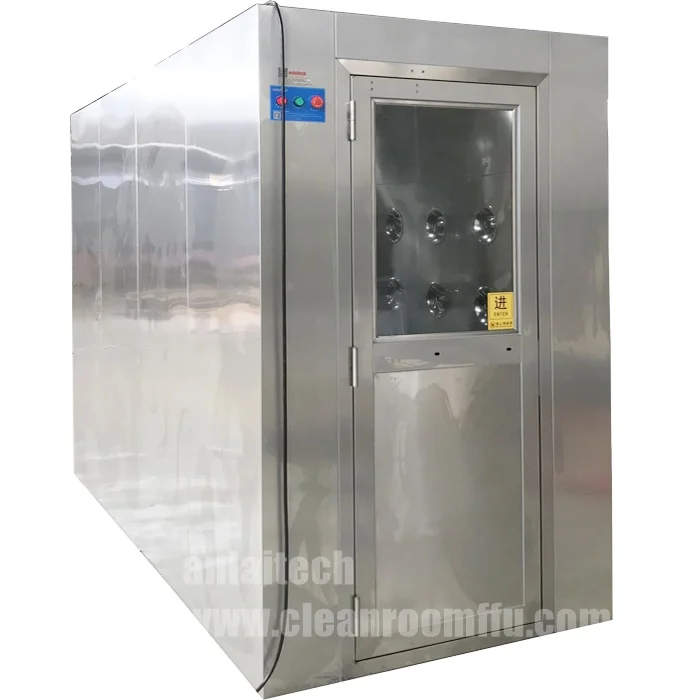

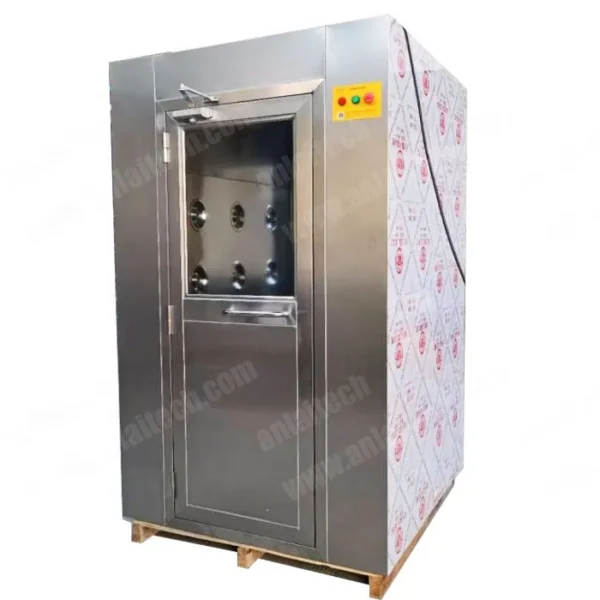

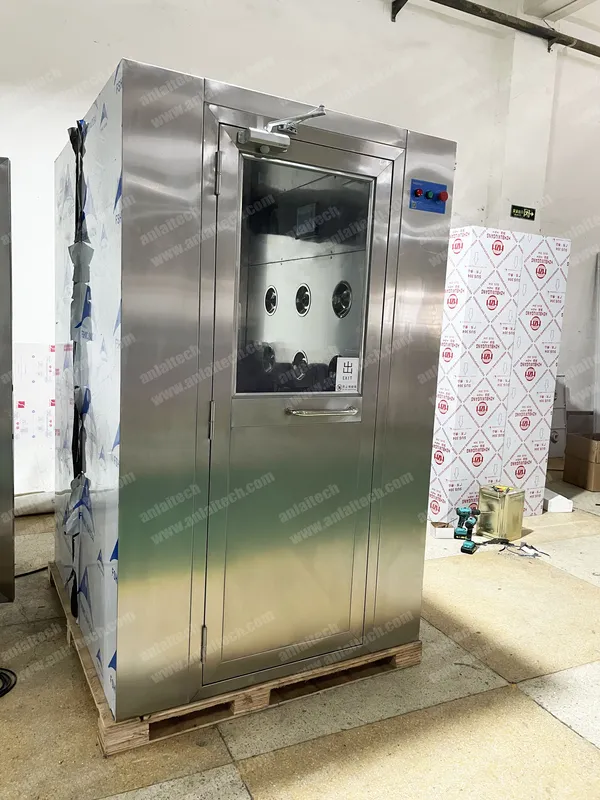

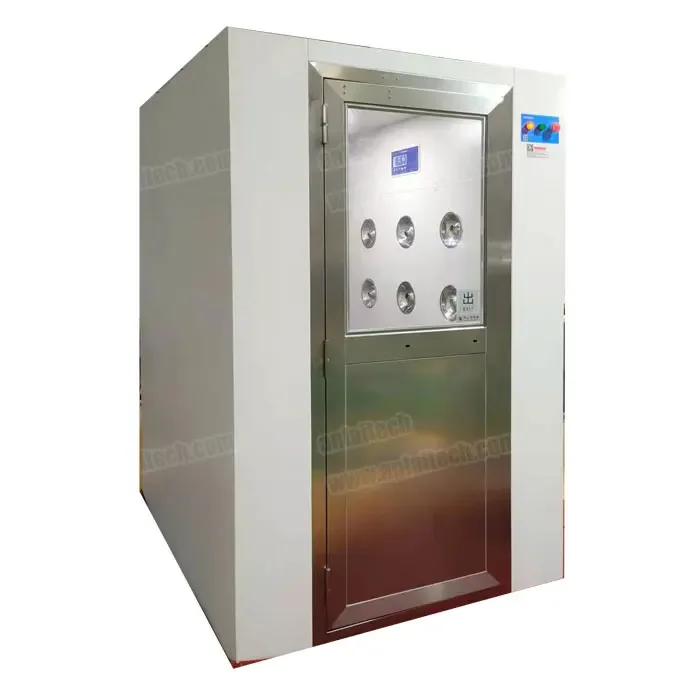

AL-SAS SERIES AIR SHOWERANLAITECH brand AS Series Personal Air Shower is available in three different materials: full Stainless Steel, Stainless Steel Interior, and Steel Plate. With patented air shower design technologies that which ensures a clean seal that prevent contaminant seepage, it can educe large amounts of dust particles brought by staff, and includes 360-degree air jet nozzles that work at more than 25 m/s. with automatic air showering type and clear working indication lights that easy operation.

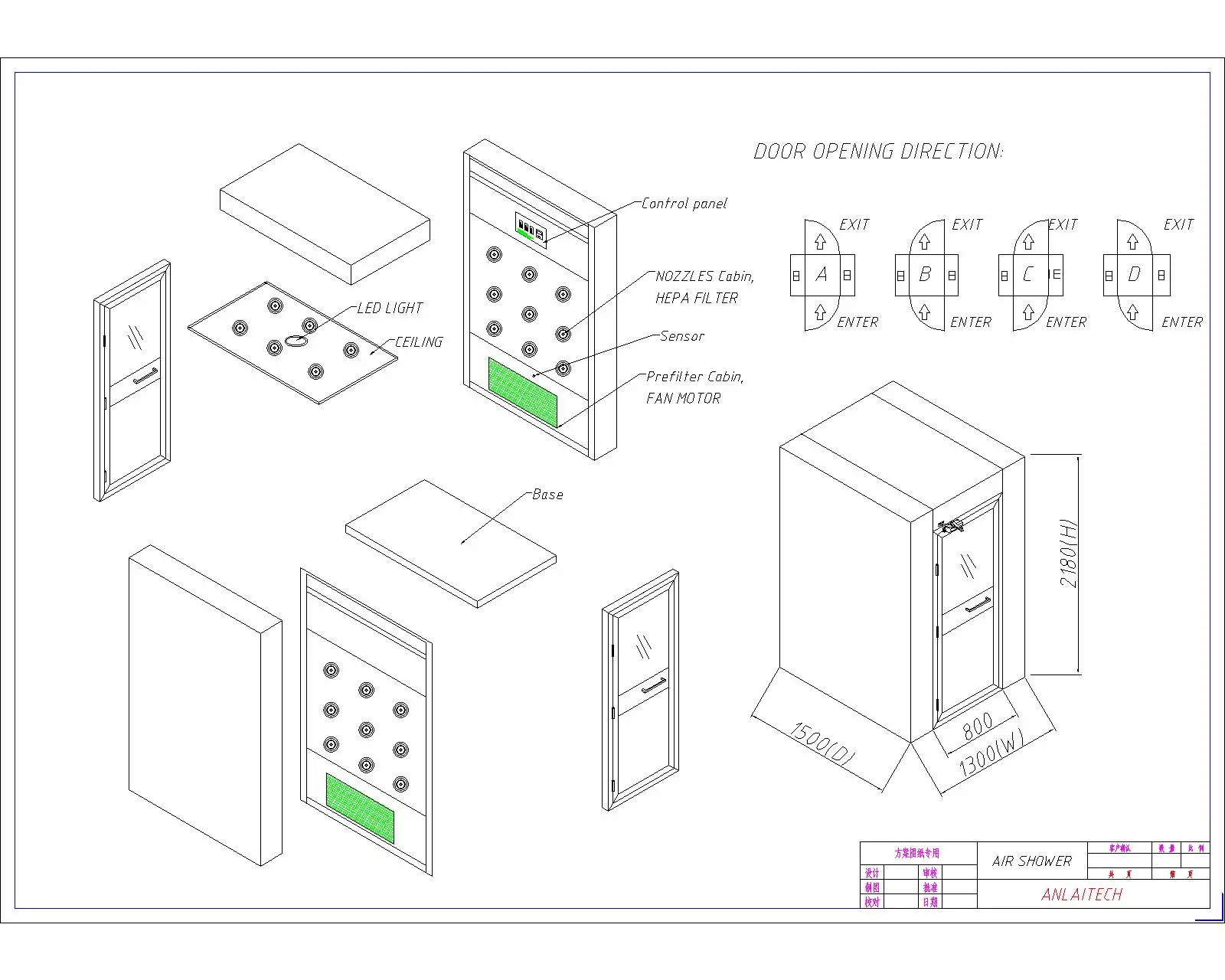

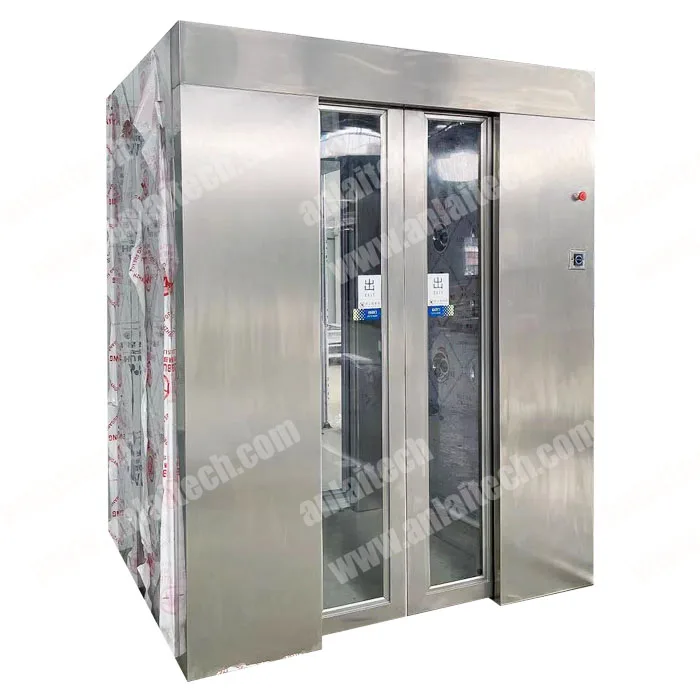

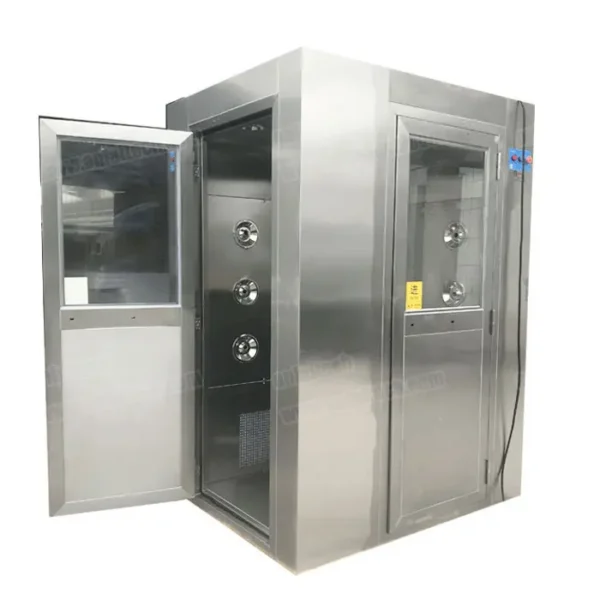

AL-SAS SERIES AIR SHOWER
FULL STAINLESS STEEL
PAINTED OUTSIDE
STAINLESS STEEL INSIDE
STAINLESS STEEL INSIDE
FULL PAINTED STEEL
Model | AL-AS-1300/P1 | AL-AS-1300/S1 | AL-AS-1300/P2 | AL-AS-1300/P3 | |||
Exterior Size LxWxH (mm) | 1300x1000x2180 | 1300x1500x2180 | 1300x2000x2180 | 1300x3000x2180 | |||
Interior Size LxWxH (mm) | 800x930x1960 | 800x1430x1960 | 800x1930x1960 | 800x2930x1960 | |||
Material | T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate | 125Ton | |||||
Air Shower Time | 0-99 seconds adjustable(factory setting 10s) | ||||||
Jet Nozzles | 12 | 18 | 24 | 48 | |||
Power Source | 380V/50Hz (Also Available in 220V and 110V) | ||||||
Fan Power (# x Kw) | 2*1.1KW | 4*1.1KW | 2*1.1KW | 4*1.1KW | |||
Weight (kg) | 300 | 400 | 600 | 800 | |||
*Any special size and style please contact with us for best price offer.

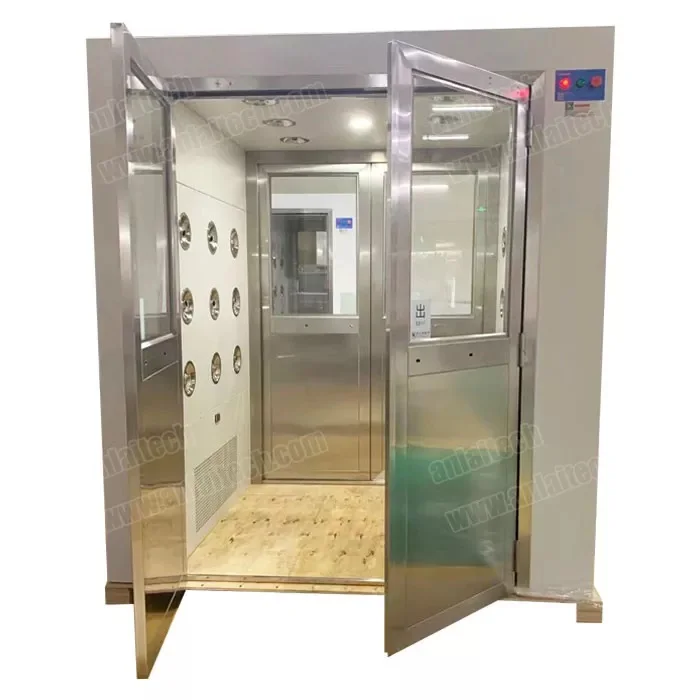

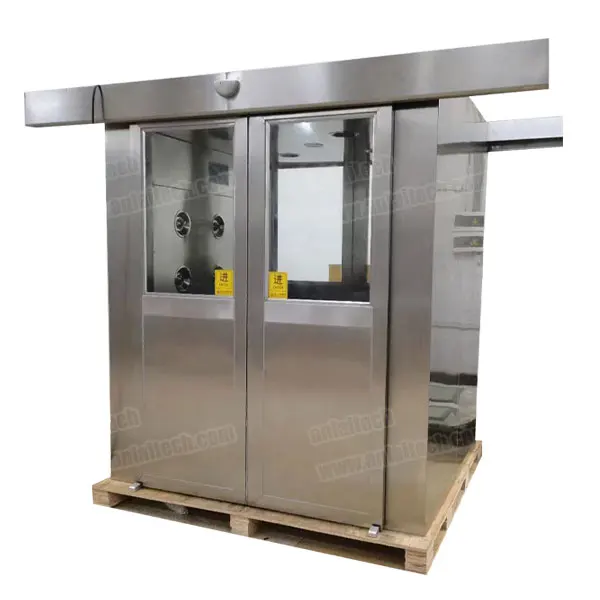

AL-SAS SERIES AIR SHOWER

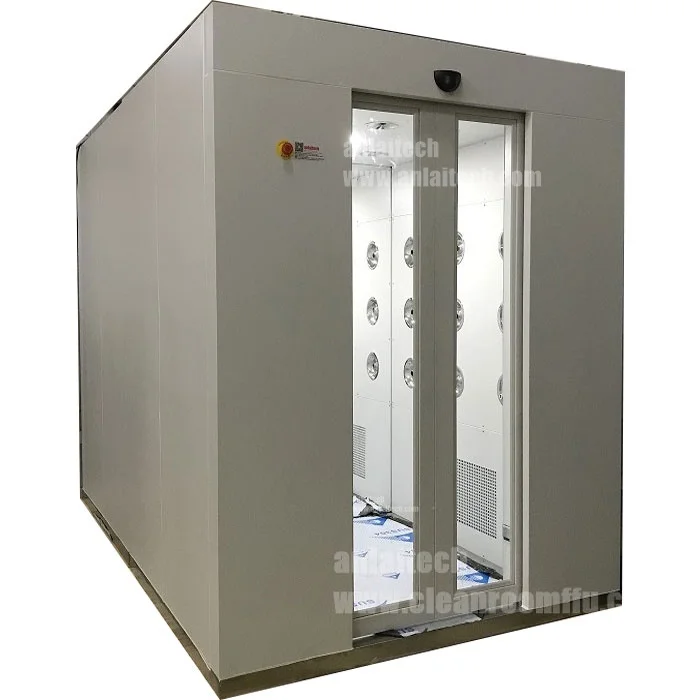

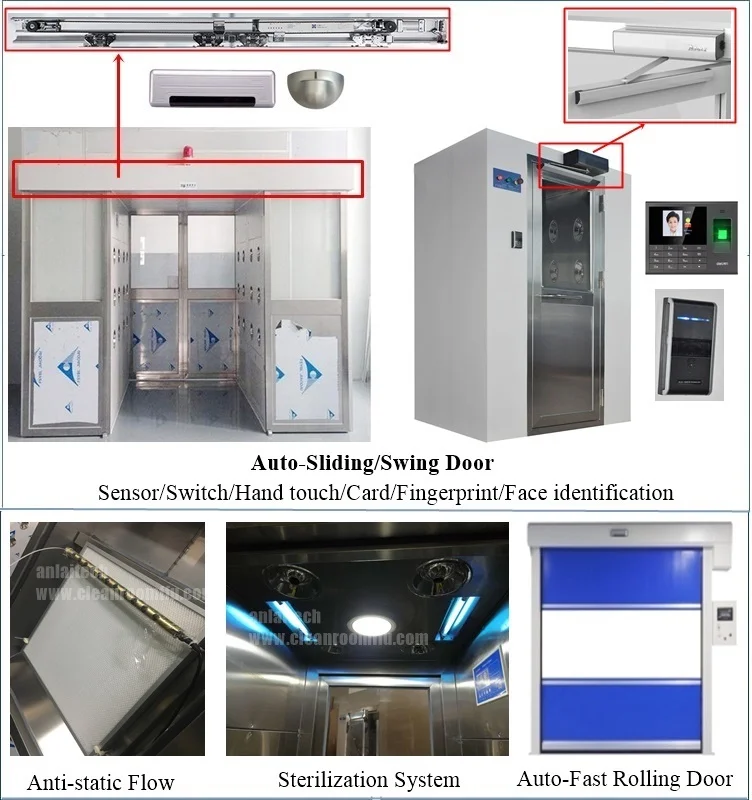

With built-in automatically sliding system, full screen glass door make the air shower good looking, improve the appearance of your company, give your customer good impressive;
Completely in transportation that easy for customer local installation;
High speed efficiency showering strong take off the dust;
Fully automatically running system, no hand touch avoid any contact to the object make the job more efficiency;
Cheap factory price satisfy you.
PAINTED STEEL
STAINLESS STEEL
Model | AL-SAS-1800/S1 | AL-SAS-1800/S2 | AL-SAS-2200/S1 | AL-SAS-2200/S2 | |||
Exterior Size LxWxH (mm) | 1800x1500x2240 | 1800x3000x2240 | 2200x1500x2240 | 2200x3000x2180 | |||
Interior Size LxWxH (mm) | 800x1300x1960 | 800x2800x1960 | 1000x1300x1960 | 1000x2800x1960 | |||
Material | T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate | 125Ton | |||||
Air Shower Time | 0-99 seconds adjustable(factory setting 10s) | ||||||
Jet Nozzles | 24 | 48 | 24 | 48 | |||
Power Source | 380V/50Hz (Also Available in 220V and 110V) | ||||||
Fan Power (# x Kw) | 2*1.1KW | 4*1.1KW | 2*1.1KW | 4*1.1KW | |||
Weight (kg) | 710 | 1340 | 910 | 1680 | |||
*Any special size and style please contact with us for best price offer.
AL-GS SERIES CARGO AIR SHOWER
The cargo air shower is a necessary passage for material entering the clean room, with it large inner area design, it cal allowed trolley, pallet to get showering, to control the pollution problems brought by entering and leaving the clean room.
We can offer you with good products and services depend on you customization needs.
The cargo air shower normally with special design, welcome to contact with us for best solution for your showers.
The cargo air shower is a necessary passage for material entering the clean room, with it large inner area design, it cal allowed trolley, pallet to get showering, to control the pollution problems brought by entering and leaving the clean room.
We can offer you with good products and services depend on you customization needs.
The cargo air shower normally with special design, welcome to contact with us for best solution for your showers.
PAINTED STEEL
FULL STAINLESS STEEL
Model | AL-GS-1800/S1 | AL-GS-1800/S2 | AL-GS-2000/S1 | AL-GS-2000/S2 | |||
Exterior Size LxWxH (mm) | 1800x1500x2180 | 1800x3000x2180 | 2000x1500x2180 | 2000x3000x2180 | |||
Interior Size LxWxH (mm) | 1300x1400x1980 | 1300x2900x1980 | 1500x1400x1980 | 1500x2900x1980 | |||
Material | T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate | 125Ton | |||||
Air Shower Time | 0-99 seconds adjustable(factory setting 10s) | ||||||
Jet Nozzles | 24 | 48 | 24 | 48 | |||
Power Source | 380V/50Hz (Also Available in 220V and 110V) | ||||||
Fan Power (# x Kw) | 2*1.1KW | 4*1.1KW | 2*1.1KW | 4*1.1KW | |||
Weight (kg) | 770 | 1400 | 970 | 1880 | |||
*Any special size and style please contact with us for best price offer.

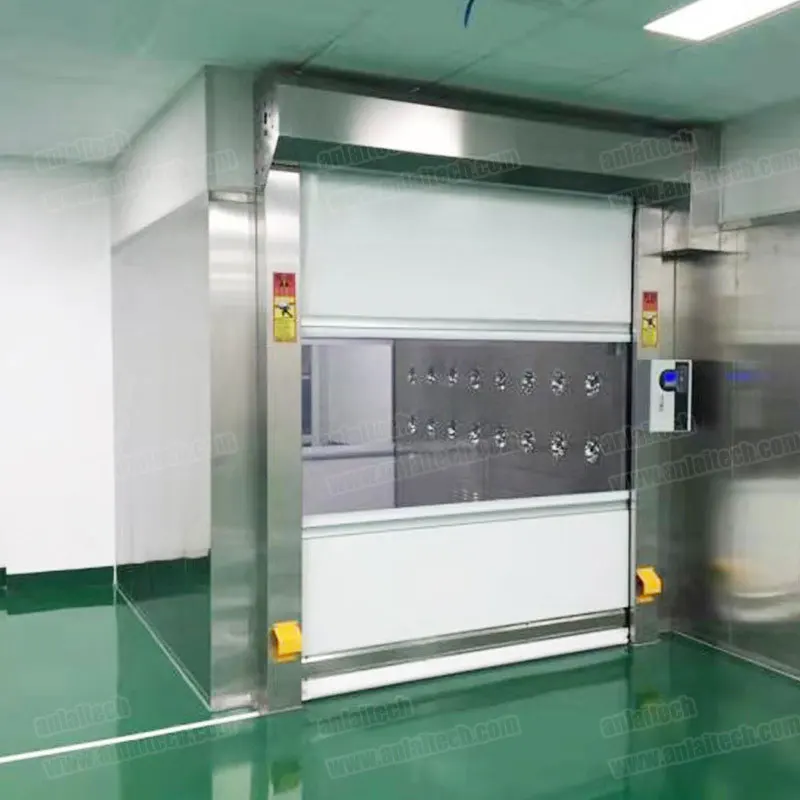

AL-FGS Series Fast Rolling Door Air Shower
The fast rolling door air shower is a necessary passage for cargo entering the clean room.
It can reduce the pollution problems brought by entering and leaving the clean room.
We can offer you with good products and services depend on you customization needs.
Welcome to contact with us for best price and free design.
Model | AL-FGS-2500/S1 | AL-FGS-2500/S2 | AL-FGS-3000/S1 | AL-FGS-3000/S2 | |||
Exterior Size LxWxH (mm) | 2500x2180x3000 | 2500x2680x3000 | 3000x2180x3000 | 3000x2680x3000 | |||
Interior Size LxWxH (mm) | 2000x1500x2500 | 2000x2000x2500 | 2500x1500x2500 | 2500x2000x2500 | |||
Material | T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate | 125Ton | |||||
Air Shower Time | 0-99 seconds adjustable(factory setting 10s) | ||||||
Jet Nozzles | 24 | 32 | 24 | 32 | |||
Power Source | 380V/50Hz (Also Available in 220V and 110V) | ||||||
Fan Power (# x Kw) | 2*1.1KW | 4*1.1KW | 2*1.1KW | 4*1.1KW | |||
Weight (kg) | 900 | 1600 | 1200 | 2000 | |||
*Any special size and style please contact with us for best price offer.
SALES AND SERVICE NETWORK

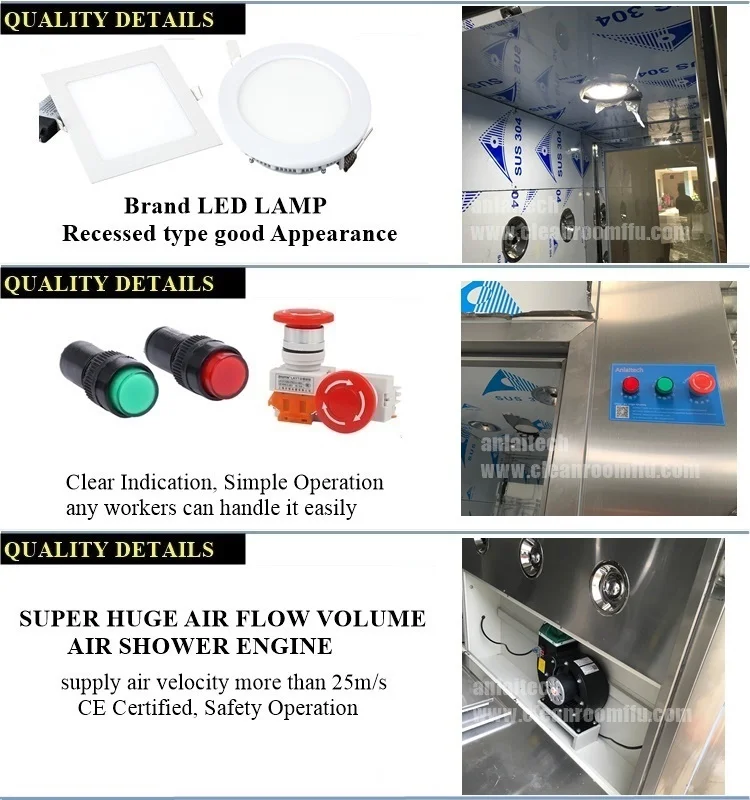

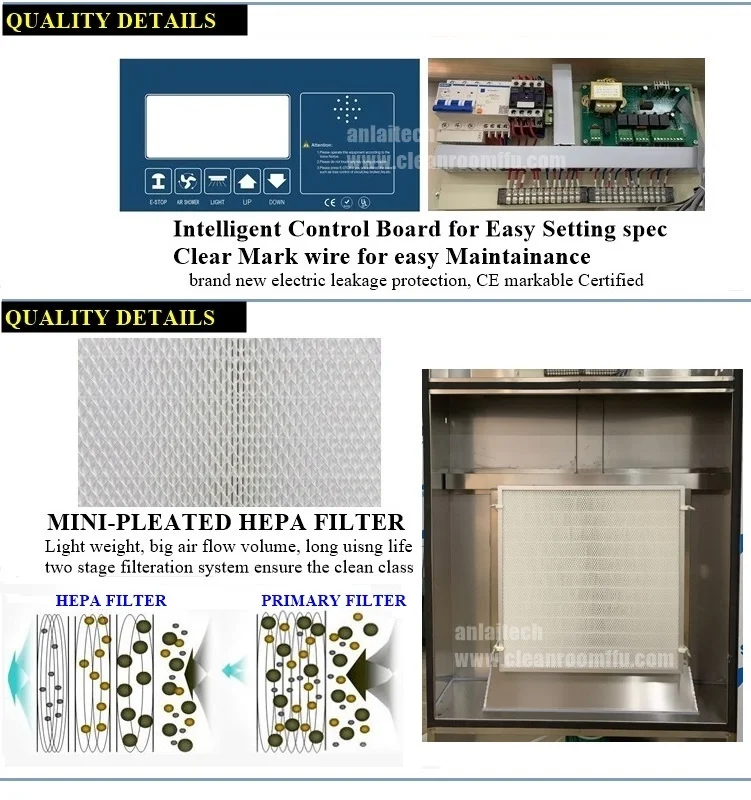

ANLAITECH Air Shower Main Features
1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
2. High quality infrared sensor automatically showering;
2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;
3. Imported electronic interlock device, two doors can not opened at same time;
4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;
5. Standard of the modular design, make field assembly faster and more convenient maintenance.
6. But according to user needs and site condition transformation function and form..
2. High quality infrared sensor automatically showering;
2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;
3. Imported electronic interlock device, two doors can not opened at same time;
4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;
5. Standard of the modular design, make field assembly faster and more convenient maintenance.
6. But according to user needs and site condition transformation function and form..

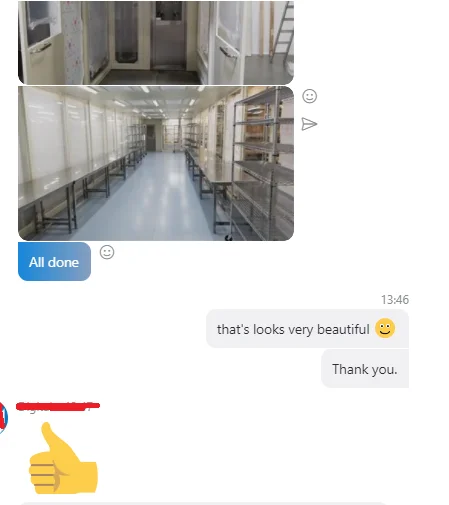

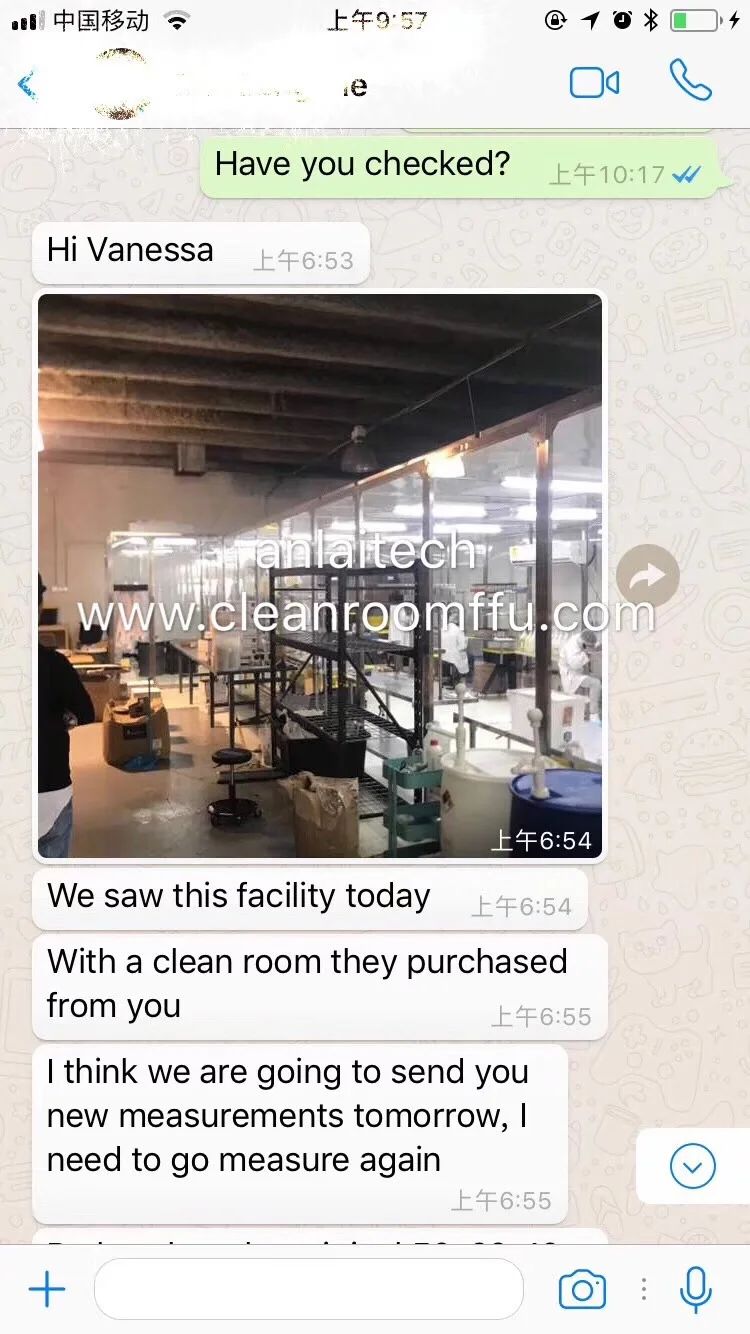

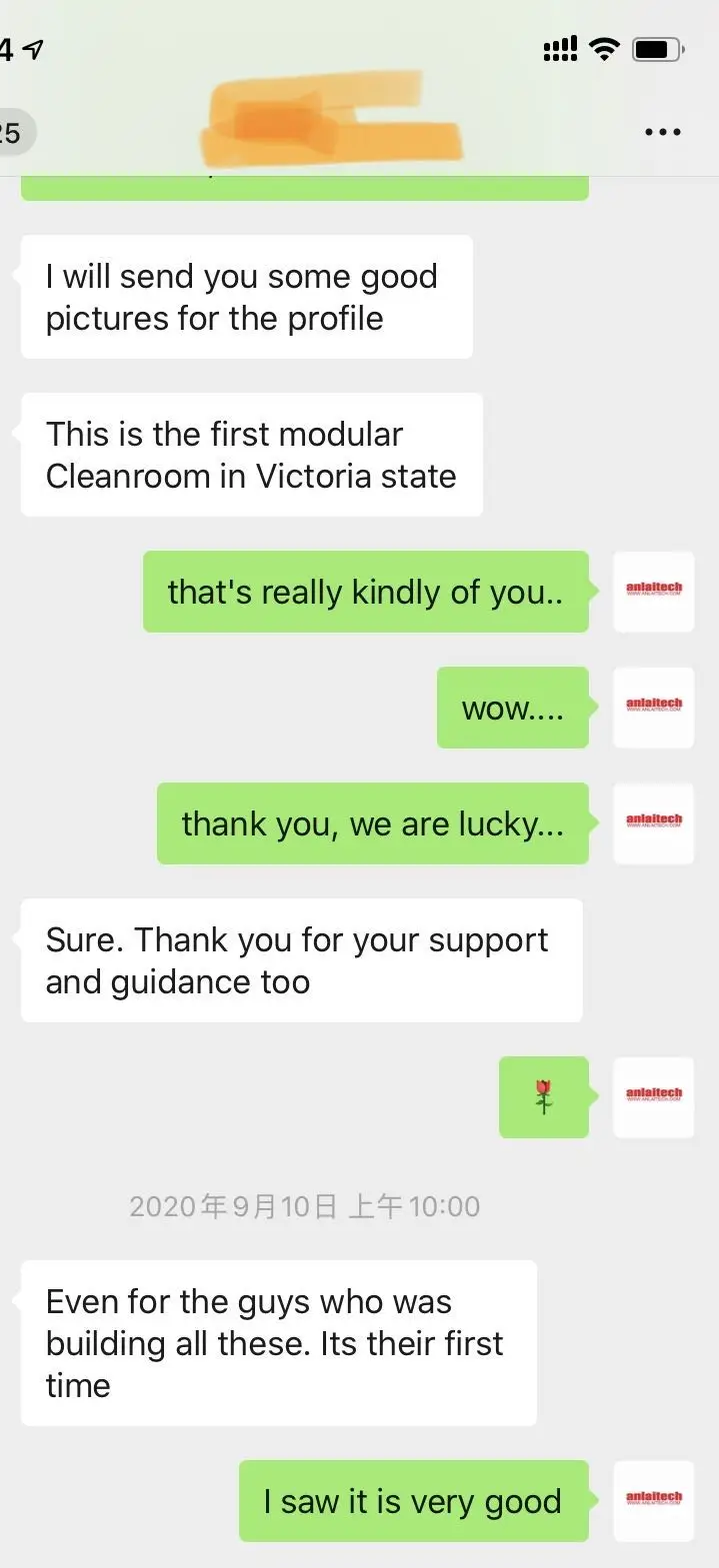

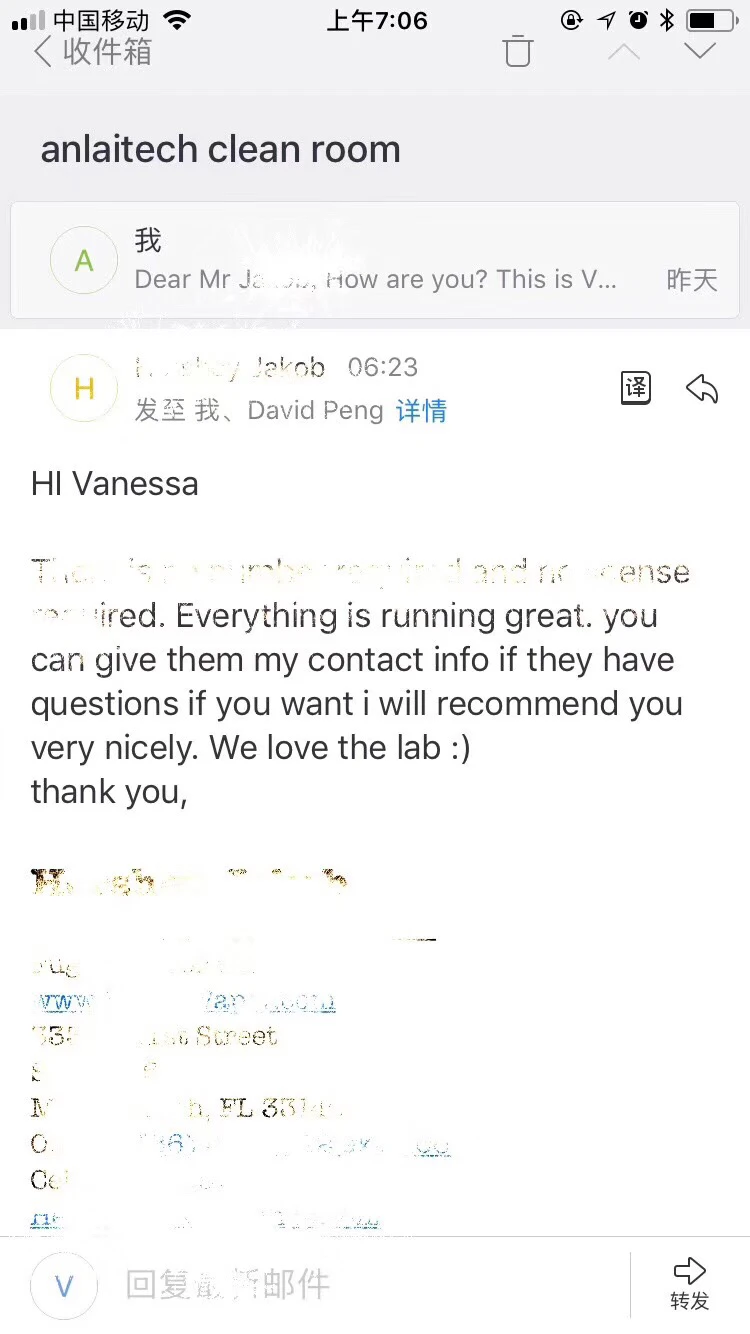

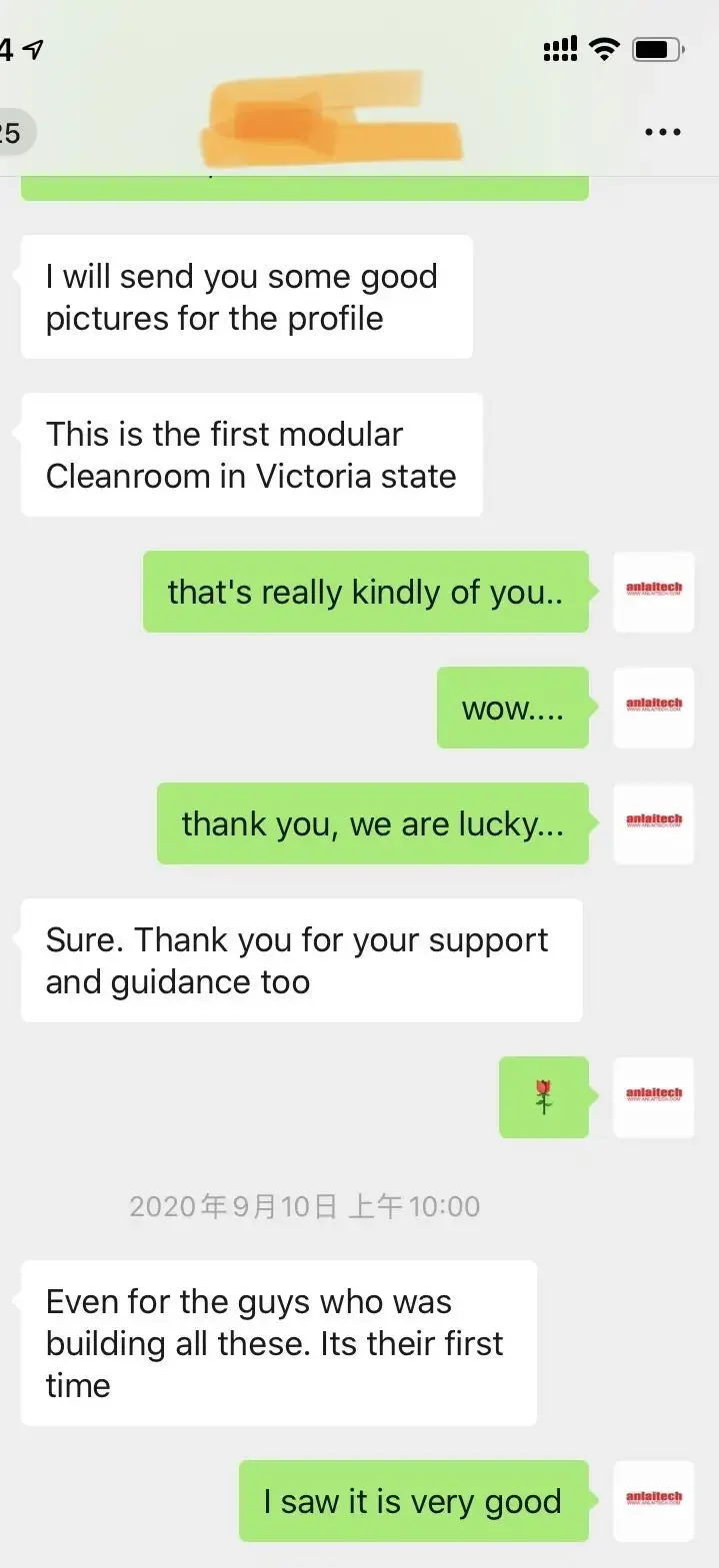

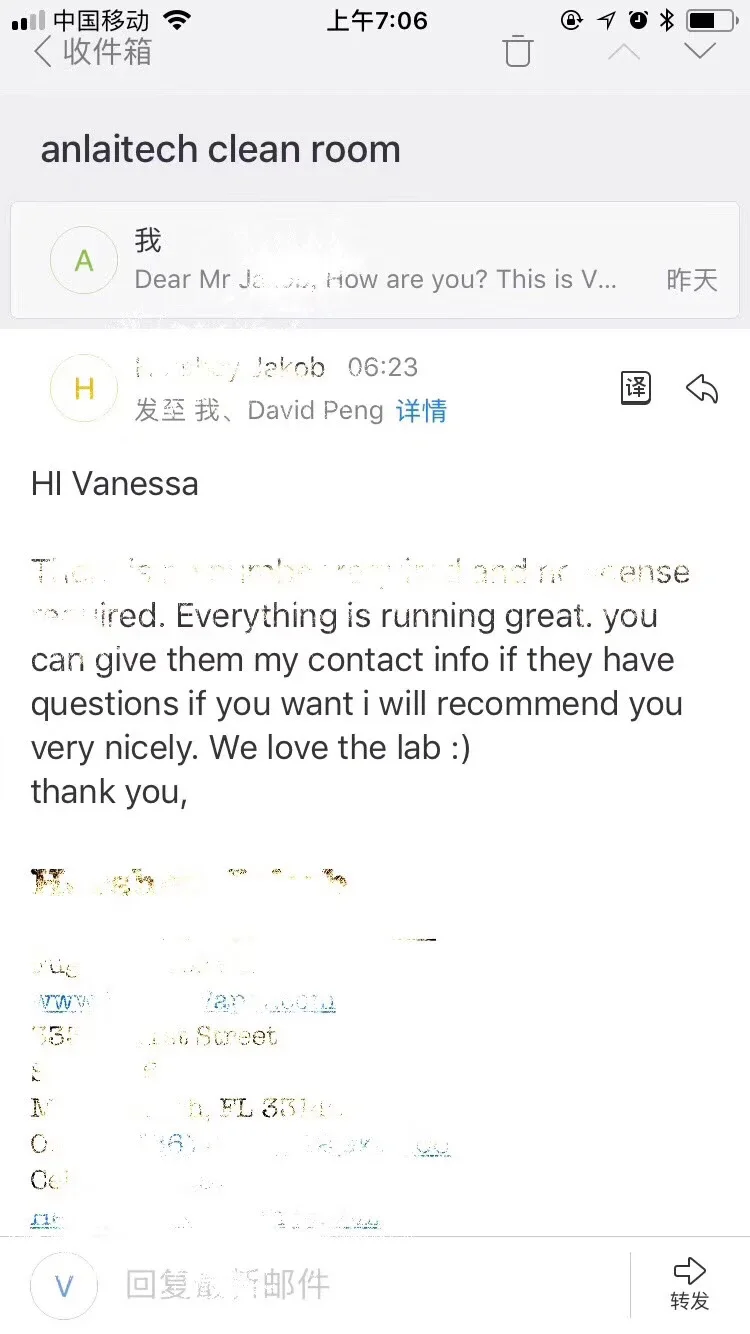

Customer Feedback

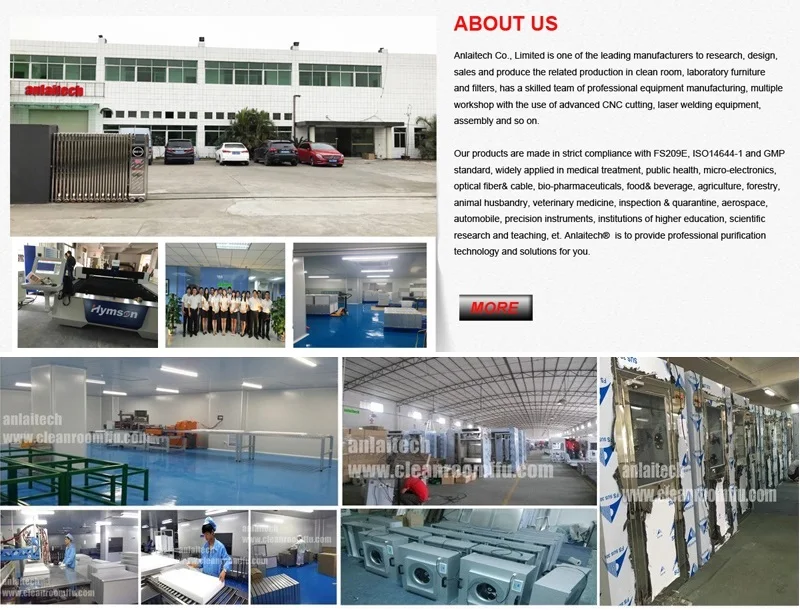

Company Profile
Certifications

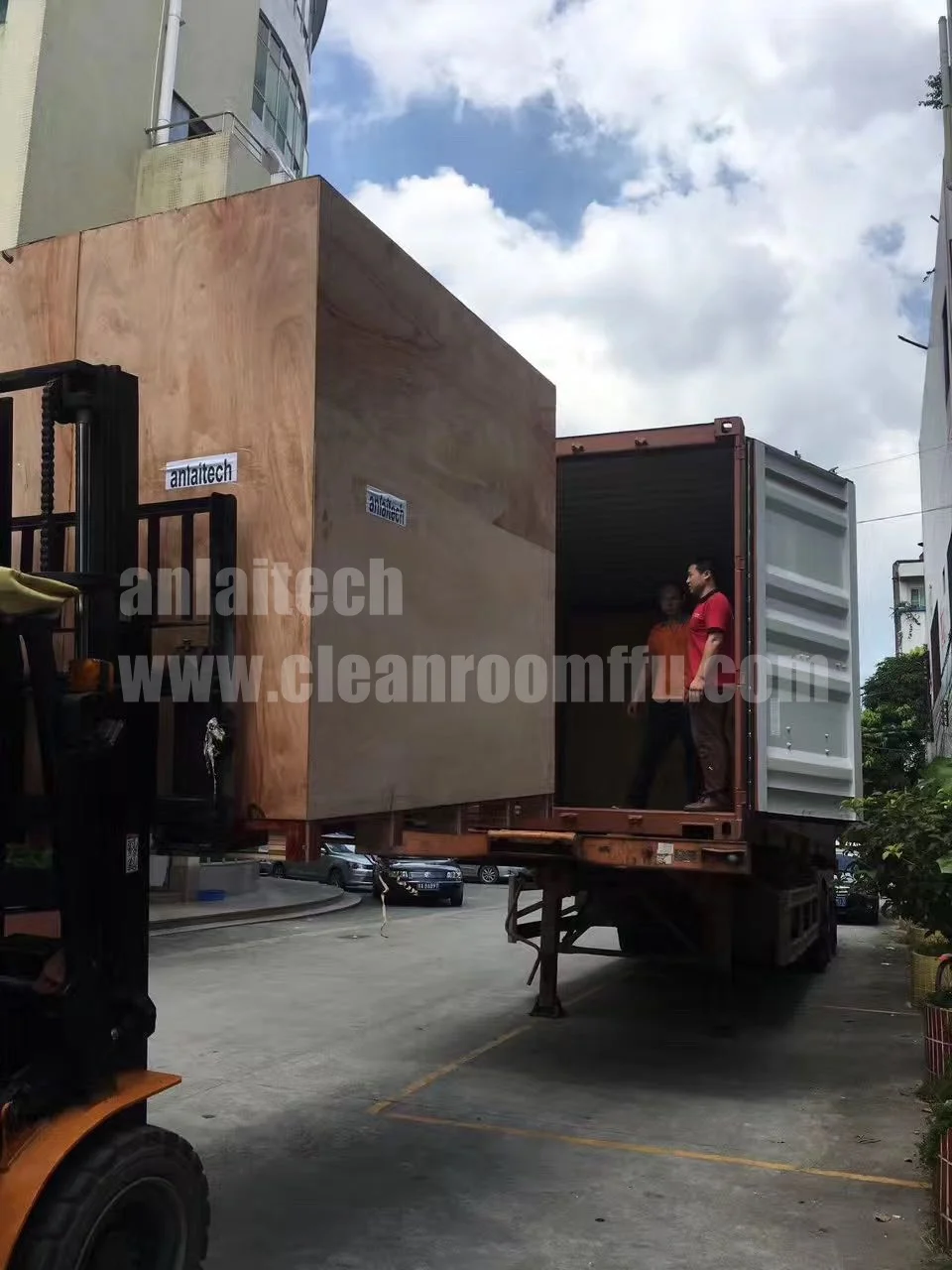

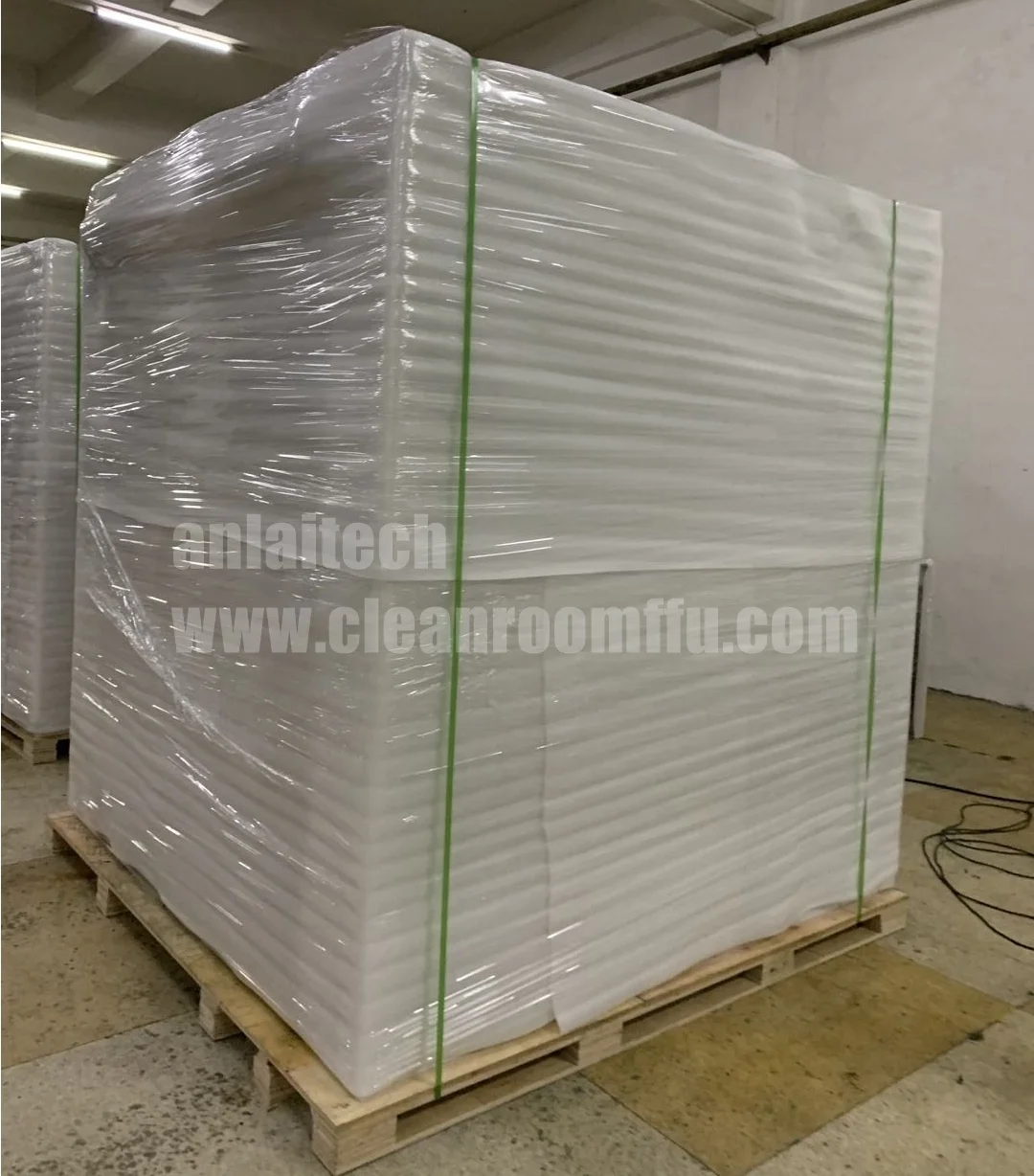

Product packaging
Welcome to contact with us for best price.
FAQ
1. who are we?
We are based in Guangdong, China, more than 10years in clean room business,.There are total about 51-100 people in our company.

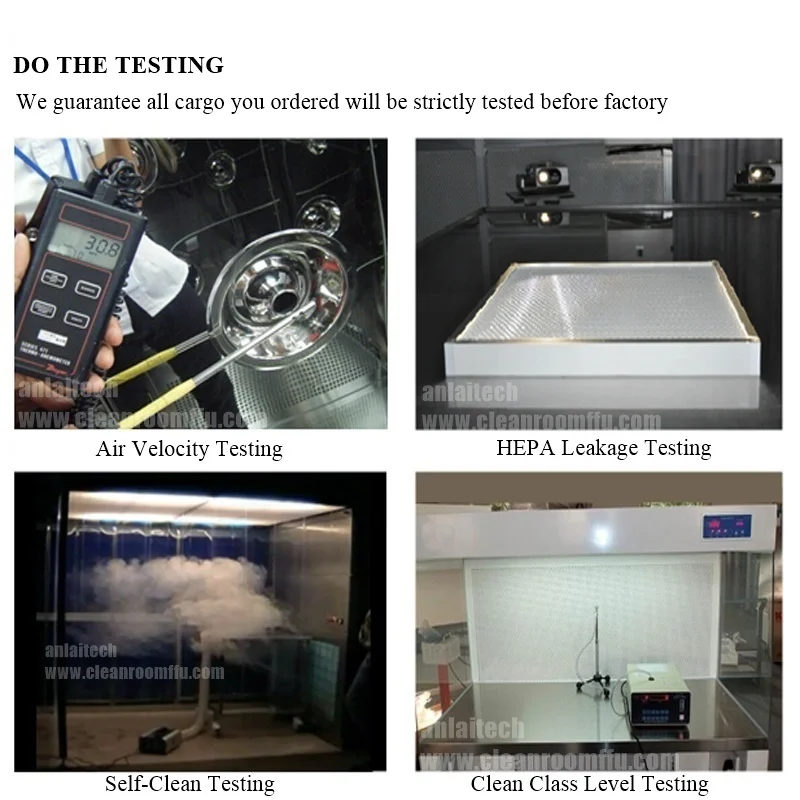

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.
5. what services can we provide?
We are based in Guangdong, China, more than 10years in clean room business,.There are total about 51-100 people in our company.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.
4. why should you buy from us not from other suppliers?
1).Has a number of industry clean room design experts.
1).Has a number of industry clean room design experts.
2).More than ten years experience in cleaning equipment manufacturing.
3).Advanced production equipment.
3).Advanced production equipment.
4).Through the ISO certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $2200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this home hvac systems?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the home hvac systems be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
