This high airflow ie3 motor is published with the manufacturer’s full specification — rated voltage 345-415V/600-690V, 7.5kW. Made by Dongguan Foersheng Intelligent M&E Co., Ltd. (14 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This High Airflow Ie3 Motor
- Model Number: GHBH 010 36 1R8
- Power Source: Electric Blower
- Rated Power: 530m³/h
- Rated Voltage: 345-415V/600-690V
- Max Airflow: 7.5kW
- Warranty: 2 years
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric Blower |
| Rated Voltage | 345-415V/600-690V |
| Pressure | High Pressure |
| Warranty | 2 years |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | GOORUI |
| Model Number | GHBH 010 36 1R8 |
| Product Name | Ring Blowers For Washing And Drying Machines |
| Frequency | 50Hz |
| Max Airflow | 7.5kW |
| Max Vacuum | 345-415/600-690Y(V) |
| Max Pressure | 16.7/9.6Y(A) |
| Rated Power | 530m³/h |
| Rated Current | 430mbar |
| Sound | 70db(A) |
| Weight | 66kg |
| Packaging Details | 1 set with pallet wrapped with poly bag then to a export carton box. |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Supply Ability | 2300 pieces per Month |

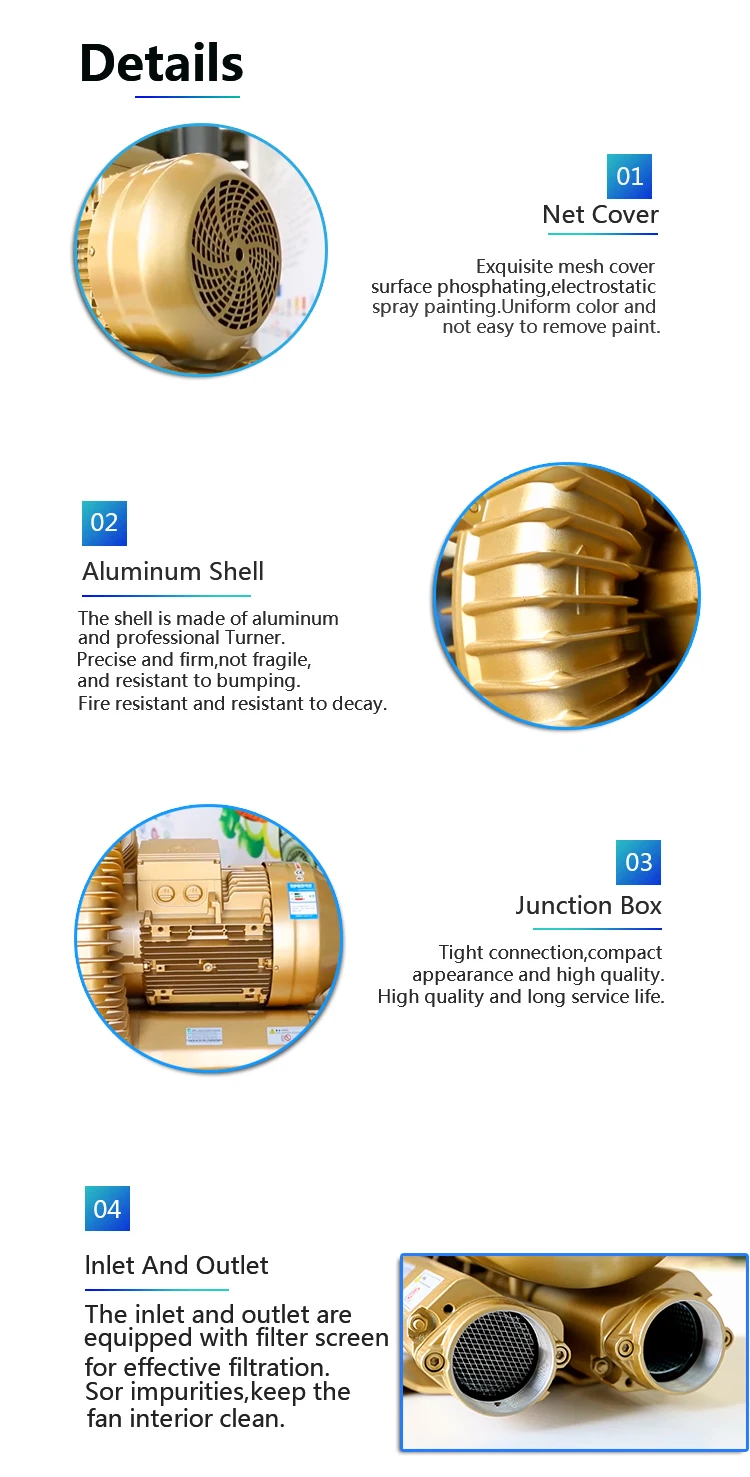

Product Details
Products Description
Product Name | 10hp High Airflow IE3 motors IP55 Side Channel Ring Blowers with Air Knives for Washing and Drying Machines | ||||||
Features | 100% Copper Wire Motor, High Quality Bearings, Low Noise, Energy-saving, Big Airflow, More Duable, More Safety. | ||||||
Model | GHBH 010 36 1R8 | Frequency | 50Hz | ||||
Stage | Single | Phase | 3-phase | ||||
Rated Power | 7.5kW | Rated Voltage | 345-415△/600-690Y(V) | ||||
Rated Current | 16.7△/9.6Y(A) | Max Airflow | 530m³/h | ||||
Max Vacuum | -320mbar | Max Pressure | 430mbar | ||||
Sound | 70db(A) | Weight | 66kg | ||||
High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved. | ||||||||
INSTRUCTIONS1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).PRECAUTIONS1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the air pump For pipe connection, hose connection should be used to isolate vibration.
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
GOORUI is now becoming a world-class manufacturer of premium side channel blowers and accessories. Our programme of continuous investment and innovation places us at the forefront of blowers manufacture. Goorui's philosophy is to create a partnership with our clients. We are committed to providing you with all the resources you may require with regard to your systems. Our advantages come from our efficient size: we provide the units at a very competitive price.
Enterprise Scene
Dongguan Foersheng Electric&Mechanic Co.Ltd. World leading supplier of vacuum equipment with designing.producing and marketing experienee for 18 years.Which is subordinate to Hong kong Fenglisheng Group Company Limited,located in the most famous world manufacture city.Dongguan City.to be an industrial manufacture enterprise with its own proprietary intellectual property rights.
Production Workshop
Test certificate include ISO9001 ,CE,RHOS,"Chinese trademark certificate","German trademark certificate","Dongguan city Energy saving Company","Dongguan city patent foster company ","Dongguan city high tech no logy privatization company","Guangdong provice high technology privatization company". Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life. In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure. Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
wide,European,Middle est,merica,products are exported to 100 different countries andaeras. Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
FAQ
Q1：What is the warranty of your machine? A1：18 months, any product itself question,you can contact with us. Q2：What is the material of your machine , is oil free? A2：Our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free. Q3：How to operate your machine? A3：Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important. Q4：You are trading company or manufacture? A4：We have our own factory and international department,We produce and sell all by ourselves. Q5：How to guarantee the quality and after sales service of your goods? A5:1).Strict detection during production. 2).Strict sampling inspection on products before shipment and intact product packaging are insured. 3).Follow up and adopt customers feedbacks in a timely manner after sales.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $759.99 / piece
- 10–19 piece: US $745.99 / piece
- 20–49 piece: US $728.99 / piece
- 50+ piece: US $699.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high airflow ie3 motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 years warranty. Spare parts and technical support remain available after the warranty period.
Can the high airflow ie3 motor be supplied for my local voltage?
The standard configuration is 345-415V/600-690V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Foersheng Intelligent M&E Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Foersheng Intelligent M&E Co., Ltd. range on HVACR Nexus.
