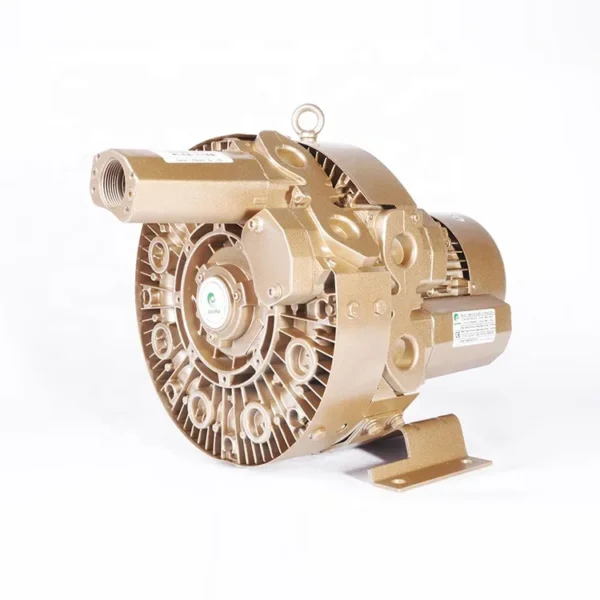

Ring blower — rated voltage 345-415/380-480V, max airflow 165/195m3/h. The complete factory specification follows. Made by Dongguan Foersheng Intelligent M&E Co., Ltd. (14 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ring Blower
- Model Number: GHBG 7D5 36 2R6
- Power Source: Electric Blower
- Rated Power: 5.7/6.6KW
- Rated Voltage: 345-415/380-480V
- Max Airflow: 165/195m3/h
- Warranty: 2 years
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric Blower |
| Rated Voltage | 345-415/380-480V |
| Pressure | High Pressure |
| Warranty | 2 years |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | GOORUI |
| Model Number | GHBG 7D5 36 2R6 |
| Product Name | Ring Blowers For Vacuum Lifting |
| Frequency | 50/60 Hz |
| Max Airflow | 165/195m3/h |
| Max Vacuum | -460/-480mbar |
| Max Pressure | 740/840mbar |
| Rated Power | 5.7/6.6KW |
| Rated Current | 12.5/12.0A |
| Sound | 68/72db(A) |
| Weight | 65kg |
| Packaging Details | 1 set with pallet wrapped with poly bag then to a export carton box. |
| Selling Units | Single item |
| Supply Ability | 5000 units per Month SIDE CHANNEL BLOWERS |
Product Details
Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers / High Pressure Blowers / Vacuum Blowers / High Vacuum Blowers / Turbo Blowers / Lateral Channel Blowers / Ring Compressors
Product Paramenters
Product Name | 7.5hp Ring Blowers For Vacuum Lifting |
Model No. | GHBG 7D5 36 2R6 |
Frequency | 50/60Hz |
Power | 5.7/6.6kW |
Voltage | 345-415/380-480V |
Current | 12.5/12.0A |
Max Airflow | 165/195m³/h |
Max Vacuum | -460/-480mbar |
Max Pressure | 740/840mbar |
Sound | 68/72db(A) |
Weight | 65kg |
Certificate | CE/SGS/ROHS/TUV/ISO certificates |
Products Description

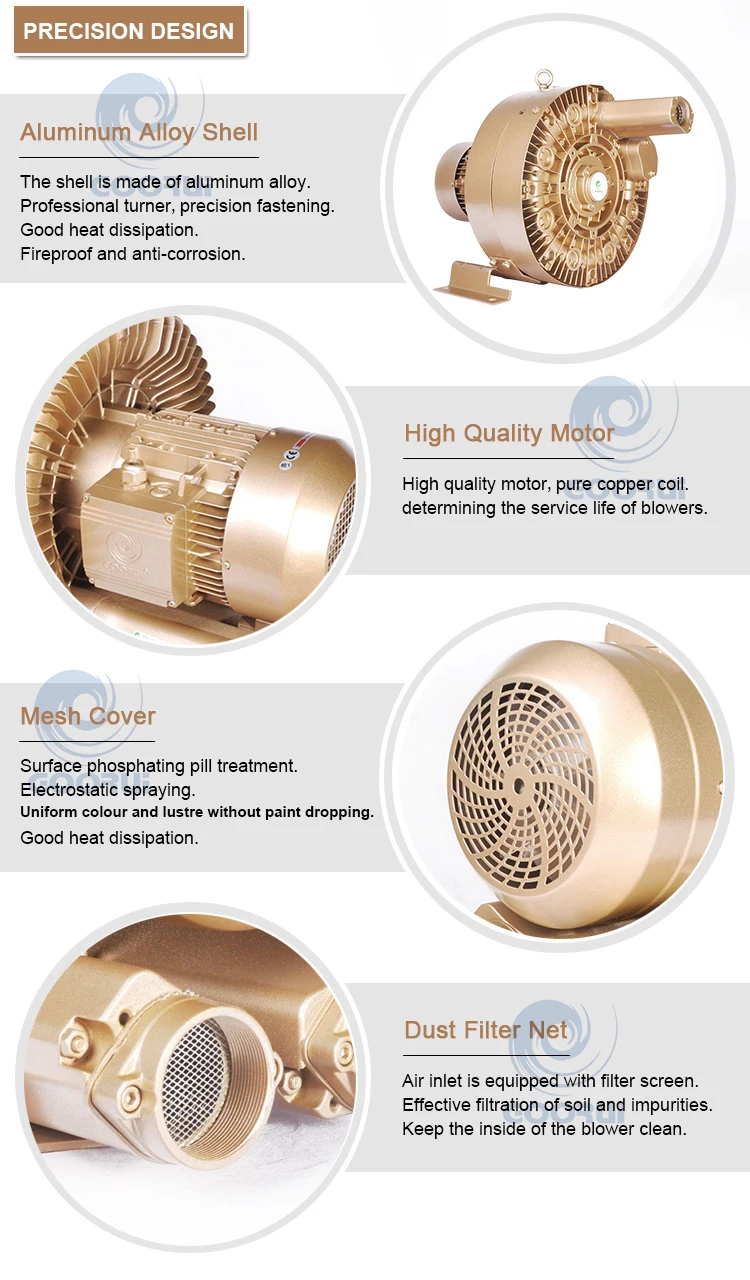

High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
Operational Principles:
When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements.
The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet), The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.
When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.
When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.

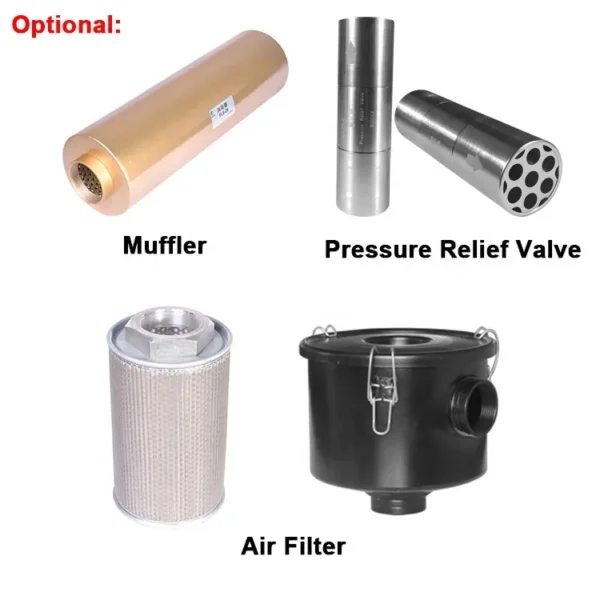

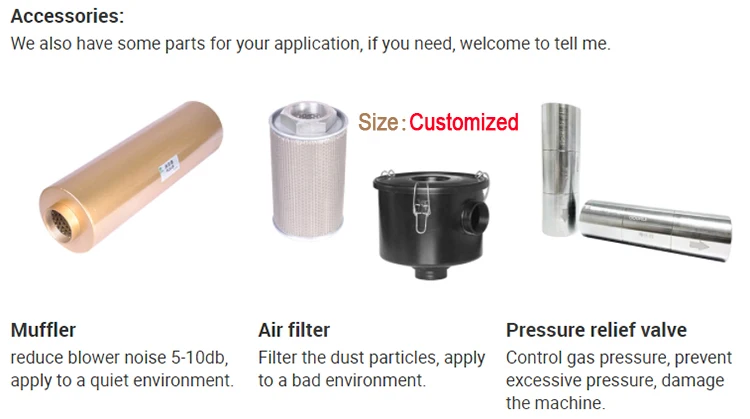

INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the air pump For pipe connection, hose connection should be used to isolate vibration.
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
GOORUI is now becoming a world-class manufacturer of premium side channel blowers and accessories. Our programme of continuous investment and innovation places us at the forefront of blowers manufacture. Goorui's philosophy is to create a partnership with our clients. We are committed to providing you with all the resources you may require with regard to your systems. Our advantages come from our efficient size: we provide the units at a very competitive price.
Enterprise Scene
Dongguan Foersheng Electric&Mechanic Co.Ltd. World leading supplier of vacuum equipment with designing.producing and marketing experienee for 18 years.Which is subordinate to Hong kong Fenglisheng Group Company Limited,located in the most famous world manufacture city.Dongguan City.to be an industrial manufacture enterprise with its own proprietary intellectual property rights.
Production Workshop
Test certificate include ISO9001 ,CE,RHOS,"Chinese trademark certificate","German trademark certificate","Dongguan city Energy saving Company","Dongguan city patent foster company ","Dongguan city high tech no logy privatization company","Guangdong provice high technology privatization company". Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life. In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure. Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
wide,European,Middle est,merica,products are exported to 100 different countries andaeras. Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
FAQ
What is the warranty of your machine? 18 months, any product itself question,you can contact with us. What is the material of your machine , is oil free? Our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free. How to operate your machine? Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important. You are trading company or manufacture? We have our own factory and international department,We produce and sell all by ourselves. How to guarantee the quality and after sales service of your goods? 1).Strict detection during production. 2).Strict sampling inspection on products before shipment and intact product packaging are insured. 3).Follow up and adopt customers feedbacks in a timely manner after sales.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $750 / piece
- 5–9 piece: US $732 / piece
- 10–19 piece: US $715 / piece
- 20+ piece: US $699 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 years warranty. Spare parts and technical support remain available after the warranty period.
Can the ring blower be supplied for my local voltage?
The standard configuration is 345-415/380-480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
