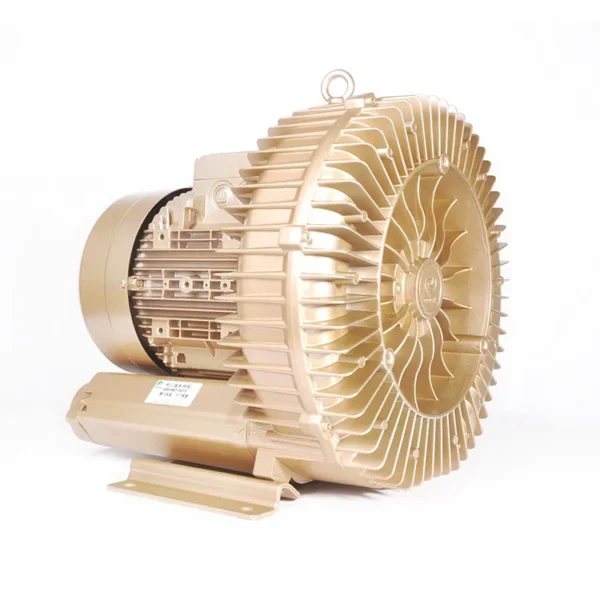

Side Channel Regenerative Blower, 7.5kw, 10hp

The side channel regenerative blower listed here carries 380 V, 220 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Dongguan Foersheng Intelligent M&E Co., Ltd. (14 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Side Channel Regenerative Blower

• Model Number: GHBH 010 36 1R8
• Power Source: Electric
• Rated Voltage: 380 V, 220 V
• Material: Aluminum Alloy
• Blade Material: Aluminium Alloy
• Warranty: 2 years

Technical Specifications

Product Details

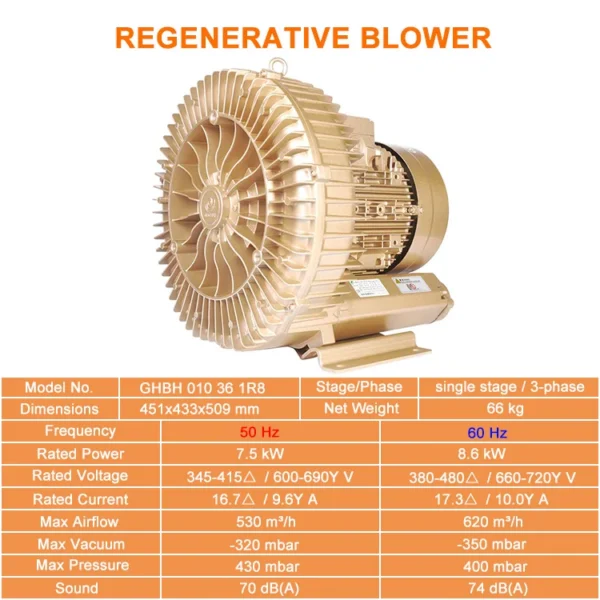

Technical Paramater

Product style	10hp Industrial High Pressure Side Channel Regenerative Blower and Vacuum Pumps
Model number	GHBH 010 36 1R8			Weight	66kg
Level of protection	IP55			Insulation class	F
Certificate	CE Certificate、RoHS Certificate、ISO Certificate、TUV Certificate
Frequency	50Hz			60Hz
Rated power	7.5kw			8.6kw
Rated voltage	345-415△/600-690Y(V)			380-480△/660-720Y(V)
Rated current	16.7△/9.6Y(A)			17.3△/10.0Y(A)
Max airflow	530m³/h			620m³/h
Max vacuum	-320mbar			-350mbar
Max pressure	430mbar			400mbar
Sound level	70db(A)			74db(A)

Performance Curves & Dimensions

Product Features

GOORUI blower Features

Die Cast Impeller: · Promotes smoother air flow and higher volumetric efficiency. Thermal Protector Built-In: · Protects the motors from overheating for greater reliability. Dynamically Balanced Impeller: · Smoother operation, Allows vibration free installation in OEM equipment. Suction & Discharge Silencer: · Reduces noise levels to below OSHA standards. Make it more comfortable for employees working rear the blowers. Double shielded shaft bearing: · Better grease retention, increased reliability. Motor shaft-mounted impeller: · Eliminates the need for couplings, belts or gears, Nothing to break or wear out. Motors-Wide voltage & Frequency Range: · Minimizes OEM inventory requirements. Dust-Proof Shaft Seal: · Protect bearing from contaminants for longer life. Improved Cooling fan Design: · Cools the motor and Blower, Quieter running and more efficient. Compact design: · Space saving design makes it easier for OEM's to incorporate the blower into their equipment.

Detailed Photos

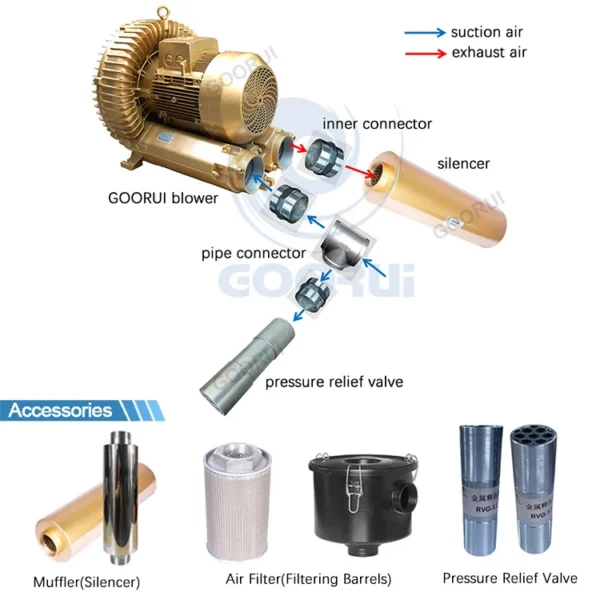

Accessories

INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the air pump For pipe connection, hose connection should be used to isolate vibration.

Company Profile

FAQ

Recommend Products

If your business depends on quality performance from air technology equipment, then come and talk to GOORUI to find out more about our air technology services and solutions. Please contact us for the technical datasheet/drawings and to discuss suitability for your application.

Discover why numerous industries trust GOORUI for reliable air solutions by visiting www.goorui.com or Email us at: service@goorui.com

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–4 piece: US $755 / piece
  • 5–9 piece: US $750 / piece
  • 10+ piece: US $745 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this side channel regenerative blower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this side channel regenerative blower carry?

It is supplied with CE RoHS CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the side channel regenerative blower be supplied for my local voltage?

The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dongguan Foersheng Intelligent M&E Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Foersheng Intelligent M&E Co., Ltd. range on HVACR Nexus.
