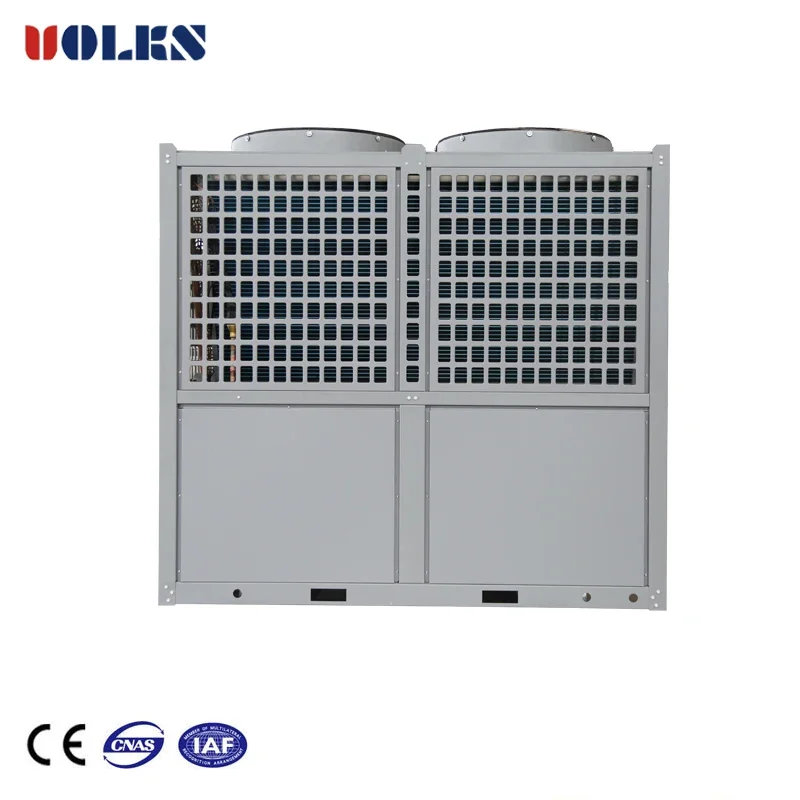

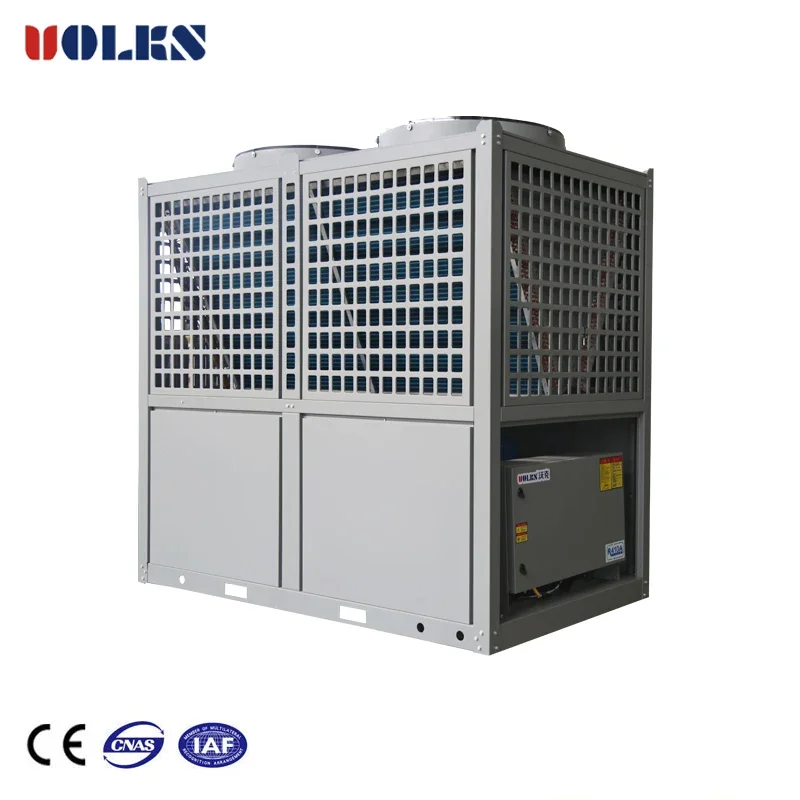

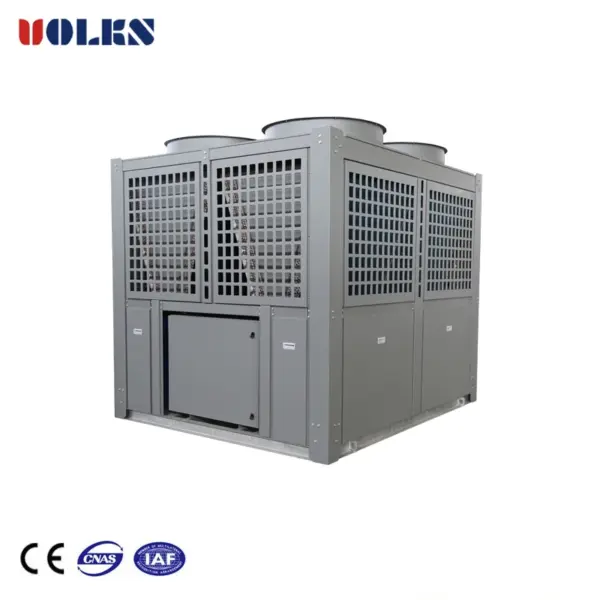

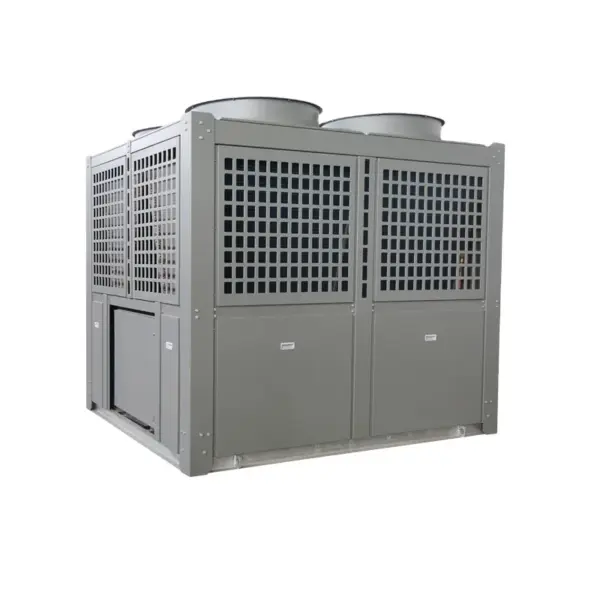

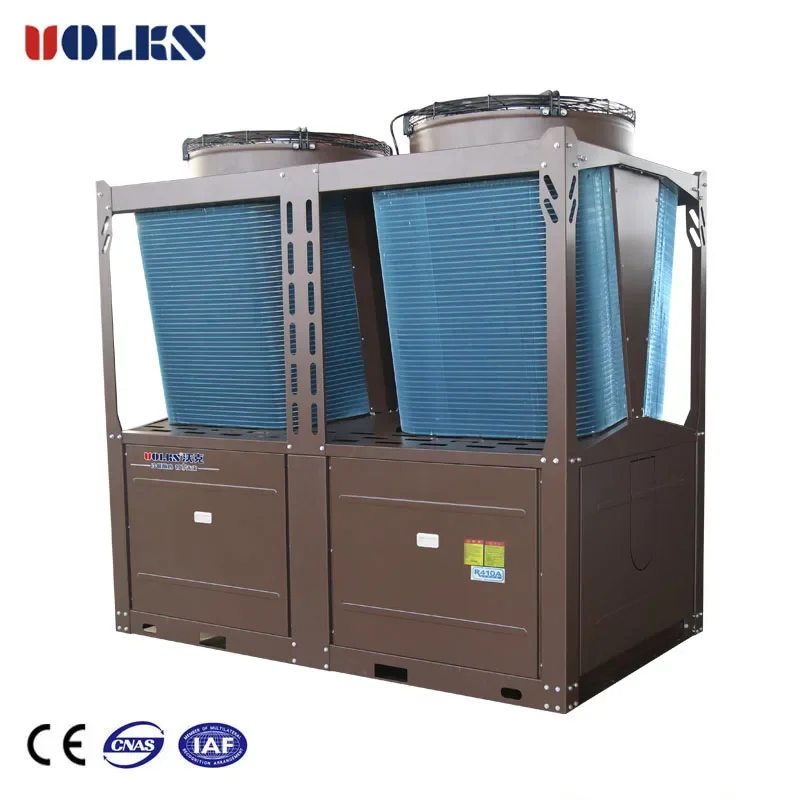

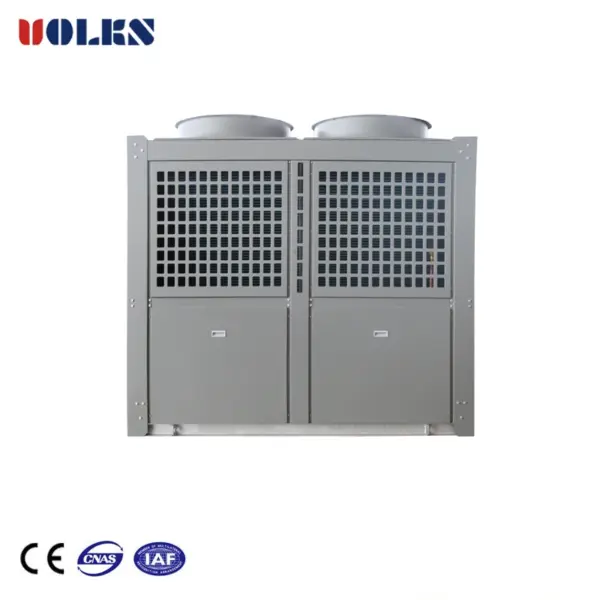

Product Description
Automatic and Fast defrost optimization Complete defrosting with intelligent flexible, advanced technology. Maximize heating requirements with each compressor refrigerant cycles alternately -operating. Modular design
Integral structure, easy installation,Increasing unit capacity freely, simple and easy， flexible configuration to meet different needs fully. Max 16 units can be connected in parallel and controlled by the master High-efficient heat exchanger to improve efficiency Effectively increasing the heat exchange area with the fin type threaded tube, also with high compacting convection design heat transfer Low resistance of the hot water circuit and more stable operation Multiple protection functions to ensure the safe operation of the system Advanced intelligent control, with multiple protection devices such as operating control and safety protection, real-time alarm when failure occurs. Cloud service Automatic control and remote control are available. You can monitor the product any moment by APP, diagnose machine faults in time and keep the excellent working performance all time. Environmental- friendly refrigerant
R410A free of ODP, also with better evaporation performances at low temperatures, higher evaporation pressure , and less energy attenuation.
|
HP
|
12HP
|
15HP
|
24HP
|
30HP
|
48HP
|
50HP
|
100HP
|
||||||||
|
Model Name
|
LSQW(R)F35
|
LSQW(R)F42
|
LSQW(R)F68
|
LSQW(R)F85
|
LSQW(R)F130
|
LSQW(R)F130
|
LSQW(R)F300
|
||||||||
|
Power Supply
|
380-400V~, 3Ph, 50Hz
|
||||||||||||||
|
Cooling
|
Capacity
|
kW
|
32
|
42
|
65
|
85
|
130
|
130
|
260
|
||||||
|
kBtu/h
|
109.2
|
143.3
|
221.8
|
290.1
|
443.7
|
443.7
|
887.4
|
||||||||
|
RT
|
9.1
|
11.9
|
18.5
|
24.2
|
37.0
|
37.0
|
73.9
|
||||||||
|
Power Input
|
kW
|
10.5
|
13.5
|
21.5
|
27
|
43
|
45
|
90
|
|||||||
|
Current
|
A
|
19
|
24.5
|
38.5
|
48.3
|
76.8
|
80.5
|
161
|
|||||||
|
EER
|
3.05
|
3.11
|
3.02
|
3.15
|
3.02
|
2.89
|
2.89
|
||||||||
|
Heating
|
Capacity
|
kW
|
35
|
45
|
68
|
90
|
140
|
150
|
300
|
||||||
|
kBtu/h
|
119.5
|
153.6
|
232.1
|
307.2
|
477.8
|
511.9
|
1023.9
|
||||||||
|
RT
|
10.0
|
12.8
|
19.3
|
25.6
|
39.8
|
42.6
|
85.3
|
||||||||
|
Power Input
|
kW
|
9.5
|
12
|
19
|
24
|
38
|
41
|
82
|
|||||||
|
Current
|
A
|
17
|
21.5
|
33.9
|
42.9
|
67.9
|
73.3
|
146.6
|
|||||||
|
COP
|
3.7
|
3.8
|
3.6
|
3.8
|
3.7
|
3.7
|
3.7
|
||||||||
|

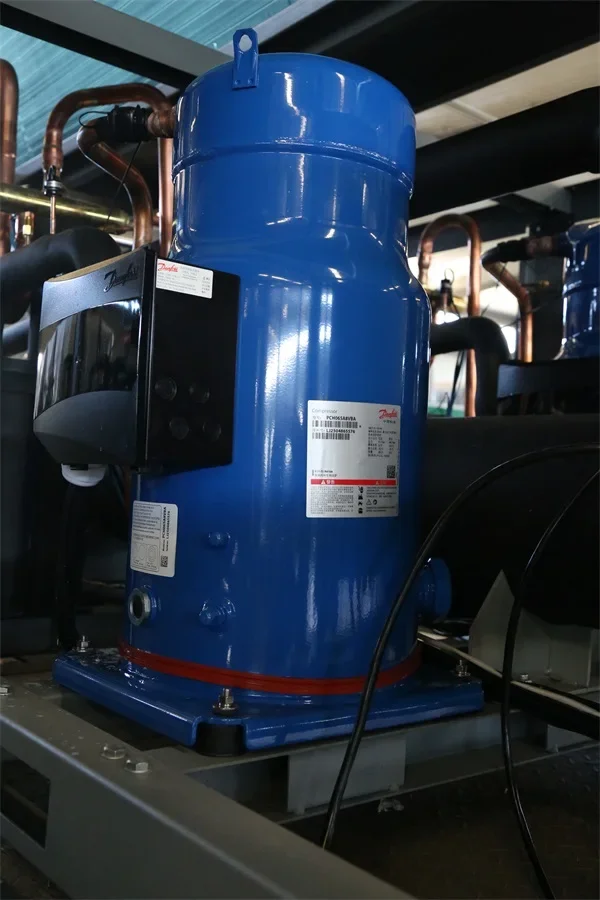

Compressor
|
Type
|
Scroll
|
|||||||||||||
|
Quantity
|
1
|
1
|
2
|
2
|
4
|
2
|
4
|
||||||||
|
Fan
|
Type
|
Aixal Fan
|
|||||||||||||
|
Quantity
|
2
|
2
|
2
|
2
|
2
|
2
|
4
|
||||||||
|
Power Input
|
W
|
250
|
370
|
750
|
1100
|
1500
|
2000
|
4000
|
|||||||
|
Evaporater
|
Axial coaxial heat exchanger
|
Shell in Tube heat exchanger
|
|||||||||||||
|
Condenser
|
Copper tube and aluminum fin
|
||||||||||||||
|
Refrigerant
|
Type
|
R410A
|
|||||||||||||
|
Charged
|
kg
|
8.5
|
9
|
8.0*2
|
9.0*2
|
8.0*4
|
13.5*2
|
13.5*4
|
|||||||
|
Pipe
|
Water Flow
|
M3/H
|
5.5
|
7.2
|
11.2
|
14.6
|
22.4
|
22.4
|
44.8
|
||||||
|
Drop
|
kPa
|
35
|
35
|
42
|
45
|
45
|
45
|
45
|
|||||||
|
Size
|
DN32
|
DN40
|
DN50
|
DN50
|
DN65
|
DN65
|
DN100
|
||||||||
|
Dimension
|
Length
|
mm
|
1500
|
1720
|
2056
|
2160
|
2450
|
2270
|
2600
|
||||||
|
Width
|
mm
|
760
|
760
|
1106
|
1110
|
1136
|
2130
|
2250
|
|||||||
|
Height
|
mm
|
1140
|
1140
|
2045
|
2000
|
2118
|
1300
|
2470
|
|||||||
|
Noise
|
dB(A)
|
65
|
65
|
68
|
70
|
72
|
72
|
72
|
|||||||
|
Weight
|
kg
|
350
|
420
|
650
|
900
|
920
|
970
|
1940
|
|||||||
Notes:
1, Nominal cooling capacities are based on the following conditions: Outdoor temperature: 35°CDB, 24°CWB,Water in / out:12/7°C ;
2. Nominal Heating capacities are based on the following conditions: Outdoor temperature: 7°CDB, 6°CWB,Water in / out: –
/ 45°C ;
/ 45°C ;
3. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the flfloor in a semi-anechoic
chamber;
chamber;

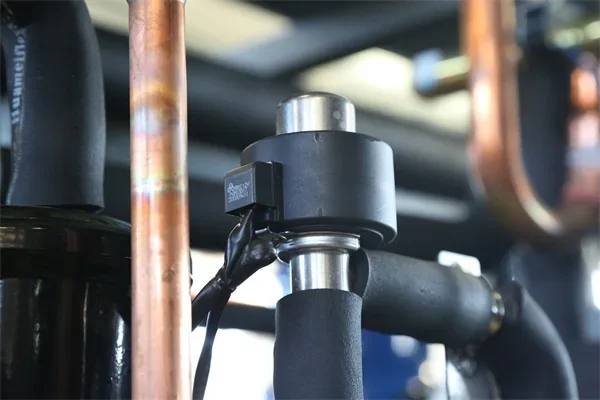

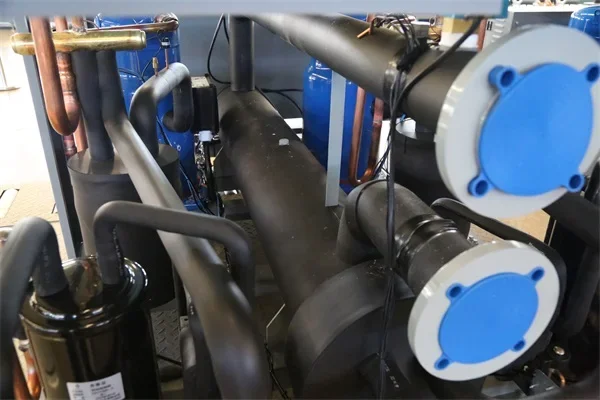

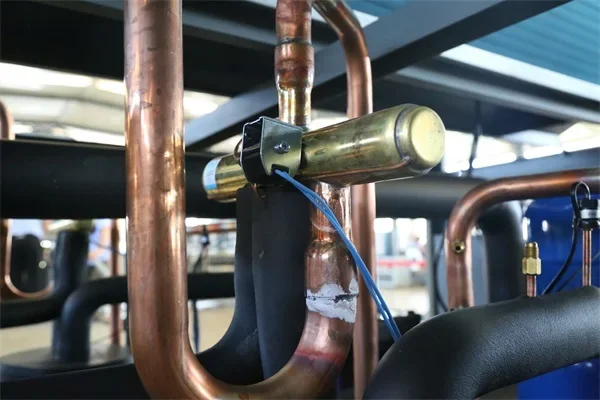

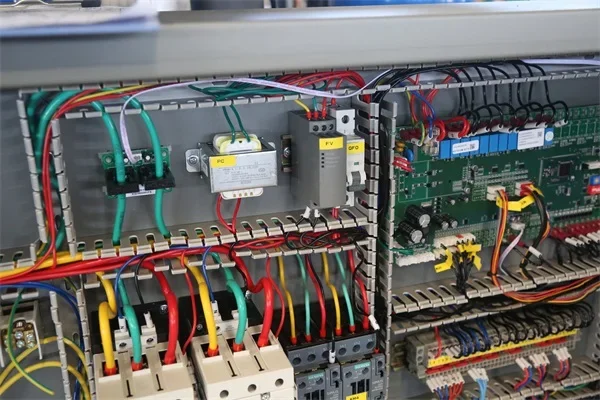

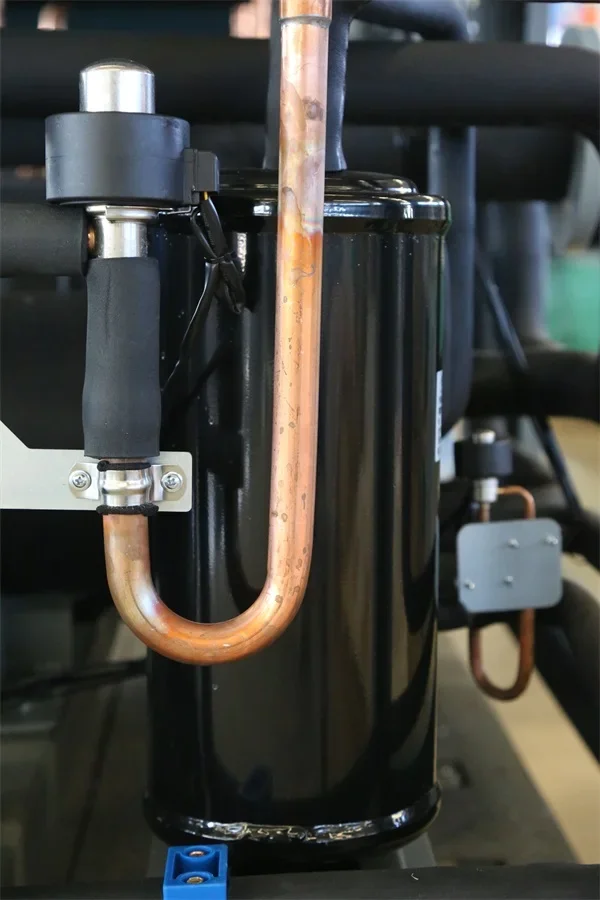

Details Images
Company Profile

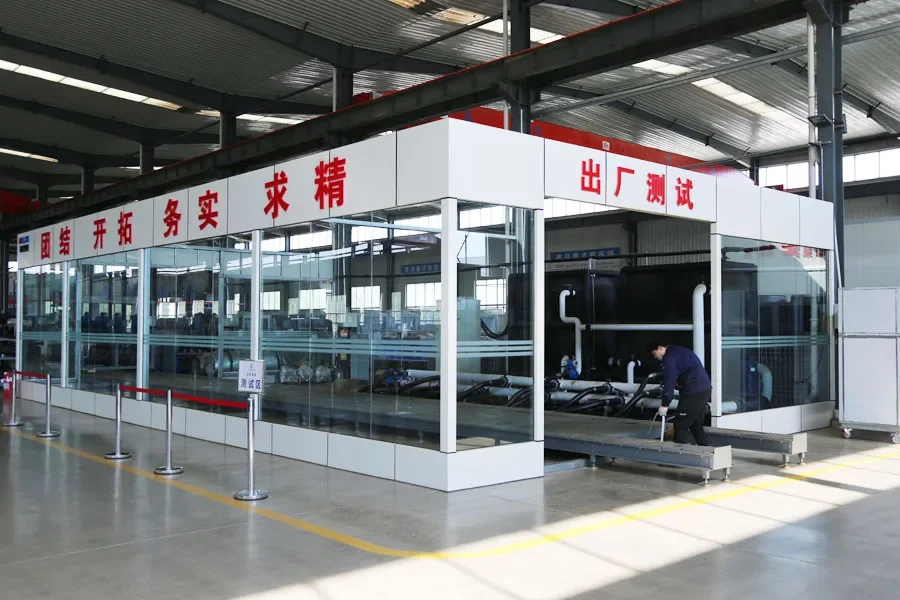

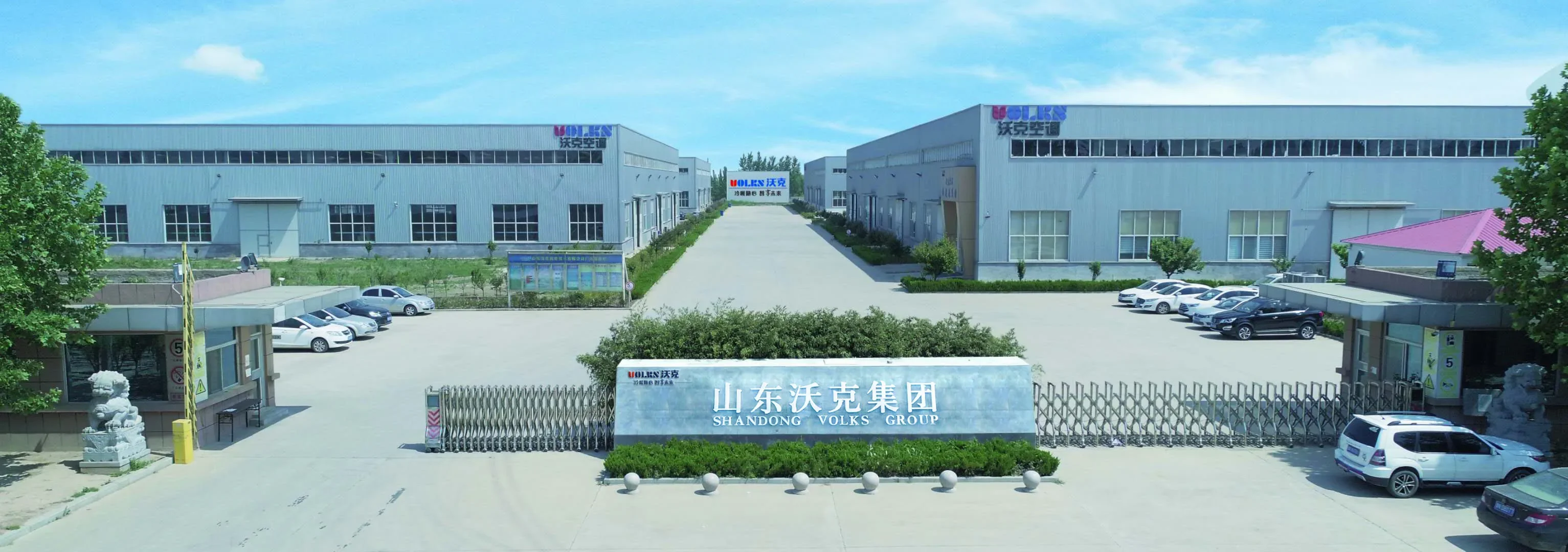

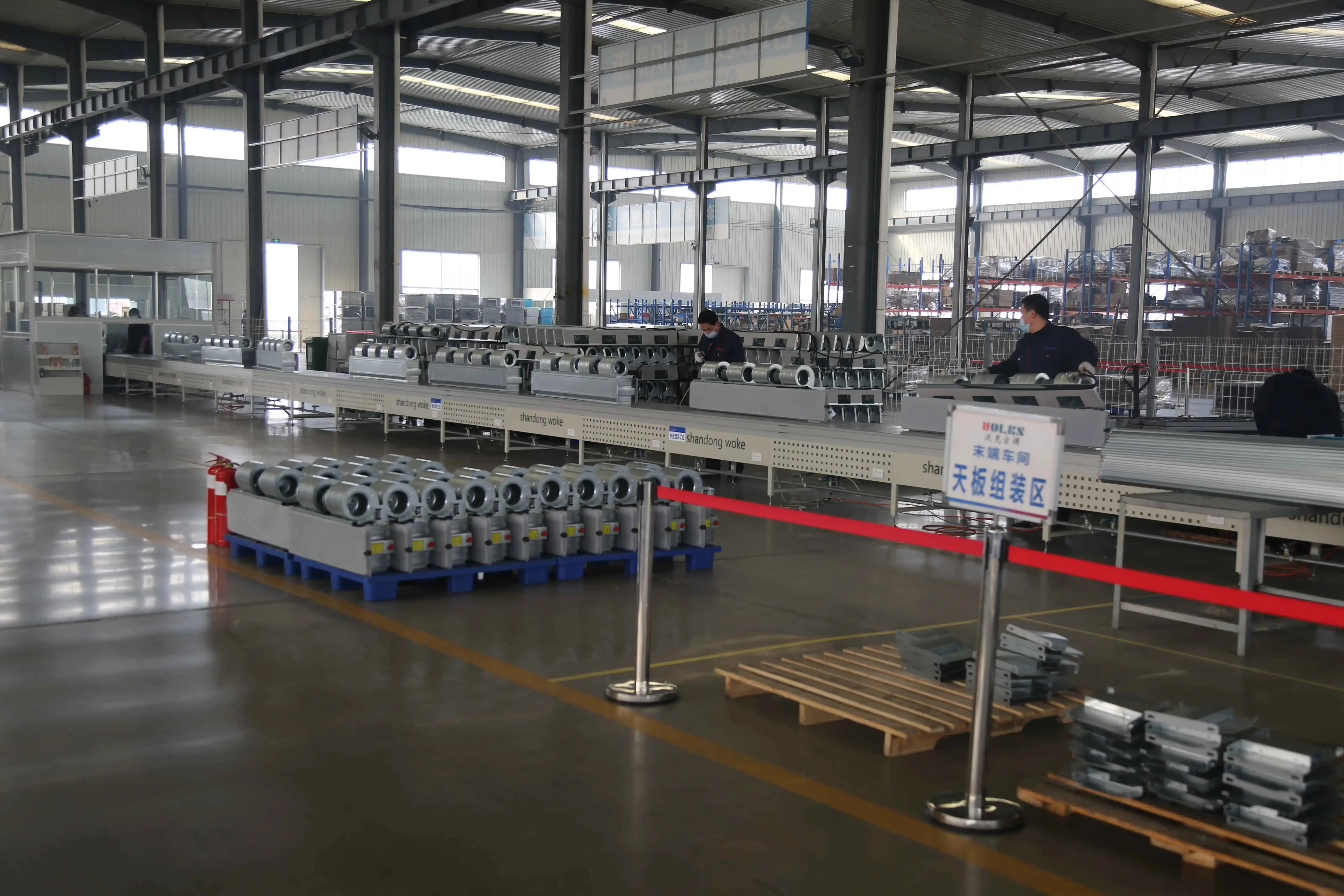

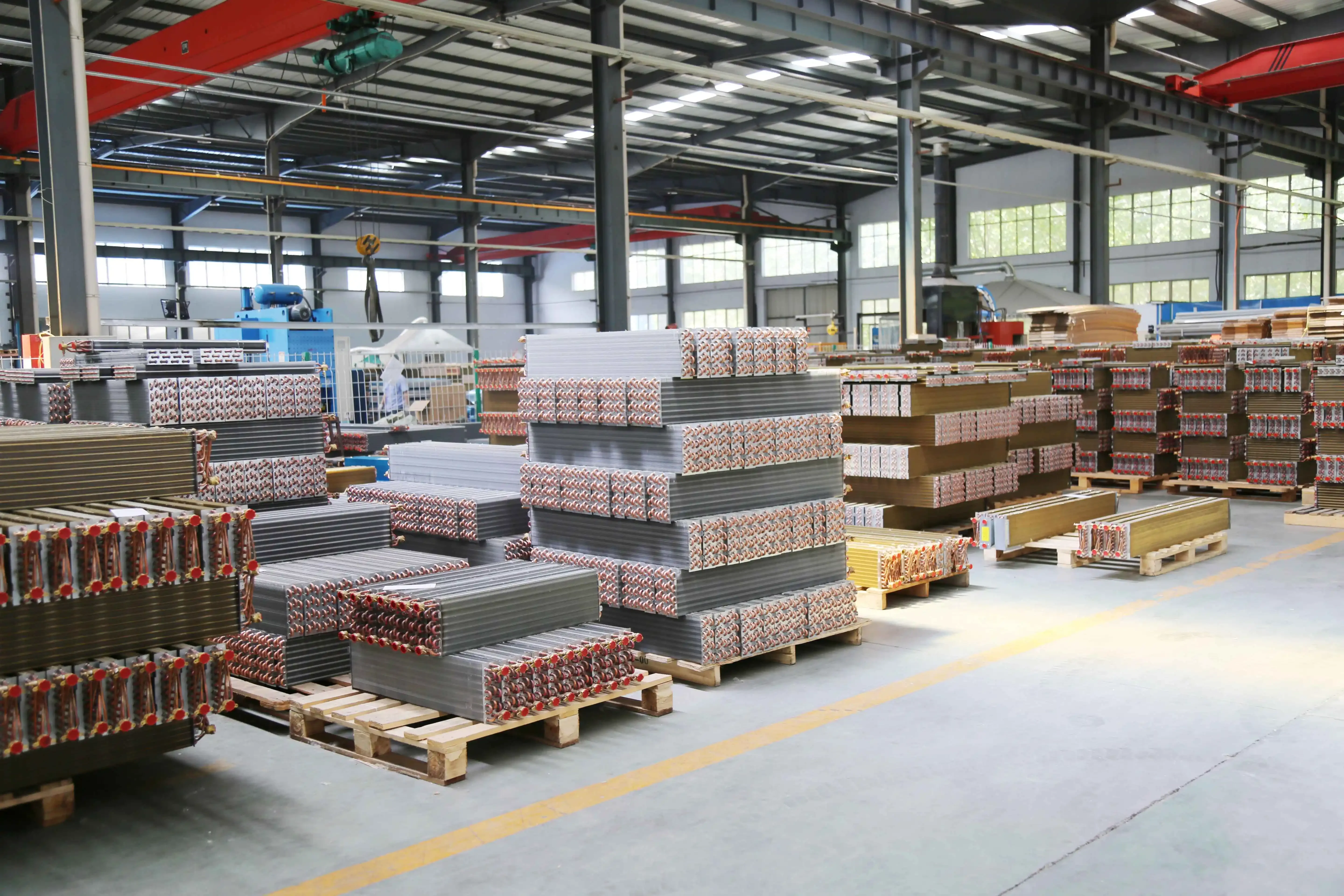

Shandong Volks Air Conditioning Group co.,ltd., established in 2011, as a professional central air conditioning manufacturer in China, we are engaged in the research, development, sale and after sale service of modular chiller and heat pump, water/air cooled screw chiller, water source heat pump, packaged rooftop unit, duct split unit, fan coil unit, air handling unit, etc. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established our owner major labs: national standard central air conditioning laboratory, and heat pump dryer laboratory. Our factory is located in Dezhou city, Shandong province, it is more near Beijing with about 75 minutes by high speed train. We have more than 100,000m3 workshop, and total more than 260 employees till now. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained CRAA, ISO9001, ISO14001 and ISO45001 system, AAA credit rating certificates. Selling well in all cities and provinces around China, and also exported to oversea market with many countries. We also welcome OEM and ODM orders.
Certifications

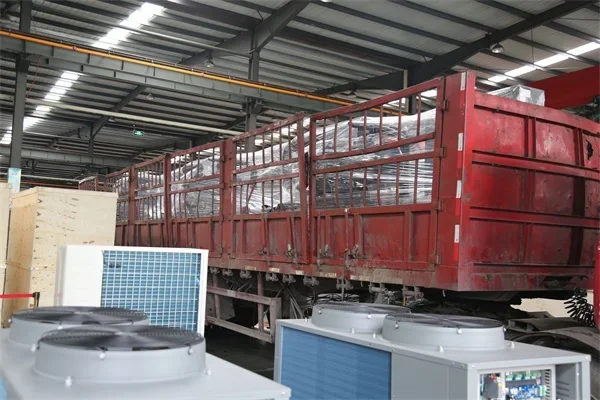

Packing & Delivery
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery
