The high temperature axial fan listed here carries 380 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Chongqing Eran Hvac Equipment Co., Ltd. (12 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This High Temperature Axial Fan
- Power Source: Electric
- Voltage: 380 V
- Material: Galvanized steel
- Blade Material: galvanized Sheet
- Speed: 2900rpm
- Warranty: 1 Year
Technical Specifications
| Voltage | 380 V |
|---|---|
| Speed | 2900rpm |
| Type | Axial flow fan |
| Material | Galvanized steel |
| Blade Material | galvanized Sheet |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Chongqing, China |
| Brand Name | eran |
| Brand | ERAN |
| Color | Customized paint color |
| Welding | Full welding connection |
| Factory Certificated | ISO9001:2008; ISO14001:2004 |
| Certification | Other |
| Selling Units | Single item |
| Single Package Size | 450X350X150 cm |
| Single Gross Weight | 30.0 kg |
Product Details

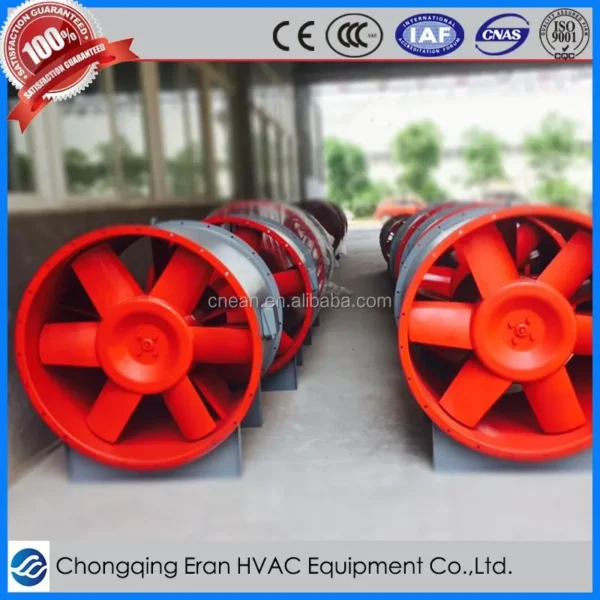

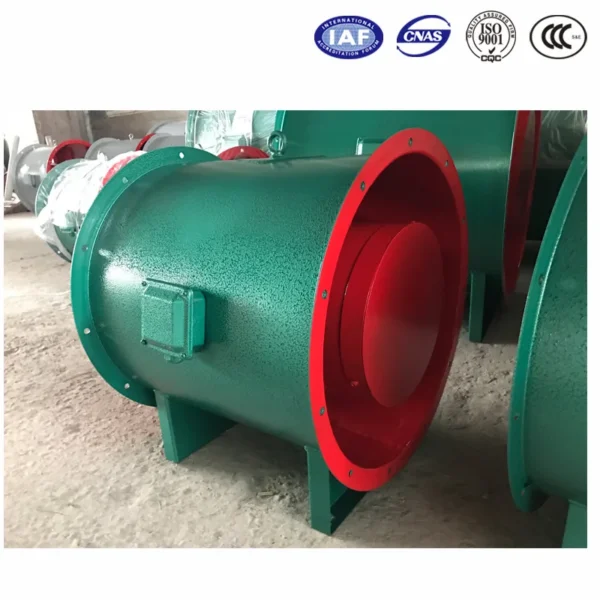

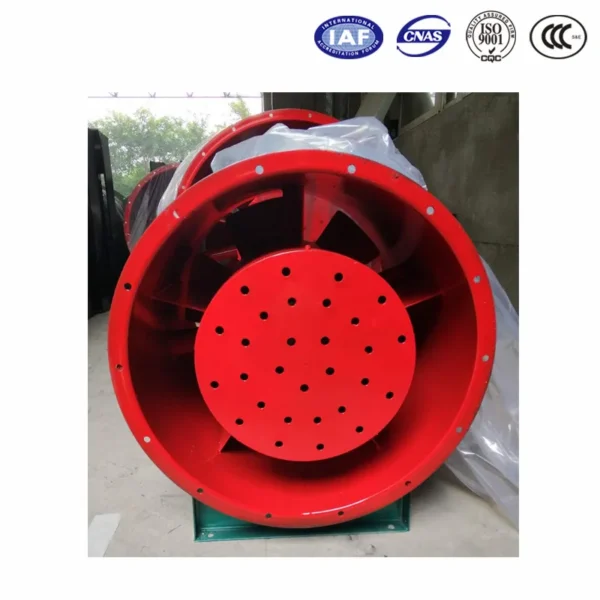

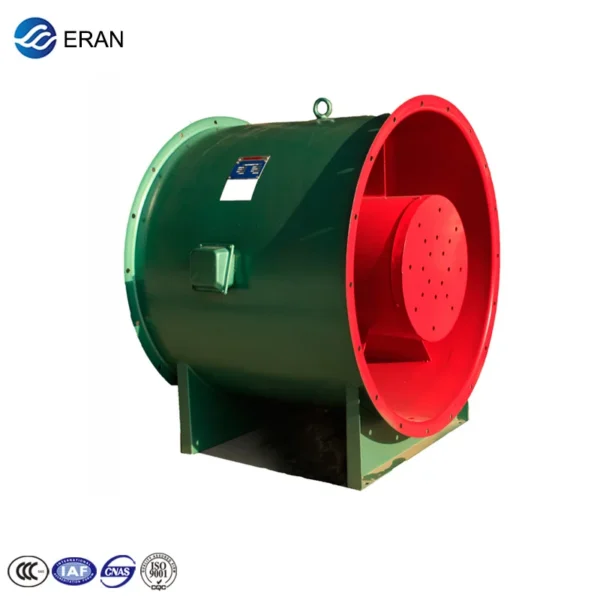

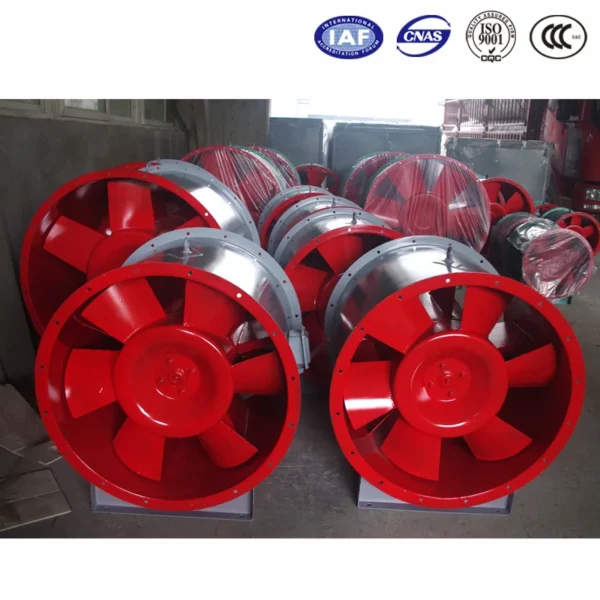

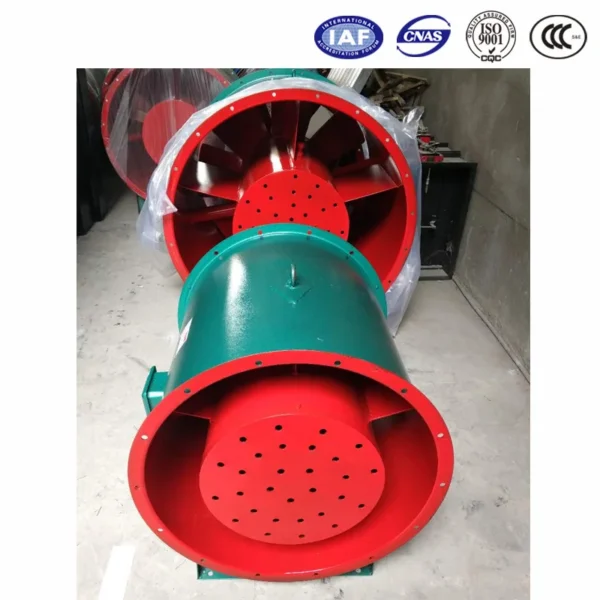

600mm smoke exhaust high temperature axial fan
Product Profile:Axial-flow type ventilator, assembled with high-temperature resistance motor and motor cooling system. Compared with HTFC centrifugal blower, it is affordable and suitable for the places where do not demand low noise and special outlet angle.
Products advantages:Our company was founded in 2005, the annual output value is nearly one hundred million RMB now. Using pipelined professional mold production methods, so we can meet the production needs of large orders and guarantee our products are reliable quality. Complete accessories production and distribution make it easier to install.
Good quality control processes, all products have been inspected strictly. The balance precision of impellers is less than G5.6. Wind speed, electric current, voltage and noise control all achieve CNS.
Structure:
- Wheel hubs and blades are molded by hydraulic tensioning
- Full welding connection
- Flanges of cylinder are made of spinning flanging process.
Features:
- High quality carbon steel, Cost-effective
- Customized paint color
- 100 degrees (Can run 20 hours continuously), 300 degrees (Can run 60 minutes continuously)
Application:
This series of products are widely used in high-rise building, industrial and mining enterprises, underground garage and warehousing workplace ventilation.
Standard: impeller, chassis (cylinder, guide vanes, the inner cylinder, motor bracket); motor; chassis; cooling duct
Optional accessories: damping device; control box; grille; mating flange;muffler
Appearance and Installation Dimension
Performance Table
| Device Number | Rotating Speed(r/min) | Air Volume(m³/h) | Total Pressure(Pa) | Motor Model | Power(kw) | Weight(kg) |
| 3.5 | 2900 | 6122 | 205 | Y802-2 | 1.1 | 65 |
| 5500 | 350 | |||||
| 5008 | 368 | |||||
| 4268 | 482 | |||||
| 3500 | 552 | |||||
| 8 | 1450 | 31421 | 600 | Y132M-4 | 7.5 | 216 |
| 30364 | 635 | |||||
| 29172 | 661 | |||||
| 28598 | 692 | |||||
| 26012 | 723 | |||||
| 16 | 960 | 120233 | 652 | Y225M-6 | 30 | 740 |
| 113498 | 704 | |||||
| 109686 | 762 | |||||
| 99506 | 842 | |||||
| 91210 | 912 |
The above table is just part of the performance of our product. We can provide customized product, so please make your performance requirements.
Our company:
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
Your inquiry and question will be replied within 24 hours.
Professional foreign sales staff gives you best service.
Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
All our products will be provided with best quotation, excellent quality and prompt delivery.
Sample is available by express.
OEM is available.
Other series products on HVAC systems:
Welcome to contact me for enquiry and latest information.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–49 set: US $185 / set
- 50+ set: US $165 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high temperature axial fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this high temperature axial fan carry?
It is supplied with ISO9001:2008; ISO14001:2004 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the high temperature axial fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
