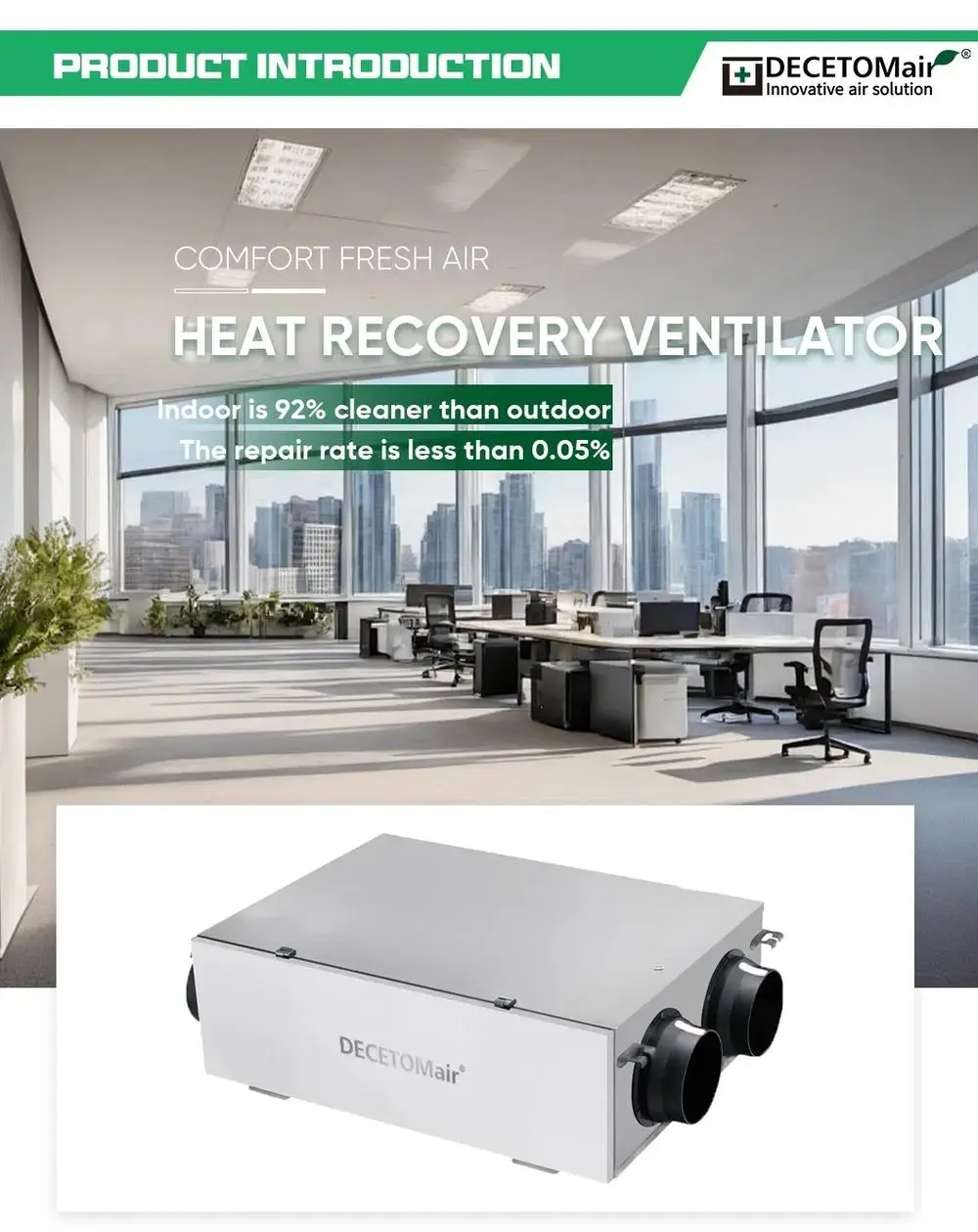

Home Hvac Systems, 150m3/h, ERV, AC 220V, Galvanized Sheet, CE

This home hvac systems is published with the manufacturer’s full specification — voltage AC 220V/50Hz, material Galvanized sheet. Made by Wenzhou Daqidi Technology Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Home Hvac Systems

• Model Number: AGQR-150
• Voltage: AC 220V/50Hz
• Material: Galvanized sheet
• Warranty: 2 Years
• Place Of Origin: Zhejiang, China
• Feature: Corrosion-resistant

Technical Specifications

Product Details

Model	Air volume	Power Supply	Rated power	Max static pressure	Energy Recovery Rate	Noise
		(m³/h)	(V/Hz)	(W)	(Pa)	(%)	dB(A)
AGQR-150	150	220/50	73	127	78	22
AGQR-250	250	220/50	88	150	78	24
AGQR-350	350	220/50	150	158	78	27
AGQR-500	500	220/50	170	190	78	30
AGQR-600	600	220/50	205	280	78	31
AGQR-800	800	220/50	245	288	78	35
AGQR-1000	1000	220/50	380	310	75	37
AGQR-1200	1200	220/50	460	340	75	39
AGQR-1500	1500	220/50	810	450	75	40
AGQR-1800	1800	220/50	900	485	75	42

24 hours continuous supply of fresh air and exhaust of dirty air to create

a comfortable and healthy office and home environment

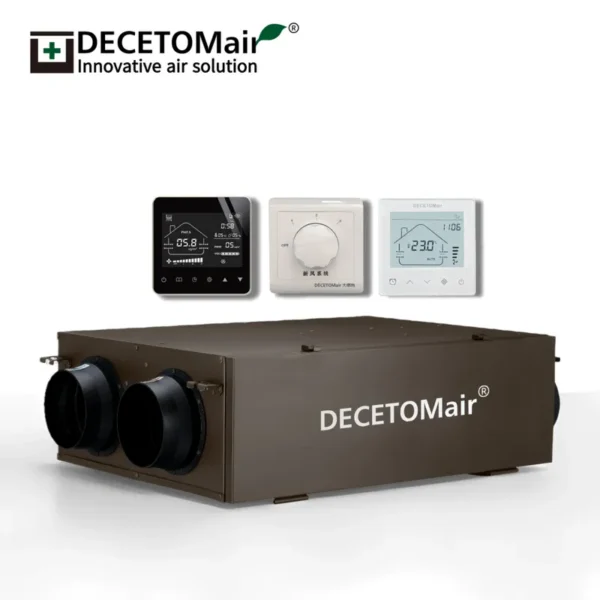

CONTROLLER OPTIONAL

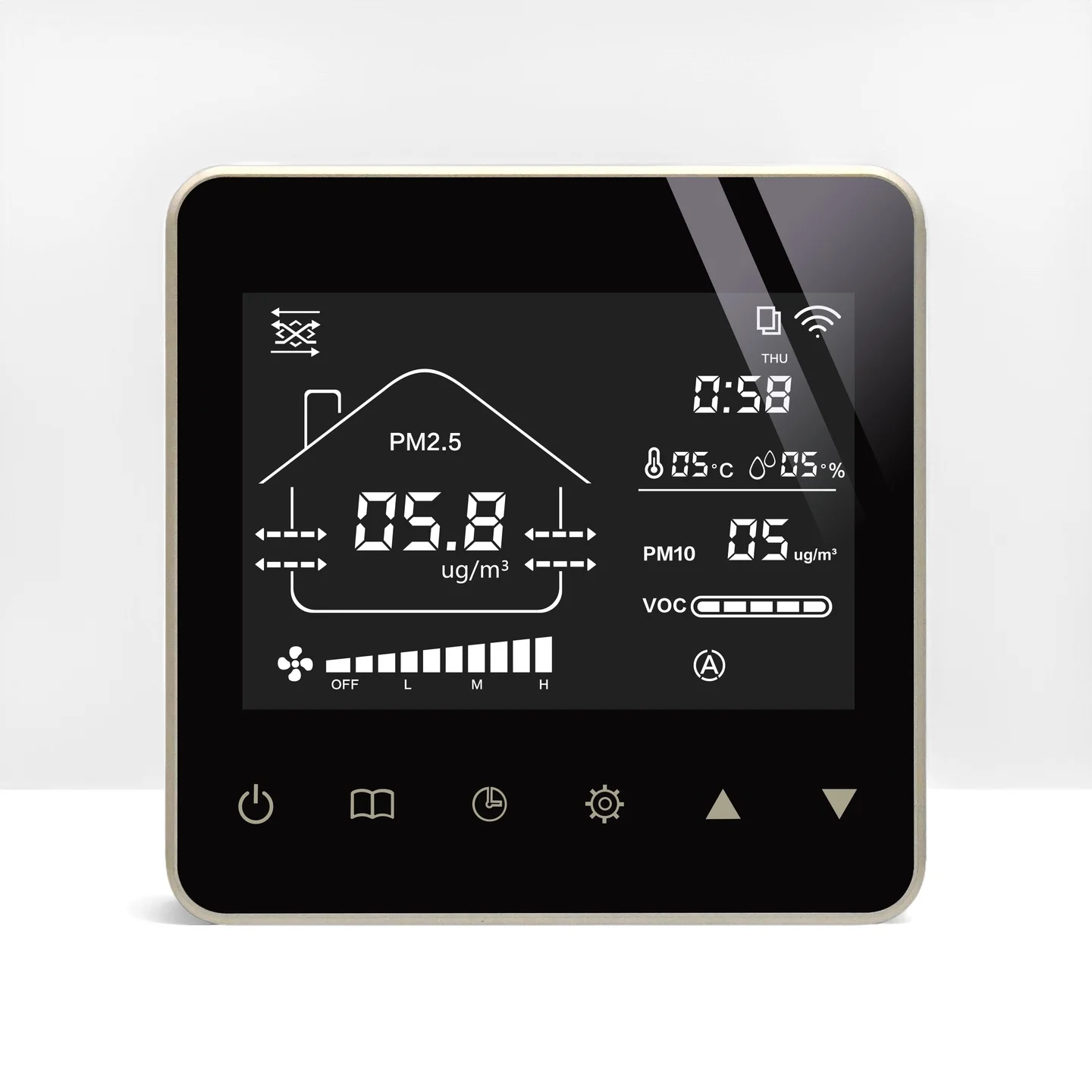

Intelligent LCD Controller/DM-900A

Timing function,

3.5-inch color screen controller

Temperature and humidity,

PM2.5, PM10 and TVOC sensors

Mobile phone APp function,

Tmall Genie voice control

Optional CO2 detection, RS485 port

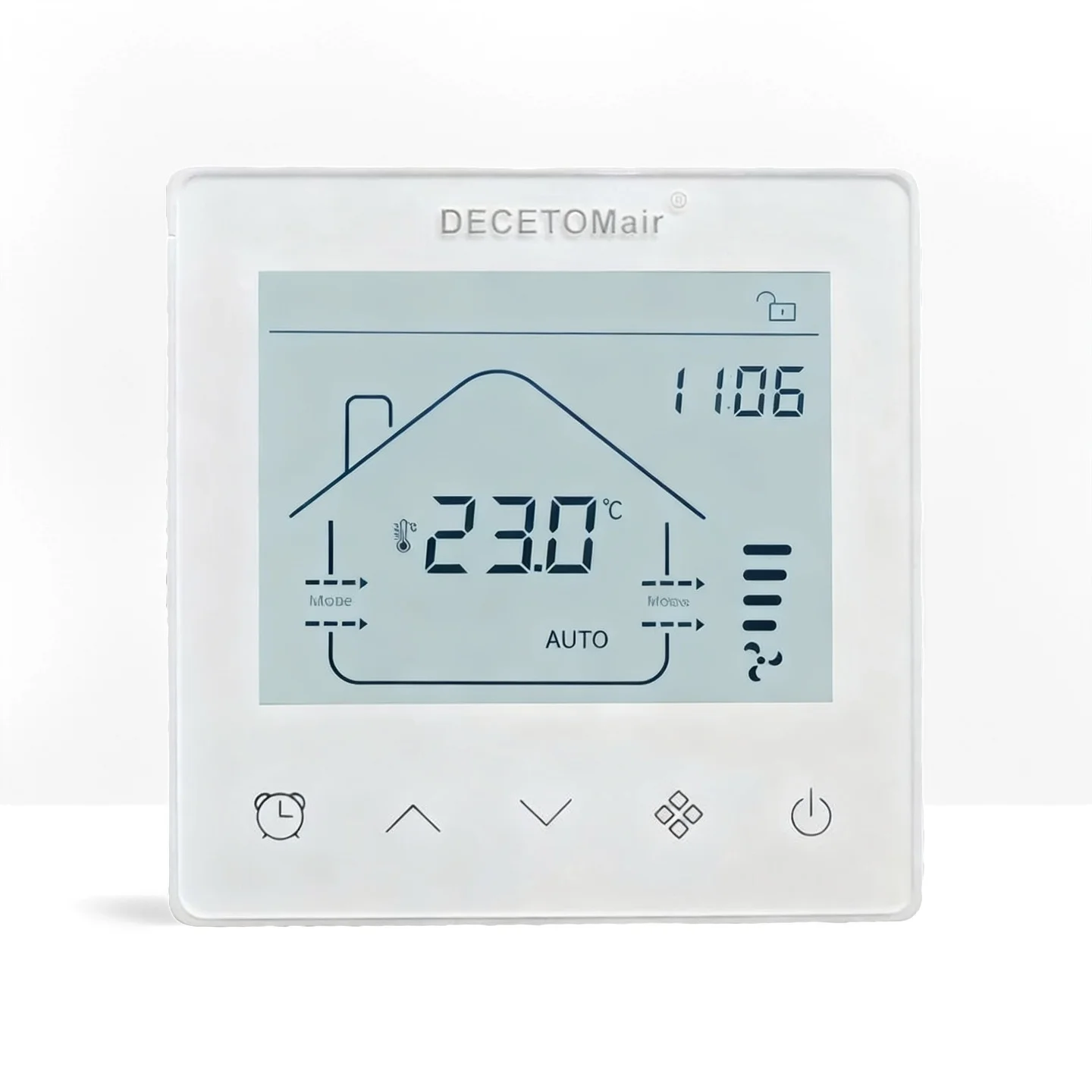

Standard LCD Controller/DM-A50

Timing Function

Indoor Temperature Display

Three-speed contro!

Filter Replacement Reminder

RS485 communication interface

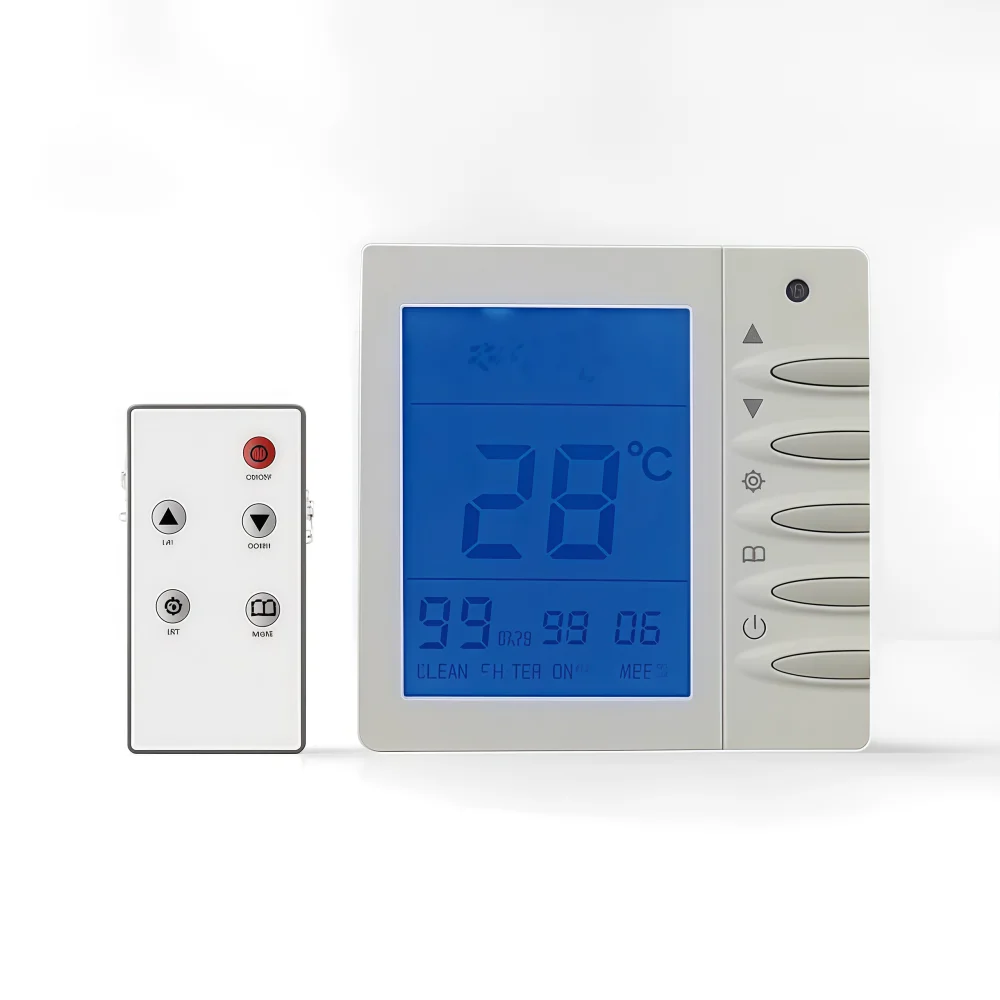

Remote Control LCD Controller/DM500A Timing Function Indoor Temperature Display

Remote control is optional

Three-speed Speed Control Filter Alarm

FINCTION IN WINTER

Heat exchange calculation formula: indoor air supply temperature =(indoor temperature – outdoor temperature) x heat exchange rate + outdoor temperature

FINCTION IN SUMMER

Heat exchange calculation formula: indoor air supply temperature = outdoor temperature – (outdoor temperature -indoor temperature) x heat exchange rate

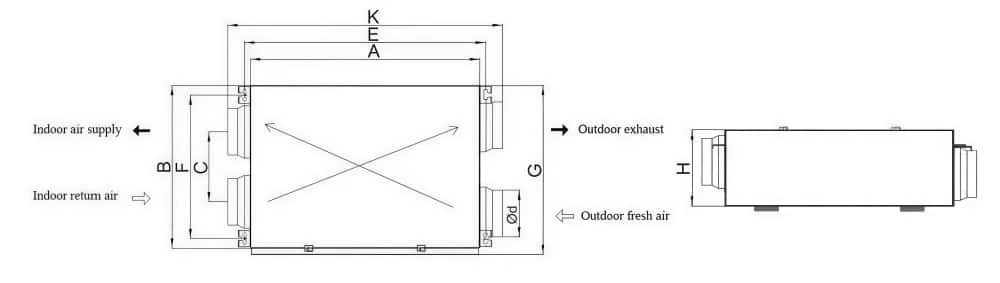

Model	A	B	C	E	F	G	H	K	Φd
AGQR-150	588	440	197	624	384	461	232	726	150
AGQR-250	588	440	197	624	384	461	232	726	150
AGQR-350	820	570	260	857	509	591	232	958	150
AGQR-500	820	570	260	857	509	591	232	958	150
AGQR-600	950	685	320	1014	618	704	282	1092	200
AGQR-800	950	685	320	1014	618	704	282	1092	200
AGQR-1000	1090	745	306	1155	680	765	295	1255	250
AGQR-1200	1090	745	306	1155	680	765	295	1255	250
AGQR-1500	1105	830	410	1169	765	851	332	1270	250
AGQR-1800	1105	830	410	1169	765	851	332	1270	250

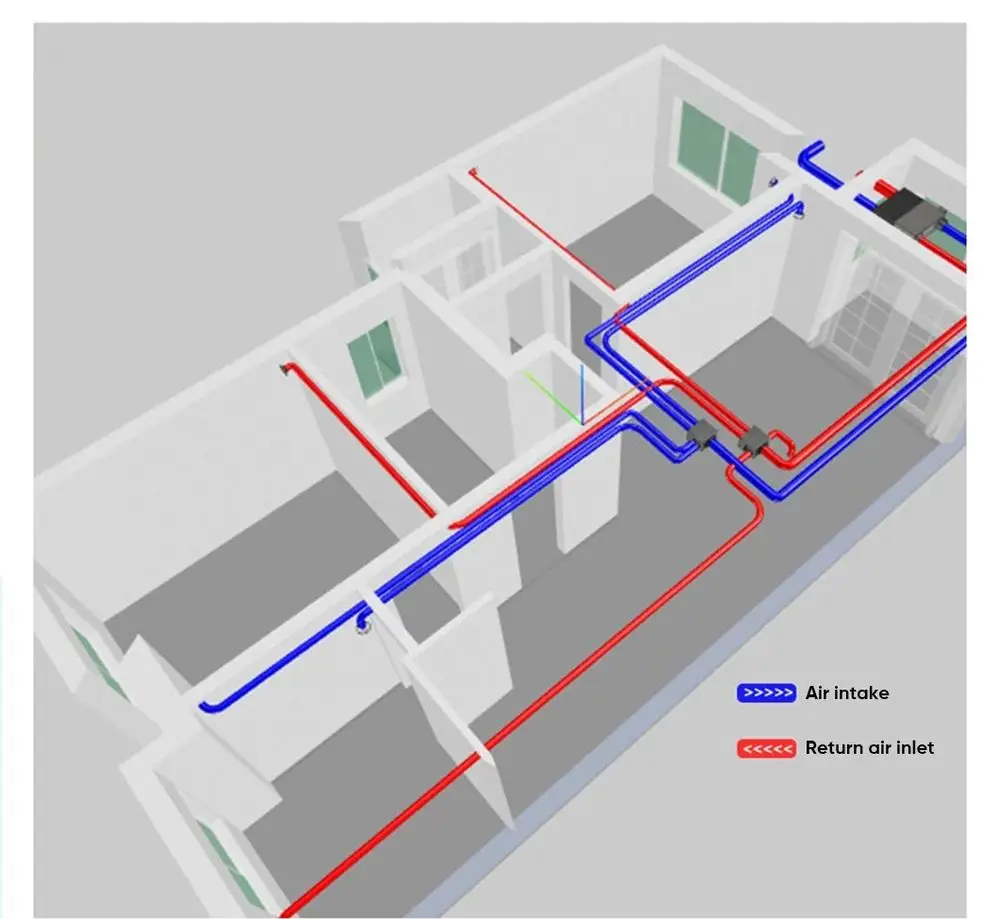

WHOLE HOUSE CYCLE

Large space fast circulation, breathable replacement, protect the respiratory

health of tens of millions of families.

* Can be customized packaging

* Models can be modifed

* OEM available

* Prototypes are available for a fee

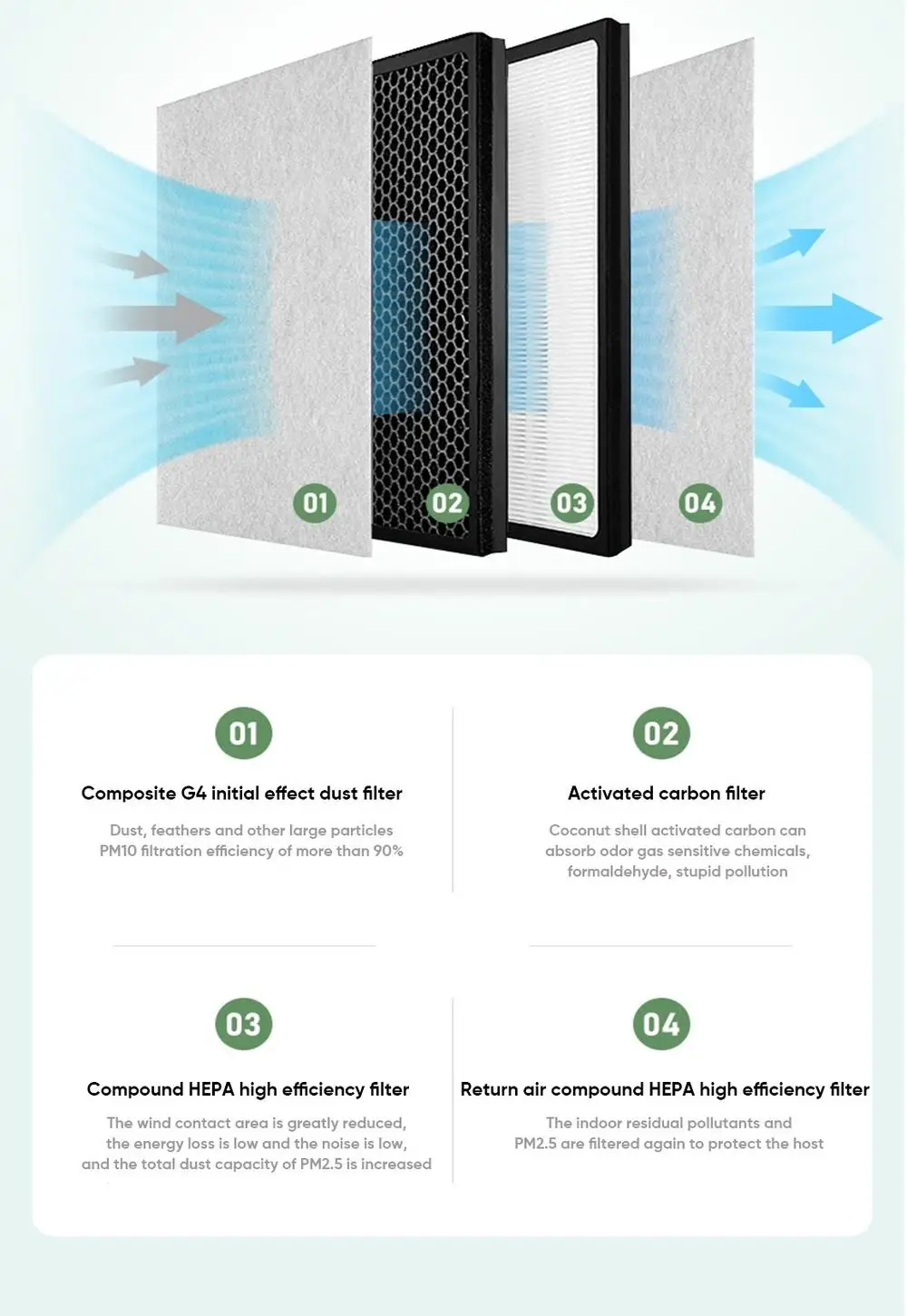

LONG-ACTING FILTRATION

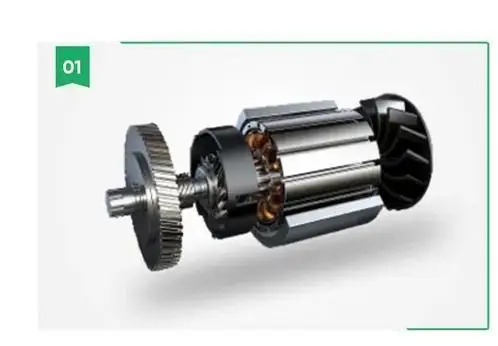

High quality AC motor

Can sun smoothly for a long time,

environmental protection and

energy saving, long life

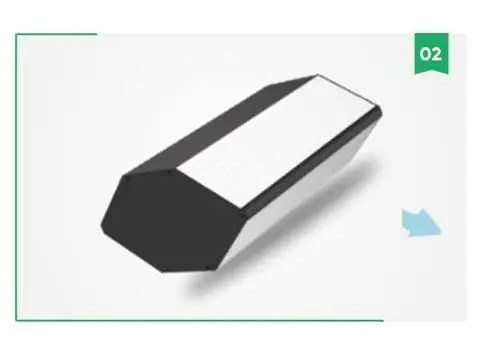

High efficiency

heat exchange

Imported antibacterial nano

paper film,resin frame efficient

solution to energy loss

Better performance

The delivery rate of higher pressure

air volume is more than 78%;

Motor service life is 18%% higher

than the industry average.

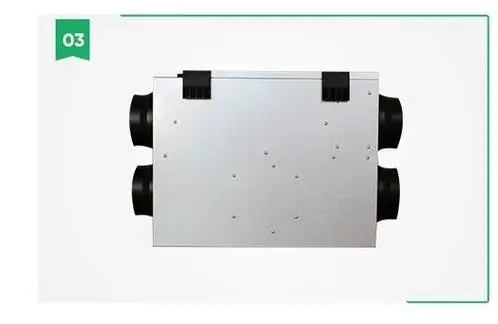

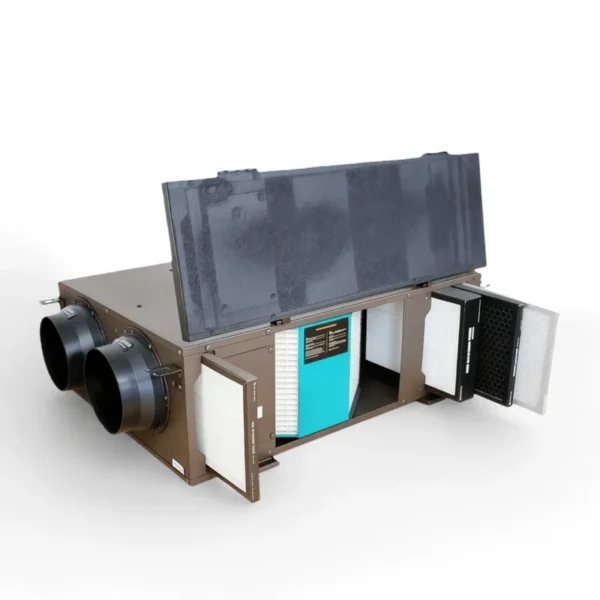

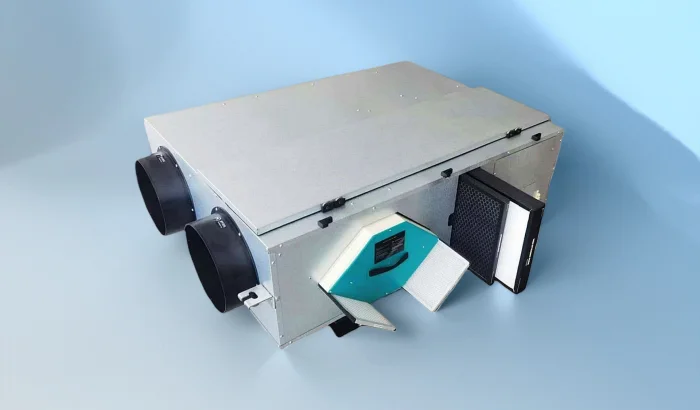

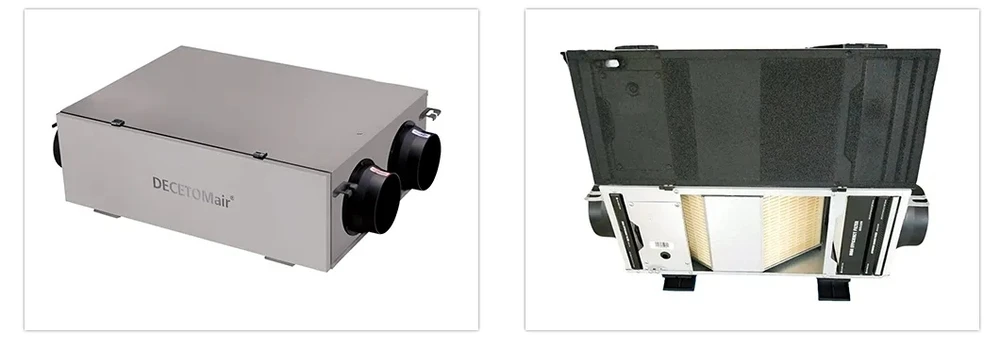

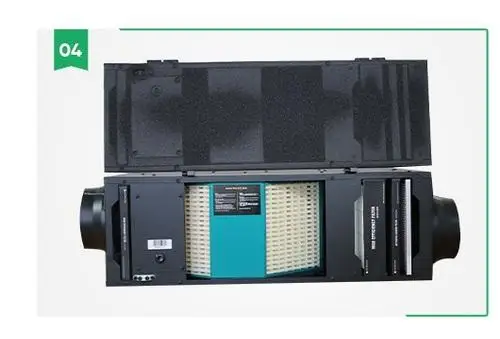

Ultra-thin body,easy

maintenance

Ultra-thin body design,

230mm height,

flexible installation to save

space,Bayonet type access door,

easy to access

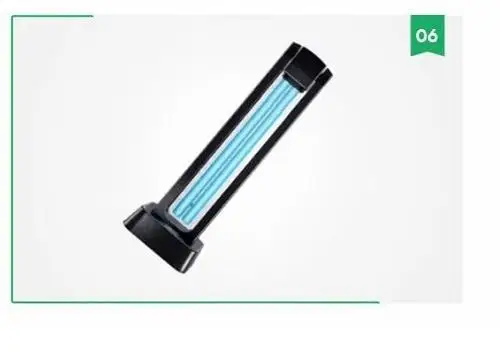

UV efficient

sterilization

The outdoor air into the room

to do UV efficient sterilization

treatment sterilization rate of

99.99%, medical grade is safer

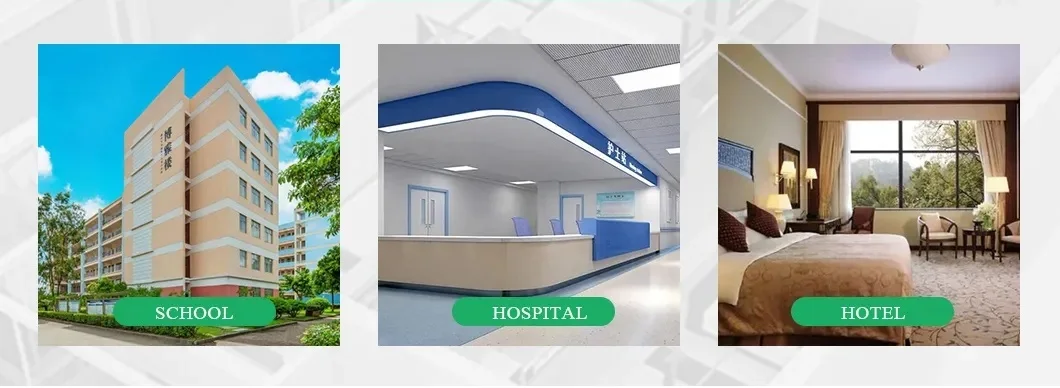

PRODUCT APPLICATION

Wenzhou Daqidi Technology Co., Ltd is headquartered in Wenzhou, Zhejiang Province, China, We have several production bases in Zhejiang, Shandong and Guangdong. specializing in the research and development, production and sales of various types of home and commercial air system products, water purify products and new energy sources products.

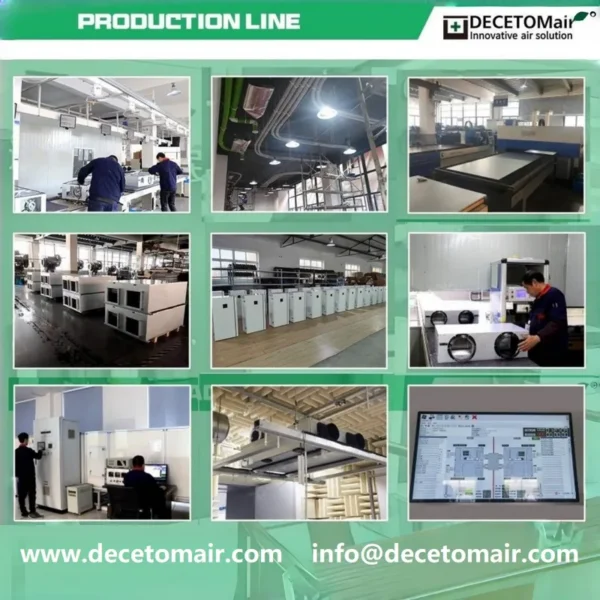

The company has a production area of nearly 35,000 square meters, more than 500 employees, multiple production lines and high-precision testing equipment, and a partnership with Xi'an Jiaotong University. Shanghai Jiaotong University. Tongji University and other institutions to establish long-term research and development cooperation, is China's indoor environmental health professional committee vice president unit.

The company has a number of patent certificates, high-tech enterprises, quality system certification, 3C certification, CE certification and other honors and qualifications. After more than 10 years of cultivation, the company has established a perfect production, sales and after-sales service system to ensure the provision of high-quality products and professional technical services. The company takes "technology for the benefit of mankind" as its mission, based on the health industry, to make more contributions to the healthy life of mankind.

Q: What is your MOQ?

A: Generally the MOQ is 10 sets for regular products, 50 sets for customised products. But MOQ bases on different models, and you will see detailed MOQ in our quotation. Or you can contact us for a quick answer by Alibaba TradeMessenger /e-mail/ whatsApp or telephone.

Q: How can I get a sample to check your quality.

A: After the price is confirmed, you can ask for samples to check our quality. If you ask for samples, we will collect sample fees(Some model is free). But the difference in price of the samples will be refunded to you after the order is officially placed.

Q: Can you do the design for us?
A: Yes, your design is also welcome. Please send your design idea or drawing to us, and we customize it for you.

Q: What is the payment terms?

A: T/T 30% as deposit before production, T/T 70% as balance before shipment.

Q: What is your delivery time?

A:Retail delivery: in 7 days Sample delivery: in 7-20days Wholesale delivery:15-50 days The exact delivery time is determined by the model, quantity and time of placing the order.

Q: What is the quality assurance?

A: One year guarantee for the complete machine, three-year guarantee for motor and lifelong paid maintenance service. But warranty times will vary from product to product, depending on the product you choose.

Q: How will you arrange the shipment?

A: For small samples,we send by DHL/FedEx/UPS/TNT express, and mass production will ship by sea. Sometimes, if you have cargo to go from other Chinese factories,we also can help you arrange consolidation shipment.

1

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–4 unit: US $303 / unit
  • 5–19 unit: US $236 / unit
  • 20+ unit: US $212 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this home hvac systems?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this home hvac systems carry?

It is supplied with CE/ROHS/IS09001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the home hvac systems be supplied for my local voltage?

The standard configuration is AC 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
